MT160 Digital Ultrasonic Metal Fiber Glass 0.75~300mm USB Communication Port LCD EL backlight Internal Memory Thickness Gauge

Feedback Ratings
  • 1 Pieces
    $349.00
  • 2-4 Pieces
    $309.10
  • 5-9 Pieces
    $301.30
  • >=10 Pieces
    $293.80
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Brand Name:
Mitech
Model Number:
MT160
Measuring range:
0.75-300mm (depends on probes)
Resolution:
0.1mm
Accuracy:
±(0.5%Thickness + -0.04) mm, depends on probes
Display:
4.5 digits LCD with EL backlight
Velocity Range:
1000-9999m/s
Unit:
Metric/Imperial unit selectable
Operating Temperature:
-20°C~+60°C
Type:
Thickness Gauge Meter

Packaging & Delivery

Selling Units:
Single item
Single package size:
7X15X3 cm
Single gross weight:
1.5 kg
Package Type:
Standard Factory Packaging
Lead Time :
Quantity(Piece) 1 - 5 6 - 10 11 - 20 >20
Est. Time(days) 3 7 14 To be negotiated
Product Description

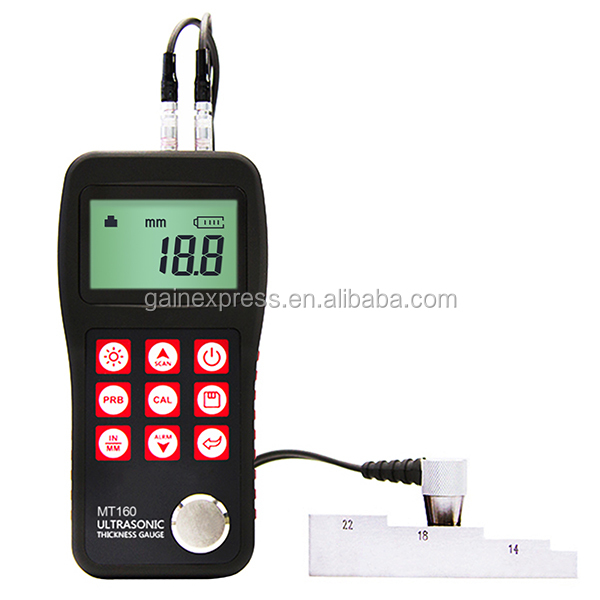

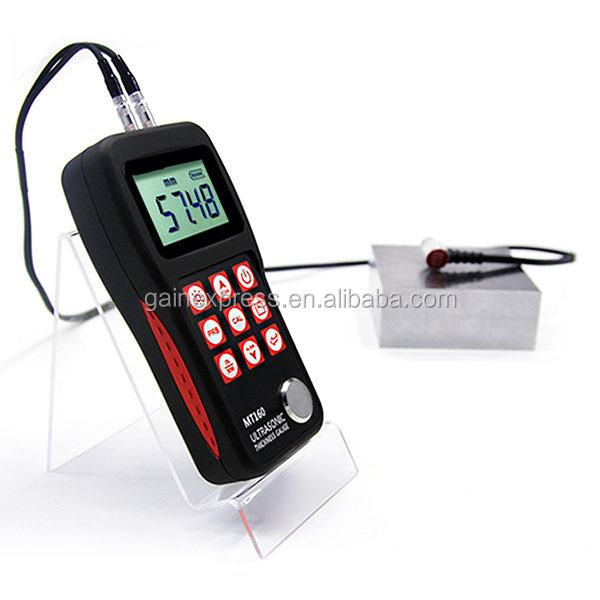

MT160 is a digital ultrasonic thickness gauge with a measuring range of 0.75-300mm suitable for measuring thickness of wide range of materials such as metals, plastics, ceramics, glass and other good ultasonic conductors. It has a USB port for communication storage purposes.



This is an ideal tool for precise measurement of sheet metal and machined parts and is widely used in various fields such as in pertroleum, chemical, metallurgy, ship building, aviation, aerospace and others for monitoring corrosion thinning degree of various pipes and pressure vessels.







Features





  • Communication storage through USB and optional software for transferring and processing data
  • Transducer models are available for special applications
  • Dual straight beam probes with different frequencies and crystal sizes are available
  • Zero calibration, two-point calibration, automatic error correction system

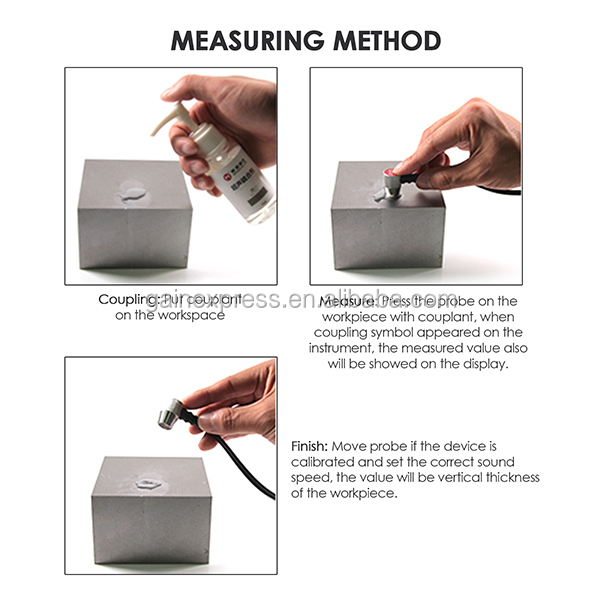

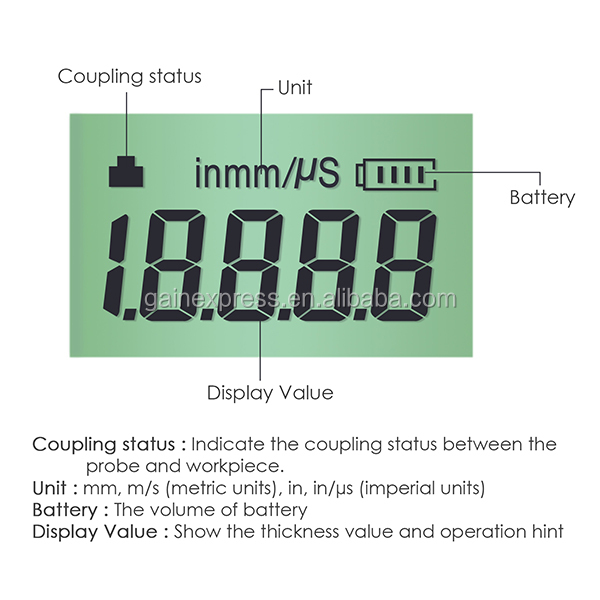

  • Coupling status indicator that verifies a good connection with the work surface
  • With EL backlight
  • Working time is 100h (EL backlight off)
  • Remaining battery indicator displays remaining power in real time
  • Auto sleep and auto power off function
  • Small, portable, high reliability for harsh operating environment, anti-vibration, anti-shock and anti-electromagnetic interference

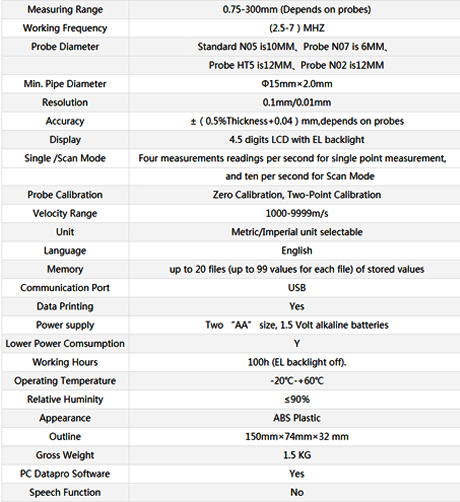

Specifications



  • Measuring range:0.75-300mm (depends on probes)
  • Resolution: 0.1mm
  • Accuracy: ±(0.5%Thickness + -0.04) mm, depends on probes
  • Display: 4.5 digits LCD with EL backlight
  • Velocity Range: 1000-9999m/s
  • Unit: Metric/Imperial unit selectable
  • Operating Temperature: -20°C~+60°C
  • Relative Humidity: ≤90%
  • Memory: up to 20 files (up to 99 values for each files) of stored values

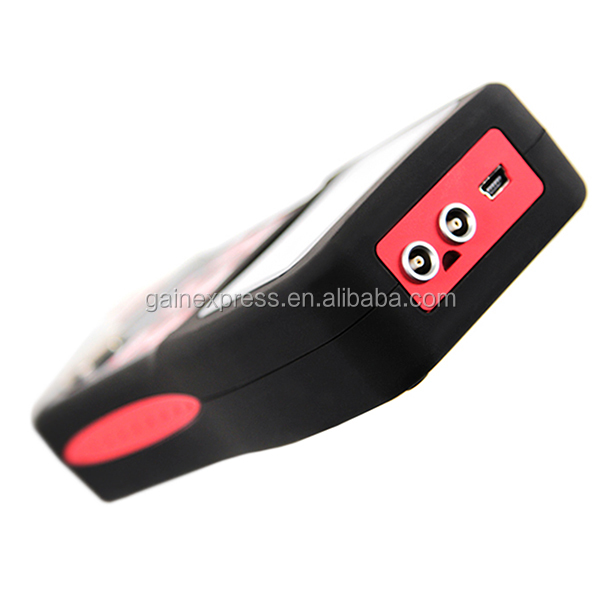

  • Communication Port: USB

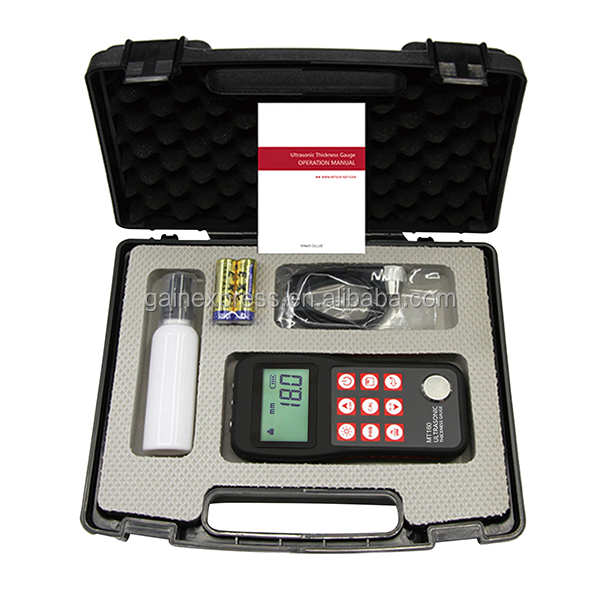

Set Includes:

  • 1 x Main Unit
  • 1 x Transducer N05/90°
  • 1 x Couplant Bottle
  • 2 x AA Alkaline Batteries
  • 1 x Operation Manual
  • 1 x ABS Carrying Case







Optional Items

  • Transducer N05
  • Transducer N02
  • Transducer N07
  • Transducer HT5
  • High Temperature Couplant
  • Data Proceeding Software
  • Software Communication Cable
