Multi Round Bag Filter Housing SS For Mud Filtration

Feedback Ratings
US $1500.00 / Unit |1 Unit (Min. Order)
Quantity:
- + Units available
0piecesselected, US $in total
View Details
Shipping:
China
Please confirm the quantity of the goods.
Overview
Quick Details
Type:
water filter bag
Use:
bag filter
Certification:
CE
Power (W):
0
Voltage (V):
0
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Yilida
Model Number:
YL-2-500
Product name:
Multi-bag filter housing
material:
SS304/316/316L
Model:
YL-2-500
Flow rate:
120m3/h
inlet and outlet:
DN100mm/4 inch
Size:
500*810mm
filter bag:
3 filter bags
filter area:
1.38m2
filtration degree:
0.5um-200um
Working Pressure:
1.0MPa

Multi Round Bag Filter Housing SS For Mud Filtration



Product Description



Filter Bag Housing SS
Filter Bag Housing SS are a lightweight, economical, industrial commercial design
suitable for a wide variety of filtration applications. The 100% stainless steel and
passivated finish provides superior corrosion resistance and an excellent appearance.
The clamp type closure make cartridge change-out quick and easy.


304 or 316 stainless steel construction for best chemical compatibility and corrosion resistance. Low pressure drops, high filtration efficiency. Electro-polished external housing for superior finish. Easy access for housings cleaning or bags chang-out, no tool needed. Lid o-ring sealing between cover and housing, preventing liquid leakage. Patent-design bag posigioning ring provide positive sealing when used with APM filter bags, preventing bypass of unfiltered liquid. Heavy-duty bag support baskets. Multiple pressure ratings available.



Advantages



Our multi-round vessels effectively remove dirt, pipe scale, and other contaminants from process liquids such as water, chemical, and petroleum products. Quality construction and design assure protection for all down-stream equipment.



Housing Operation
Unfiltered liquid enters the housing above the filter bags or strainer baskets, flows down into the housing, and continues through the elements. Solids are trapped inside the filter bags or strainers and easily removed when the housing is serviced. Our standard o-ring seal between the baskets and the housing ensures a postive seal to prevent bypass.



Vessel Construction

Our multi-round vessels are designed for operating up to 150 PSI at 300 degrees Fahrenheit. The housing design provides a large sump area at the bottom of the basket for particulate accumulation. This design utilizes the filter more efficiently and prolongs the element life.



The 316 S.S. basket seals onto a buna o-ring to eliminate particulate bypass between the basket and seat. Optional mesh-lined strainer baskets and o-rings are available. Please refer to their individual brochures in our liquid catalog.



Technical Parameters

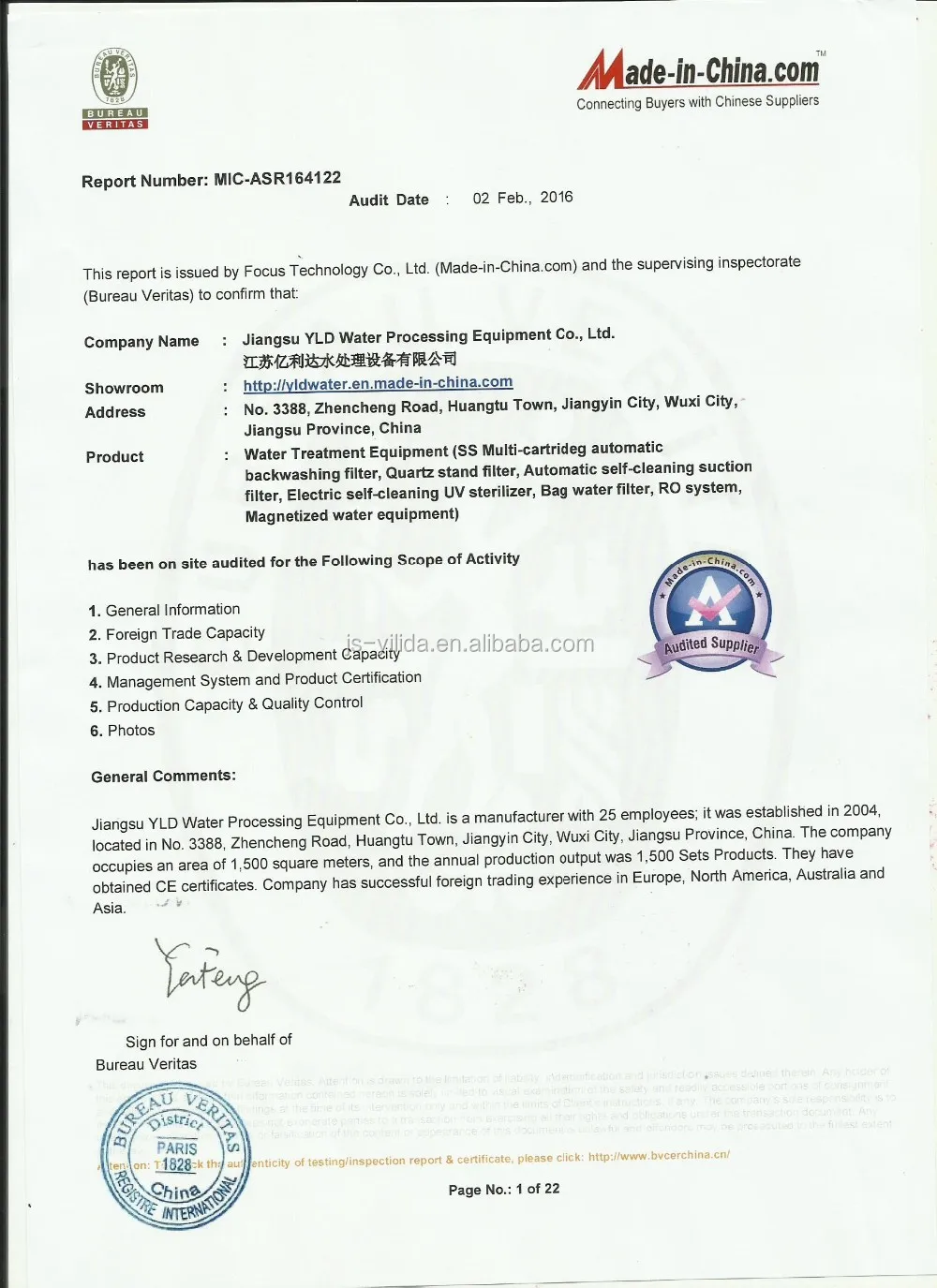

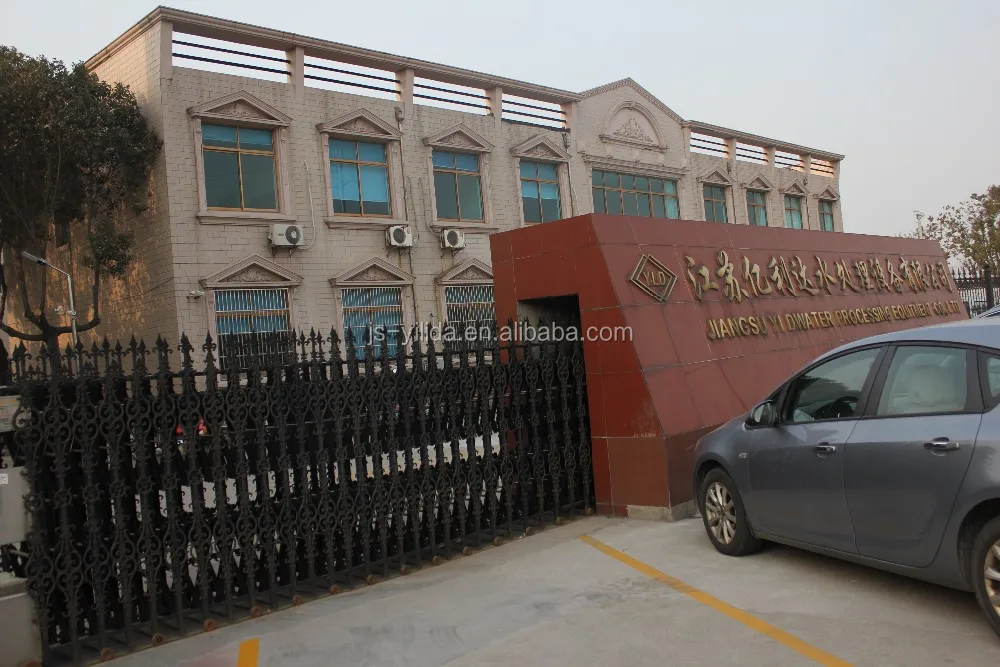

Company Information



Our Services

We provide 24 hours online customer service.

Any inquiry about water treatment system, please feel free to contact me for further details!

Contact information:

Mobile phone: +86 15295068302

Email: lucy AT jsyld.com.cn

Alibaba website: http://js-yilida.en.alibaba.com

Official website: WWW.jsyld.com.cn

Packaging & Shipping

Package: wooden cases into container

Delivery: 7-10 working days after deposit received in advance

Shipping methods: FOB Shanghai or by air
