NK912 REX-C100 Intelligent adjust Digital Industrial Temperature Controller

Feedback Ratings
$10.00 / Piece | 1 Piece (Min. Order)
Usage:
Industrial
Theory:
Thermocouple Thermometer
Accuracy:
0.1
Temperature range:
0-9999
$10.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
NQQK
Model Number:
REX-C100
Product name:
Temperature Controller
Type:
REX-C100
Color:
Black
Certificate:
ISO9001,CE
Power supply:
5V
Thermocouple:
K,R,B,N,L,J,S,E,T,PL,U
Current input:
0-20mADC
Control Mode:
PID
alarm:
choose 1 or 2 or not
water proof:
yes or not

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X10X10 cm
Single gross weight:
0.5 kg
Package Type:
carton

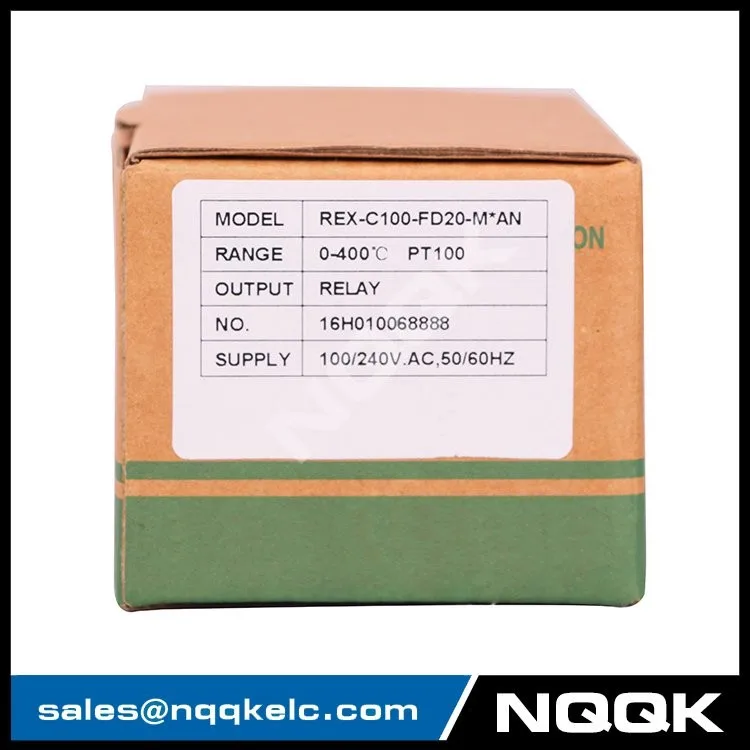

Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(days) 3 To be negotiated

REX-C100 Intelligent adjustion Digital Industrial

Temperature Controller

Product Description





Main Technical Index
Input
Thermocouple(TC),Resistance Temperature Detector(RTD),Standard Current and voltage signals.
DisplayProcess Value(PV),Setting Value(SV):-1999~+1999
Output( OUT1,OUT2) Alarm(Alarm1,Alarm2) Auto setting(AT) Display: LED
Control way1).PID Control(including ON/OFF, position PID and continuous PID)
(2).Auto Setting Control
AccuracyMeasurement Accuracy:±0.5%FS Compensation error of cold terminal:±2°C(amend within 0~50°C by soft)
Resolution:14bit. Sampling period:0.5Sec.
Setting RangeSetting Value(SV):same range with PV
Proportional Band(P):0~full range(ON/OFF Control when set to 0)
Integration Time(I):0~3600Sec (no integral action when set to 0)
Derivative Time(D):0~3600Sec(no derivative action when set to 0)
Proportional Period:1~100Sec
On-off control output hysteretic loop width:1~100°C(or other PV units)
Control Output(1)Currency output: DC 0~10Ma,4~20mA(RL less than 500Ω)
(2)Voltage output: DC 0-5V,1-5V(RL more than 10K)
(3)Relay output: Contact capacity:250V AC 3A(resistive load)
(4)Voltage Impulse output:0-12V(applicable for solid state relay SSR)
(5)Silicon Controlled Rectifier(SCR) output: zero-cross triggering or phase-shift triggering(resistive load)
(6)Output Contact Capacity:250V AC 3A
Alarm output2 groups output at most,12 modes
Inanlating resistanlemore than 50MΩ(500V DC)
Inanlating intensity1500V AC/min
Power consumedless than 10 VA
Work condition0~50°C,30~85RH,no corrosive gas
Weightabt.0.5Kg(CXTA type)





Model Name
1.Outline dimension: See the outline dimension picture 7.Second control output( OUT2) (Cooling side)
2.serial numberNo mark: when the control mode is F or D
3.Control Mode M: Relay contact output T: Thyratron output
0:PID operation and auto calculating (reverse operation) V: Voltage impulse output 8: Current output(IC 4-20mA)
1:PID operation and auto calculating(Forward operation)T: Thyratron output
4.Input mode:Refer to input Range Table8: Current output(IC 4-20mA)
0:TC,RTD8.First alarm(ALM1),
1:standard current 4~20mA,0~20mA9.Second alarm (ALM2)
2:standard voltage:0~5V DC,1~5V DCN:no alarm
3:electronic sigral code:(Ω) A: Upper-limit deviation alarm
5.femperature unitB: Lower-limit bias alarm
0:degree celsius (°C)C: Upper/lower limit bias alarm
1:Fahrenheit (F)D: alarm in area
6.First control output(OUT1) (Heating side) E: Standby upper-limit bias alarm attached
M: Relay contact output F: Standby lower-limit bias alarm attached
V: Voltage impulse output G: Standby upper/lower limit bias alarm
T: Thyratron output H: Upper-limit input value alarm
8: Current output(IC4-20mA) J: lower-limit input alarm
G: Thyratron driving & triggering outputK: Standby upper-limit input alarm attached
 L: Standby lower-limit input alarm attached



Extemal dimensin

REX-C100
CXT -3000
A
B
C
D
E
F
G
H
C100
CXTG
48
48
10
100
45
45
80
80
