P10 led p10 display module red color 560 gram

  • 100-299 Pieces
    $3.35
  • >=300 Pieces
    $3.22
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 2000 Pieces)
Samples: $5.80 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $5.80 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
coolview
Model Number:
CV-O-P10RC
LED:
DIP446
Packing:
CTN
Waterproof:
IP65 front ,IP54 rear
module size:
320*160mm
Brightness:
>3500cd/sqm
LED composition:
1R
N.W for module:
0.5 KG
Usage:
outdoor environment, OUTDOOR
Power supply:
AC 110V,220V,380V based on clients need
Driving mode:
1/4 scan
Tube Chip Color:
Red
Display Function:
ANIMATION
Pixels:
10mm
Screen Dimension:
320*160mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
52X35X35 cm
Single gross weight:
22.0 kg
Package Type:
carton
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 To be negotiated




Coolview led p10 display module Description:



led display for indoor stage outdoor advertisement, music club use, The advantage of the LED display is low power consumption,transparent & low cost. The most common use LED curtain display is

P10mm,P16mm , P20mm . The Large size,full colorfull effect for the outdoor advertising.

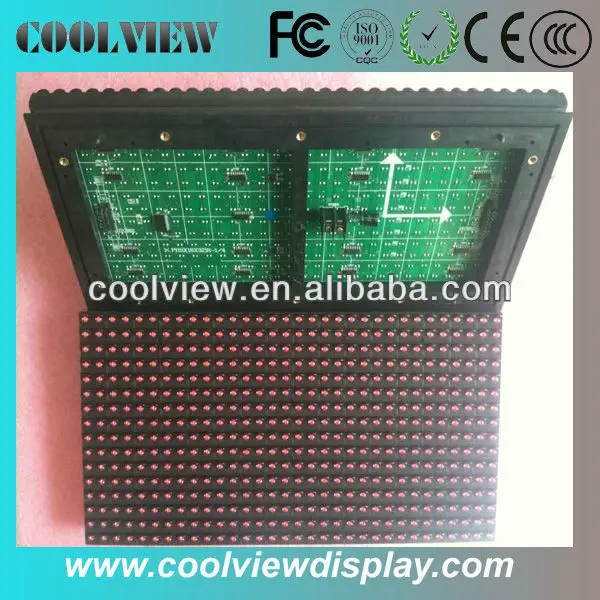

led p10 display module Module:



 P10 4.jpg



led p10 display module Technical parameters:



Project classificationConventional display
modelP10
Pixel unit modulePixel pitch(mm)10
Pixel density (dots/sqm)10000
LED typeDIP 446
Module size(mm)W320×h160
Pixel composing1R
Pixel unit screenscreen size(mm)based on customer need
module Resolution (nits)W32×h16
Cabinet structureWater-proof
installationfixed on the back
screen materialironaluminum
The way the cascadeAviation head
Protect degreeIP65 front ,IP54 rear
Display parametersViewing distance(m)7~105
brightness(cd/sqm)2400 cd/sqm or 2400 nits
Power consumption (w/sqm)18 max
Driving IC1/4 scan SL 16739P
Refresh rate(HZ)≥2000
Display ratio (suggest)4:3/16:9
Viewing angel(c)H130 V65
System working voltage88-132VAC176-264VAC 47-63HZ
Other parameterImage adjustmentcontrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc
Image processingVideo noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc
Brightness uniformityThe whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9
Gray65536
Color temperature/contrastRed, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need
Transmitting DistanceThe shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers
Input SignalRF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION
Control SystemPCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer
Average No Failure Time5000 hours
Life span100,000 hours
Out-of Control rate0.0001
To floor drain currentLess than 3.5MA
Control systemSynchronized
Operating Environment Temperature-20°C—65°C Optional



Coolview led p10 display module after-sale service:



1. Lifetime free maintenance and upgrade.

2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

3. Customer satisfaction tracking report.

4. Free technician training.

5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance

manual and control system software CD and so on.

6. Special service for big project, such as stadium, exhibitions, squares and so on.

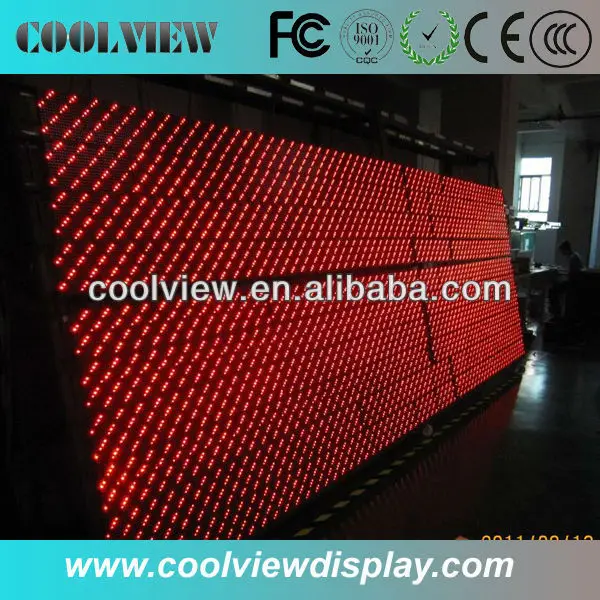

led p10 display module factory:



.jpg



P10 .jpg

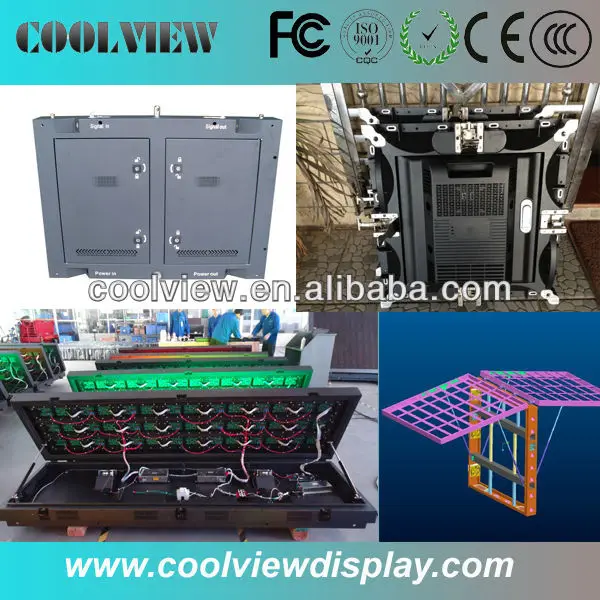

led p10 display module all kinds of cabinets:



.jpg

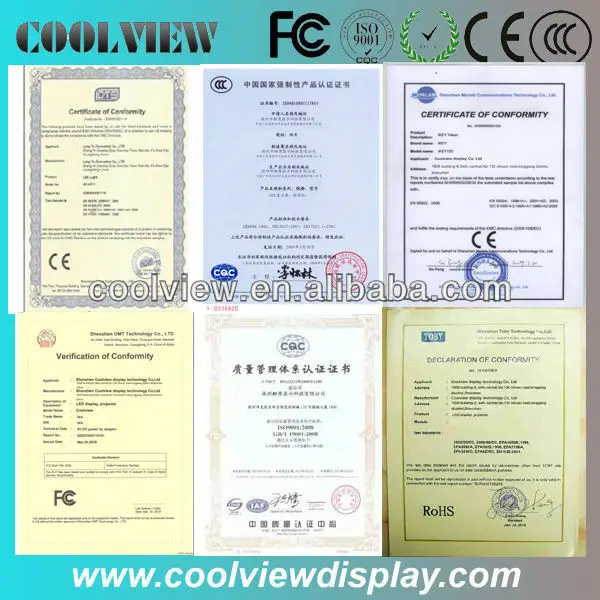

Coolview certificates for led p10 display module :



  .jpg
