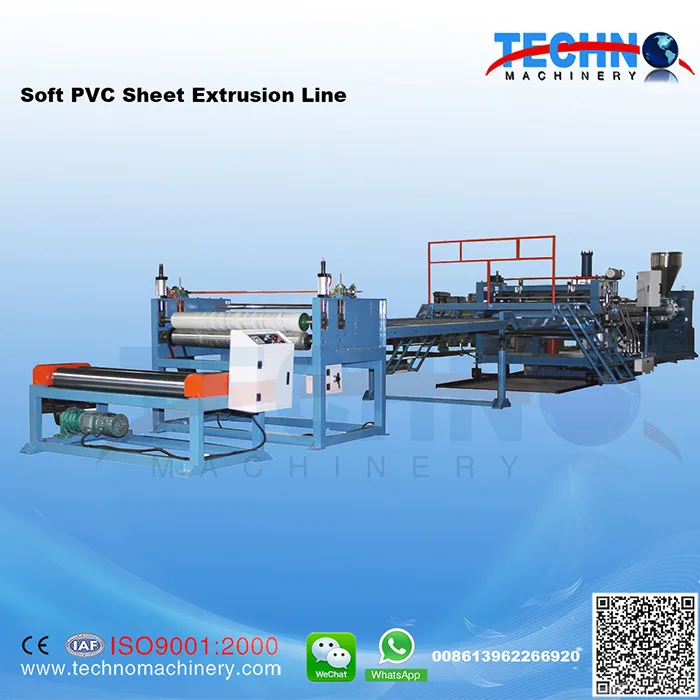

PVC Sheet Extrusion Production Line/Rigid or Soft PVC Sheet Plate Making Machine

$85,000.00 - $9,999,999.00 / Set | 1 Set (Min. Order)
Model Number:
SJSZ-65 1000
$85,000.00
- +
available
SJSZ-80 1500
$115,000.00
- +
available
Customized Sheet Specification Making Machine
$9,999,999.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
80 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Customized Sheet Specification (Min. Order: 1 Sets)
Customized Textrure Roll (Min. Order: 1 Sets)
Customized Electric Components (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Sheet
Plastic Processed:
PVC
Screw Design:
Double-screw/Single-screw
Place of Origin:
Jiangsu, China
Brand Name:
Techno
Voltage:
220-480V CUSTOMIZED
Dimension(L*W*H):
Machine Model
Weight:
8000-30000kg
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Sheet Width:
300-2500mm
Thickness:
0.2-20mm
Extrusion Capacity:
120-500kg/h
Processing Type:
Extrusion Machine
Screw Structure:
Conical Twin Screw/Single Screw(Soft PVC)
Finished Product:
PVC Rigid,Soft,Transparent,Crystal Sheet
Line Speed:
0.5-5m/min
Calender Control:
Inverter
Keywords:
PVC Sheet Extrusion Production Line
Automatic Grade:
Fully Automatic
Power:
30-250KW

Packaging & Delivery

Selling Units:
Single item
Single volume:
40 cm 3
Single gross weight:
10000.000 kg
Package Type:
Standard Export Seaworthy Packing PVC Sheet Extrusion Production Line/Rigid or Soft PVC Sheet Plate Making Machine Please kindly note that the machine packing size(unit is m3) and weight is for small model, others' pls consult from us.Thanks.
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 80 To be negotiated
Video Description
Product Description

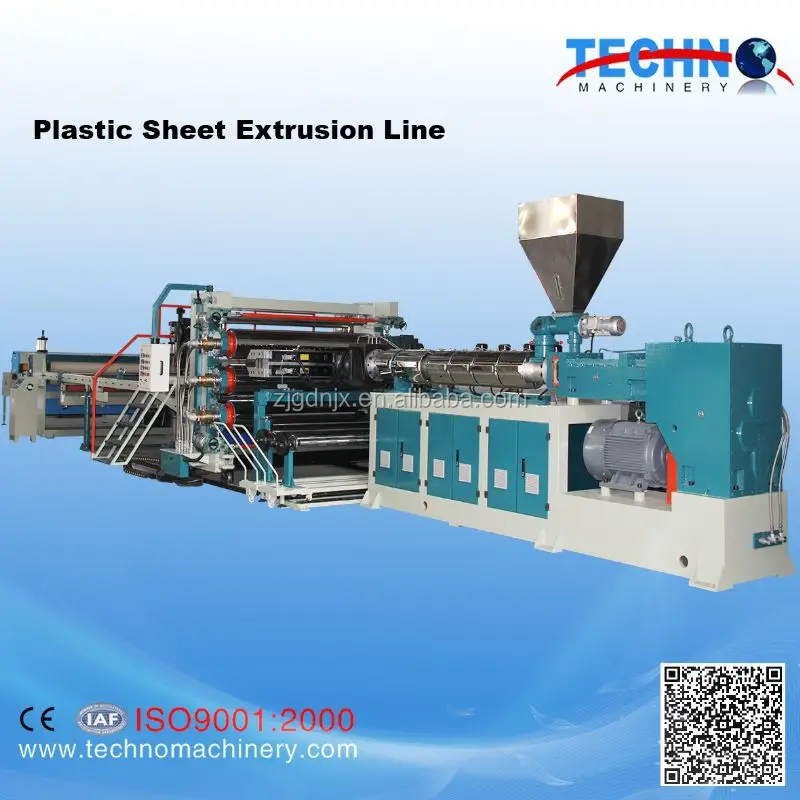

Plastic Sheet Extrusion Process

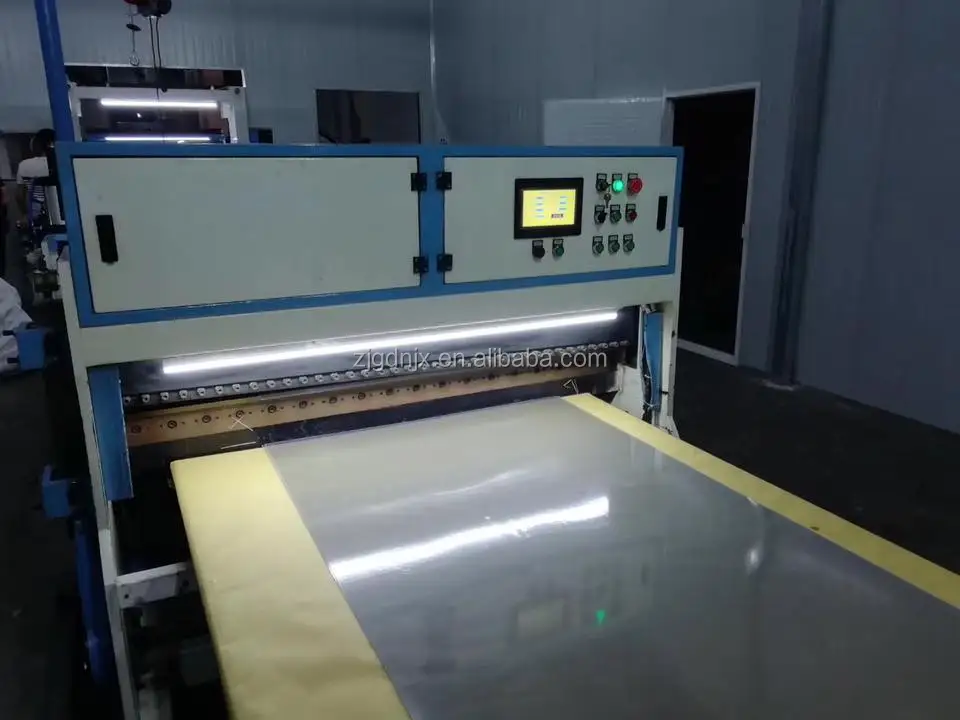

Plastic pellets are fed into the barrel of the extruder and conveyed by the screw, the heaters which are outside of the barrel of the extruder as well as the friction from the rotation of the screw melt the plastic pellets into a sheet mold and then placed on a three-roll calender, the produced sheet goes through the bottom and middle roll,wrapping around back of the middle roll and then back to the top roll or other methods as shown in sheet calender picture, these rolls are helpful to take the heat out of the sheet, after the sheet comes off the roll,it moves down the conveyor to the end of sheet line where the edge trimmer cuts the sheet to width as well as a sheet shear cutter to length.

Models of Sheet Machine
Extruder
SJSZ-51/105
SJSZ-65/132
SJSZ-80/156
SJSZ-92/188
Product Width
100-320mm
500-1000mm
500-2000mm
500-3000mm
Product Thickness
0.2-20mm
0.2-20mm
0.2-20mm
0.2-20mm
Main Power
18.5KW
37KW
55KW
90KW
Max Output
120Kg/h
250kg/h
380Kg/h
450Kg/h
Techno Sheet Roll Calender System
Roll Width
220-3000mm
Roll Construction
Solid roll with peripheral cooling holes, Displacement body roll
Roll Diameter
250-800mm
Roll Arrangement
Horizontal, Vertical, Tilted
Roll Gap Adjustment
Variable from 0-100mm
Gap Adjustment
Servo-hydraulic
Gap Adjustment Precison
0.005mm
Line Speed
0.05-100m/min
Drive System
AC Servo Drives
Roll Surfaces
Chrome-plated, polished finish, high polished mirror, matt, embossed, structured
Embossing Patterns
Upon Inquiry
Certifications
Detailed Images

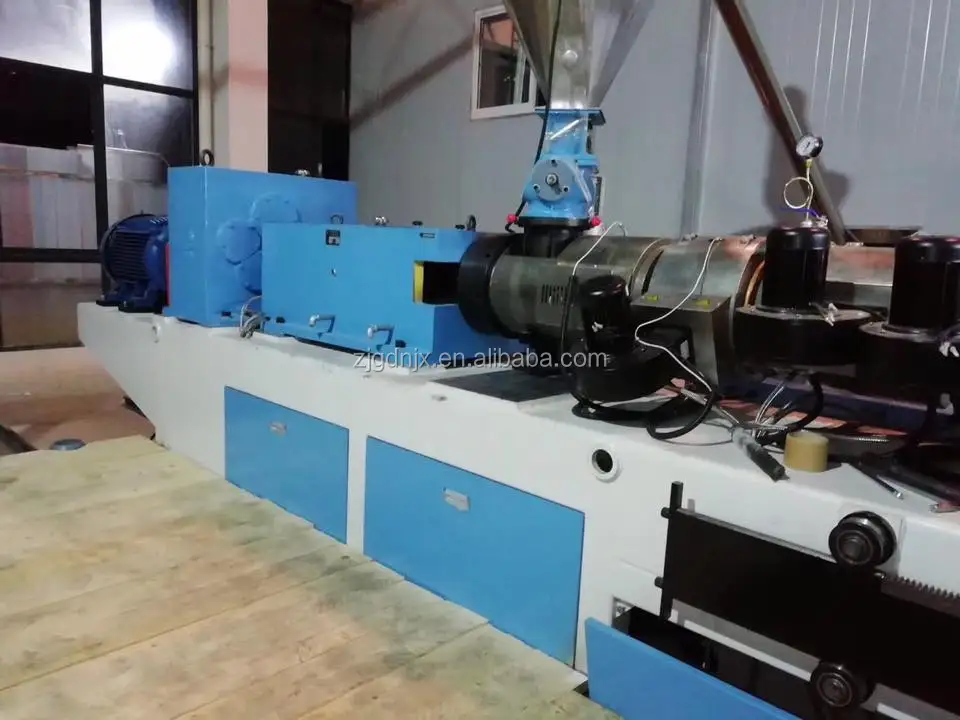

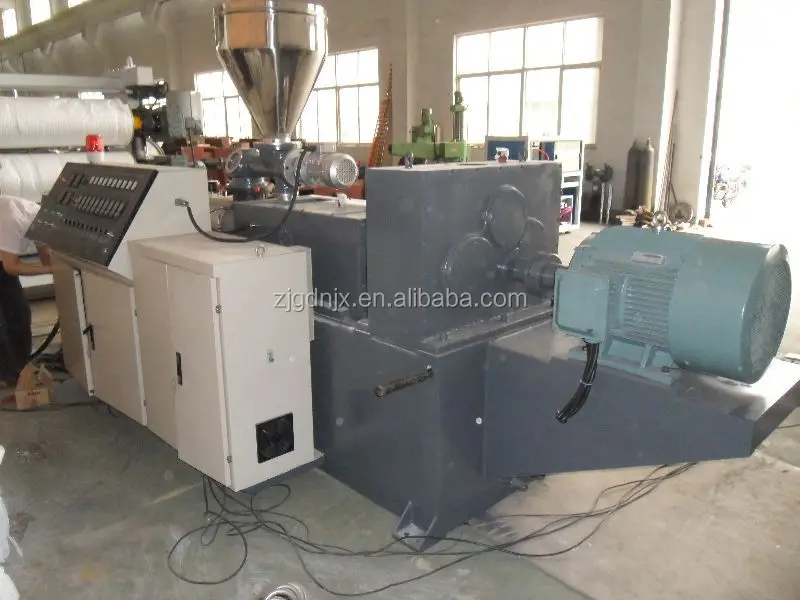

Extruder

Twin screw extruder screw adopts special design with efficient mixing function and high plasticizing capacity.Extruder screw and barrel are made of high quality special alloy steel.

Mould

Die uses double throttling design to ensure sheet thickness accurate.A flexible lip adjusting system to provide an uninterrupted flow surface in the lip area.The lip is flexed to adjust the gap,the bolts always remaining in compression eliminate thread slack and resulting loss of sensitivity inherent to push-pull system.All stainless steel construction provides corrosion resistance.

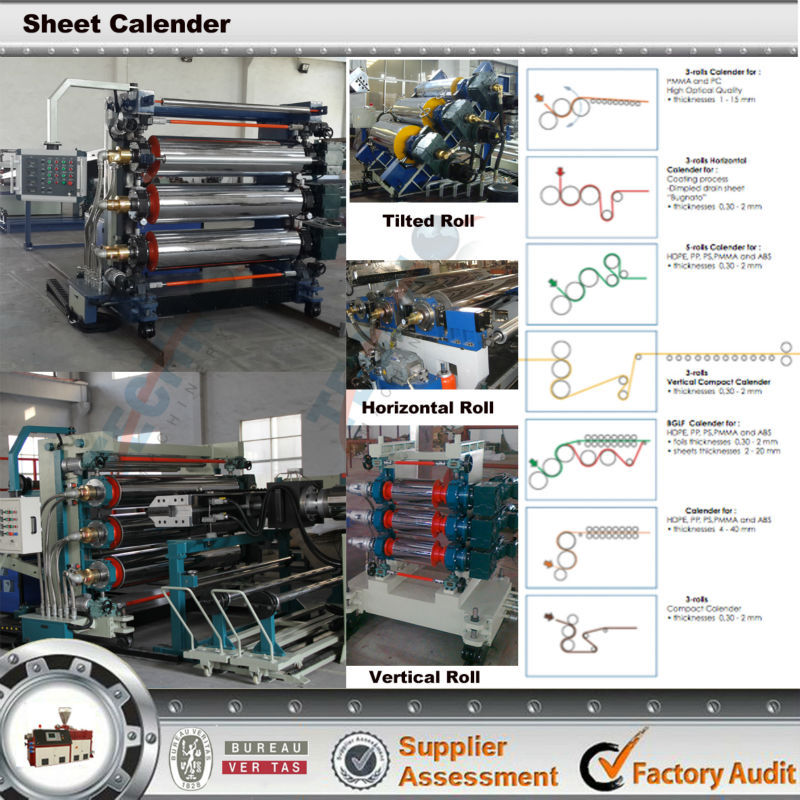

Calender

Three-roll calender: horizontal, vertical or tilted arrangement, adjustable roll gap.Precisely manufactured rollers, hardened and mirror finished surface for suiperier surface properties and excellent thickness control. Independent roller temperature control system is able to make sheet thickness uniform.

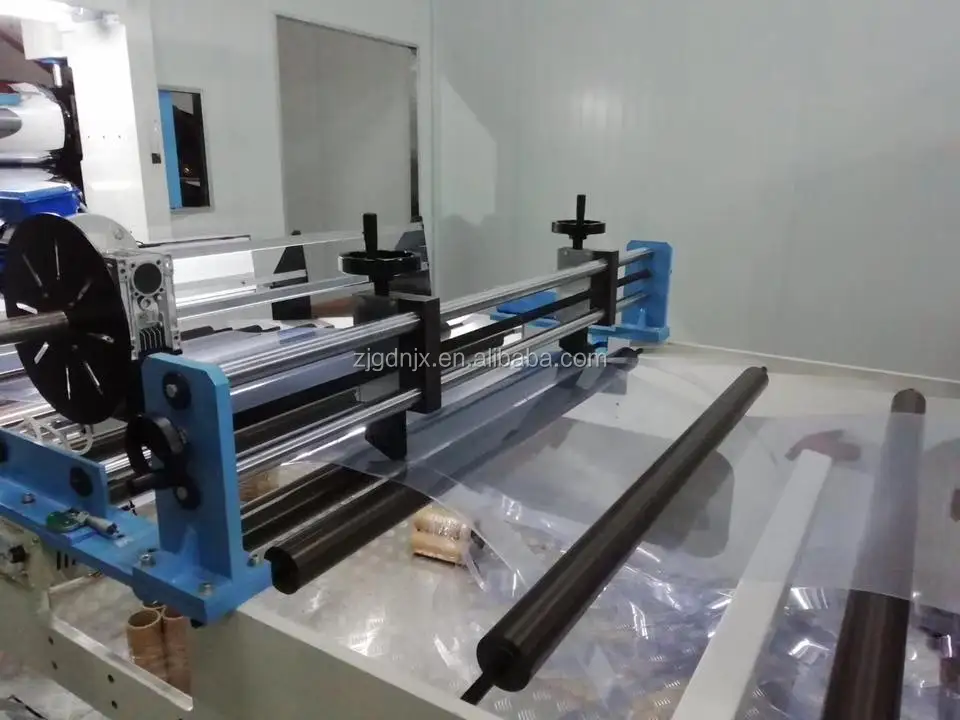

Downstream Machinery

Plastic sheets produced from this type of extrusion equipment are sturdy,yet remains somewhat flexible.Versatile and reliable downstream equipment.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
24 (L) * 1.8 (W) * 2 (D)
Weight
8 T



Packaging Details
If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
