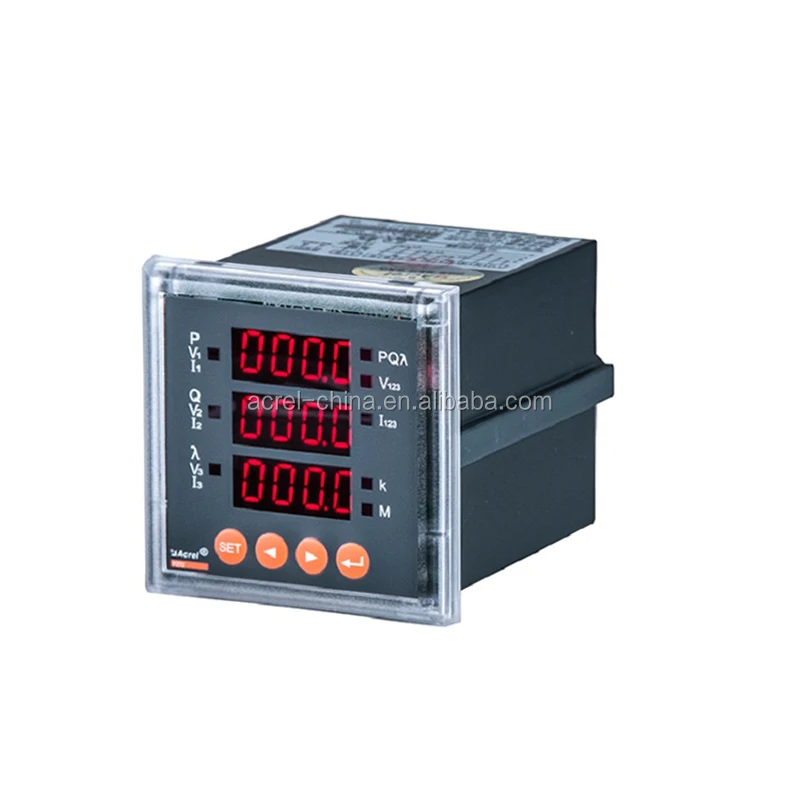

PZ72-E4 LED embedded Electronic Energy Meter/Three Phase intelligent Power Meter/small size 72*72mm

$58.80 / Piece | 1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
4 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 10 Pieces)
Contact Supplier
Samples - $58.80 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
ACREL
Model Number:
PZ72-E4
Display Type:
Analog and Digital
Phase:
Three Phase
Measuring Energy Range:
0-999999.9kwh/MWh
Accuracy Class:
Class 0.5
Output Voltage:
AC100V/220V/380V
Operating Temperature:
-10~+55
Dimensions:
75*75*98mm
Supply Voltage:
AC80-270V, DC100-350V
Display:
LED Digital Display
Frequency:
45~65HZ
Measuring Current Range:
CT 1A or 5A
Measure parameters::
U, I, kw, kvar, Hz, kwh, kvarh,cos, mwh
Optional function:
RS485/DI/DO/Profibus-DP
Communication:
RS485 Port MODBUS-RTU Protocol
Professional manufacture:
16 Years

Packaging & Delivery

Selling Units:
Single item
Single package size:
18X16X14 cm
Single gross weight:
0.4 kg
Package Type:
Packed by case. Shock bubble film
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(days) 4 To be negotiated
Video Description
Product Description

PZ Series electric energy meters

Adopting AC sampling technology, can measure many single phase or three phase grid electrical parameters such as current, voltage, power, electric energy etc. directly or indirectly. It can be used for local display, and also can be connected with the control equipment to form measuring and controlling system.
Fitted with RS-485 communication port, adopting Modbus-RTU protocol. Meters can switch electric parameter signal into standard analog output, with four-channel (two-channel) switching input / two-channel switching output. Based on different requirements, by keys on the faceplate, electric parameters for transformation ratio, alarm, communication etc. can be set up and controlled.

Product Name
Function Description
Price for 1 piece (F.O.B)
Wholesale price
PZ72-E4
LED display,three-phase electric circuit, 3P3W or 3P4W.
I, U, kw, kvar, Kwh, Mwh, kvarh, Hz, cos∮.
58.8
Please contact us in detail. We can offer you the best price.
PZ72-E4/C
LED display,three-phase electric circuit, 3P3W or 3P4W.
I, U, kw, kvar, Kwh, Mwh, kvarh, Hz, cos∮.
/C: RS485 Communication(Modbus-RTU)
65.1
PZ72-E4/KC
LED display,three-phase electric circuit, 3P3W or 3P4W.
I, U, kw, kvar, Kwh, Mwh, kvarh, Hz, cos∮.
/C: RS485 Communication(Modbus-RTU)
/K: 2DI/2DO or 2DI
69.3
PZ72-E4/KPC
LED display,three-phase electric circuit, 3P3W or 3P4W.
I, U, kw, kvar, Kwh, Mwh, kvarh, Hz, cos∮.
/C: RS485 Communication(Modbus-RTU)
/K: 2DI/2DO or 2DI
/P: one pulse output(to count energies)
72.1

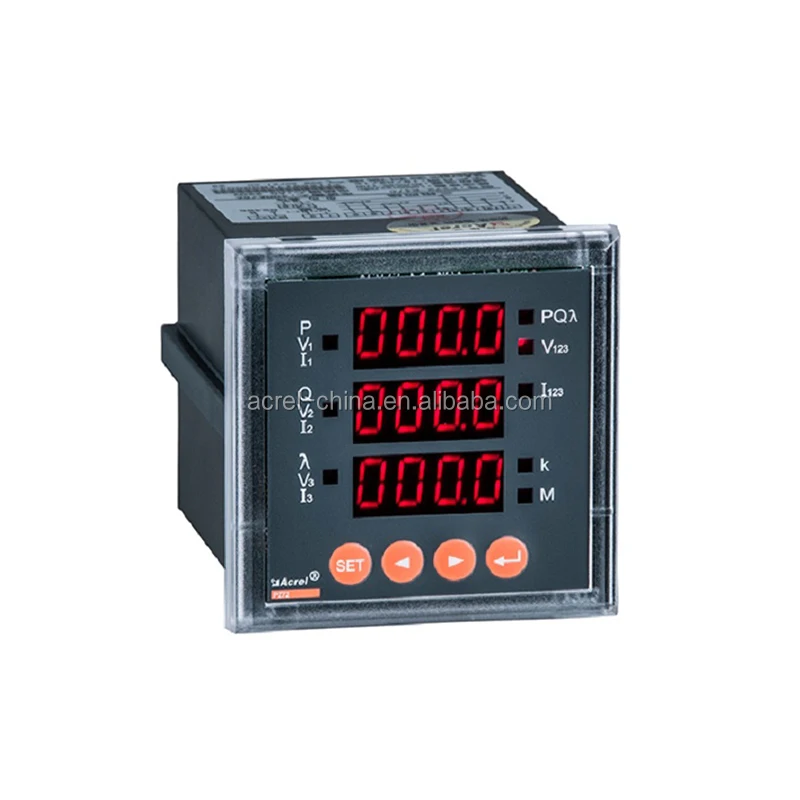

Products Show

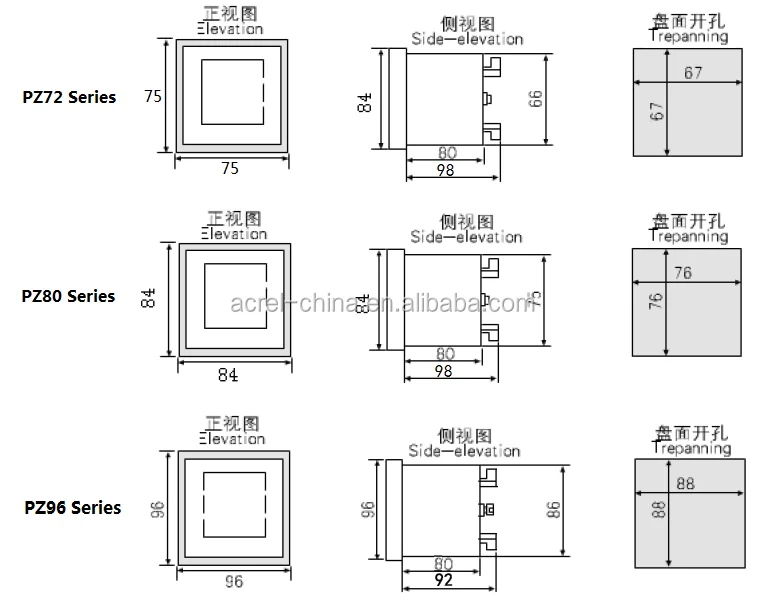

Other Size
Our Company

Factory

Workshop


Warehouse


Team


Packing & Delivery

Packing Details  : Packed by case. Shock bubble film

Delivery Details : 3-15 days after payment received

1. Shock bubble film
2. Packed by case.
3. International logistics company
Our Certifications

Quality is absolutely guaranteed, the wholesale price is reasonable, a large quantity of favorably.

Project Performance

Russian MMK steel mill

Adopt ACR, PZ series multifunction power meters and AKH series current transformer 1251 sets.

Costa Rica National Stadium

Adopt ACR and BD series multifunction power meters and transmitters are used in 1067 sets.
