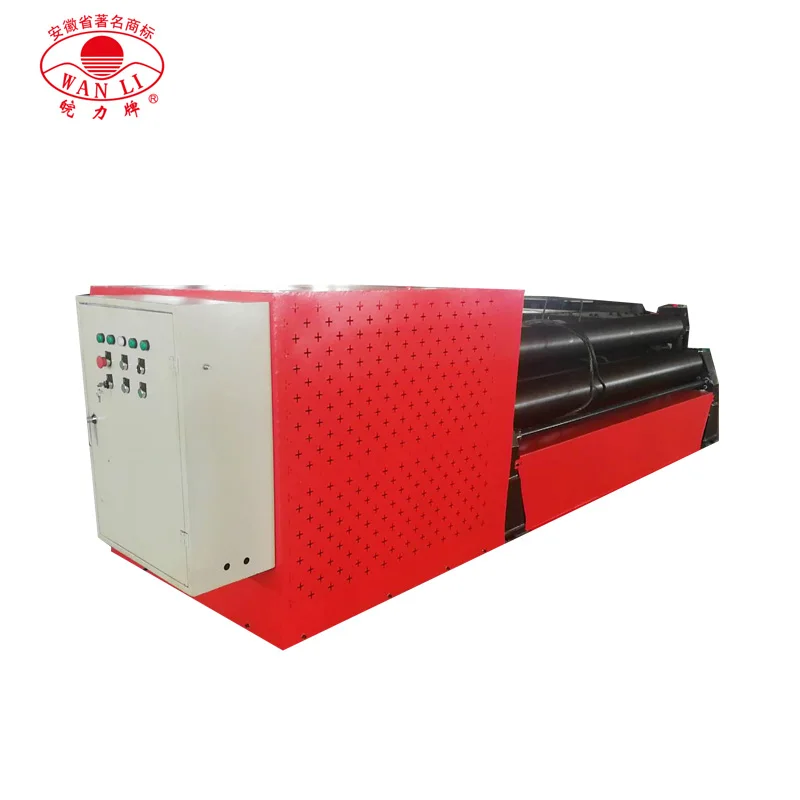

Pacific Simple Operated W11 Sheet Steel 3 Roll Rolling Machine For Bending Metal Slip Steel Rolling Machine

$3,900.00 - $8,200.00 / Set | 1 Set (Min. Order)
Model Number:
W11 6*2000
$3,900.00
- +
available
W11 6*2500
$6,900.00
- +
available
W11 6*3200
$8,200.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Max. Plate Thickness (mm):
6-60
Max. Working Length (mm):
1500-3200
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
Wanli
Material / Metal Processed:
Aluminum, Carbon Steel, Brass / Copper, ALLOY, Stainless Steel
Automation:
Automatic
Extra Services:
Cut To Length
Certification:
ISO 9001:2000
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Warranty:
1 Year
Machine Type:
Roller-Bending Machine
Color:
Customized
Model:
W11 Series
Name:
3 Roll Rolling Machine
Product name:
Rolling Machine For Bending
Keyword:
Metal Slip Steel Rolling Machine
Main Motor:
5.5-90kw
Max rolling thickness:
6-60mm
Application:
Steel Plate Sheet Bending
Controller:
NC Control
Function:
Aluminium Matel Steel Rolling Machine
Power:
Hydraulic

Packaging & Delivery

Selling Units:
Single item
Single package size:
381X121X133 cm
Single gross weight:
4000.0 kg
Package Type:
Plastic Film
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Welcome to Our Store
W11 specification

Main characteristic

The aircraft structure for the symmetric three-roll, the upper roll which do up and down movements is in the center of the two down rollers, landing exercise by the hydraulic cylinder piston in the rote of the hydraulic fluid botained for hydraulic transmission; the two down rolls for the next rotation. Through the reducer output under the roller gear with the gear mesh for the provision of rolling plate torgue. The disadvantage is the plate with the other end of the pre-bending device.

Electricity box

We use Simems or Schneider electricity.
With nice quality, and this brand you can buy easily in your country after many years if you want to replace it

Structure

1.the upper roller moves vertically along the perpendicular between tow lower rollers
2.the two lower rollers are ratating and transfering torsion to plate materails so that the metal sheets can be pulled into the roller clearance
3.the machine can rolling metal plates into various shaps, such as arch, round and so on. Whole bending working is based on the rotary deformation. Our rolling machines are widely used in chemical, cement,shipbuilding, boiler,aviation, water control project, power transmission tower, metal structure industry and the industry of making machinery.

The roller

Upper roller device consists of upper roller bearing, upper roller, sliding bearings and other components.
Upper roller material is 42CRMO, Intermediate hardening.
All solid roller

Process flow
W11 Description

1.Specification of the machine

This body type is symmetric three-roll, roll in the two lower rollers central symmetrical position moves vertically through the screw worm drive wire mother, two lower rollers rotating movement,through the output gear reducer under the roller and offer torque for roll sheet, the machine structure is compact, easy operation and maintenance.

2.Main structure

The apparatus main body structure is composed of the upper roll unit, lower roll, the main drive unit,left and right side frame,and the bottom chassis.

3.Fixed frame,chassis,overturned side

Fixed for steel weldments, overturned side frame, chassis, vibration aging eliminate stress after welding.

4.Electric control system

Electronic control system consists of cabinet equipment, handheld button box components. Power supply 380V/50Hz. Main switch with short circuit protection and the main motor overload protection. By AC motor reversing contactor control; cabinet products on a rolling process to complete all the control buttons, lights, etc., in order to control the operation of the machine and work state control.

Related products
Certificate
FAQ

Guarantee period:
Our product quality guarantee period is 12 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions is caused by customers' incorrect operation, we will provide spare parts at cost price. We can also offer flexible extended warranties according to the actual situation.

After-sales services:
Our engineer can go to your factory for installation and show operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.

Why choose us :
1. We will the machine for few days, and use your materials to do the test. Only guarantee the machine to show the best performance, and then we will ship it out.

2. our elite teams can provide you professional, customized and all-round services around the dock. If you need any help, please contact us by Whatsapp, Skype, Email or telephone.

How can we provide you efficient services (metal processing solution):
There are Three Steps as following:
1. Gather your requirements based on your real working station.
2. Analyze your information and provide our feedback
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional recommendations; reg. non-standard products we can offer professional designing.
