Potentiometer Joystick or Hall Type Joystick

Feedback Ratings
  • 10-49 Pieces
    US $14.30
  • 50-99 Pieces
    US $13.50
  • >=100 Pieces
    US $12.50
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
13 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Brand Name:
OMTER
Model Number:

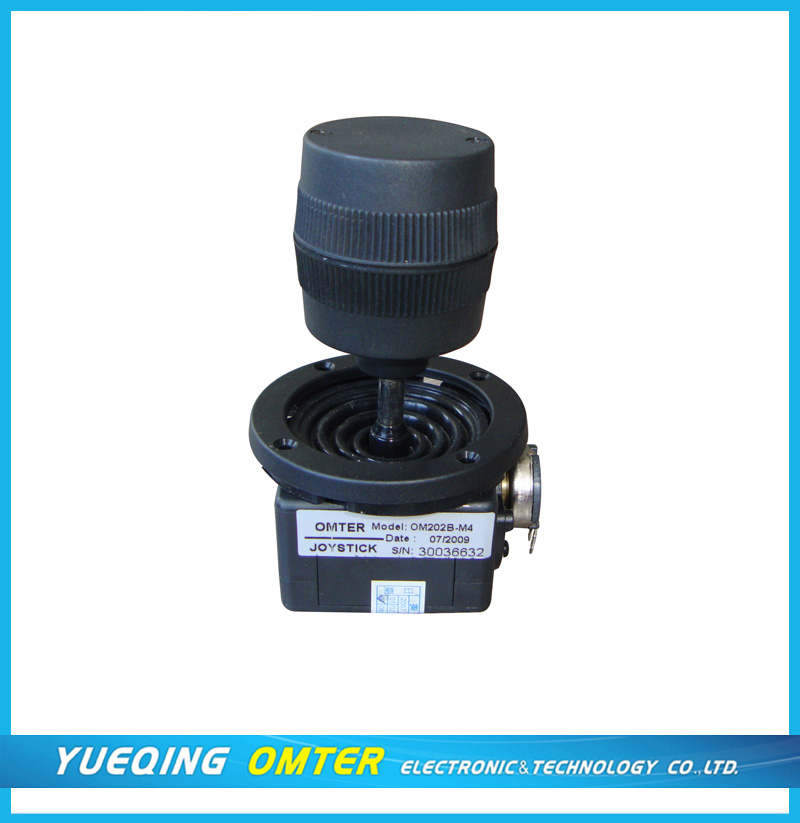

OM202B-M4 2axis Potentiometer Joystick
Compatible Platform:
potentiometer or hall type
Type:
Joystick
Place of Origin:
Zhejiang, China (Mainland)
1:
Long life-time
2:
Flexible handling
3:
small resetting error
4:
with seal form
5:
with switch
6:
with 5k,10k potentiometer
7:
with hall type single axies
8:
two axies joystick
9:
For medical imaging equipment
10:
For move photograhy cctv control system

Packaging & Delivery

Selling Units:
Single item
Single package size:
14X11X14 cm
Single gross weight:
0.3 kg
Package Type:
1pcs/box then into one bigger box ; 4pcs into one bigger box
Lead Time :
13

potentiometer joystick or  hall type

1.Item no.:OM202B-M4
2.Resistance could choose:M1: The total resistance value is 5K, but the effect adjust resistance range is from 1.8K to 2.5k,then from 2.5k to 3.2K.

M2: The total resistance value also is 5K, but the adjust range is from 0k to 2.5K then from 2.5K to 5K.

M3: The total resistance value is 10K, the adjust range is from 3.5K to 5k,then from 5K to 6.5K.

M4: The total resistance value is 10K, the adjust range is from 0K to 5K, then from 5K to 10K.

M5: The total resistance value is 100K, the adjust range is from 36K to 50 k,then from 50K to 64K.

M6: The total resistance value is 100K, the adjust range is from 0K to 50 k,then from 50 K to 100K.
3.Long life-time:commonly 300000times/cycle (also could make 500,000times/cycle ; 200,0000times/cycle)
4.Type:2axis potetniometer type
5. Springcould make with spring return or without spring return






















....

Packaging Details
