Precision machining polished silicon nitride locating plate

FOB Reference Price:Get Latest Price
$15.00 - $25.00 / Pieces | 50 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Type:
Ceramic Plates, Locating plate
Application:
Industrial Ceramic
Model Number:
HBQ618
Brand Name:
OEM
Material:
Silicon nitride
Color:
Black
Method:
Pressureless sintering
Feature:
Wear resistance
OEM:
Accept
Density:
≥3.2g/cm3
Keywords:
Precision machining polished silicon nitride locating plate
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Precision machining polished silicon nitride locating plate:
Export Carton
Port
Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 30 To be negotiated

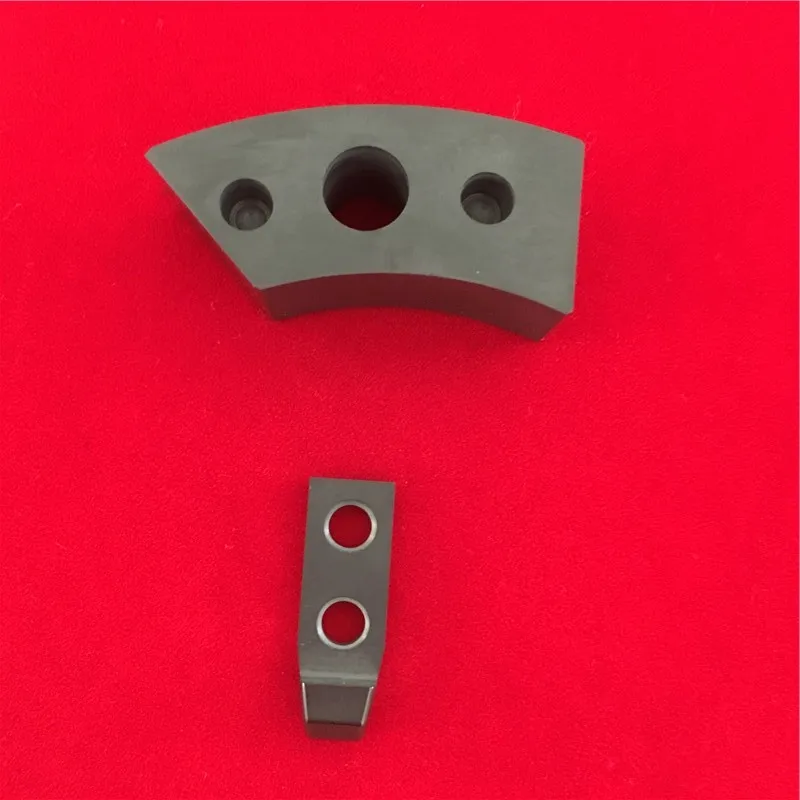

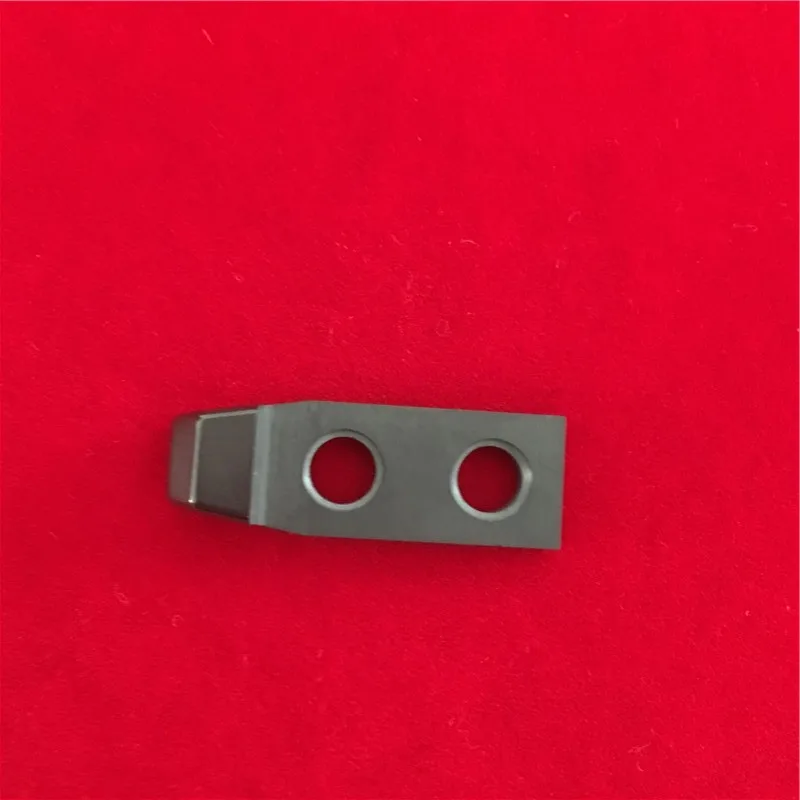

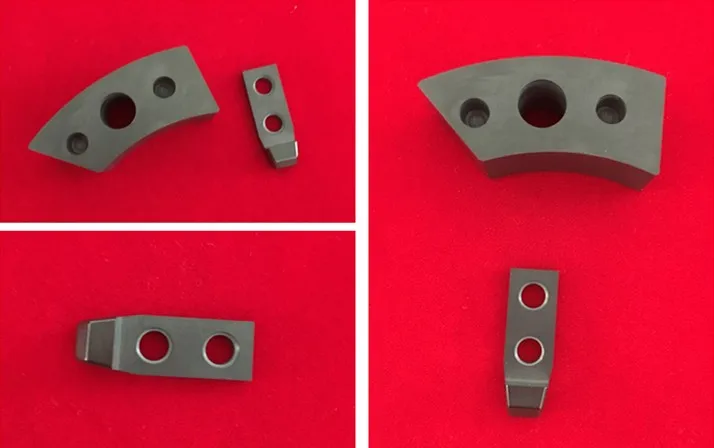

Product Show
Product Name
Precision machining polished silicon nitride locating plate
Material
Silicon Nitride Ceramic
Size
As per drawng
Tolerance
±0.05mm
Payment
T/T,Western Union,Online payment by credit card are avilable
Application
It is widely used in Induction equipment.
Thransport
Air transport: 5-10 days; Ocean shipping: About one month.
Delivery Time
1.Stock:delivery within 3-5 days after receiving your payment.
2. OEM/ODM:The normal Lead time is 15-45 days, which depends on your quantiy.

Silicon nitride location blocks:

used as projection welding (spot welding), insulative silicon nitride positioning pins can completely avoid the passage of unnecessary current, avoid sparks between the pins and the workpiece, and the high silicon nitride The wear-resistant feature allows the workpiece to be accurately positioned for a long time. The welded workpiece maintains a very high quality and high yield. And because of the avoidance of sparks, the workpiece does not need to add extra holes.

Features:

Silicon nitride is an insulating material. With respect to the conductive material, the screw cap does not need to be removed after the welding, which reduces the number of processes, improves the efficiency, and improves the welding quality.


These parts are proven in a major automotive manufacturing plant. The performance to price ratio of Si3N4 weld location pins is 70 times of hat of steel pins.

Technical Data
Property
GPS-SSN
HPSN
Density(g.cm-3)
3.30
3.23
Young's Modulus(GPa)
320
315
Bend Strength(MPa)
750
850
Thermal Expansion Coefficient (x 10-6/°C)
3.2
3.2
Fracture Toughness
7
8
Maximum Temperature (°C) for application
1150
1150
Dielectricity Constant
9
9

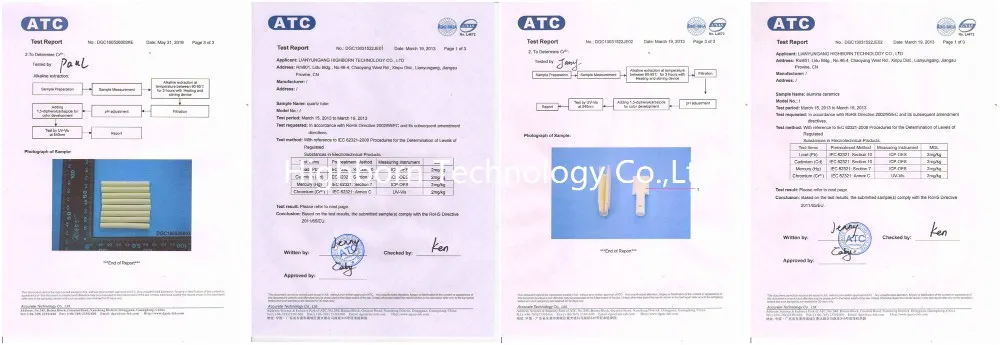

Certifications

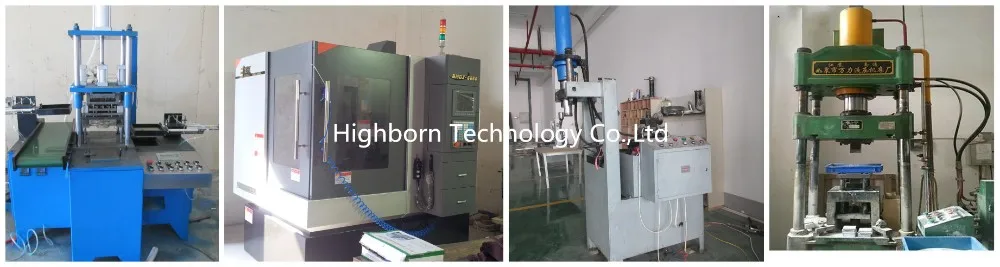

Our Company

Lianyungang Highborn Technology CO.,LTD

Lianyungang highborn technology co., ltd. is a professional production and processing company of advanced ceramics ,machinable glass ceramics, electronic smoke mandels, alumina ceramic mandels, zirconia ceramic mandels, silicon nitride ceramic mandels and other products, with a complete and scientific quality management system. Lianyungang highborn technology co., LTD. 's integrity, strength and product quality has been recognized by the industry. Welcome friends from all walks of life to visit, guidance and business negotiations

Packing & Delivery
FAQ

Q:Are you a trading company or a manufacturer?

A:We are professional manufacturer which has almost 10 years of experience in this industry.


Q:Can you produce according to the samples?

A:Yes,we can produce by your samples or technical drawings.

Q:Would it be possible for us to visit your factory?

A:Sure,we welcomed our customers visit our factory in any time.

Q:Will your company supply samples?

A:Yes,the sample expense will be deducted from the value of your order.

Q:What's your payment terms?

A:T/T, L/C, Western Union, Money Gram, are available for us.

Q:Delivery time for my order?

A:Within 7-15 working days for your sample order; 20 working days for your bulk order( It depends on the models and quantity you are going to order).
