RGB High brightness and big size LED round panel Lights used at bathroom

Feedback Ratings
US $450.00 / Piece | 5 Pieces (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
INLITY
Model Number:
R1000
Base Material:
aluminium alloy
Cover Material:
Acrylic
Light Source:
CREE, Epistar LEDs
Color:
White, Warm White, RGB, red, green, blue, 3000-6500K
Model:
R1000/R900/R800/R700/R600
Lamp Luminous Efficiency(lm/w):
90 lm/w
CRI (Ra>):
75
Working Temperature(℃):
-20-45
IP Rating:
IP20
Controller:
DMX512 (RS485)
Certification:
CE, UL listed
PFC:
0.95
Material:
Aluminum alloy

Packaging & Delivery

Selling Units:
Single item
Single package size:
68X68X12 cm
Single gross weight:
12.0 kg
Lead Time :
15

High Quality Led Panel Light SMD2835



Technical Specifications

Power

1 W

3W

18 W

18 W

48W

70W

90W

Voltage

100-240V

100-240V

100-240V

100-240V

100-240V

100-240V

100-240V

Luminous Flux

90lms

270lms

810lms

1620lms

3800lms

4200lms

6000lms

Luminous Efficiency

90 lm/w

90 lm/w

90 lm/w

90 lm/w

90 lm/w

90 lm/w

90 lm/w

Color Temp.

3000-6500 K

3000-6500 K

3000-6500 K

3000-6500 K

3000-6500 K

3000-6500 K

3000-6500 K

CRI

>75

>75

>75

>75

>75

>75

>75

Working Life

50000 H

50000 H

50000 H

50000 H

50000 H

50000 H

50000 H

Size

Φ65*12 mm

φ102*12 mm

φ141*12 mm

φ195*12 mm

Φ600*12 mm

Φ900*12 mm

φ1000*12 mm

Led Type

SMD2835

SMD2835

SMD2835

SMD2835

SMD2835

SMD2835

SMD2835

Certification

CE / UL

CE / UL

CE / UL

CE / UL

CE / UL

CE / UL

CE / UL

PF

0.95

0.95

0.95

0.95

0.95

0.95

0.95

Warranty

2 Years

2 Years

2 Years

2 Years

2 Years

2 Years

2 Years

Body Material

Aluminum

Aluminum

Aluminum

Aluminum

Aluminum

Aluminum

Aluminum



1. The Features of Led Panel Lighting:

A. Lifespan:more than 50,000 hours;

B. High Luminous efficiency;

C. Fast light brightening, no delay and flicker;

D. Energy-saving: saving 80% than the ordinary lamp;

E. Green, Health and Environmentally friendly protection, more comfortable for our vision.



2. The Advantages of Led Panel Lighting:

A. Passed CE and UL certification;

B. No mercury, No radiation, No UV;

C. Easy to install and maintain, no subsidiary fixture;

D. Low consumption and high conversion.



3. The application of Led Panel Lighting:

A. Shopping mall, supermarket, hotel lighting, office lighting etc.;

B. Family house, kitchen, warehouse, bathroom, corridor, garage;

C. Commercial show windows and bars, subway, airport, exhibition hall, gymnasium etc..

Exhibition Centre:






 Project Show:

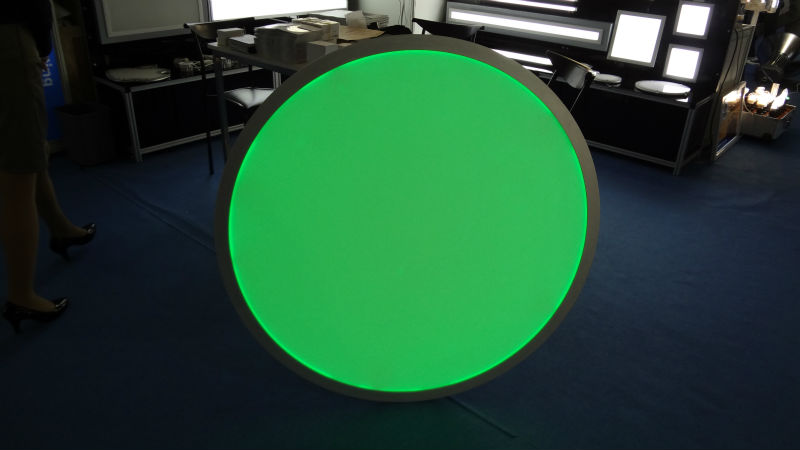

Products show:

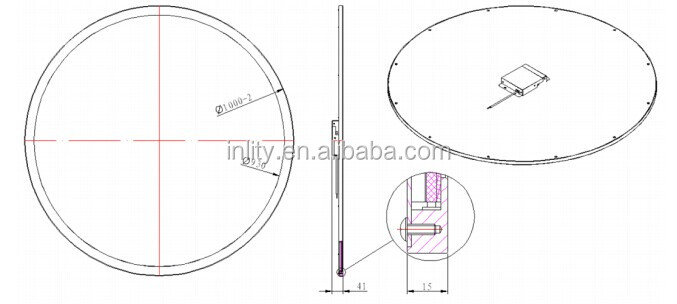

 Installation Instruction:



Lights distribution Curve:

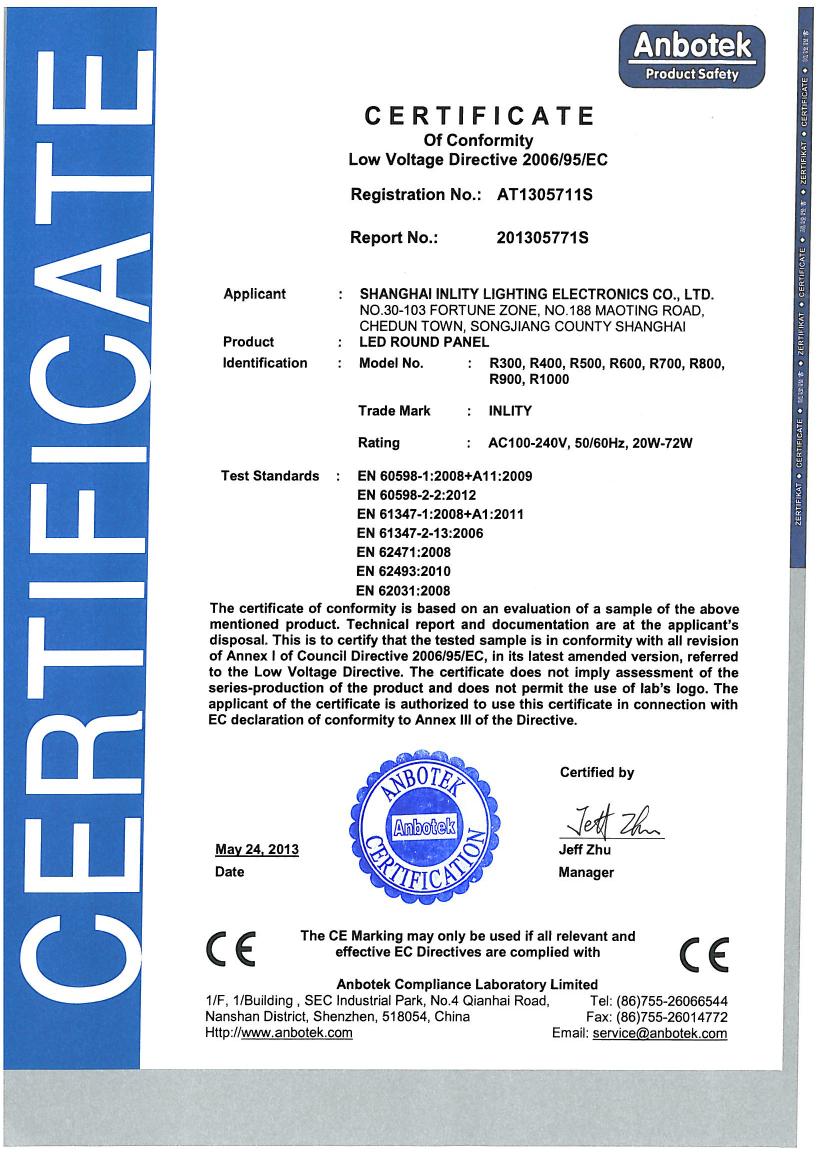

Certifications:



The main activities of INLITY is the manufacture and supply of LED lighting for office, industrial,administrative

applications, LED lamps and accessories for residential lighting.

INLITY follow a policy of products quality improvement and the development of Over business.

In the production of LED lamps and fixtures, we use quality materials and components and provide triple check:

1) Testing of materials and components before launching into production ;

2 ) Testing of finished products by independent laboratories in China, Europe;

3) Controlling of the products quality before shipment to the customer from the workshop of the company;

4) INLITY provides a full range of services for the design, manufacture, installation, operation and maintenance

of lighting systems, performs development of various lighting indoor.
