Razorlux 200w LED Flood Light 130lm/w with Meanwell Driver

$440.00 / Piece | 2 Pieces (Min. Order)
Lamp Power(W):
Emitting Color:
Cold White
- +
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
Model Number:
Sports Stadiums
Light Source:
IP Rating:
Lamp Body Material:
Aluminum Alloy
Beam Angle(°):
40° 60° 120° 140°
CRI (Ra>):
Input Voltage(V):
80~315Vac, (347Vac available on request)
Working Lifetime(Hour):
Product Name:
200w led flood light
Lamp Luminous Efficiency(lm/w):
Lamp Luminous Flux(lm):
Color Temperature(CCT):
Cool White
Working Temperature(℃):
-40 - 60
Housiong Material:
Working Life:
IP Class:
IP 65 (Upgradeable to IP 67)

Packaging & Delivery

Selling Units:
Single item
Single package size:
55X45X42 cm
Single gross weight:
17.5 kg
Package Type:
1.EPS Foam+carton(ONE UNIT PER CARTON) 2.Carton Size(mm):550*450*415mm 3.One 20'' Container can accept 250 Units
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 To be negotiated
Video Description

Razorlux 200w LED Flood Light 130lm/w with Meanwell Driver



Main Features



1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 200W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. Top chips high efficacy 130lm/w±7% with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index

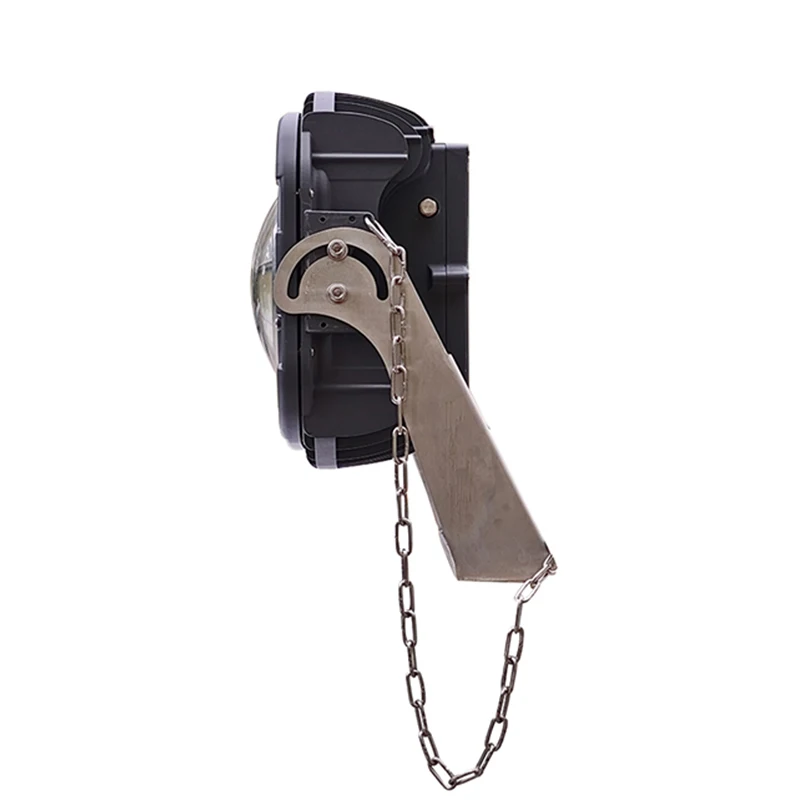

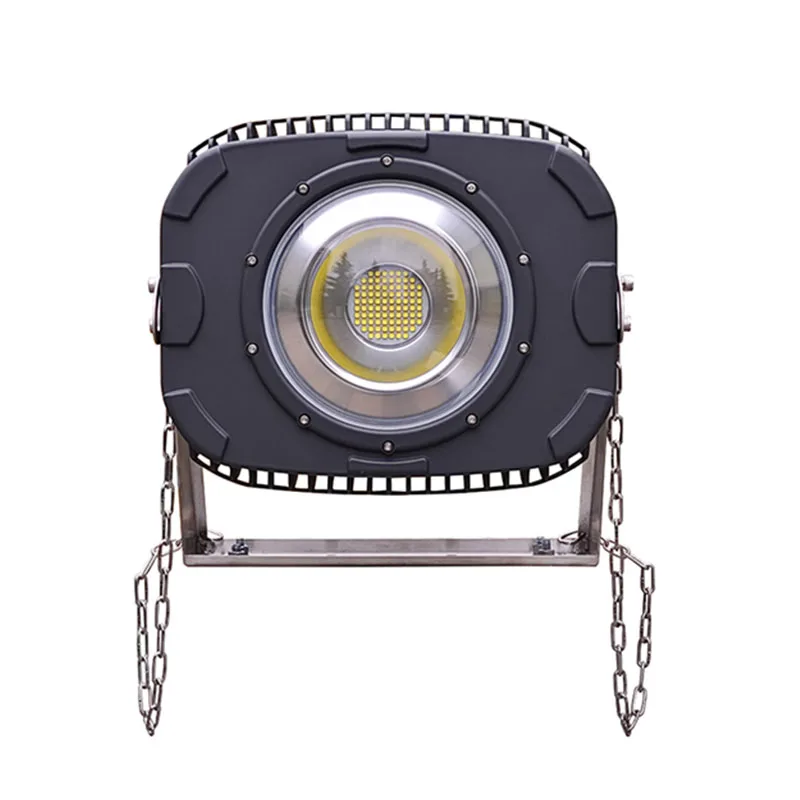

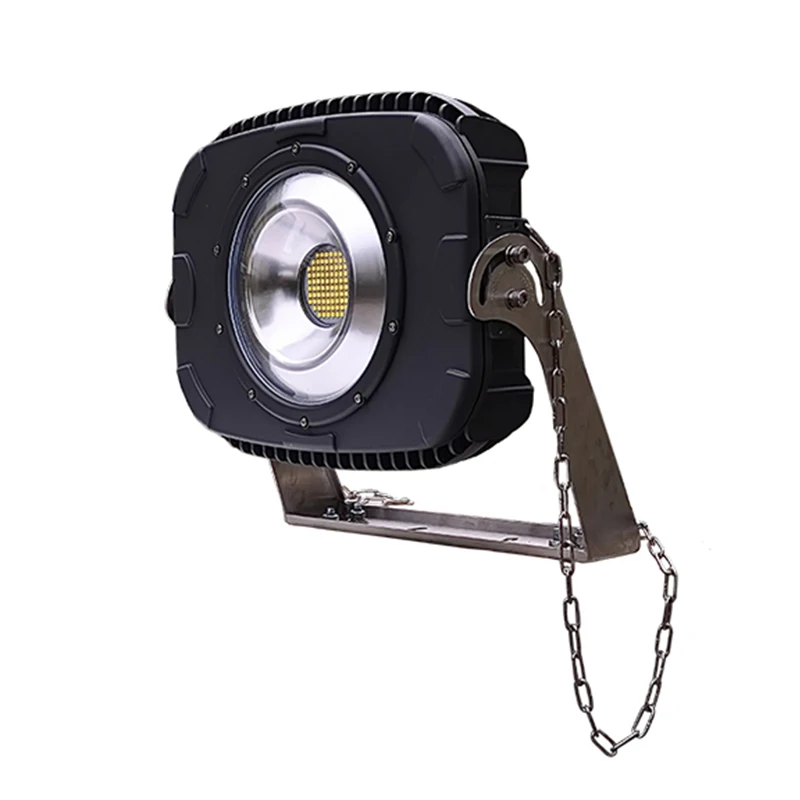

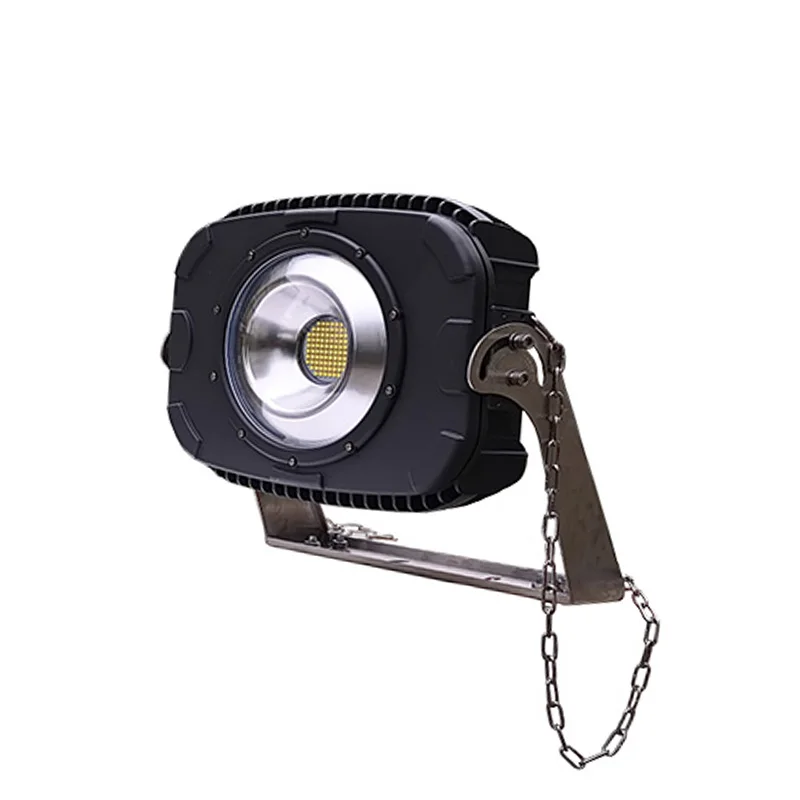

Photos of 200W LED Flood Light:



250W LED flood light.jpg


250W LED flood light-1.jpg

250w led flood light-2.jpg

250w led flood light-3.jpg

250w led flood light-4.jpg

250w led flood light-5.jpg

Product Description






Parameter of Razorlux 200W LED Flood Light:


Beam Angle40° 60° 120° 140°

Stable Flux

(5700K after 1 hour)

Dimension (mm)468*388*367
Power Driver20W
Consumption Total200W
Replace HID Lamp400~600W
Net Weight15kg with stainless steel floodlight bracket
Color Temperature2700-6500K
Color Rendering≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life≥50000Hrs
Housing MaterialAluminum & Powder coating
Power SupplyMeanwell
IP Class

IP 65 (Upgradeable to IP 67)

IK Class

IK 10

Insulation ClassClass I
Working Temperature-40C ~ 60C / -40F ~ 140F
Working Humidity10% ~ 95%
AC Input110-480Vac input voltage without additional adapter
DC Input100 ~ 400Vdc, 500Vdc ~ 800Vdc
Power Factor≥0.98
WarrantyLED Module5 year
Driver5 year
Housing10 year




Lighting Distribution of Razorlux 200W LED Flood Light:


For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.

 photometric data.jpg






Certificates of Razorlux:





Application Projects

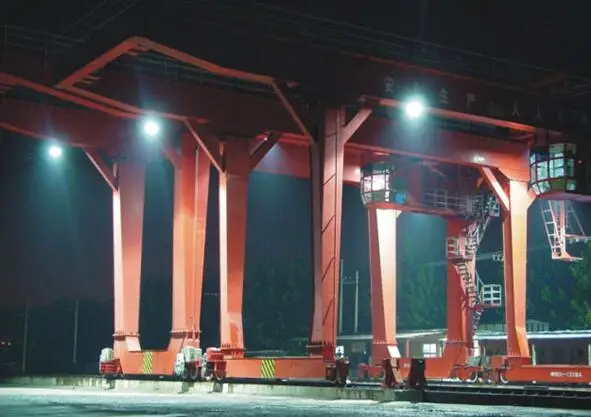

Application of Razorlux 200W LED Flood Light:



harbor lighting-1.jpg





Packaging & Shipping





Genius II Compact 200W A Series


 packaging 22.jpg



Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.


Quality Control - Testing Equipments:


For every piece of Razorlux 200 Watt LED Flood Light are tested in different procedures.

No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)

No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.

No. 3 & 4: Dark Room for testing IES files and other Photometric datas.


 Testing Equipments.jpg


Quality Control - Aging Department:


For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment

to make sure of their long term and stable performances within lifetime.

Aging test.JPG





Razorlux Service:





1. Before and after sales in time service 7/24

2. Professional Lighting solution, DIALux simulation available

3. Payment terms: Paypal, TT, LC, DP etc

4. Shipment terms: FOB, CIF, CFR

5. Lead time: 5-7 working days

6. NO MOQ required, sample testing welcome

Trade Shows



Razorlux at Lighting Fairs:


Hong Kong International Lighting Fair (Spring Edition) 2016/2017/2018

Hong Kong International Lighting Fair (Autumn Edition) 2016/2017/2018

2015 LED Expo in Den Bosch, Netherland

2016 Strategies in Light in Las Vegas, U.S.A

2016 IIDEX in Toronto, Canada
