Rugged 1d barcode Wired Laser Linear Barcode Scanner

  • 100-499 Pieces
    $14.00
  • >=500 Pieces
    $13.00
Model Number:
KC-763
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Pieces)
Graphic customization (Min. Order: 100 Pieces)
Samples: $15.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $15.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
KC
Type:
Barcode Scanner
Interface Type:
COM, PS/2, USB
Colour Depth:
32 Bit
Scan Element Type:
Other
Max Paper Size:
A4 Size
Optical Resolution:
4mil
Scan Speed:
300 Scans/sec
Products Status:
Stock
Optical Source:
650nm Visible red light diode
Resolution:
≥4mil
Decoding Speed:
300
Storage Temperature:
-40°C ~ 60°C
Working Temperature:
0°C ~ 50°C

Packaging & Delivery

Selling Units:
Single item
Single package size:
24X13X9 cm
Single gross weight:
1.0 kg
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 3 To be negotiated

Rugged 1d barcode Wired Laser Linear Barcode Scanner



5_720_Feature

1. Ergonomic appearance design fit your hand shape it is not tired even for long time using.
2.Support several languages can be customized language according your demand

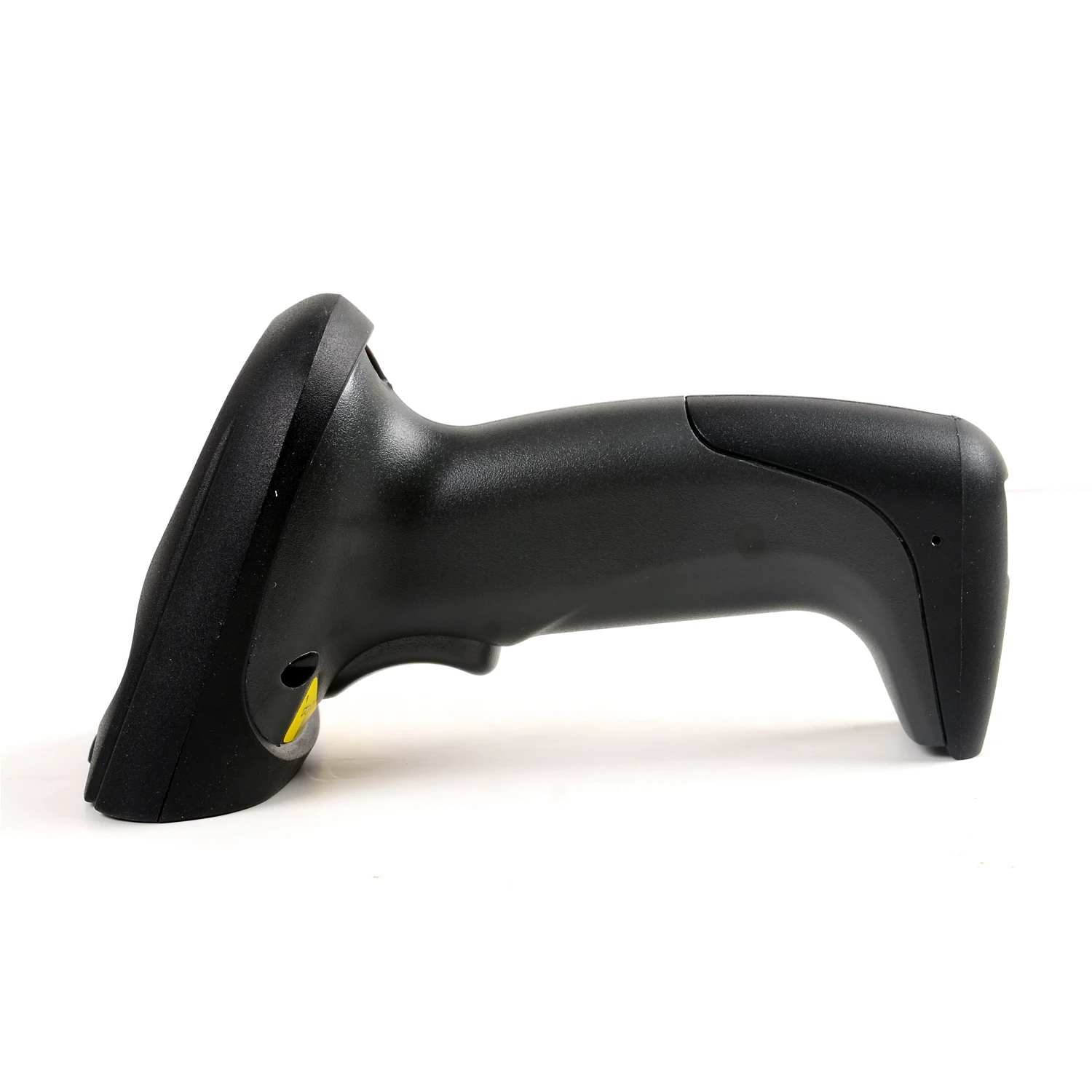

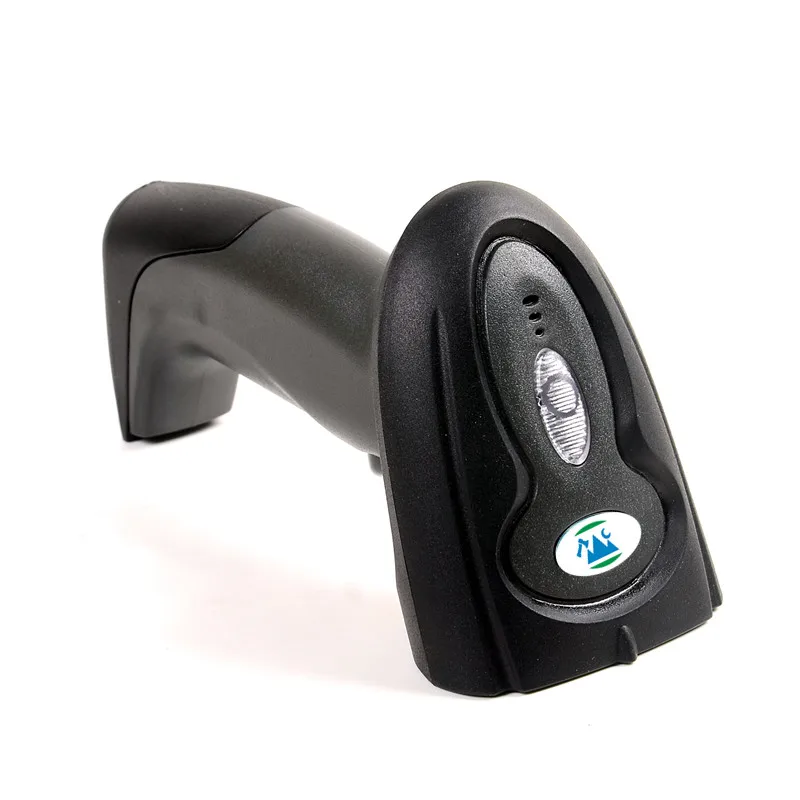

5_720_product picture

YT-760 1_.jpgYT-760 4.jpg







5_720_Specification
Optical Source650nm Visible red light diode
Image Resolution≥4mil
Minimum Contrast≥ 30%
Barcode TypesUPC/EAN/JAN,UPC/EAN with supplementals,
 UCC/EAN128,Code39,MSI,Code11,Code39 Full ASCll,
 Code39 Trioptic, Code128,Code128 Full ASCll Codabar,Code93,
Discrete 2 of 5 IATA,RSSvanrians,Codabar,chinese 2 of 5,Interleaved 2/5,
 Interleaved 2 of 5, International general dimensional barcodes.
Decoding Speed100times/s
Barcode SensitivityTilt±65°
Rotate±42°
Deflection±60°
Data Interface PortRJ-45
Mechanical and Electric Performance
Size(Length x Width x Height)156×64×91 mm
Weight (except cable)108g
IndicatorSiren and LED light
Max.Power450mw
Working VoltageDC5V
Current Max.Curren90ma
Working Current62ma
Stand-by Current71ma
Charging Current450ma
Accessory List
Data lineUSB data line(1.8m)
Operation Manual1 Piece
Environmental Parameter
Storage Temperature -40°C ~ 60°C
Working Temperature0°C ~ 50°C
Relative Humidity0 ~ 95%
Height Range1.5m
IP RatingIP52
Certificates
CE,RoHS,EMC,LVD,ISO9001:2008,ISO14001:2004

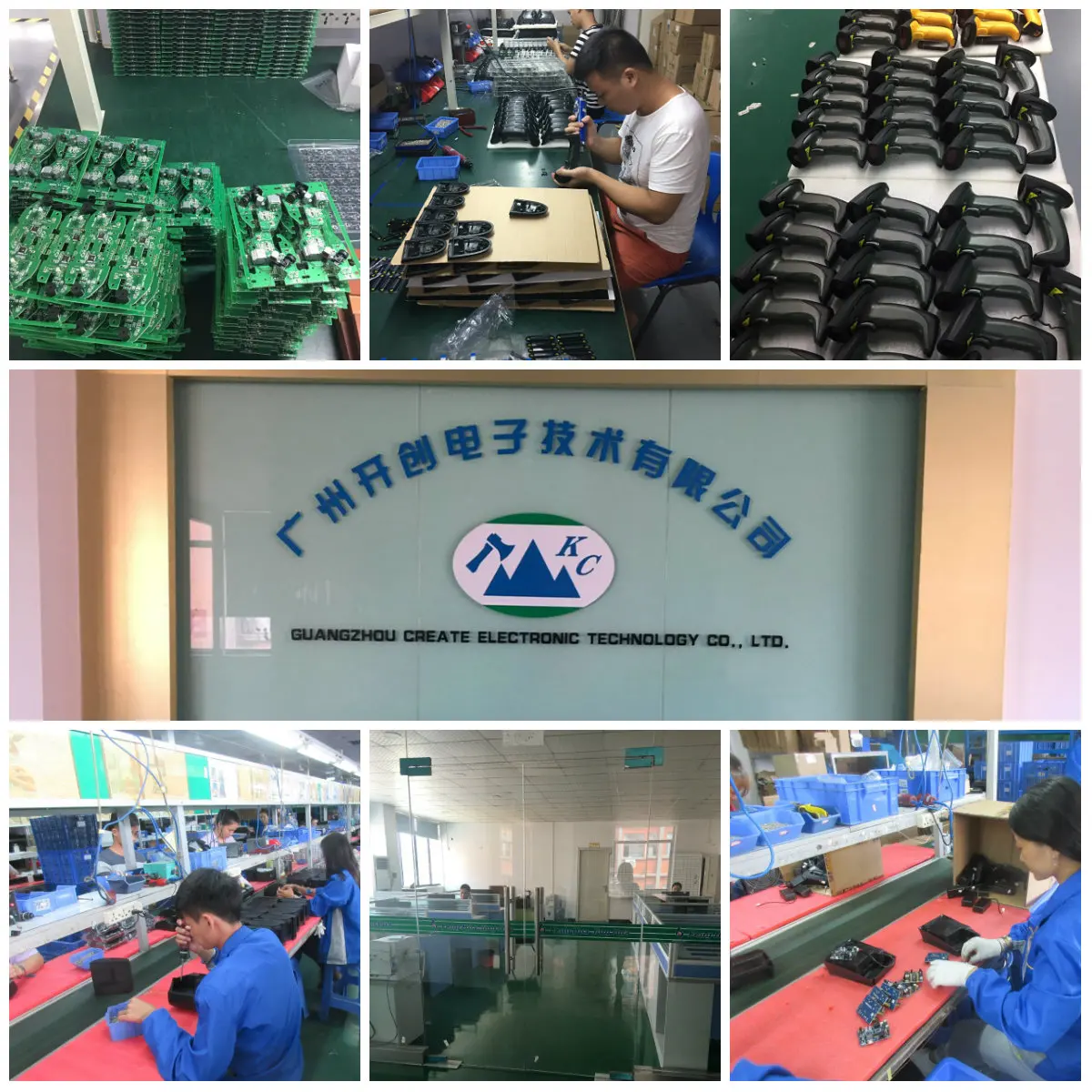

5_720_factory5_720_useage





application 2.png
