SAE J1772 IEC62196-2 10A 13A 16A portable Level 2 Mode 2 EV charger

Feedback Ratings
  • 100-499 Pieces
    US $99.00
  • >=500 Pieces
    US $95.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
1 day(s) after payment received
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
CEBEA, CEBEA
Model Number:
CBYEN-ev16-CT110/240
Warranty:
1 Years
Color:
White/Black/Orange/Green/Yellow
Company:
Jiangsu Cebea Newenergy Technology Co., Ltd.
Product name:
EV Charger
Certificate:
ISO9001:2008 ISO/TS 16949:2009 CE TUV UL
Material:
Copper/Rubber/Cable/Thermoplastic material
Plug Standard:
IEC 62196-2/SAE J1772
IP:
54
Working Life:
More than 10000 times
Working Temperature:
-30℃~+50℃



COMPANY PROFILE

Jiangsu Cebea Newenergy Technology Co.,Ltd. was established in 1968 with its former name Jiangyin Electrical Equipment Accessories Company. It is specialized in manufacturing connectors and terminal subsidiary connectors in electrical equipment.

  The company entered the research of charging connectors and heavy current accessories applied in electric cars in 2009. Now the company owns three patents for invention. The patent No. is 20111025479.0. What’s more, another fifteen utility model patents end the blackness in domestic market.

A. It has little contact resistance. It has gentle insertion and extraction force. It can endure vibration and impulse force.

B. Web-size elastic beryllium bronze leaf spring can rotate in 360 degrees. It can be extracted while in use without creating electric arc.

C. Due to the stability in insertion and extraction and difficulty in transformation (It can keep the same shape after 100000 times of continuous insertion and extraction) in the web-size elastic leaf spring as the result of special technology, it is the top product used in electric tests for cars, instant charge in electric car connectors, information transmission on high-speed rails and wireless launch equipments.

Our company applied the web-size elastic leaf spring patent into the products of electric car connectors and heavy current connectors. It is the core competence which made us the leading company in electric car charging field. In 2015, the charging outlets and charging plugs were awarded as Jiangsu famous-brand products. In January 2016, they were awarded Chinese famous-brand products. Products are sold to countries like America, Germany, France, Australia and so on. Jiangsu Cebea Newenergy Technology Co.,Ltd went on listed Q board in stock market in Shanghai Stock Equity Hosting Center. The company code is 204756.

  We welcome visits and guidance from all walks of life and hold commercial discussion in our Jiangsu Cebea Newenergy Technology Co.,Ltd.





SAE J1772/IEC 62196-2 Level 2/Mode 2 EV charger

Cable length:  5m,6m,7m,8m,10m or customized

Meet SAE J1772-2010 GB/T 20234.1/2-2011 IEC 62196-2 standard

Nice shape and easy to use, protection class IP54(in mated conditions)



Parameters

Model: CBYUL-ev16-CT110/240V

Rated current: 16A

Working voltage: 110V/240V AC

Insulation resistance: > 1000M Ω

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact impedance: 0.5m Ω Max

Vibration resistance: Meet JDQ 53.3 requirements

Working temperature: -30°C ~+ 50°C

UL, TUV approved



Charging Cable Spec

TUV or UL 3*2.5mm2(12AWG)+2*0.5mm

Cord length: 3m, 5m or customized

Orange,White, Black, Green, Red etc.



Materials

Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)

Contact Pin: Copper alloy, silver or nickel plating

Sealing gasket: rubber or silicon rubber



Product Parameters

Type

CBYUL-ev16-CT110/240V

Plug the power

80N<F<100N

Color

Black/White/other

Patch life

≥10000

Rated Current

16A

Fire rating

UL94 V-0

Rated Voltage

110V/240V

Waterproof rating

IP54

Resistance Voltage

2000V

Operating Temperature

-30°C to50°C

Insulation resistance

> 1000M Ω

Cable Specifications

2.5mm-12AWG

Contact resistance

0.5m Ω Max

The main material

PA/Copper Alloy

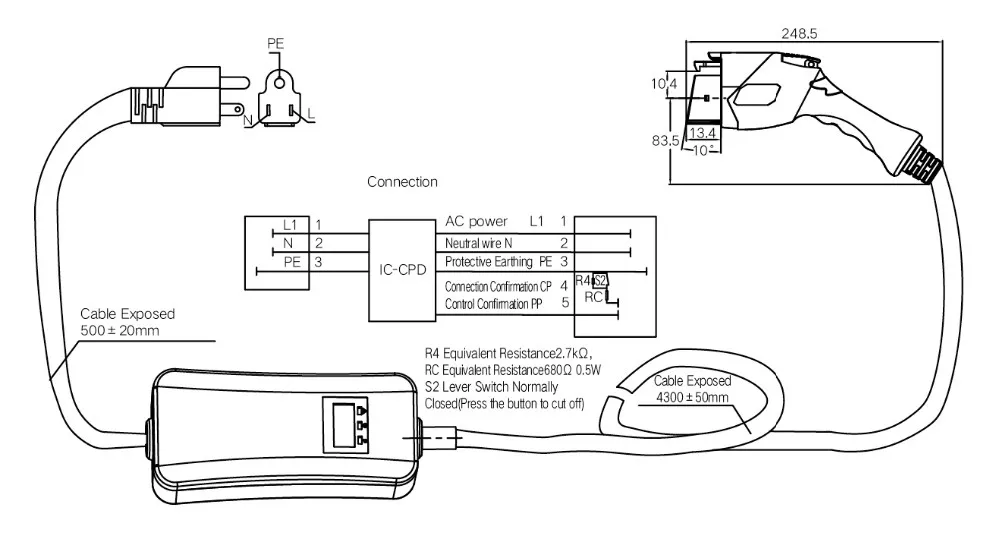

Functional definition:

Mark

Functional Definition

1-(L1)

AC power

2-(L2)

AC power

3-(L3)

AC power

4-(N)

Neutral

5-(PE)

PE

6-(CP)

Control Confirmation

7-(PP)

Connection Confirmation

Certificates:









Why Choose Us

1, we are manufacturer. And we had always adhered to the customer-oriented, excelsior as criterion, and win the market with quality to meet demand.

2, OEM Service Offered, Design Service Offered. We have one team with around

20 years’ experience and set up national standards for automotive connectors in China.

3, Fast delivery and 100% checking before shipment. Now we're exporting to worldwide with competitive prices , good quality and excellent services.
