SRD-30 1000V DC Fuse Base, 10 x 38mm Fuse Holder for Solar PV System

  • 1-49 Pieces
    $2.50
  • 50-199 Pieces
    $1.80
  • >=200 Pieces
    $1.60
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Suntree & OEM
Model Number:
SRD-30
Usage:
High Voltage
Breaking Capacity:
High
Safety Standards:
IEC
Pole::
1P
Rated Voltage::
DC1000V
Rated Current::
1~30A
Protect Class::
IP20
Biggest Block alility::
33ka
Connection:
2.5~10mm2
Working temperature::
-30 degree ~ +70 degree
Pullotion::
3
Installation Class::
Class III
Installation Type::
DIN rail

Packaging & Delivery

Selling Units:
Single item
Single package size:
4X10X8 cm
Single gross weight:
0.3 kg
Package Type:
standard export carton packing
Lead Time :
Quantity(Piece) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description

Recommended for you

Recommended for you

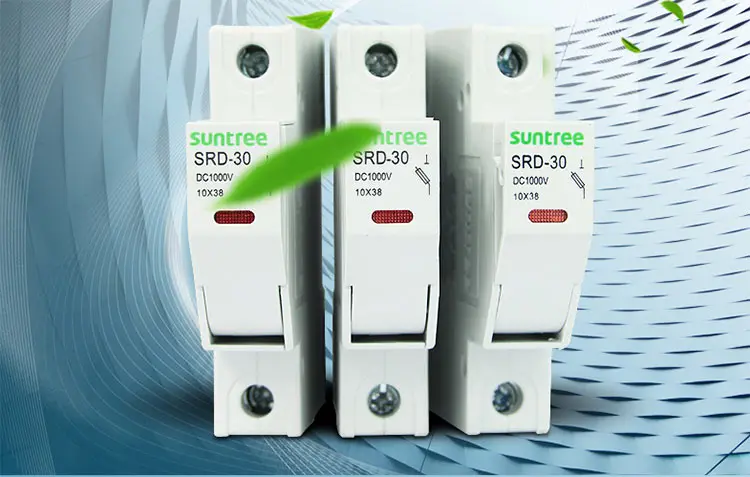

Product Description

Product Introduction

1.A range of 10x38mm fuse links specifically designed for protecting photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current, multi-array fault).



2.DC Fuse mainly used in DC combiner box in solar PV systems. When PV panel or imverter caused overload or short circuit, it trip off immediately, to protect PV panels, DC fuse aslo used to protect other electrical parts in DC circuit, when overload or short circuit.



Parameters

TypeSRD-30
Fuse size10 x 38mm
Poles1P
Rated voltageDC 1000V
rated current1,2,3,4,5,6,8,10,12,15,20,25,30amp
short-circuit breaking capacity33KA
max power attenuation3.5W
protection gradeIP20
connection2.5-10mm2
operation ambient temperature-30~+70°C
Resistance and damp hotClass 2
elevation≤ 2000
installation wayTH35-7.5/DIN35 Rail installation
RH(relative air humidity)when +20 °C,not exceed 95%;when +40 °C,not exceed 50%
pollution class3
installation environmentthe place of no abvious vibrate & impact
installation class
WxHxLW18 x H89 x L90mm
Weight(kg)0.07



Application

1.Photovoltaic system fuse accord with UL248-1 standard.
2.Photovoltaic battery dc fuse designed to used for photovoltaic (PV) system.
3.Main effect is to protect the solar panels. Solar panels points in effective condition is broken,.
4.Fault light cells break points at the same time, does not affect other normal work of light from

the stack.
5.Technical Data  Rated coltage:DC1000V  Breaking capacity:25KA  Function level:PV.



Certificate

Company Information

Company Infromation

XinChi Electric Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".



Main Products:AC&DC Circuit breaker, Solar system parts,Solar Panel/Inverter/Cable,MCCB, ATS auto transfer switch, Isolator switch, Waterproof distribution box.etc.



Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc

Main markets:Australia,New Zealand,&other worldwide markets



Business strategies &Characristic:-Stability, expertise and technological innovation are the corner stones of our company's business strategy.

Packaging & Shipping

Our Services

Our Services

1.Strong Production Capacity
2.Experienced and Professional R&D Team
3.Strict Quality Control About 19 QC staffs,testing workers and technicians guarantee the quality of goods.
4.Rapid Logistics Management Top logistics system SAP provides accurate and timely delivery.
5.Quick Response Any inquiries will be answered on the same day as the arrival of your call,fax or email.

Trade Term

1.Payment : T/T ,paypal,western union

2.Sample lead time: 1-3days

3.Production lead time: 5 days

4.Shipping freight are delivered under your requests

5.Shipping port :Shanghai/Ningbo,mainland china

6.Discounts are offered based on order quantities

7.Packaging: 12pcs/box

8.Shipping: By Express(EMS,DHL,UPS,ARAMEX), By Air or By Sea

FAQ

FAQ

Q:  How can i trust you and your company ?

A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.



Q:How long is your products warranty ?

A: The warranty period of our products is 2 Years.



Q:How about inspection?

A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.



Q:What is the service offered by company?

A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement.

We also have the sales team to offer good service from pre-sale to after-sale.
