Servo Controller 12 Bit PWM Controller PCA9685 Servo Driver 16 Channel For Arduino

  • 1-100 Pieces
    $1.69
  • 101-1000 Pieces
    $1.62
  • 1001-3000 Pieces
    $1.59
  • >=3001 Pieces
    $1.55
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
1 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Contact Supplier
Samples - $1.69 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Model Number:
OKY2157
Brand Name:
OEM, OKYSTAR,ODM&OEM
Place of Origin:
china
SKU NO:
OKY2157
Drive form:
16 Channel servo control board
Customization:
YES
Application:
16 channel for microcontroller,servo
Voltage:
3.3~5V
Item Status:
In stock
Weight:
20g
Warranty:
3 Months to replace new , 2 Years to repair for free
Dimensions:
62.5mm x 25.4mm x 3mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
8X5X4 cm
Single gross weight:
0.08 kg
Package Type:
Standard Packing: Welcome to make sample order. We will return you sample charge in your future formal order.
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 100 101 - 1000 >1000
Est. Time(days) 1 3 To be negotiated

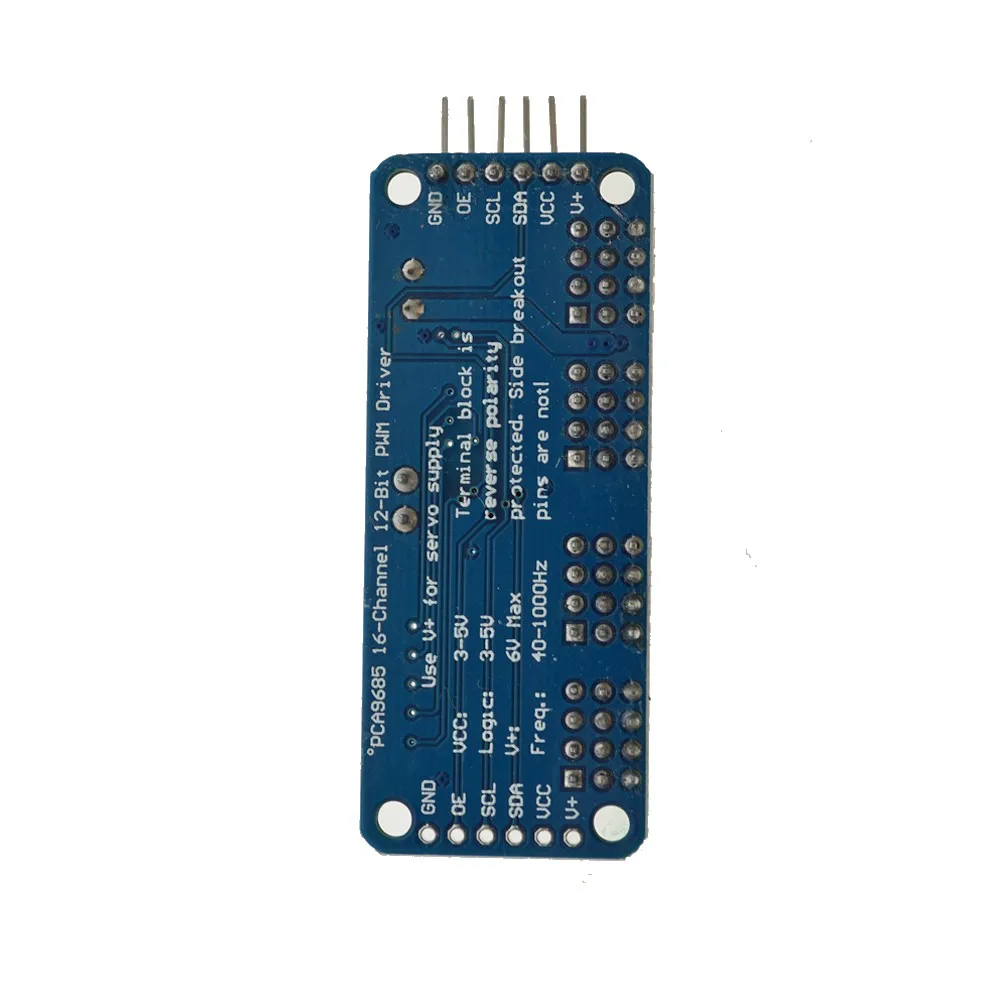

Product Picture

Servo Controller 12 Bit PWM Controller PCA9685 Servo Driver 16 Channel For Arduino

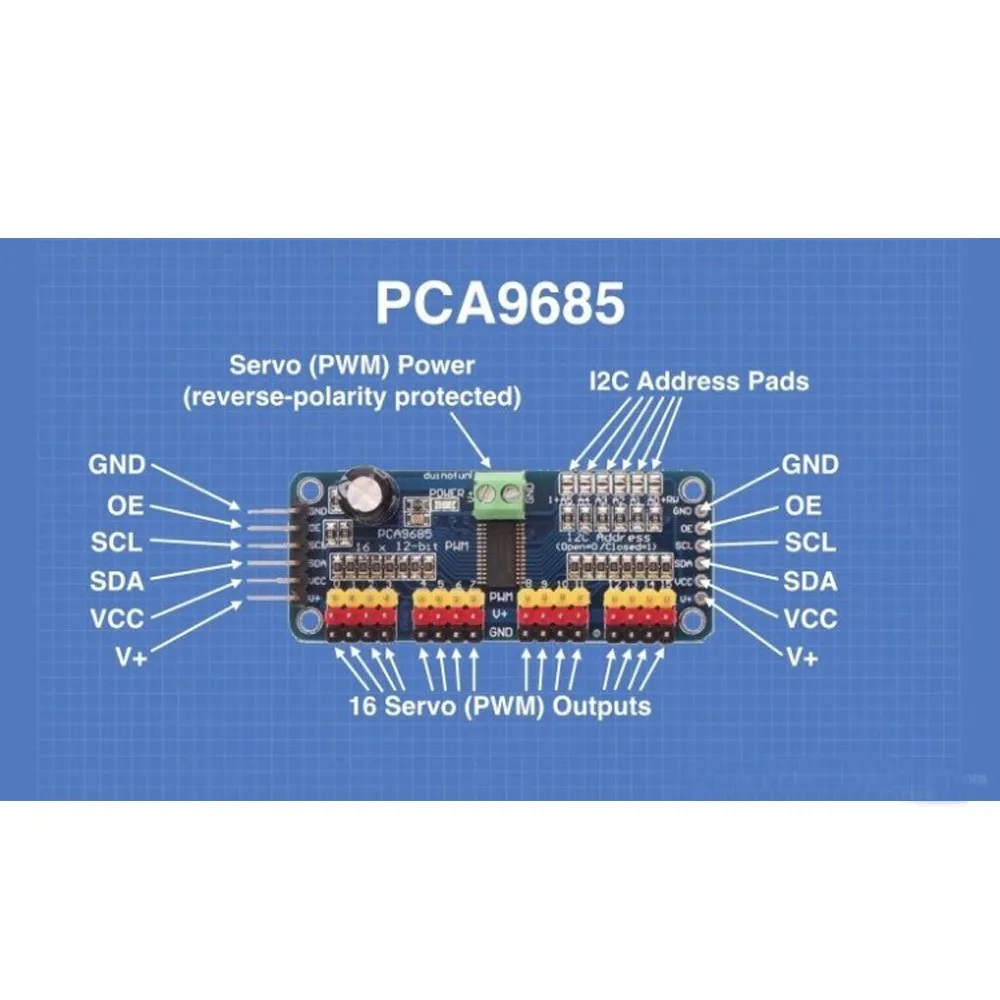

Description


1.Using only two pins, control 16 free-running PWM outputs! You can even chain up 62 breakouts to control up to 992 PWM outputs.
2.It's an i2c-controlled PWM driver with a built in clock. That means that, unlike the TLC5940 family, you do not need to continuously send it signal tying up your microcontroller, its completely free running!
3.It is 5V compliant, which means you can control it from a 3.3V microcontroller and still safely drive up to 6V outputs (this is good for when you want to control white or blue LEDs with 3.4 forward voltages);
4.6 address select pins so you can wire up to 62 of these on a single i2c bus, a total of 992 outputs – that's a lot of servos or LEDs;
5.Adjustable frequency PWM up to about 1.6 KHz;
6.12-bit resolution for each output – for servos, that means about 4us resolution at 60Hz update rate;
7.Configurable push-pull or open-drain output;
8.Output enable pin to quickly disable all the outputs.

Features
weight
20g
Drive form
16 Channel servo control board
Voltage
3.3~5V
Size
62.5mm x 25.4mm x 3mm

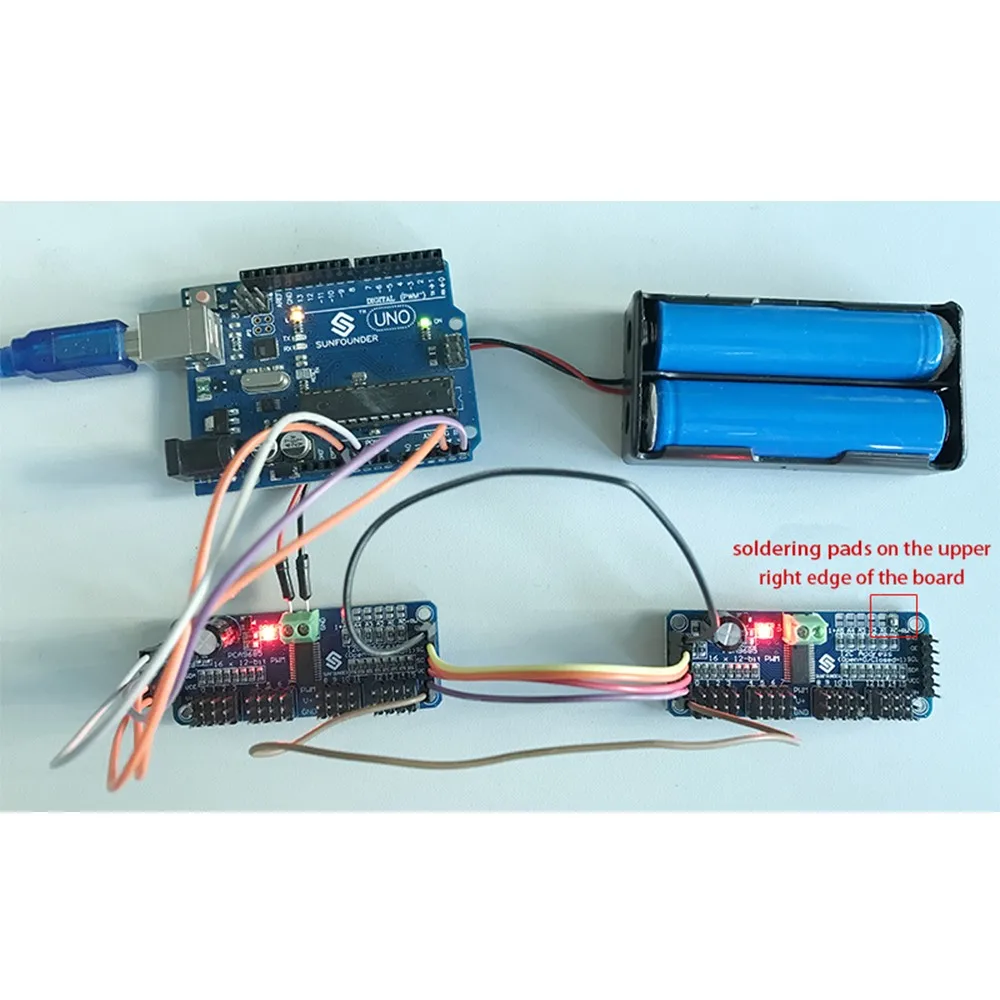

Operation Picture
Circuit Diagram
Our Company

2005, Established in Shenzhen, Guangdong, China, engaged in providing all kinds of diode, audino, integrated circuits, and electronic components.

2006-2008, Invested in Single Chip Microcomputer plant, specialized in manufacturing all kinds of sensor modules and power supply modules.

2009-2010, Started to manufacture Arduno-related modules, sensor modules, single development boards, etc.

2011-2012, Mainly provided various kinds of Arduno-related boards and shields, such as UNO R3, Mega, DUE, W5100 etc. At the same time, invested in the factory of 3D printer spare parts.

2013-2014, Took Arduno supplies as leading business,Cooperating with DIY factory, providing Ardu-related Robot products such as servo, control board cables and so on.

2015, Striving to develop overseas business, lower, accepting small batch orders. Investing in 3D printer factory and expanding product offerings.

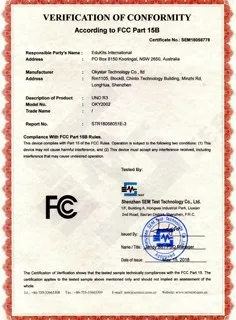

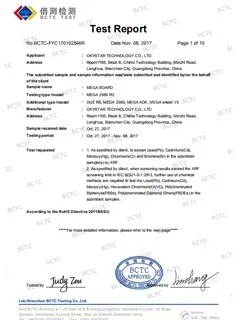

Certifications
Packing & Delivery

Different package at optional:

1. Retailing Package:Anti-static bag
2. Bulking Packing:Plastic Bag Package
3. Retailing Box package

Delivery

1. The items normally will be shipped out within1-3 working days after the payment arrives.
2. The items can be shipped by DHL/FedEx /TNT/ UPS /EMS or other special method. Please inform us directly which method is your preferred way.

FAQ

1. What is the terms of payment?
Support T/T, Western Uino, Money Gram, Alipay, Visa , Paypal, Seacure Payment and Credit Card, etc.

2. What is the delivery time?
Normally, 1-5 workdays after payment;
Special requirement orders, delivery time is negotiable.

3.If the products can't work after receiving it,what should I do?
We will replace new items for you at once, and respect your final decision for wrong goods.

4.If the products don't meet my demand after I received it,can I return it?
Yes,no problem.You can return back to us, we will refund your full payment.

5.what is the warranty?
1-2 years warranty according to different products.
1-3 months to replace new items for free.
All products are tested strictly for 2-3 times before leaving factory. we have earned very good reputation in quality,Certified by the ISO9001.
