TDM OVER IP 4/8 E1

Feedback Ratings
  • 1-99 Pieces
    US $300.00
  • >=100 Pieces
    US $250.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
PHOTEL
Model Number:
PT10-1008
Power supply:
AC or DC
E1:
4/8/16
uplink card:
RJ45/OPT
NMS:
support
Warranty period:
2 years
LED Alarm:
support

Quick Details



Place of Origin:
China (Mainland)
Brand Name:
photel
Model Number:
PT-10 1008
E1 number:
8(BNC)
Power supply:
 AC or DC
E1 interfaces:
75Ω
LED Alarm:
support
ETH number:
4(RJ45 or SFP)
WorkingTEMP
-10℃~50℃
ETH interface:
10/100M
self-adaptive
SNMP:
Support
Warranty period:
2years



Specification



1.Provide up to 8 channels E1;

2.Provide 4 Fast Ethernet,therein ETH-1,ETH-2 for downlink Ethernet;ETH-3,ETH-4 for uplink Ethernet, the 4th Ethernet can be set as electrical or optical;

3.AC or DC power supply;

4.NMS management port(RS232 and ETH).

 PT-10 1008 E1 signal over Ethernet Protocol Converter







1.Brief Introduction

       The 8E1 TDMoIP is the new generation of the TDM over IP equipment with IP circuit emulation that supports transportation of 8 E1 and two local Ethernet ports over Ethernet or IP network. The uplink ports and user data ports are IEEE 802.3 compliant, 10/100 BaseT auto-sensed Ethernet port.

       The TDM over IP Converter has the performance of high transmission efficiency, low transmission delay, high precision clock recovery. Support 8E1 interface and IP internet transmission of 4 100M Ethernet interface . It is also suitable for connecting to the wireless equipment to achieve fast deployment of E1 services. One particular application is to build E1  links with low cost Wireless LAN bridges, replacing much more costly microwave radios.



2.Main Features



Providing up to 8 E1 interfaces;

Providing 4 ETH interfaces, here in 2 ETH interfaces are uplink interfaces, and the other 2 ETH interfaces are downlink service interfaces;

Providing Optical ETH uplink interface;

Having the high transmission efficiency, and the transmission delay can be adjusted;

Supporting point to point, point to multi-point transmission;

Supporting E1 framed, unframed setting;

Supporting E1 loss alarm indication;

Adopting UDP encapsulation, and supporting different types of Ethernet transmission channels;

Supporting Ethernet PING package function;

Ethernet supports 10/100M self-adaptive,half/full duplex self-adaptive;

Supporting E1 package QOS assurance;

The equipment firmware and software supports remote update function;

Support AC220V or DC-48V.



3.Typical applications

1.Point to point network

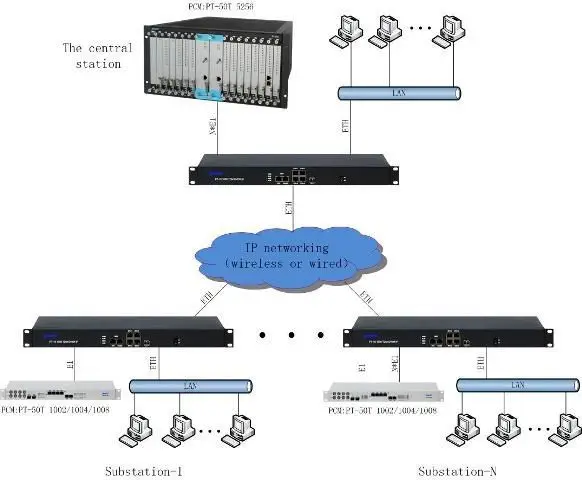

2.Point to multipoint network
