Top Grade Best Selling Flowmeter Ultrasonic

Feedback Ratings
$108.00 - $1,020.00 / Unit | 1 Unit (Min. Order)
Material:
Transmitter housing:Fiberglass Sensor:Aluminum(standard temperature) Sensor:PEEK(high temperature)
Size:
Transmitter size:244*196*114mm
$1,020.00
- +
available
Sensor size:Type S(DN20-50)
$
- +
available
Sensor size:Type M(DN40-1000)
$
- +
available
All 6 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Lanry
Model Number:
TF1100-EC
Type:
Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
Product Name:
Top Grade Best Selling Flowmeter Ultrasonic
Transducer type:
non-invasive
High Temp:
-35-200 °C
Output:
datalogger/4-20mA /OCT /RS485/RS232/GPRS
Accuracy:
Reading+/- 1%
Transducer Material:
Metal
Power supply:
85~265VAC, 24VDC
Liquid type:
Both clean and somewhat dirty liquids with turbidity <10000ppm
Flow velocity range:
0.01 to 12 m/s, bi-directional
Data logger:
16GB

Packaging & Delivery

Selling Units:
Single item
Single package size:
44X33X21 cm
Single gross weight:
7.0 kg
Package Type:
Carton Packing
Lead Time :
Quantity(Unit) 1 - 10 >10
Est. Time(days) 10 To be negotiated
Product Description

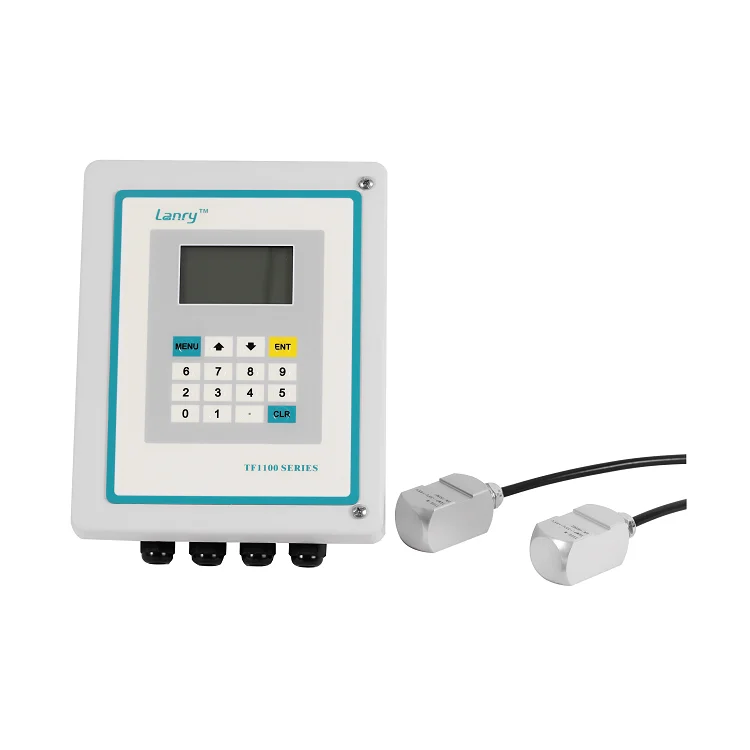

TF1100-EC Top Grade Best Selling Flowmeter Ultrasonic works on the transit-time method.  The clamp-on ultrasonic transducers (sensors) are mounted on the external surface of the pipe for non-invasive and non-intrusive flow measurement of liquid and liquefied gasses in fully filled pipe. Three pairs of transducers are sufficient to cover
the most common pipe diameter ranges.  In addition,  its  optional  thermal energy measurement capability makes it possible to carry out a complete analysis of thermal energy usage in any facility.
This flexible and easy to use flow meter is the ideal tool for the support of service and maintenance activities.  It can also be used for the control or even for the temporary replacement of permanently installed meters.
Features
1. Non-invasive transducers are easy to install, cost effective, and require no pipe cutting or processing interrupt.
2. Wide liquid temperature range: -35℃~200℃.
3. Data logger function for this Sea water ultrasonic flow meter .
4. Thermal energy measurement capability can be optional.
5. For commonly used pipe materials and diameters from 20mm to over 6.0m.

6. Wide bi-directional flow range of 0.01 m/s to 12 m/s..

Application

General
● Service and maintenance

● Replacement of defective devices

● Support of commissioning process and installation

● Performance and efficiency measurement
- Evaluation and assessments
- Capacity measurement of pumps
- Monitoring of regulating valves

● Energy efficiency audits


Water and waste water industry - hot water, cooling water, potable water, sea water etc.)
Petrochemical industry
Chemical industry -chlorine, alcohol, acids, .thermal oils.etc
Refrigeration and air conditioning systems
Food , beverage and pharmaceutical industry
Power supply- nuclear power plants, thermal & hydropower plants), heat energy boiler feed water.etc
Metallurgy and mining applications
Mechanical engineering and plant engineering-pipeline leak detection, inspection, tracking and collection.

Specifications :Transmitter

Specifications :Transducer

Sea water ultrasonic flow meter Diamensional Sketches:

S      48(h)*28(w)*28(d)mm
M    60(h)*34(w)*32(d)mm
L      80(h)*40(w)*42(d)mm

Factory Equipment
Customer Visiting
Previous Exhibition
Certificate
Packing & Delivery

Packing

Top Grade Best Selling Flowmeter Ultrasonic

With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.

Delivery

Top Grade Best Selling Flowmeter Ultrasonic standard meter: 3-7 days

Special meter: pls contact us

Express, by air, by sea can be optional.
