Toponetech 19 inch 27 inch risistive capacitive large touch screen panel

  • 2-9 Pieces
    $237.00
  • 10-99 Pieces
    $235.00
  • >=100 Pieces
    $233.00
Model Number:
TOT190USW001
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Contact Supplier
Samples - $237.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Screen Size:
19"
Type:
TOT190UCA016
Interface Type:
D-Sub, DVI, Serial, USB
Resolution:
1280 x 1024
Brand Name:
Toponetech
Place of Origin:
Guangdong, China
Keywords:
19inch 27 inch risistive capacitive large touch screen panel
Size:
19 inch
Interface:
USB/RS232/VGA/DVI/HD-MI
Touch points:
10 Points
Application:
Casino Gaming gambling slot machine Industry
Brightness:
300cd/m2
viewing angle:
89°/89°
Contrast Ratio:
1000:1
Operating System:
XP Win7 8 Android Linux
Warranty:
1 Year

Packaging & Delivery

Selling Units:
Single item
Single package size:
43X19X36 cm
Single gross weight:
15.0 kg
Package Type:
2 pieces per carton
Picture Example:
package-img
package-img
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(days) 10 To be negotiated
Product Description
19 inch 27 inch risistive capacitive large  touch screen panel

Model: TOT190USW001
TOP ONE TECH LTD

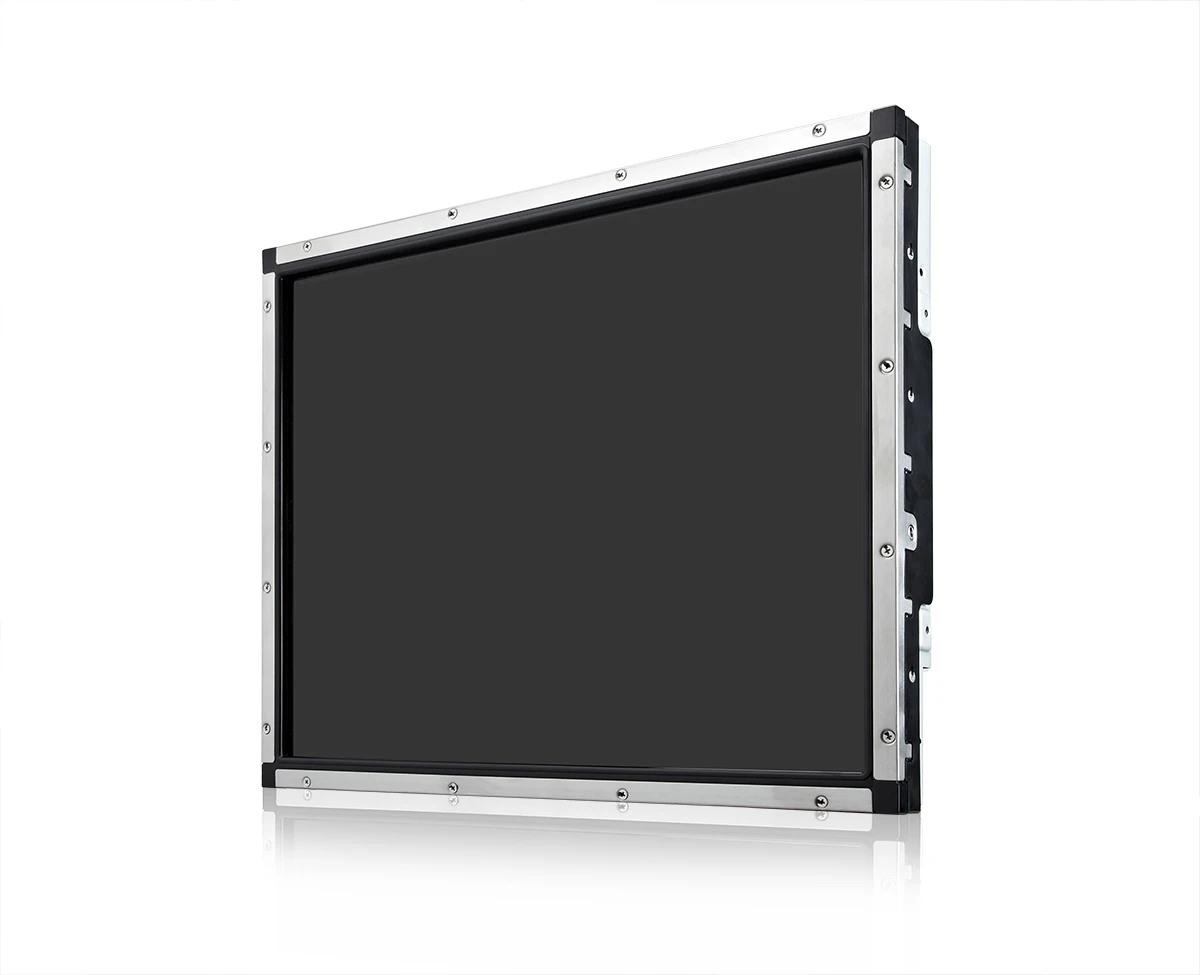

TOP ONE TECH’s 19" compact open frame LCD touchmonitors have a long-lasting product cycle because the enclosure is controlled by TOP ONE TECH’s specifications. Future panel improvements are therefore  possible without external changes. The TOT190USW001 integrate with the TOP ONE TECH’s SAW technology touchscreen.

Features
1.Bezel seal standard:NEMA3 and IEC IP65
2. Long lasting product cycle-enclosure controlled by TOP ONE TECH specifications
3.Future generation panels phased-in without external changes
4.High quality panel with high brightness,high contrast ratio and broad viewing angle
5.Multiple mounting options including VESA mount, horizontal or vertical bracket-mount
6, Compact and slim profile for easy integration from side,top and bottom
7. TOP ONE TECH’s SAW technology on pure glass for the ultimate in image quality
8. Finger or gloved hand operation
9.Dual USB/Serial touch interface port
10.Dual VGA/DVI input video format
11. Worldwide agency approvals




Product Parameter

Product Parameter

Model No.
TOT190USW001
Series OT,
Water-proof and Compact
Active Area
15.6"(376mm)×11.85"(301mm)
Monitor Dimensions
Width: 415mm
Width with brackets:436 mm
Height: 343mm
Height with brackets: 364mm
Depth: 51mm
Suggested Resolution
1280×1024 @ 60Hz
Support Colors
16.7M
Brightness(Typ.)
Pure LCD Panel
300cd/m2
With SAW Glass Sensor
275cd/m2

Response Time(Typ.)
 6ms



Viewing Angle

(Typ.at CR>10))


Horizontal(left/right)
 80°/80°
Vertical(up/down)  80°/80°
Contrast Ratio(Typ.)  800:1
Video Input
Dual Analog RGB and DVI video format

Frequency(H/V)
30~80KHz / 60~75Hz

Power Supply

Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max

Environment   Operating Temp. 0~50°C
Storage Temp.-20~60°C
Operating RH: 20%~80%
Storage RH:10%~90%
MTBF 50,000 Hours 50,000 Hours
LCD Back light Life(Typ.)  50,000 Hours
Weight(N.W/G.W)6Kg / 8Kg (Approx.)
Power Consumption
50W Max.

Mount Interface1)VESA 75mm and 100mm
2)Mount bracket, horizontal or vertical
  (Standard mount brackets are supplied)

OSD ControlButtons AUTO,+,POWER,-,MENU

OSD Control

Function


Brightness, Contrast Ratio,Autoadjust, Phase, Clock,H/V Location, Languages, Function, Reset
Touch screen Type



TOP ONE TECH 19" SAW 4mm compact touch sensor, anti-glare is

optional

Touch System InterfaceHaving USB and Serial(RS232) interface
Touch Response time
USB/Serial: 8.4/10.4ms
Agency Approval
ETL,FCC,CE,RoHS
Regular Warranty
1 year
Company Profile











1. Q: Are you a manufacturer or trading company?
     A: We are a professional manufacturer specialized in LCD panel, touch screen,

touch screen monitor, touch computer since 2005 located in Shenzhen.

2. Q: How long is the warranty?
     A: Our officially promised warranty time is 1 years (Non-artificial damages) from the date of delivery. Supply

          replacement or offer new parts according to our communication.

          For quantity and regular order, you may keep the RMA and after long time collection, ship them back together, we’ll offer

          repair or replacement, or if you have your own engineer department, no need to return back, we can send repair parts to you.


3. Q: Do you provide ODM/OEM or customized service?
    A: OEM/ODM are available based on your requirements.

4. Q: What brand of screen do you use?
     A: Original LG/SAMSUNG/AUO screen, we can guarantee each display will pass through strict quality inspection.



5. Q: What is the MOQ?

    A: No MOQ. Sample testing is acceptable, the price is negotiable for bulk order.



6. Q: How to get?

    A: Sample order shipped in 3days, bulk order shipped within 2 weeks.

         All items can be shipped by FEDEX, DHL, UPS, EMS, TNT accordingly.



7. Q: How can I trust your product quality?

    A: We have more than 10 years export experience.  From raw material purchasing to product delivery, we have our own

          professional staff and procedures to prevent potential quality risk. Our products have been approved by CE, FCC,

          ERP & ROHS etc.



8. Q: What's your after-sale service?

    A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.

    After-sales service mailbox:support @ toponetech.cn



9. Q: How to pay?

    A: For bulk order it is better to pay by TT, to save your banking charges.

         For sample and small order, Credit card, Paypal and Western Union are acceptable.
