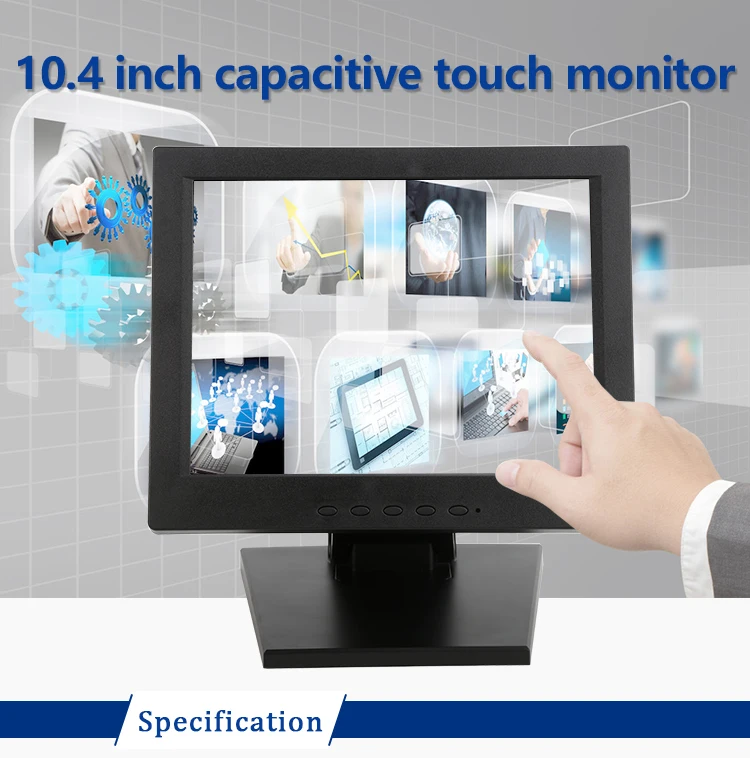

True flat Screen 10 Inch Capacitive Touch Screen Monitor for pos system

  • 10-99 Pieces
    $125.00
  • 100-299 Pieces
    $120.00
  • 300-499 Pieces
    $115.00
  • >=500 Pieces
    $112.00
Model Number:
HOP104
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
4 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 50 Pieces)

More

Graphic customization (Min. Order: 50 Pieces) Less
Contact Supplier
Samples - $125.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Screen Size:
10.4''
Type:
Capacitive
Interface Type:
D-Sub, DVI, USB
Resolution:
800 x 600
Brand Name:
Hope or OEM
Place of Origin:
Guangdong, China
interface:
VGA+USB+DVI
Touch type:
Capacitive touch
Monitor Dimensions:
Width: 264mm Height: 204mm Depth: 40mm
Touch model:
5points touch
Contrast ratio:
700:1
Viewing angle:
80/80/60/80
Viewing area:
245*285mm
Color:
black
Brightness:
300cd/m2
keyword:
Capacitive touch monitor

Packaging & Delivery

Selling Units:
Single item
Single package size:
36X32X16 cm
Single gross weight:
5.0 kg
Package Type:
carton box packing
Lead Time :
Quantity(Piece) 1 - 10 11 - 100 101 - 500 >500
Est. Time(days) 4 12 20 To be negotiated

10.4 inch Touch Monitor Projected Capacitive Touch screens 10" Active matrix TFT-LCD Flat Screen waterproof





Product Description







SeriesFlat Screen Frameless waterproof
Monitor DimensionsWidth: 264mm Height: 204mm Depth: 40mm
LCD Type10.1” Active matrix TFT-LCD
Video InputVGA and DVI
OSD controlsAllow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power SupplyType: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max
Mount Interface1)VESA 75mm and 100mm
2)Mount bracket, horizontal or vertical
LCD Specification
Active Area(mm)211.2x158.4 mm
Resolution800×600 @60Hz
Dot Pitch(mm)0.088×0.264
Nominal Input Voltage VDD+3.3V(Typ)
Viewing angle (v/h)80/80/60/80(Typ.)(CR≥10) (Left/right/Top/Bottom)
Contrast700:1
Luminance(cd/m2)400
Response Time(Rising)25msec
Support Color16.2M/262K colors
Backlight MTBF(hr)10000(Min)
Touchscreen Specification
TypeProjected Capacitive touch screen
Multi touch5points touch or 10points touch
Touch Life Cycle10 millions
Touch Response time8ms
Touch System InterfaceUSB interface
Power consumption+5V@80mA
External AC Power Adapter
OutputDC 12V /4A
Input100-240 VAC, 50-60 Hz
MTBF50000 hr at 25°C
Environment
Operating Temp.0~50°C
Storage Temp.-20~60°C
Operating RH:20%~80%
Storage RH:10%~90%







Company Information



Shenzhen Hopestar Sci-Tech Co., Ltd. is a new and high-tech enterprise, devoted to the research, development and sale of "Hope" products. Our products got CCC certification. Main products include LCD monitors, LED monitors, CCTV monitor, All In One Pc, Advertising Player and Digital Photo Frame.







We have our own R&D team, factory, marketing and after sales service departments
10,000 square meters factory area, two advanced CBU assembly production lines, strong D team and also complete series testing quipments, which makes.The annual production capacity is over 3000,00 units.All of our products passed by CE ,ROHS,FCC,CCC,and our factory approved ISO 9001 certificateds.



 CUSTOMERS VISITING:







Our Services

Sample Availability & Policy:

Paid samples are available in 2-3 days.
Buyer covers the shipping cost, Sample fee can be deducted from the first order
OEM & ODM sample lead time to be discussed.





Product Compliance :



All our Products can be compliant with RoHS, CE, FCC.
We can also do WEEE / REACH Complaint.
Recycle Material Compliant
UL / CSA Complaint can be done upon requirement
PSE / NCC can be done upon requirement



Warranty & Spare parts Conditions :

1. Our Products comes with 3 Year Warranty
2. We offer Premium Quality for Customer to make better profits
3. We maintain High Quality Standard
4. Our Products makes Customer Best Seller Product
5. We provide Best Product for futher sales
6. We sell Original Authentic Product to Customer
7. Our Products are Environment Friendly Products.





FAQ

1.Q:What is the minimum order?
A: Abeloe is a professional manufacturer with CBU assembly production lines.Both of your oem/odm and sample testing order are high appreciated.

2.Q:Which payment is acceptable?
A:We accept most of the payment methods,but mainly accept T/T,L/C,Western Union, Paypal, Cash and MoneyGram.

3.Q:How long is the warranty time for your products?
A:Our officially promised warranty time is 1 whole years after delivery at best.

4.Q:I haven't done business with you guys before,how can i trust your company?
A:Our company has been in Alibaba.com for 7 years,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what's more,we've got quite a lot authority certificates,for example,CE, RoHS, ISO9001, BV, Alibaba onsite check certificate. I hope those above will be persuasive enough.

5.Q: what's the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-5 working days after delivery.

6.Q:Do you give any discount ?
A:I'll surely try my best to help you get those by the best price and good service at the same time.

7.Q: Are the pictures real?
A:All pictures of the products are in 100% real sight. And we can make a live video chat to get all angel sights.



Hopestar is your choice!

 Please contact us now!
