UK Market TRVS, Liquid Sensor Thermostat Head, Brass Thermostatic Valve DN15

$5.80 / Piece | 1000 Pieces (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Baiyilun
Model Number:
BYL-6649
Material:
Brass, ABS + Brass
Application:
General
Pressure:
Medium Pressure
Power:
Hydraulic
Temperature of Media:
Medium Temperature, Medium Temperature
Structure:
Control
Media:
Water
Port Size:
M30-1.5mm
Standard or Nonstandard:
Standard
Temperature:
6-28 degree
Certification:
CE,ISO9001:2008,ISO14001:2004
Type:
Floor Heating Parts
Floor Heating Part Type:
Floor Heating Thermostats

Packaging & Delivery

Selling Units:
Single item
Single package size:
51X36X22 cm
Single gross weight:
17.0 kg
Package Type:
white inner box + common brown box
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 30 To be negotiated

Zhejiang Baiyilun Intelligent Control System Co.,Ltd specialized in the manufacture of thermostatic radiator valve and room thermostat.We have produced these products for more than ten years and got a lot of experence in this line.Since now,we have exported our goods to over 30 countries,such as Russia,Romania, Greece,Croatia,Turkey, Poland, Ukraine and so on.



                             UK Market TRVS, Liquid Sensor Thermostat Head, Brass Thermostatic Valve DN15

Product Description

1.)Approved to EN215

2.)Passed CE/ISO9001/ISO14001

3.)Temperature range:6-28 °C

4.)Setting number 0 to 5

5.)Limitable and lockable

6.)Can be mounted vertically or horizontally

7.)M30 x 1.5 universal type head to body

8.)Guarantee: 3 years

9.)Chrome plated

10.)Frost protect

11.)DN15/20/25 avaiable

12.)OEM branding available

13.)Liquid sensor



1.Temperature sensor



Temperature hysteresis:1.0 k



Max admissible static pressure:10 bar



Max admissible differential pressure:1.0 bar



Normal pressure:16 bar



Max temperature resistance:110 degree



Temperature extent: 6-28 degree



2.Thermostatic valve body



Made of brass,easy to be installed



Low resistance



Water temperature : less than 120 degree



Normal resistance to pressure: 10 bar



The Weight Of Our Thermostatic Radiator Valve:



DN15

straight valve

DN15

angle valve

DN20

straight valve

DN20

angle valve

DN25

straight valve

DN25

angle valve

DN15

3 way

DN20

3 way

DN25

3 way

245 g230 g 315 g 300 g 390 g 370 g 360 g 455 g 600 g



Products details:

 BYL-6649 .jpg



Other Series Of Radiator Valve:

Company Information

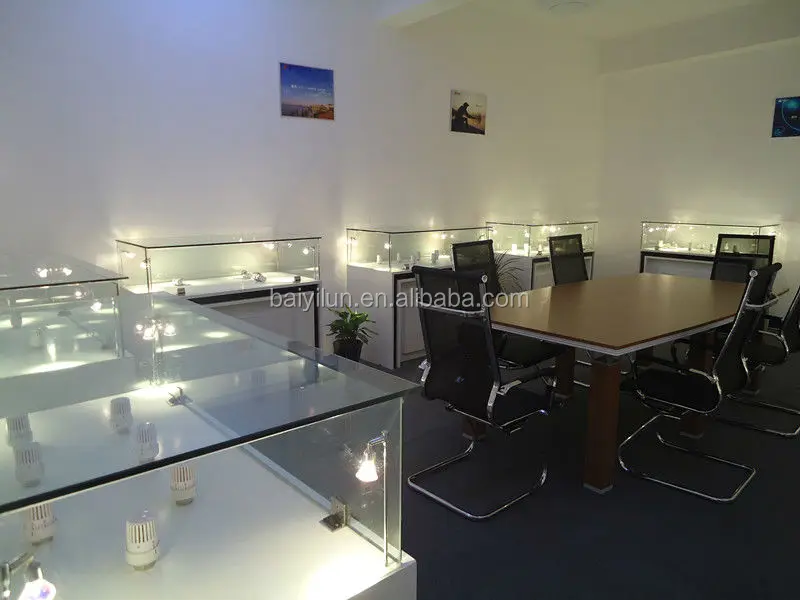

Showroom:



Samples Exhibition Room.jpg



Specifications

Size:

DN10(3/8"), DN15(1/2"),DN20(3/4''),DN25(1'')  Angle valve ,Straight valve, 3 way valve, H valve



Used Connection Pipe:

PPR/PB/PE pipe,Red copper pipe,pex-al-pex pipe,Matel pipe



OEM condition

Logo for the thermostatic head, the MOQ is 3000 pieces.

Logo for the thermostatic valve body, the MOQ is 10000 pieces.



Payment terms:

30%TT as deposit payment,70%TT against the Copy of B/L

L/C is available.



Delivery terms:

FOB NINGBO or FOB SHANGHAI can be choosed.

The production time is 25 days normally.



About Packing

50 sets per carton with paper box ,carton size:51x36x22 cm;

40 sets per carton for blister packing, carton size : 48x35x29 cm;

100 pieces per carton for only thermostatic head, cartons size: 40x30x30 cm;

60 pieces per carton for only thermostatic valve body, carton size: 41x25.5x26 cm;

About 20000 sets /20” container with blister packing;

About 25000 sets/20” container with carton box;

Pallet packing is available.



About Guarantee:

3 Years guarantee counted from the days arrived in your warehouse.
