USB 5V Ceramic Infrared Heaters with thermocouple

$10.00 / Piece | 10 Pieces (1 lot) (Min. Order)
1 batch = 10 Pieces
Electric Heater Type:
Tubular Heater
$10.00
- +
available
Alumina Heater
$10.00
- +
available
Ceramic Heater
$10.00
- +
available
All 4 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
shape (Min. Order: 1000 Pieces)
resistance (Min. Order: 1000 Pieces)

More

power (Min. Order: 1000 Pieces)
voltage (Min. Order: 1000 Pieces) Less
Contact Supplier
Samples - $10.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Heating Element:
MCH
Installation:
Portable, Interior
Certification:
RoHS, SGS
Function:
Lighting, Waterproof
Infrared Heater Type:
Sun Heater
Number of Bulbs:
0
Place of Origin:
Guangdong, China
Brand Name:
MW
Model Number:
custom
Product name:
Heating Element
Application:
Widely Used
Wattage:
0-100W
Feature:
Fast Heating
Advantage:
Long Use-Life
Operate Temperature:
0~800C
Voltages available:
3.7V/5V/12V/24v/110v/220v
Insulation material:
96% AL2O3 Ceramic
Material:
Ceramic
Insulation:
oxide aluminium 96%

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
18X10X12 cm
Gross weight per batch:
0.5 kg
Package Type:
Carton Package
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Video Description
Product Description
Working life
5,000 Hours
20,000 Hours
50,000 Hours
(Based on use condition)
Voltage
DC 3.7V  / 5V
DC 12V /  24V
AC 110V / 220V
AC  230V / 240V / 360V
Color
customized (mm)
Application
Widely Use
Shape
Square Plate
Certification
SGS, RoHS
Power
1-300W / 600-3500W
Warranty
2 years
Item Name
Ceramic heater element
Function
Heating / Warming
Resistance range
4-6Ω / 9-11Ω / 18-22Ω
90-110Ω / 450-550Ω
MOQ
Sample 1 Piece
Order  1000 Piece
Model Number
404020
Price
FYI USD 5.00-15.00
96% Alumina
White
Port
Zhuhai/Guangdong

Superior Property

1. Rapid Heat Up;
2.Hig-Temperature Durability;
3.Small Size / High Output;
4.Excellent Mechanical Properties;
5.High Efficiency Heat Exchange.


Advanced Ceramic Heaters are small in size but mighty in power!

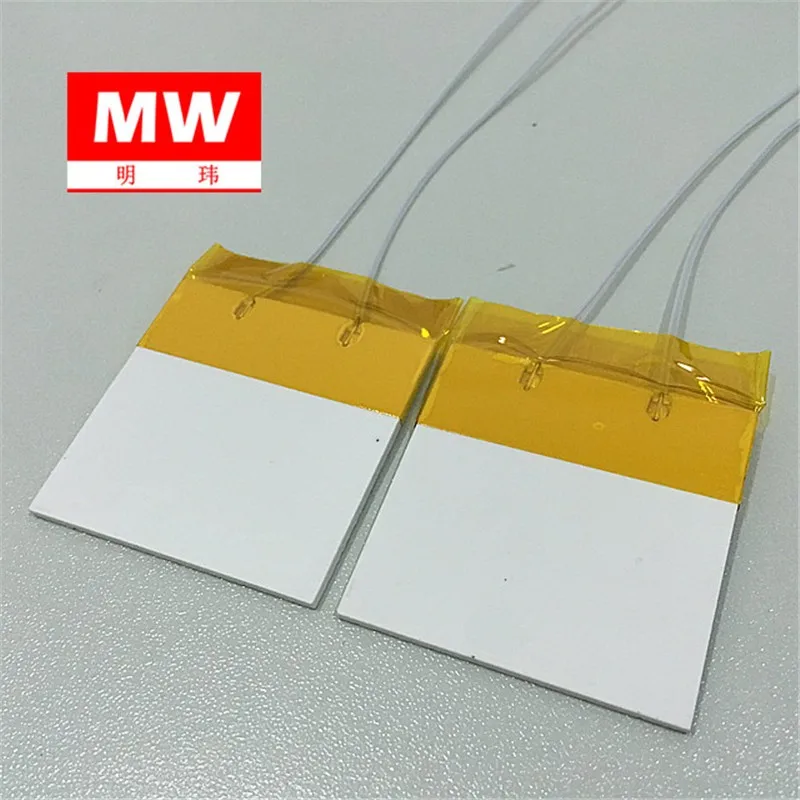

USB 5V Ceramic Infrared Heaters with thermocouple

Ceramic heater technology is available in Alumina (AI203). Ceramic heater technologies offer significant advantages over metal based sheath heaters that have limitations in thermal performance or material compatibility. Our ceramic heaters can operate in atmospheric and vacuum enviroment. It can reach up to Max. temperature 1000°C.


Material Alumina

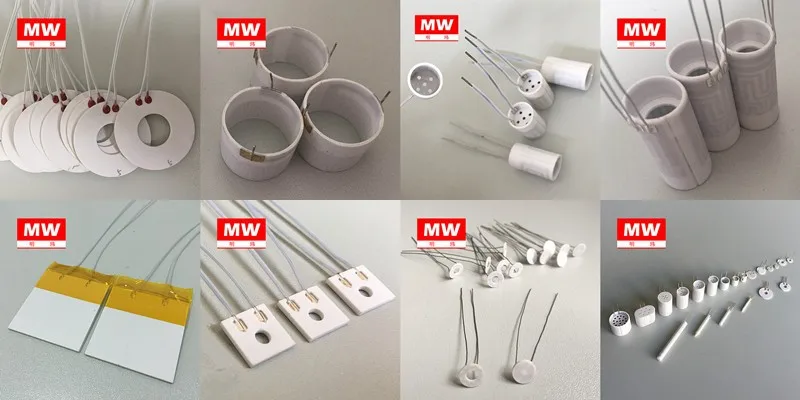

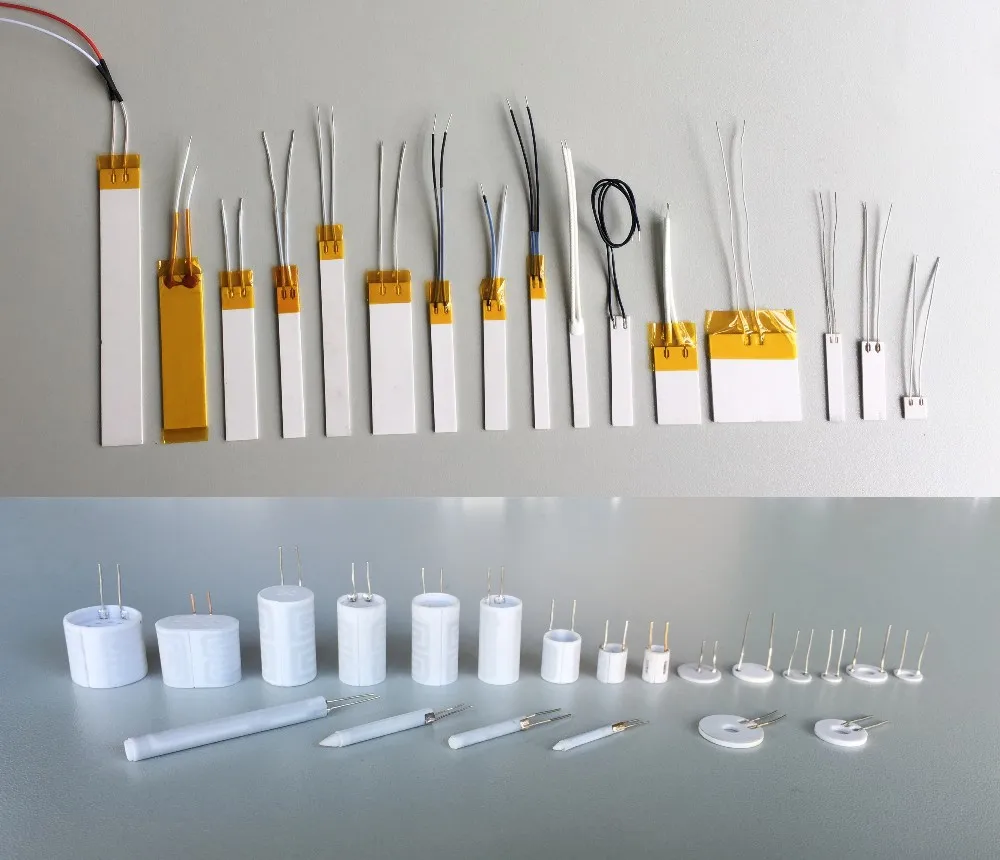

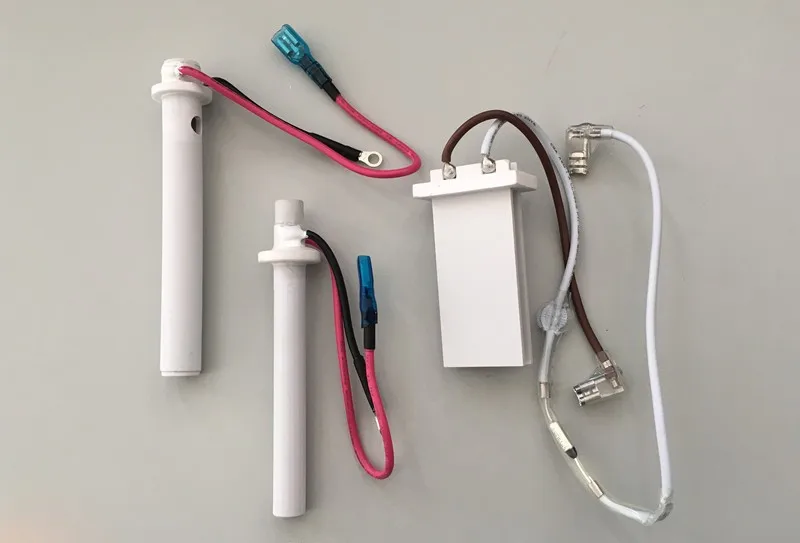

Shape Plate Type, Rod Type,Tube Type
Maximum operation temperature 1000℃
Regular operation temperature 800℃
Thermal conductivity (20℃) 18W/(m·K)
Specific heat (20℃) 0.78×103 J/(kg·K)
Coef. of linear thermal expansion (40~800℃) 7.8×10-6 /℃
Vickers hardness (Load 500g) 12.3 GPa
3-point flexural strength 340 MPa



Compact / Light-Weight / Energy-Conserving

· High watt density, good thermal efficiency

· Laying of multiple heating elements per unit is available

Superior Thermal Properties

· Rapid heat increase

· Custom designed temperature distribution available

· High levels of insulation allow direct contact with water, kerosene and metal

High Reliability

· Superior dielectric strength and electrical insulation

· Longer life due to oxidation-proof design on resistivity material

· Superior chemical resistance

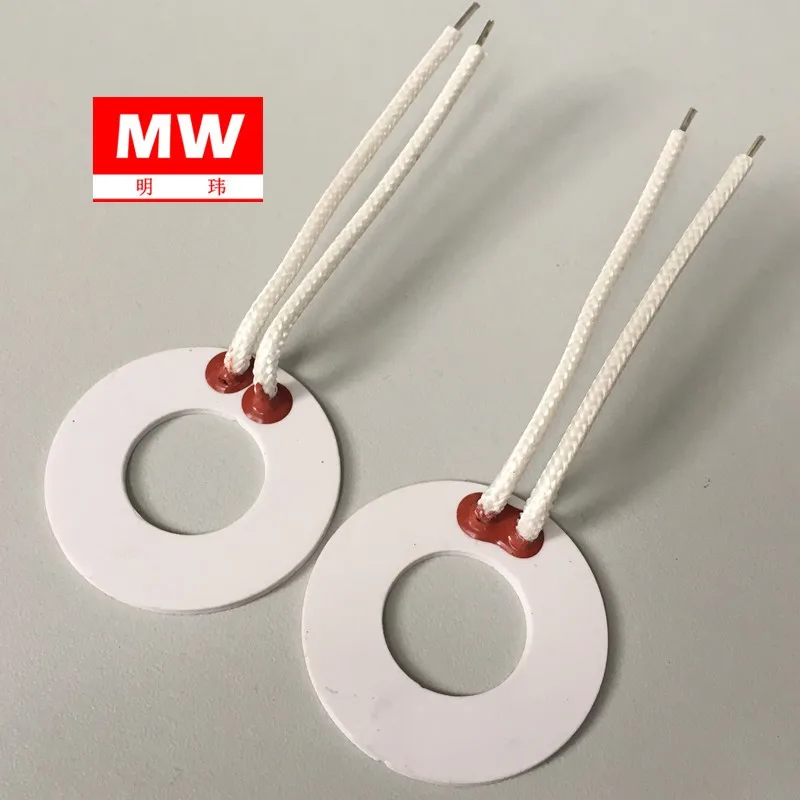

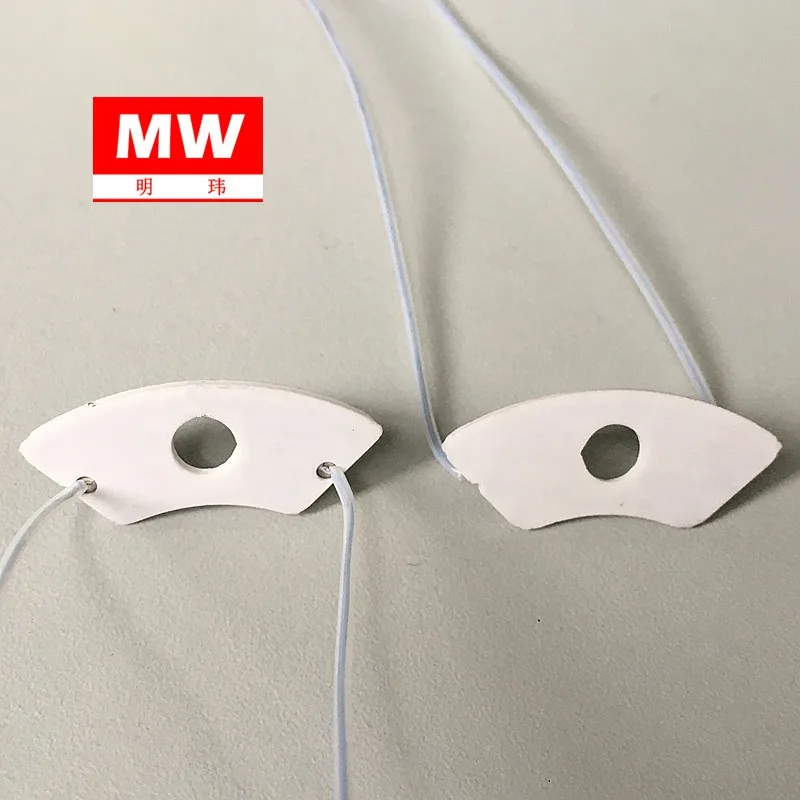

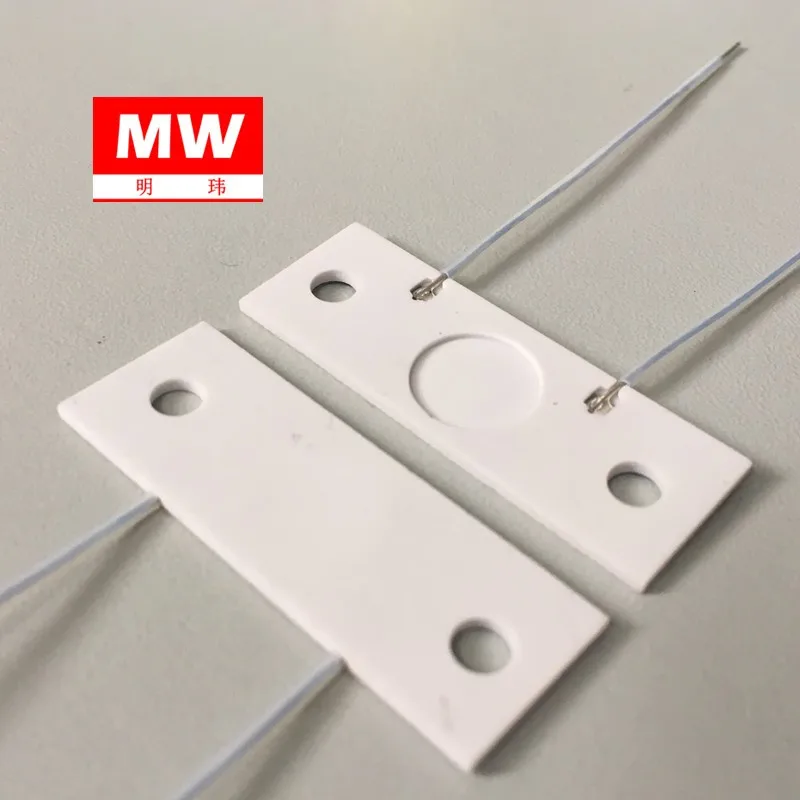

Detailed Images

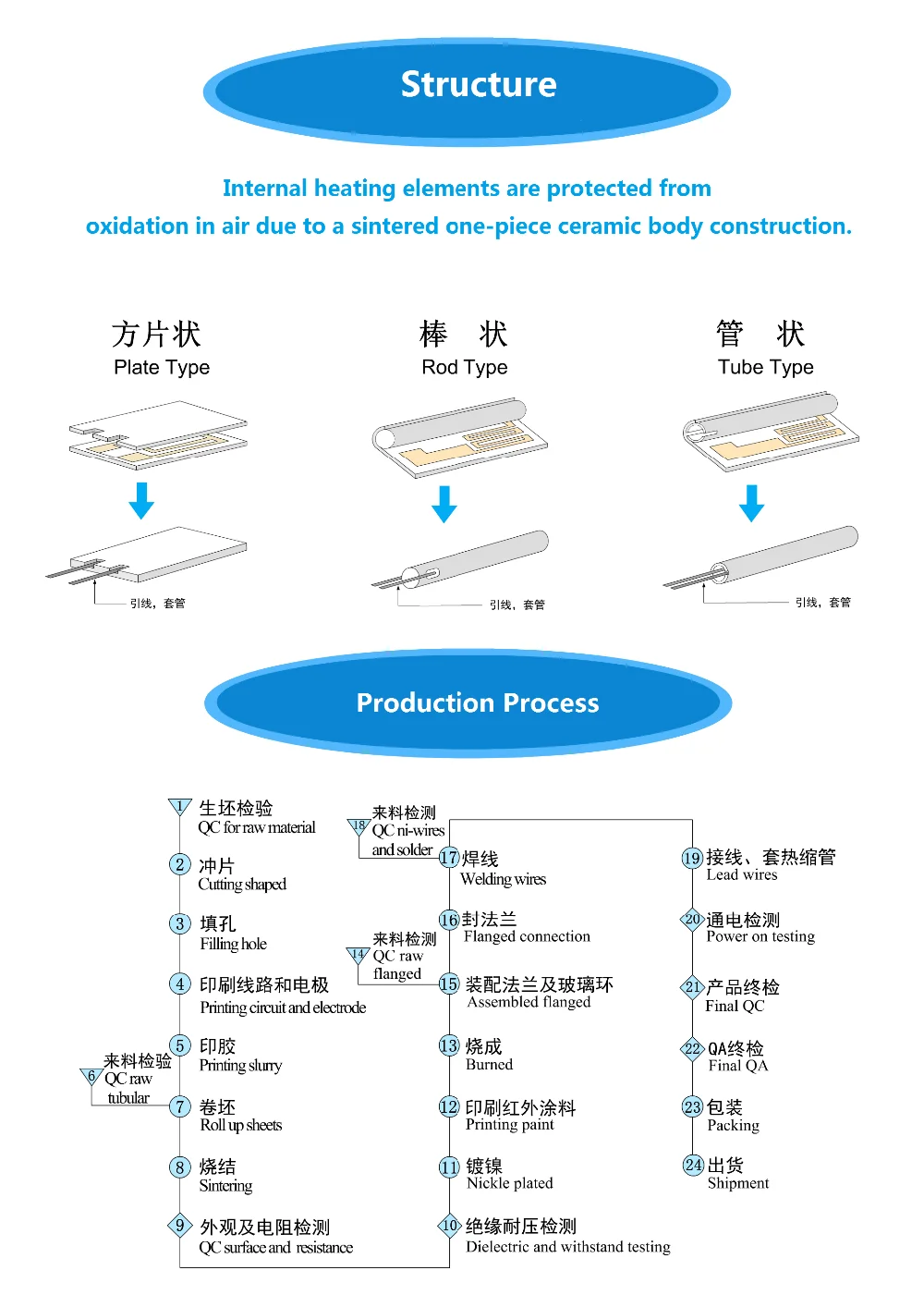

Production Tech

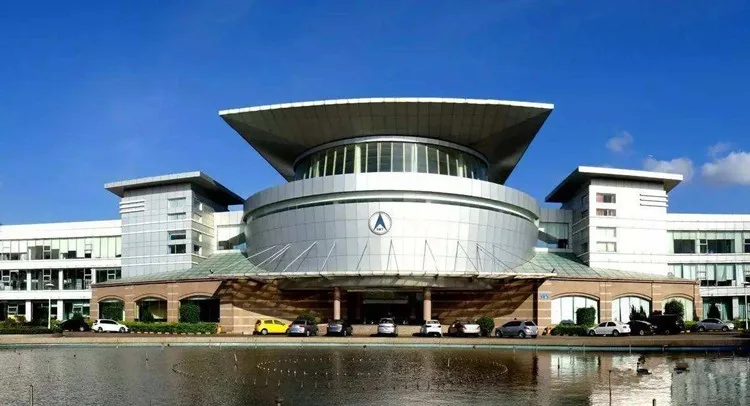

MW-Tech Company

MW-Tech was founded in 2017 by RANG and RITA , as an innovative developer and manufacturer of heating elements and printed circuits using IC technology. The company has a research and development department, clean room, advanced printing equipment and furnace. Through its research and development – and the resulting patent-protected inventions – the company has grown to its current production capacity of quantity 500,000 units monthly.

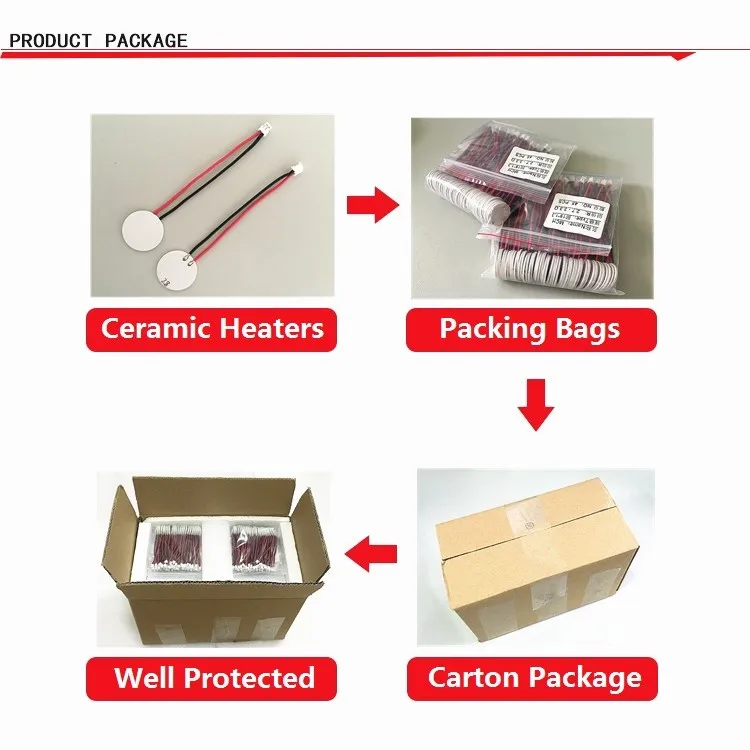

Packing & Delivery
Our most professional packaging
  Fast ship by DHL/FEDEX/UPS
           Customized support
MW-Tech Service

1. OEM Manufacturing : ceramic heating element (shape, size, resistance,watt, voltage...etc )
2. Sample order. Most of current items stock available. Customized support.
3. We will reply you for your inquiry in 24 hours. Thank you for your waiting!
4. After Sales, we will track the products for you, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

5. If you have questions about OEM Ceramic Heaters, please Contact Us.
