V-checker T501 Smart Solar TPMS Internal Sensor Infineon Solution

Custom Branding
Retailer's Choice
Feedback Ratings
  • 1-199 Sets
    US $99.00
  • 200-499 Sets
    US $87.00
  • 500-999 Sets
    US $69.00
  • >=1000 Sets
    US $59.00
Sign in to view Reseller discounts
Quantity:
- + Sets available
Custom branding options are available:
Custom branding options are available when you order at least 200 Sets.
Place brand on product (example) US $1.0 / Set
Place brand on package US $1.0 / Set
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Report Suspicious Activity
Overview
Quick Details
Max Pressure:
< 100 Psi
Type:
Digital
Certification:
CE
Voltage:
3.5 - 6.0V
Place of Origin:
China (Mainland)
Brand Name:
v-checker
Model Number:
T501
Warranty:
1 Years
Operating Frequency:
433.92MHZ
Operating Voltage:
3.5 - 6.0V
USB Charging Current:
≤ 600mA
Operating Environment Temperature Range:
-20 - 85℃
Sleeping Mode Current:
< 1mA
Long-term Storage Temperature:
-40 - 85℃
Monitoring Air Pressure Range:
0.0 - 4.0 Bar
Supported Bluetooth:
Bluetooth 4.0 Version or Above
Monitoring Temperature Range:
-40 - 85℃
Battery Capacity:
2000mAH
Product Introduction
Brief Introduction

TPMS T501 is new product designed and produced by V-checker® technology.

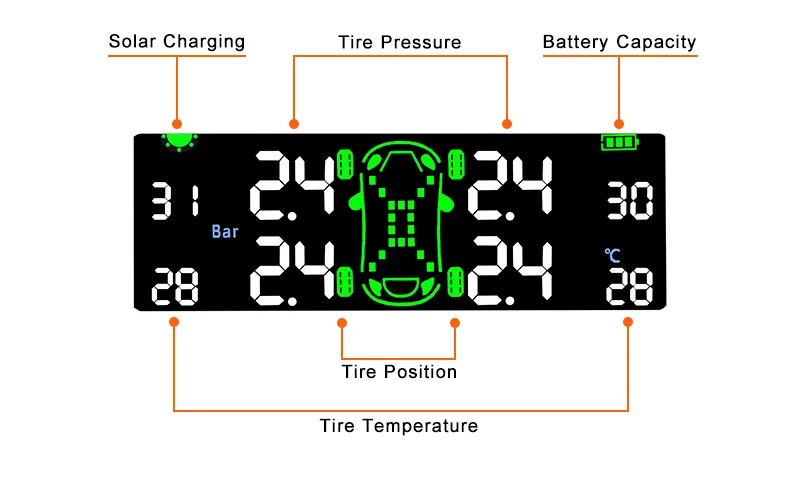

Adopting Infineon solution, our TPMS device mainly consists of 4 tire sensors modules and a 4” LCD color screen monitoring the vehicle status and showing all related information such as tire pressure & temperature in real time.


Also a L-capacity rechargeable battery is inserted inside the host (or we say the main device) and a high-efficient solar panel is equipped as well. And the integrated circuit board built-in is designed for low power consumption. With all 3 delicate elements above, the endurance of the device is up to 45 days, which offers profound assistance for long road trips.

What’s more the TPMS can be connected with your intelligent mobile phone via our self-developed Android and iOS Apps available in Google Play and App Store.

Specification
Package characteristics
Dimensions(D x W x H)
255mm x 130mm x 79mm
Weight
0.40Kg
Host characteristics
Operating Frequency
433.92MHZ
Operating Voltage
3.5 - 6.0V
USB Charging Current
≤ 600mA
Operating Environment Temperature Range
-20 - 85℃
Sleeping Mode Current
< 1mA
Environment Temperature Range for Long-term Storage
-40 - 85℃
Monitoring Air Pressure Range
0.0 - 4.0 Bar
Supported Bluetooth
Bluetooth 4.0 Version or Above
Monitoring Temperature Range
-40 - 85℃
Battery Capacity
2000mAH
Solar Charging Time
4Hours
Operating Environment Humidity Range
0 - 100%
Receiving Sensitivity
3dB
Tire Sensor (External) characteristics
Battery
3V Imported Lithium Battery
Sensor Chip
Infineon
Operating Environment Humidity Range
0 - 100%
Operating Environment Temperature Range
-55 - 125℃
Air Pressure Range
0.0 - 4.0Bar
Radio Frequency
433.92MHZ
Transmitting Power
≤ 5dBm
Pressure Display Accuracy
0.1Bar
Temperature Measuring Accuracy
2℃
Weight
9grams
Batter Life
2-3 Years(depending on the actual usage conditions)
Tire Sensor (Internal) characteristics
Battery
3V Imported Lithium Battery
Sensor Chip
Infineon
Operating Environment Humidity Range
0 - 100%
Operating Environment Temperature Range
-55 - 125℃
Air Pressure Range
0.0 - 4.0Bar
Radio Frequency
433.92MHZ
Transmitting Power
≤ 5dBm
Pressure Display Accuracy
0.1Bar
Temperature Measuring Accuracy
2℃
Weight
60grams
Batter Life
5 Years(depending on the actual usage conditions)

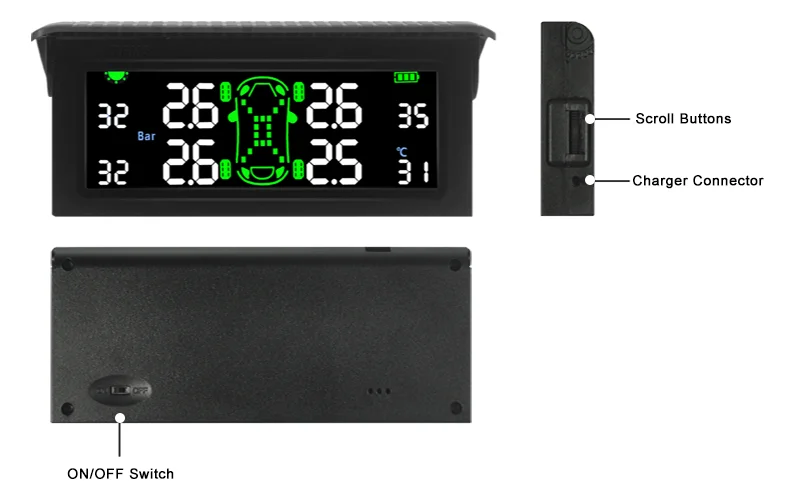

Detailed Images

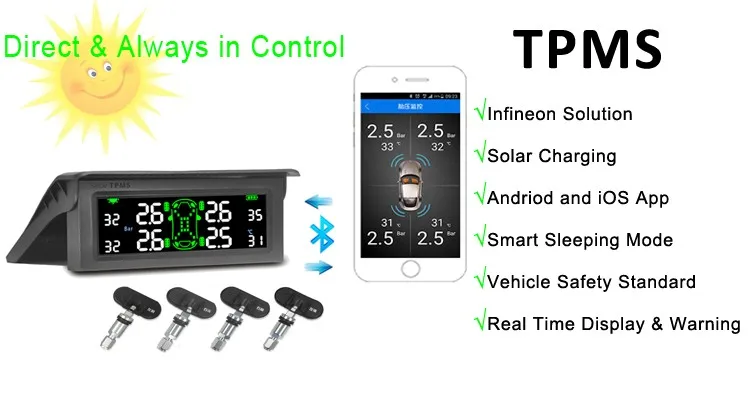

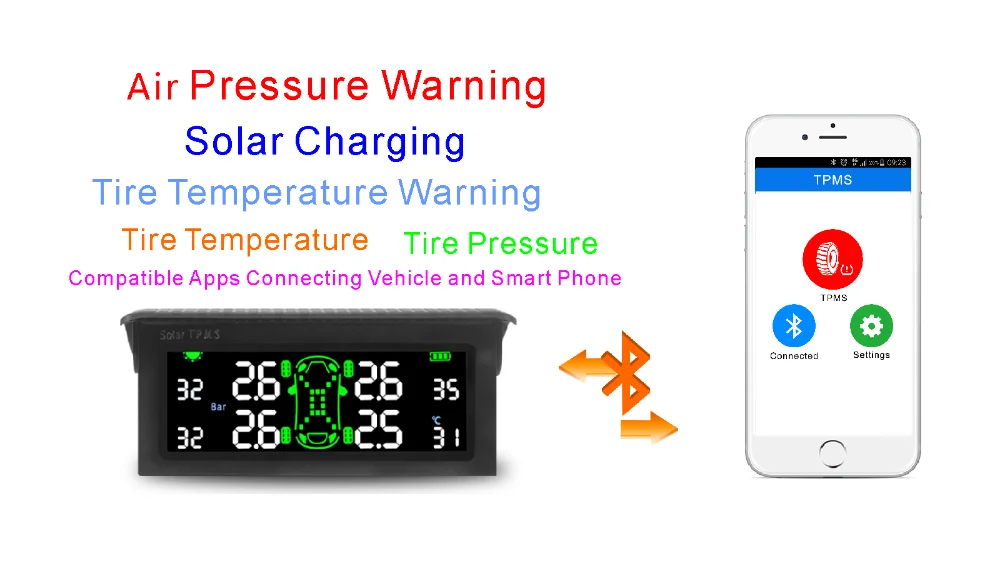

Main Features

√ Infineon Solution
√ Bluetooth 4.0
√ 4" Colorful LCD Screen
√ Self-developed Android and iSO Apps
√ Auto Switch and Smart Sleeping Mode for Energy Conservation

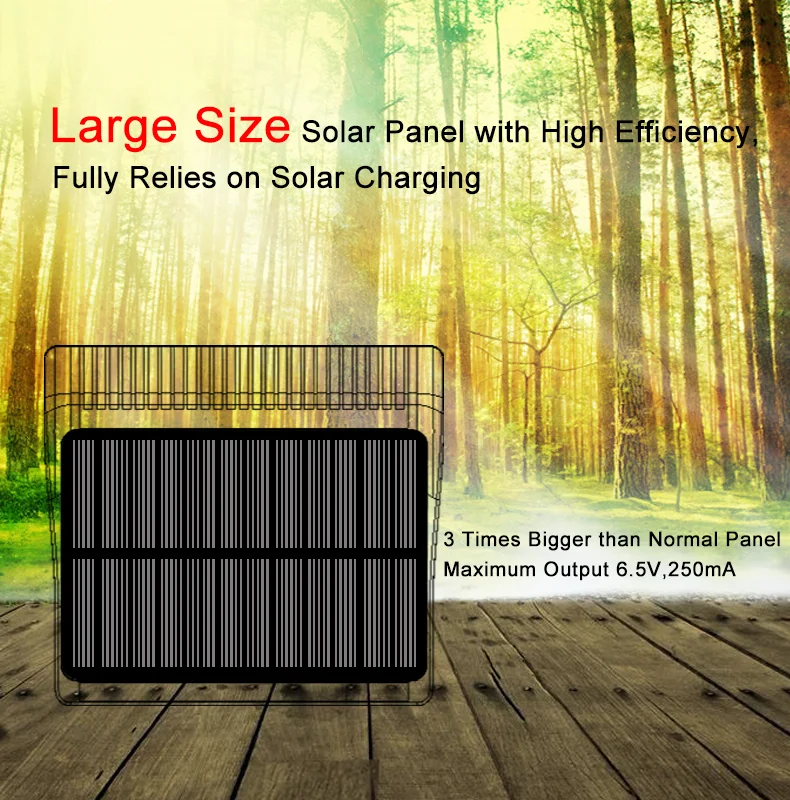

√ Big Solar Panel & Large Battery Support Continuous Usage for 45 days

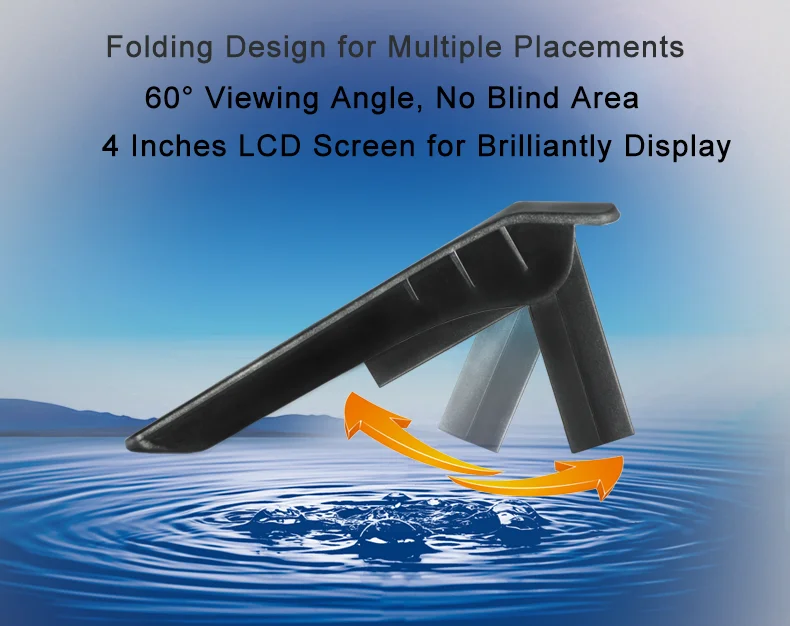

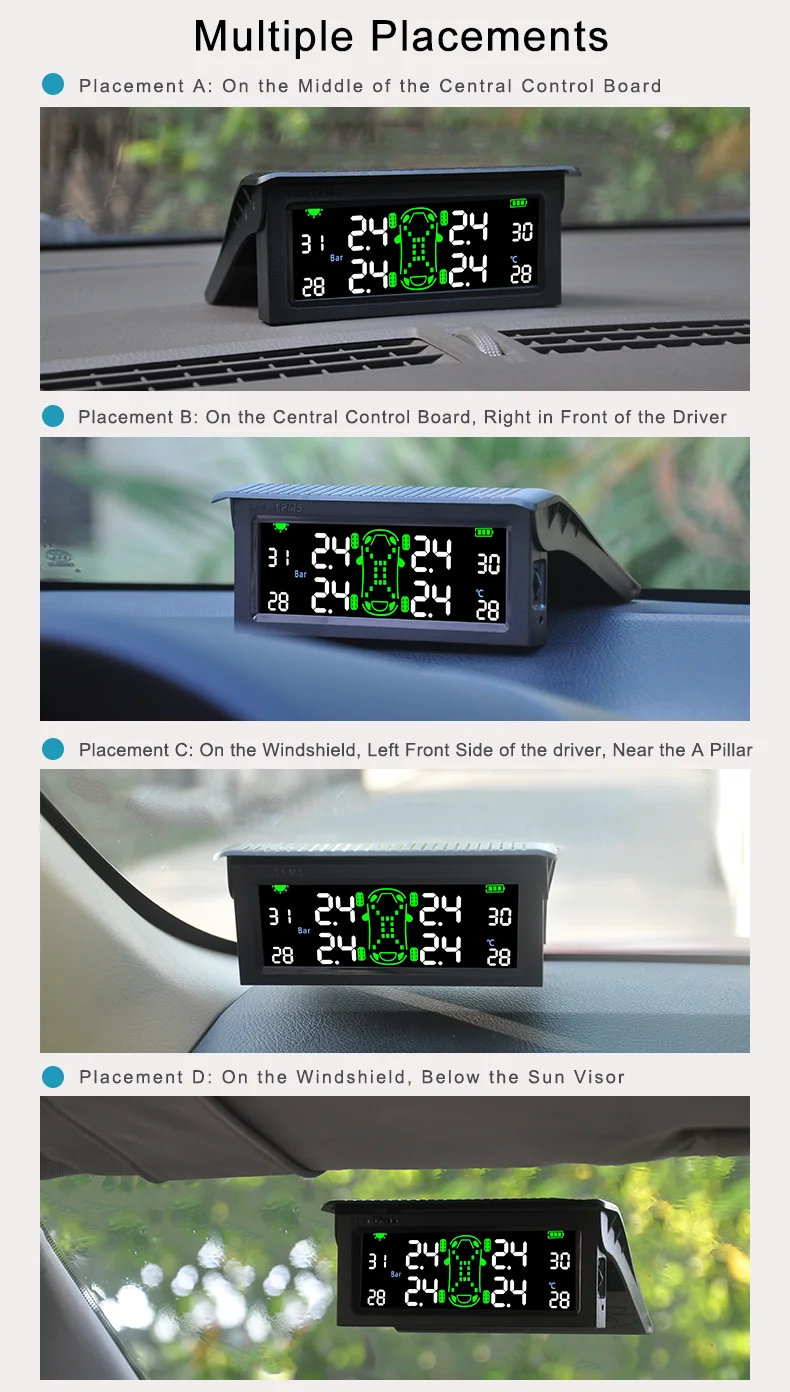

√ Multiple Placements -- On Dashboard or On Windshield
√ Flexible Adjustment of Viewing Angles and No Visual Blind Area

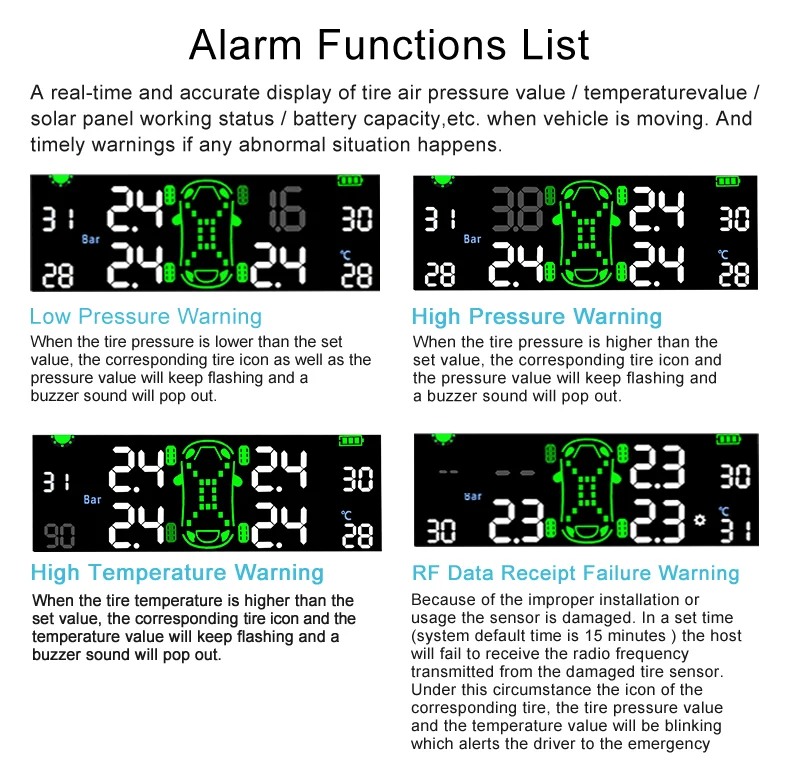

√ Multiple Status Monitoring and Real-time Warnings Upon Any Abnormal Situations

More Details

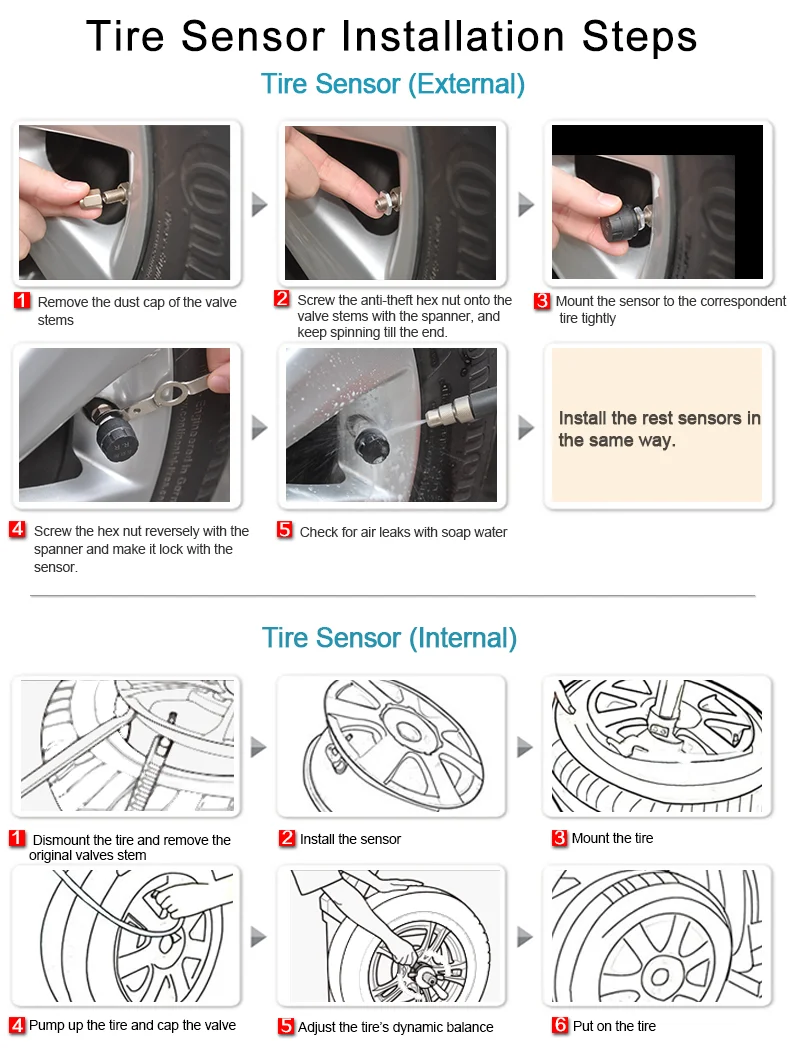

Sensor Installation

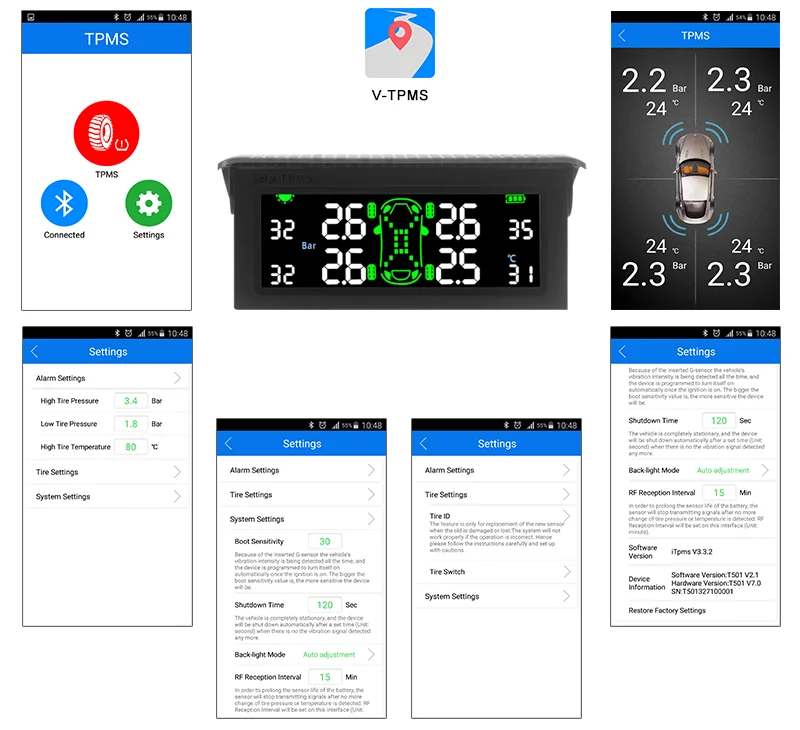

APP Installation
Android Phone
iOS Phone
Search "V-TPMS" in the APP store, download and install it

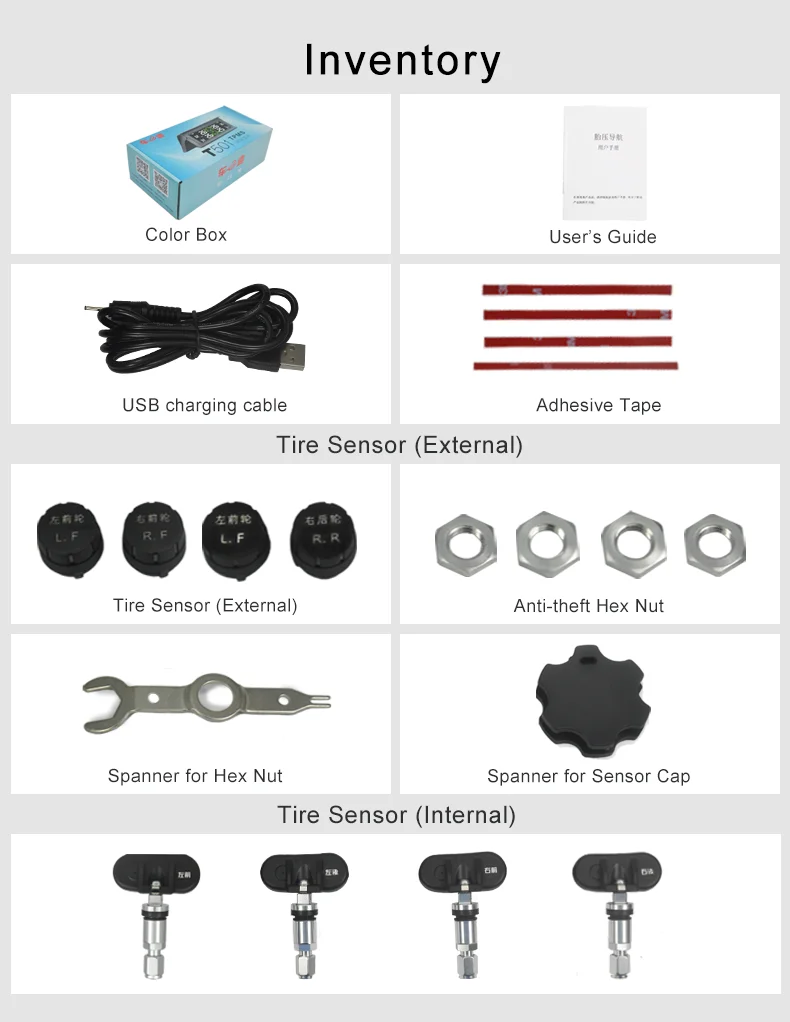

Total Package
