Motor Power (kw):
Key Selling Points:
Sheet / Plate Rolling
plate yied limit:
min dia of full loading:
dia of upper roller:
dia of lower roller:
Packaging & Delivery
Single package size:
Single gross weight:

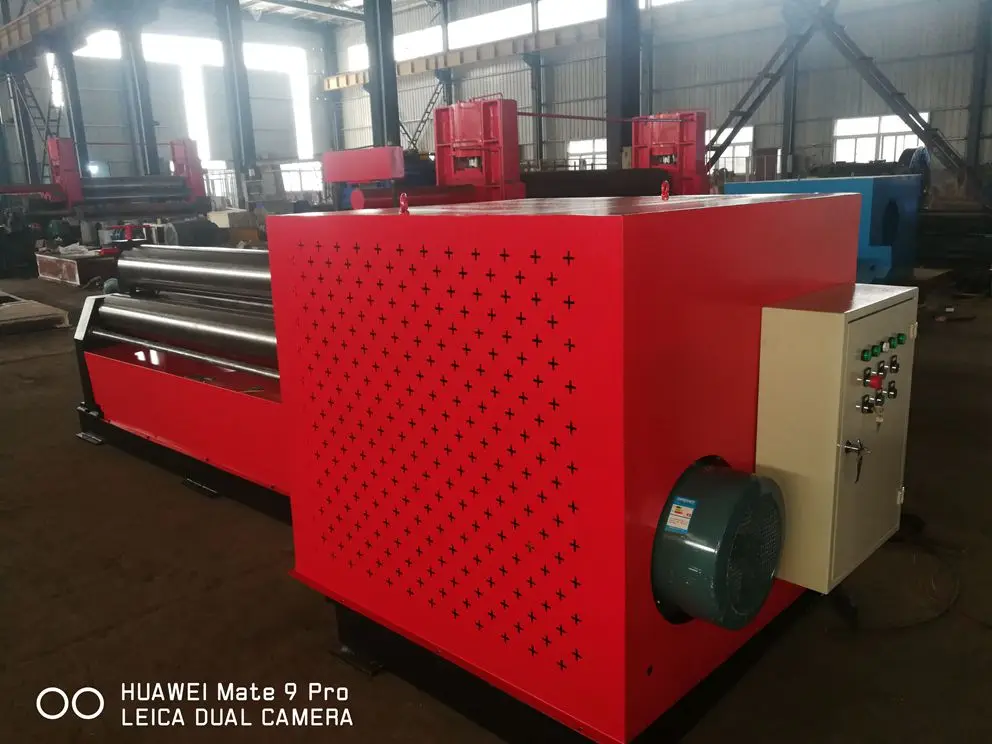

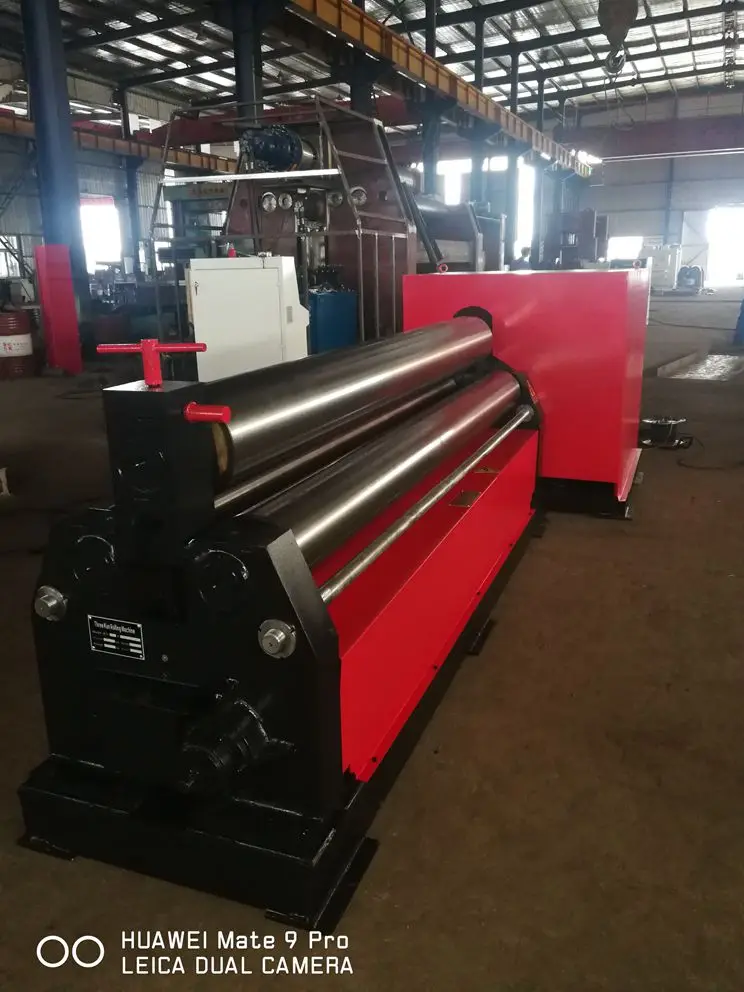

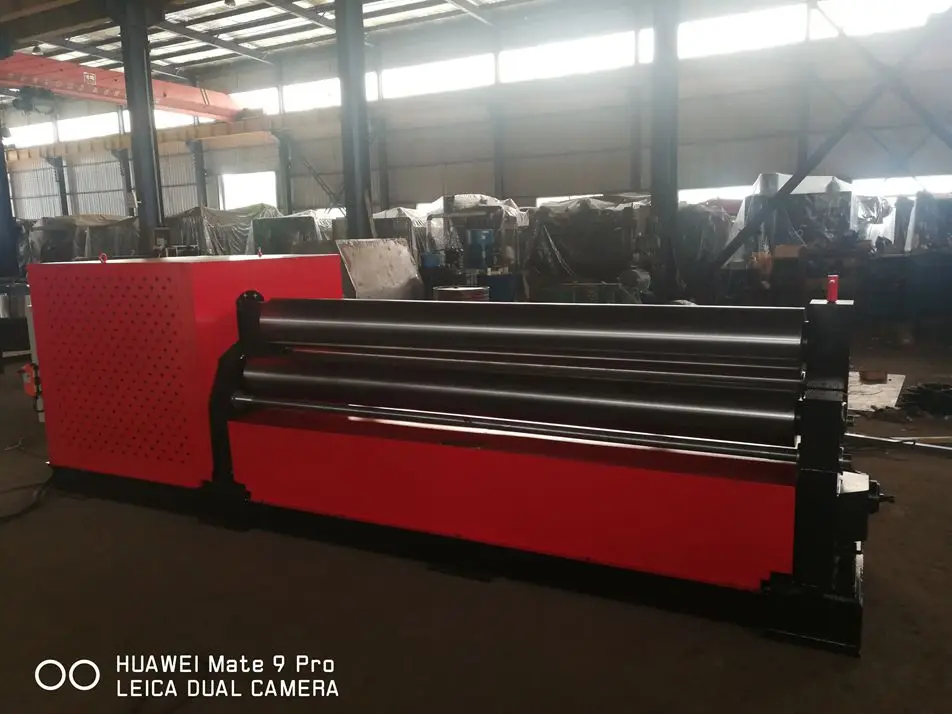

W11 rolling machine roll bending machine manual roller iron sheet bend rolling machine plate sheet rolling machine cone rolling in PVC FILM
1 - 1
To be negotiated
The aircraft structure for the symmetric three-roll, the upper roll which do up and down movements is in the center of the two down rollers, landing exercise by the hydraulic cylinder piston in the rote of the hydraulic fluid botained for hydraulic transmission; the two down rolls for the next rotation. Through the reducer output under the roller gear with the gear mesh for the provision of rolling plate torgue. The disadvantage is the plate with the other end of the pre-bending device.
We use Simems or Schneider electricity.
With nice quality, and this brand you can buy easily in your country after many years if you want to replace it
1.the upper roller moves vertically along the perpendicular between tow lower rollers 2.the two lower rollers are ratating and transfering torsion to plate materails so that the metal sheets can be pulled into the roller clearance 3.the machine can rolling metal plates into various shaps, such as arch, round and so on. Whole bending working is based on the rotary deformation. Our rolling machines are widely used in chemical, cement,shipbuilding, boiler,aviation, water control project, power transmission tower, metal structure industry and the industry of making machinery.
Upper roller device consists of upper roller bearing, upper roller, sliding bearings and other components. Upper roller material is 42CRMO, Intermediate hardening.
All solid roller
1.Specification of the machine This body type is symmetric three-roll, roll in the two lower rollers central symmetrical position moves vertically through the screw worm drive wire mother, two lower rollers rotating movement,through the output gear reducer under the roller and offer torque for roll sheet, the machine structure is compact, easy operation and maintenance.
2. Main structure The apparatus main body structure is composed of the upper roll unit, lower roll, the main drive unit,left and right side frame,and the bottom chassis.
3. Fixed frame,chassis,overturned side
Fixed for steel weldments, overturned side frame, chassis, vibration aging eliminate stress after welding.
4. Electric control system
Electronic control system consists of cabinet equipment, handheld button box components. Power supply 380V/50Hz. Main switch with short circuit protection and the main motor overload protection. By AC motor reversing contactor control; cabinet products on a rolling process to complete all the control buttons, lights, etc., in order to control the operation of the machine and work state control.W11 rolling machine roll bending machine manual roller iron sheet bend rolling machine plate sheet rolling machine cone rolling
