W11S 3 rollers rolling machine aluminum rolling machine steel mini rolling machine

$12,000.00 / Set | 1 Set (Min. Order)
Model Number:
W11S-6X2000
$12,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Rolling Speed (m/min):
6
Max. Plate Thickness (mm):
6
Max. Working Length (mm):
2000
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy & Mining, Advertising Company
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
WANLI
Material / Metal Processed:
Aluminum, Carbon Steel, Brass / Copper, ALLOY, Stainless Steel
Automation:
Automatic
Extra Services:
End Forming
Certification:
ISO 9001:2000
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Warranty:
1 Year, 1 year
Motor Power (kw):
3
Machine Type:
Roller-Bending Machine
Key Selling Points:
High Productivity
Max. Thickness:
6mm
Prebending Max. thickness:
4.5mm
Dia. of upper roller:
175mm
Dia. of lower roller:
125 mm
Distance between lower rollers:
160mm
Motor power:
3 kw
Hydraulic motor power:
2.2 KW
Color:
Customized
Application:
Plate rolling
Weight:
/

Packaging & Delivery

Selling Units:
Single item
Single package size:
210X100X100 cm
Single gross weight:
9000.0 kg
Package Type:
W11S 3 rollers rolling machine aluminum rolling machine steel mini rolling machine in PVC film
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Product Description

Performance and features
The machine can be used for vertical movement, but also can be used for horizontal movement, along with pre-bending and rolling round dual function; two lower rollers rotes to provide the necessary torque to roll sheet; add multiple sets of lower rollers, minus small disturbance of the rollers can be rolled wide range of high-precision cylinder.

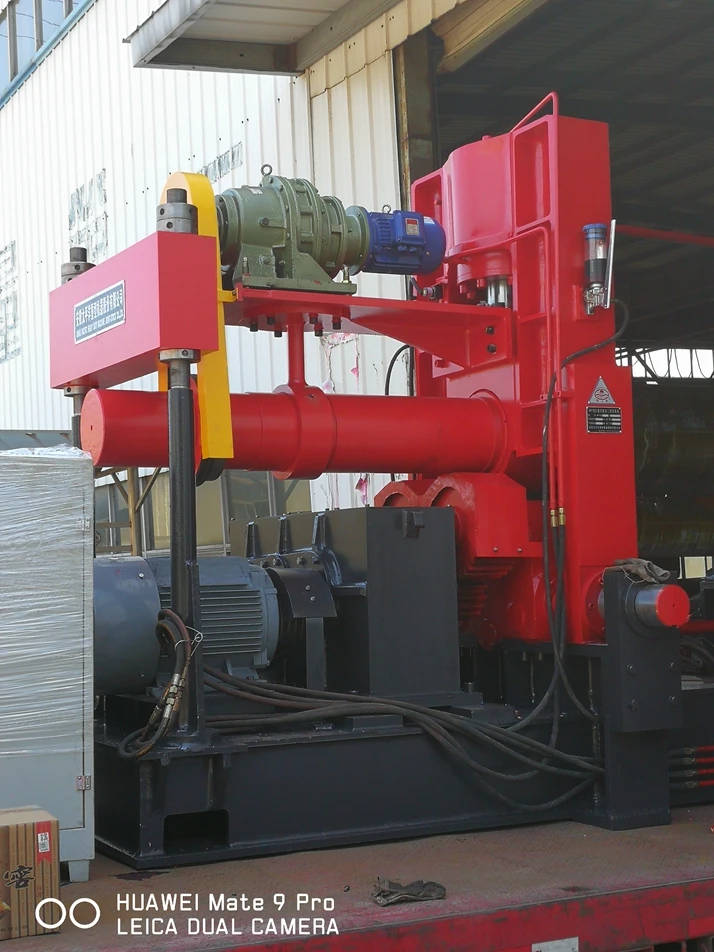

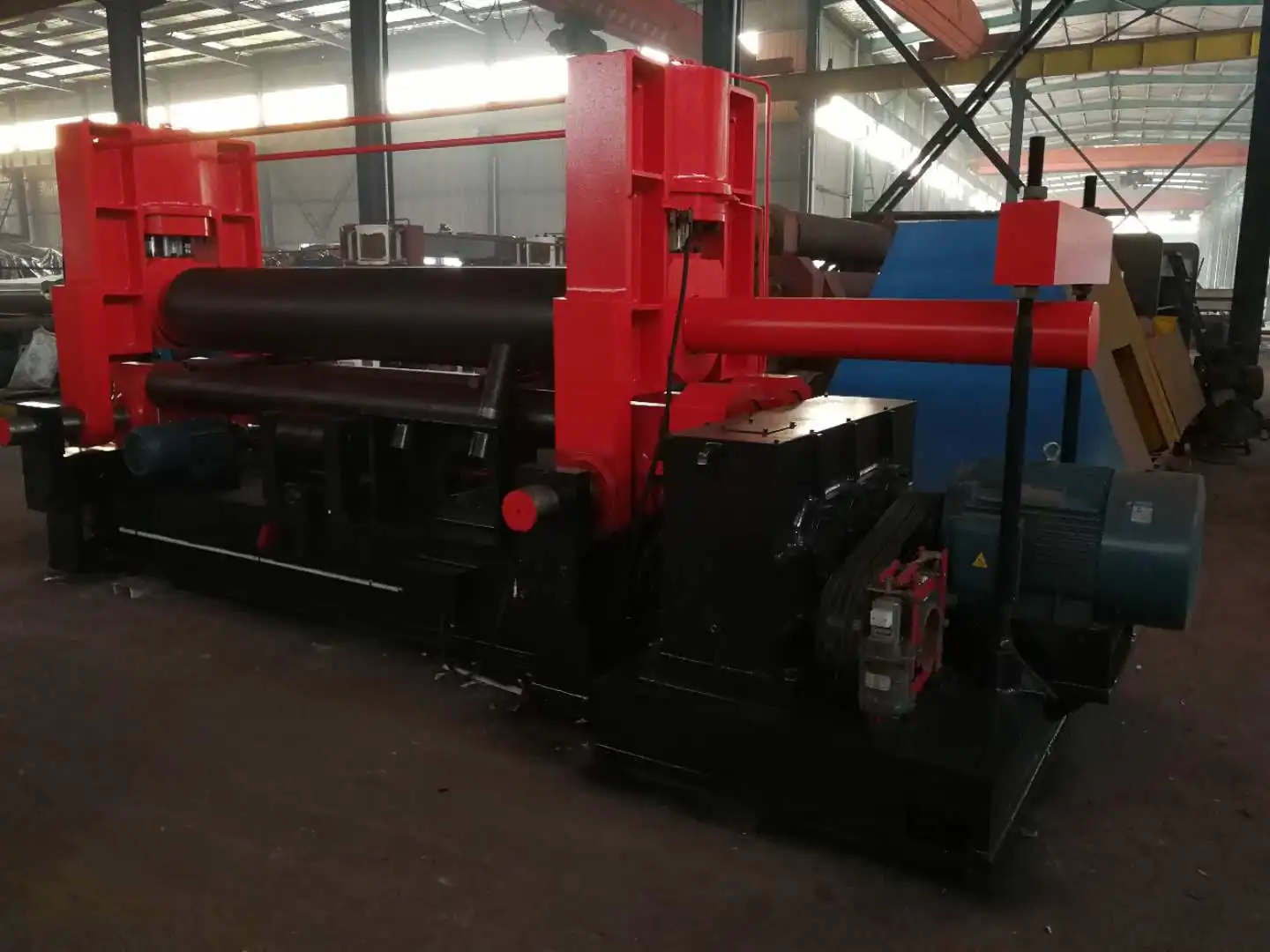

W11S 3 rollers rolling machine aluminum rolling machine steel mini rolling machine

W11S SERIES HYDRAULIC UPPER ROLLER UNIVERSAL PLATE AUTOMATIC STEEL CNC ROLLING MACHINE

Detailed Images

1.rolling products straightness,upper roll set drum--shaped,with side roller regulation,products straightness control within 1/2000,it is particular beneficial to small-diameter cylinders,ensure the following operations welding smoothly, guarantees welding quality.

2.Use the rear bending process,eliminate curved toward the front of the dorsal horn,products roundness.

3.With the automated device,effectively preventing the wrong side of the occurrence


Due to continuous bending and high accurate end pre-bending,products have superior precision.As the top roller is in the shape of drum,with the supporting roller adjusted,it can coil ideal products in the wide range from sheets to plates.
Rich bending shape
There are such different shapes as O shape,U shape and multi-section shapes


O bending:back bending mode
U bending:front bending mode
Special bending :composition mode
Different uses with coordinating methods
There are following controlling methods according to its use
TNC(Top NC):for many types but small quantity of production
CNC (CNC):for many types but large quantity of production
CNC control high producing efficiency
One operator,simple operation,and high efficiency


Domron CNC control System
Plate Support Arms
Germany Bosch-Rexroth Hydraulic
Germany EMB Tubing connector
Germany Siemens Main Motor
Tele mecanique/Schneider Electrics
Hydraulic &Electrical overload protection
Safety Standards(2006/42/EC)


Process flow
Certificate
