WS27CH3A 27CH dmx512 decoder controller LED drive 9 group RGB each channel max 3A

Feedback Ratings
$75.00 / Piece | 1 Piece (Min. Order)
Voltage:
12-24v
Model Number:
WS-27CH-3A
$75.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
BTF-lighting
Type:
Remote Control
Max. Load Power:
972
Voltage:
12-24V
is_customized:
yes
working temperature:
-20℃-60℃
output:
each color max 3A
Power Source::
DC
Total Output of current:
81A
KeyFeatures1:
27ch
KeyFeatures2:
DMX512 XRLRj45 3P
KeyFeatures3:
dmx controller
Weight:
0.7Kg
Dimension:
242 x 100 x 45mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
1X1X1 cm
Single gross weight:
0.7 kg
Package Type:
Carton pacakge.
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(days) 5 To be negotiated
Product Description

Specifications

Input/Output Voltage:   DC12V=24V

Total Output of current: 81A

Output: each channel max 3A

Channel: 27channel 9 group

Controller: DMX512XRL Rj45 3P

Worktemperatire:-20°C-60°C

Dimension: 242 x 100 x 45mm

Weight: 0. 7Kg

 Function


1 .Each DMX common controller occupied 27 DMX addresses, adopt coding switch set address, it is a Binary numerical code switch which is setting DMX original address code from 1 to 9,1 isthe lowest,and 9 isthe highest,511 address codes could be setted in all .DMX original address code equal aggregate value from 1 to 9,dial the coding switch upwards(ON is setted 1 ),the value of bit can be gotten, on the contrary, the value of bit is 0.For example: if you want to set 37 asthe address code , you can only dial down the first ,the third and the sixth code switch value from 1 to 9 is 32+4+1 , that is ,the original address code of DMX512is37.


2. DMX signal can be received when coding switch FUN(10)=OFF.


3.when coding switch that FUN(10) is ON . its function is as follows

Switch1-9 is off
Black
Switch1=ON
Red
Switch2=ON
Green
Switch3=ON
Blue
Switch4=ON
Yellow
Switch5=ON
Purple
Switch6=ON
Cyan
Switch7=ON
White
Switch8=ON
Seven-color jumpy changing(8 steps speed)
Switch9=ON
Seven-color gradual changing(8 steps speed )

4.if coding switch is 8 or 9, from 1 to 7 isthe choice for speed , there are 8 steps in all, the description is as follows:

Switch1-7 is off
0 steps
Switch1=ON
1 steps
Switch2=ON
2 steps
Switch3=ON
3 steps
Switch4=ON
4 steps
Switch5=ON
5 steps
Switch6=ON
6 steps
Switch7=ON
7 steps(the greatest speed)

Sfafety Information

1. The input voltage of this controller should be follow.The specifications , Other high voltage would most probably destroy it.


2. Never connect two wires directly in case of short circuit.

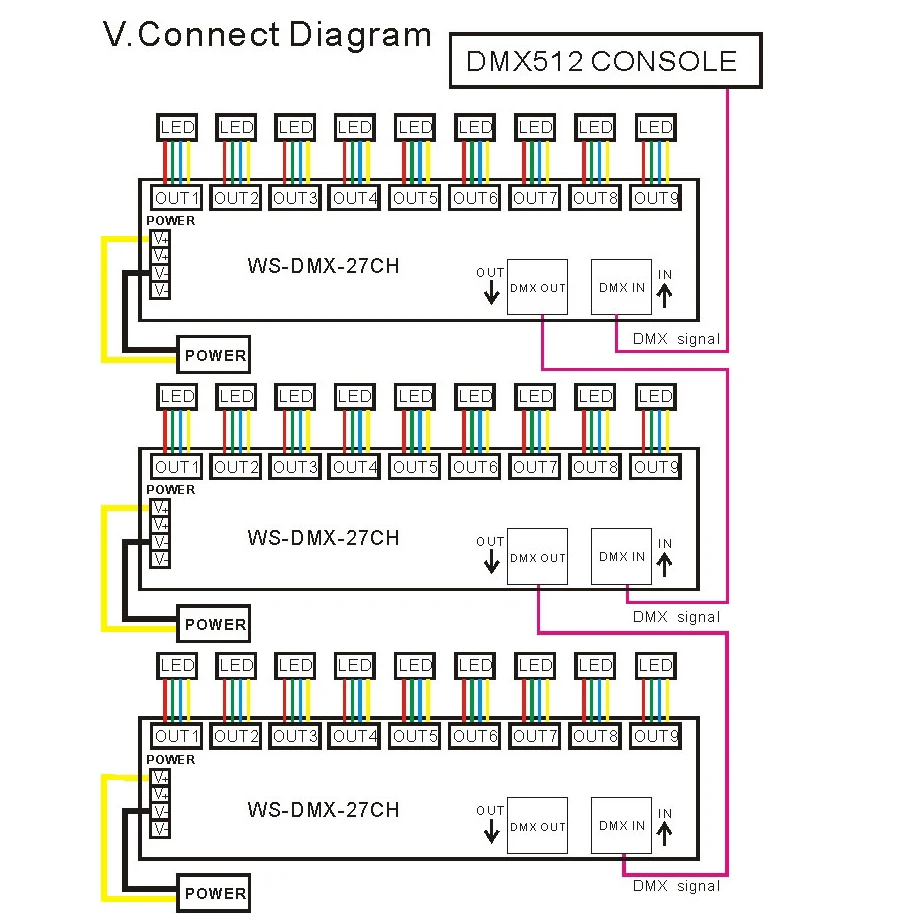

3. Lead wire should be connected correctly according to colors that connecting diagram.


4. Warranty of this product is one year, in this period charge , but exclude the artificial situation of damaged.
