easy to install 100 w module solar panel

  • 10-99 Watts
    $0.28
  • 100-499 Watts
    $0.26
  • >=500 Watts
    $0.25
Quantity:
- + Watts available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
JXSOL
Model Number:
JXM100
Size:
1480*680*30mm
Material:
Monocrystalline Silicon
Max. Power:
100Wp
Number of Cells:
36pcs
Solar cells:
Monocrystalline 125*125 mm
Color:
blue and black
Front Glass:
High Transparency Tempered Glass, 3.2mm
Junction Box:
Pass the TUV Certificate PPO(black/IP65)
Frame:
Anodized aluminum alloy type 6063-T5, white
Connector:
MC4(UV resistance and self-locking/IP 67)
Cells Efficiency:
17.80%
Certificates:
TUV,CEC,UL CE,SONCAP METI
Encapsulation Material:
EVA (0.50±0.03mm thickness)
Maximum System voltage:
715VDC

Packaging & Delivery

Selling Units:
Single item
Single package size:
1480X680X30 cm
Single gross weight:
10.5 kg
Package Type:
plywood with pallet for easy to install 100 w module solar panel
Lead Time :
Quantity(Watts) 1 - 1000 >1000
Est. Time(days) 7 To be negotiated

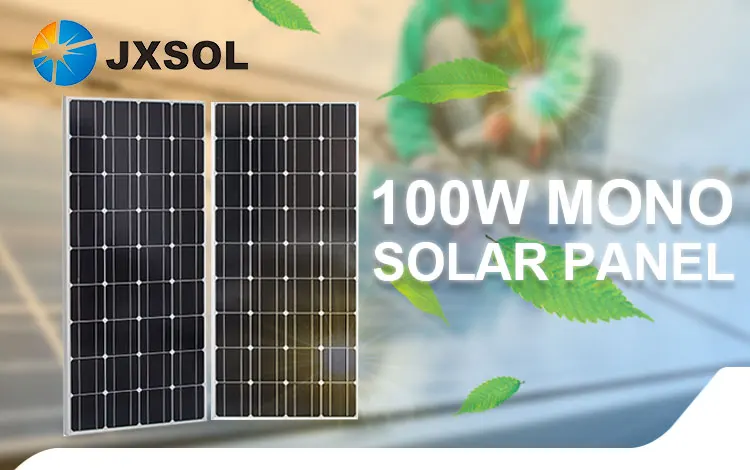

easy to install 100 w module solar panel-100_01

Specifications

 Model

JX100M

Solar cell

Monocrystalline 125×125mm

 No. of cells and connections

36(4×9)

 Dimension(mm)

1200×540×30

 Weight(kg)

7.5

Electrical Characteristics

Maximum Power(Pm)

100W

Current at Pmax(Imp)

5.59A

Voltage at Pmax(Vmp)

17.9V

Short-circuit current(Isc)

5.88A

Open-circuit voltage(Voc)

22V

Module Efficiency

15.43%

Cells Efficiency

17.80%

Product details

 -100_02

Temperature and Coefficients

NOCT(Nominal Operating Cell

48±2

Short-circuit current temp coefficient

(0.03±0.01)%

Open-circuit current temp coefficient

(0.36±0.02)%

Peak power temp coeffficient

(0.55±0.05)%

Power Tolerance

±3%

Type of output terminal

       Junction Box

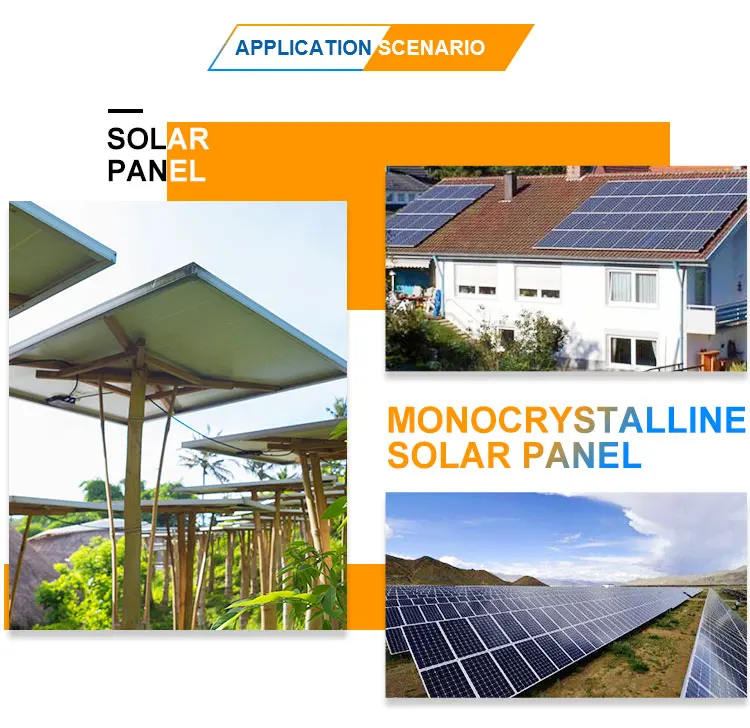

Application scenario

 -100_03

Components&Mechanical Data

Front Glass

High Transparency Tempered Glass, 3.2mm

Junction Box

Pass the TUV Certificate PPO(black/IP65)

Connectors

MC4(UV resistance and self-locking/IP 67)

Frame

 Anodized aluminum alloy type 6063-T5, white

Encapsulation Material

EVA (0.50±0.03mm thickness)

Back Foil

Transparent TPT (0.32±0.03mm thickness)

Fixing adhesive

Silicon Sealant (white)

Maximum System voltage

                715VDC

Temperature Rang (°C)

-40 ~ +90

Max Load(Kpa)

2.4 wind load / 5.4 snow load

Hot product

 -100_04

Our company

 -100_05

Certification

 -100_06

Packaging & Shipping

 -100_07

Contact us

 -100_08

FAQ


1Q: Do you have your own factory?

   A: Yes, we do. Our loctation is in Tangshan city, Hebei province.

2. Q: How can I visit your factory?

  A: Please let us konw bofore you go there. We will arrange time to pick you up and show you around.

3. Q: Do you provide free sample?

    A: Usually we do not provide free sample.

4. Q: Could you print our company LOGO on the nameplate and package?

   A: Yes, we can.

5. Q: Do you accept custom design on size?

   A: Yes, if the size is feasible.



6. Q: How can I be your agent in my country?

   A: Please leave feedback. It's better for us to talk about details by email.

7. Q: Do you have solar project engineer who can guide me to install system?

   A: Yes, we have a professional engineer team. They can teach you how to install a solar system.

PS:Our factory can produce all kinds of solar panels and solar moudles according to customers' needs.



 If you have any interests or problems in our products, please kindly contact us.
