factrory price for 4000watts low freqncy inverter , power star w7 inverter 24volts dc

Retailer's Choice
Feedback Ratings
US $325.00 / Piece |1 Piece (Min. Order)
Sign in to view Reseller discounts
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
psw 7
Model Number:
4000w 24v
Output Power:
1 - 200KW
Output Type:
Single
Size:
442*218*179mm
Weight:
38kg
Input Voltage:
12v24v48vDC
Output Voltage:
120V/220V/230V/240VAC
Type:
DC/AC Inverters
Output Frequency:
50hz/60hz, 50Hz or 60Hz
Output Current:
40A/70A
Warranty:
2 year
wave form:
pure sine wave inverter
display:
LED &LCD
Output type:
single
brand name:
cap
input volt:
12v 24v 48v dc
Max dimension:
75.5*31.9*30.5cm
inverter type:
dc to ac
safety management:
intelligent control system

pure sine wave inverter 220v ac 24v 48v dc 1KW TO 6KW







input volt option:12v 24v 48v 96v 192v 240v



output volt option:110v 120v 220v 230v 240v



 Power:1000w 2000w 3000w 4000w 5000w 6000w 7000w 8000w 10kw 12kw 15kw 20kw


Product Description

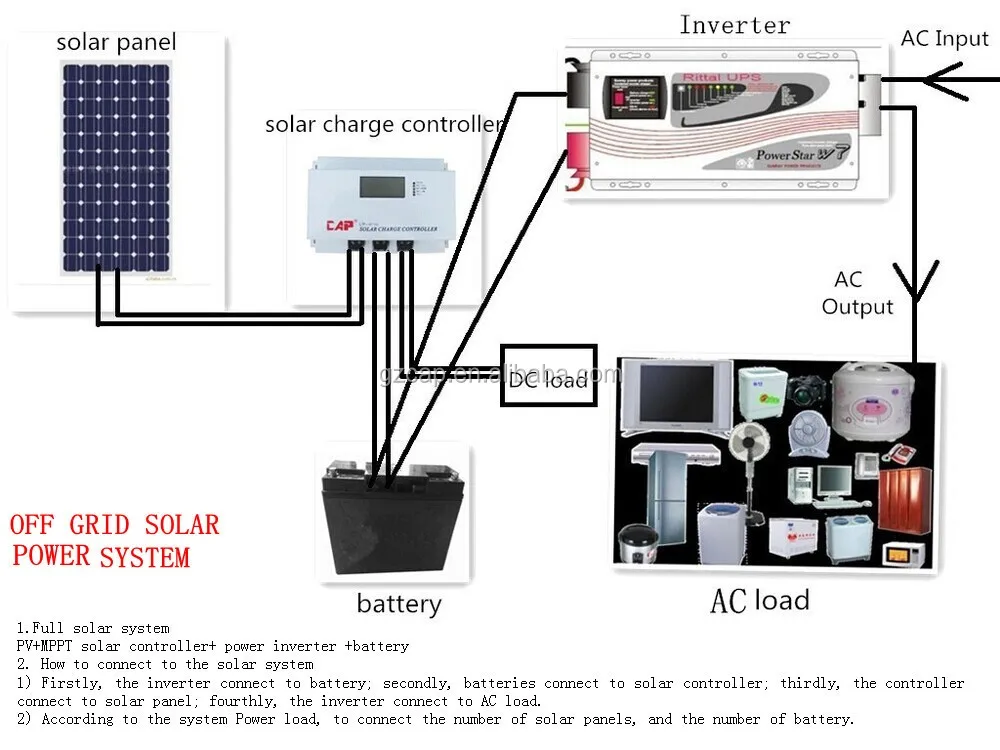

 1. The DC/AC solar inverter Solar power or gird power or generator input, pure sine wave output



2. CPU control and fan temperature control, copper transformer



3. Optional battery or gird power priority manual select



4. Optional charging current adjustable 25%,50%,75%,100%



5. Optional wide input range adjustable



6. Protection of over-voltage,low-voltage, over-temperature and over-load,shout-circuit,



7. Intelligent battery management with protection against over-charged and over-discharged etc.



8.can load the perceptual load equipment,such as air-condition, freezer,pump etc.



LCD Display /LED Display Optional:





specification data of off-grid solar inverter:



Model No.

1001(2)

2001(2,4)

3001(2,4)

4002(4)

5002(4)

6002(4)

7002(4)

8002(4)

10kw

Nominal Power

1000W

2000W

3000W

4000W

5000W

6000W

7000w

8000w

10000w

AC Input
Phase & waveformSingle phase & sinewave
Voltage120VAC/230VAC
Acceptable Voltage194-243VAC\164-243VAC(wide mode)
Line Low Transfer85V±4%/184(154 wide mode±4%)
Line Low Return95V±4%/194(164 wide mode±4%)
Line high Transfer135V±4%/253±4%
Line high Return127V±4%/243±4%
Frequency50Hz or 60Hz (auto sensing)
Line Low Transfer47Hz for 50Hz,57Hz for 60Hz
Line high Transfer55Hz for 50Hz,65Hz for 60Hz
Output
Phase & waveformSingle phase & sinewave(bypass mode sync to input)
Voltage230VAC(bypass mode sync to input)
Voltage Regulation±10%rms(bypass mode sync to input)
Frequency50Hz±0.3Hz(bypass mode sync to input)
Crest Power3 times of ratings
Short Circuit ProtectionYes,shutdown after 10 minutes
Power Factor0.9-1.0
DC Input
Battery Voltage

12V/24V

12V/24V/48V

24V/48V

  48v/96v

Minimum Start Voltage10V for 12V,20V for 24V,40V for 48V, 90v for 96v
Low Battery Alarm10.5V for 12V,21V for 24V,42V for 48V, 90v for 96v
Low Battery Transfer10V for 12V,20V for 24V,40V for 48V, 90v for 96v
High Voltage Alarm16V for 12V,32V for 24V,64V for 48V, 128v for 96v
Max Charging Current70A\35A\100A
Over Charge Voltage15.7V for 12V,31.4V for 24V,62.8V for 48V, 126.8 for 96v
Transfer Efficiency
line Mode>95%
Battery Mode>88%
power saverAvailable when the load is less than 25 Watts
Indicators
7-LED DisplayFrom the right to the left,LED1 line mode (green lighting),LED2 inverter mode
(green lighting),LED3 charging mode(yellow lighting),LED4 Fully charged
(green lighting),LED5 over heat shutdown(red lighting),LED6 Overloaded
shutdown(red lighting),LED7 Saving Mode(green lighting)
3-LED DisplayCharging Mode(green lighting),inverter mode(green lighting), Alarm(red lighting)
Switch selector

Saving Mode is on/off when push the switch forwards/backwards,   keeping it horisontal is
turning the inverter off.

Audible AlarmSounding when the heatsink's tem is over 105C and shutdown after 30 seconds.
Protectionslow battery,over charging,over temp,over load
CommunicationsRS-232/USB(custom-made)
Enviromental
Operating Environment0-40C,0-90%RH(non-condensing)
Audible Noise<60dB
Physical
Net Weight(KG)

18

20

22

35

38

40

 58

65

 72

Dimension,D X W X H(mm)

218X179X442

218X179X598

*Specifications are subject to change without prior notice.



The solar inverter has been made to 12kw, 15kw, 20kw pls contact for the detail information.

LCD display:



COPPER INSIDE


Packaging & Shipping

One inverter in one carton.and use the foam inside to protect it.

   a) paking size: 600X335X315mm    (1kw 2kw 3kw)

   b) packing size: 770X335X315mm (4kw 5kw 6kw)



Shipping: express,air cargo.sea option.

If u have forwarder in GUANGZHOU,and buy over 5 pcs, we can delivery to your GUANGZHOU warehouse by free.



FAQ

 Q:when i order,when u can send them to me?



A:after confirm the payment,we can send u the sample in 2 days. in quantity order,we 8-15days we can send the goods to u.



Q:will u lie to me?get the money and do not send the goods?



A:we are the factory,And the company on Alibaba,and if over the delivery time have no any reason from us for delay,then u can  complaint us on alibaba,and we will get the  punishment from alibaba,then u can get your money back,and we will loss more than u had payed for us.so do not worry about we do not send the goods
