fecral mesh screen 150 micron FECRAL wire mesh fabric

$16.50 / Meter | 300 Meters (Min. Order)
Wire Diameter:
1mm 0.8mm 1.5mm 2mm 0.6mm 1.8mm 1.2mm 0.0235-0.5mm as customer required
Aperture:
6mm
$16.50
- +
available
8MM
$16.50
- +
available
10mm
$16.50
- +
available
All 10 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized packaging (Min. Order: 1 Meters)
Graphic customization (Min. Order: 1 Meters)

More

Customized logo (Min. Order: 1 Meters) Less
Samples: $50.00 /Meter, 1 Meter (Min. Order): Buy Samples
Contact Supplier
Samples - $50.00 /Meter, 1 Meter (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Material:
Stainless Steel Wire
Type:
Wire Cloth
Application:
Filters
Weave Style:
Dutch Weave
Technique:
Woven
Model Number:
DXR-004
Brand Name:
DXR
Processing Service:
Bending, Welding, Decoiling, Cutting, Punching
Color:
Silver
Hole shape:
Square
Length:
30m
Width:
1.0m
Usage:
Liquid Filter
Packing:
Water-proof Paper
Advantage:
Superior Wire
Sample:
Avaliable
Certification:
ISO9001
Mesh:
1-80mesh

Packaging & Delivery

Selling Units:
Single item
Single package size:
100X10X10 cm
Single gross weight:
1.200 kg
Package Type:
China Factory Nickel Wire Cloth for electricity power collect and transfer package water-proof papers, plastic film, and then put in wooden case . also we can do package as customer design.
Picture Example:
package-img
package-img
Lead Time :
Quantity(Meters) 1 - 500 >500
Est. Time(days) 15 To be negotiated
Video Description

FeCrAl alloy heating woven wire mesh screen for infrared burner
19kg 1.22m x25m 80 60 64 50 mesh aludirome alloy FeCrAl woven wire mesh for infrared burner
Metal Wire Mesh Infrared Burner / Electric Heating Alloy Wire Mesh
5 mesh FeCrAl wire screen ECigs filter burner

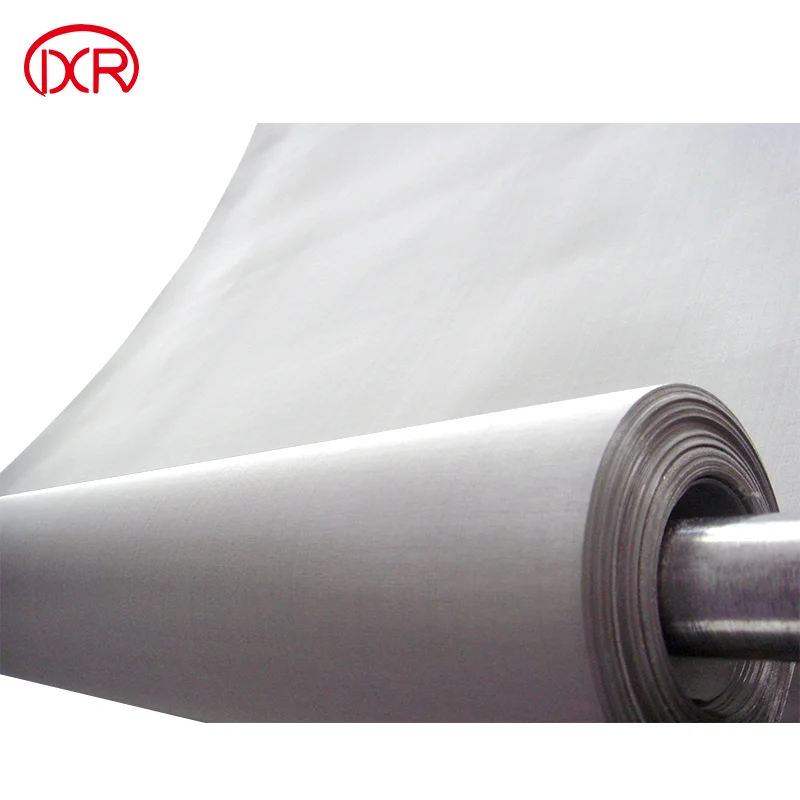

fecral mesh screen 150 micron FECRAL wire mesh fabric

Applications: The FeCrAl wire mesh is mainly used as the drying and heating equipment in metallurgy, colliery, dyeing, food
factory, hospital, high density board factory and so on.

The FeCrAl wire mesh is an ideal heating resistance material in the industry electric furnace, household appliances, gas burnersand infrared device.

Material
1Cr13Al4,1Cr21Al4,0Cr21Al6,0Cr23Al5,0Cr25Al5,0Cr21Al6Nb,0Cr27Al7Mo2

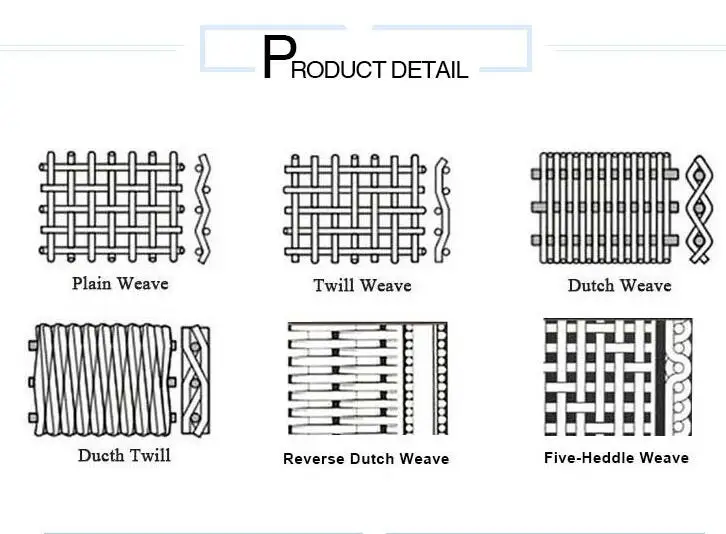

Weaving type Plain/Twill/Dutch
Mesh counts :8-80mesh
Size Width:0.9m,1m,1.2m etc. Can be customized.
Length:3om, can be customized.

Feature:heating resistance,sulfur resistance,oxidation resistance,anti-penetration,high eletrical resistivity,long lasting and durable

Application:dry and heating equipment,industry electric fornacegas burner,household appliances heater
infrared device
Heat resistant Infrared gas burner 5 10 mesh FeCrAl alloy wire mesh cloth

Factory price supply Stainless Steel Wire Mesh Netting/80 Mesh Stainless Steel Wire Mesh
pure Nickel 99.50%Wire Cloth for electricity power collect and transfer

electro thermal alloy FeCrAl woven wire mesh screen cloth

gas burner heating resistant fecral alloy wire mesh cloth
Supply 10 40 45 70 75 micron stainless steel FeCrAl ASTM SA213 310S fireproof wire sieve mesh cloth for electric furnace
Supply 10 40 45 70 75 micron stainless steel FeCrAl ASTM SA213 310S fireproof wire sieve mesh cloth for electric furnace
fabric fecral / wire mesh infrared burners / heat resistant metal mesh (free sample)
heat-resistant fecral wire mesh molybdenum wire mesh
Product Description
 specification
Hoel size/mm
wire dia/mm
width /m
unit weight
Kg/㎡
Mesh No/inch weaving type
wire Gauge
8(twill )
21
2.375
0.8
1.0
2.5
8(twill)
22
2.475
0.7
1.0
1.84
10(twill)
23
1.94
0.6
0.6
1.69
12(twill)
24
1.557
0.559
1.0
1.8
17(twill)
24
0.94
0.55
0.6
2.57
20(plain)
33
1.02
0.25
1.0
0.587
20(plain)
32
1.0
0.27
1.0
0.685
20(plain)
30
0.97
0.30
1.0
0.846
25(plain)
30
0.71
0.30
1.0
1.125
30(plain)
38
0.69
0.15
1.0
0.30
34(plain)
33
0.49
0.25
1.0
1.06
40(plain)
35
0.425
0.21
1.0
0.83
44(twill)
35
0.367
0.21
0.6
0.912
44(twill)
35
0.367
0.21
0.7
0.912
44(twill)
35
0.367
0.21
0.9
0.912
40(twill)
35
0.425
0.21
1.0
0.83
44(twill)
35
0.367
0.21
1.0
0.88
60(twill)
38
0.273
0.15
1.0
0.66
80(plain)
43
0.227
0.09
1.0
0.324
