hd 3d text video rgb p5 p6 p8 p10 outdoor led module control card HD-U64

  • 5-249 Pieces
    $26.80
  • >=250 Pieces
    $22.00
1 batch = 5 Pieces
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
HUIDU(HD)
Model Number:
HD-U64
Brand:
HD brand led display control card
Control range:
Single color 1024W*32H,Dual color:512w*32
Port:
1 0f50pin ,it can connect any hub like HUB12, HUB08etc
Luminance adjustment:
Supporting 50 levels of luminance adjustment
Memory:
8M (and also can be expanded)
Function:
text,animation,temperature,clock,time etc
Warranty:
2 Years
Languages:
support all languages
brightness:
adjusted automatically or set up by software
Voltage:
4.2-5.5V
Screen Dimension:
512W*256H 3072W*32H
Display Function:
Text
Pixels:
p10 p16 etc
Usage:
indoor outdoor semi-outdoor

Packaging & Delivery

Selling Units:
Single item
Single package size:
25X8X10 cm
Single gross weight:
1.5 kg
Lead Time :
2



 HD Brand LED Display Controller HD-U64(USB PORT)



      Advantages: 3D text,special background,video,gray level etc



        Used indoor outdoor display like P10 P12 P16 etc

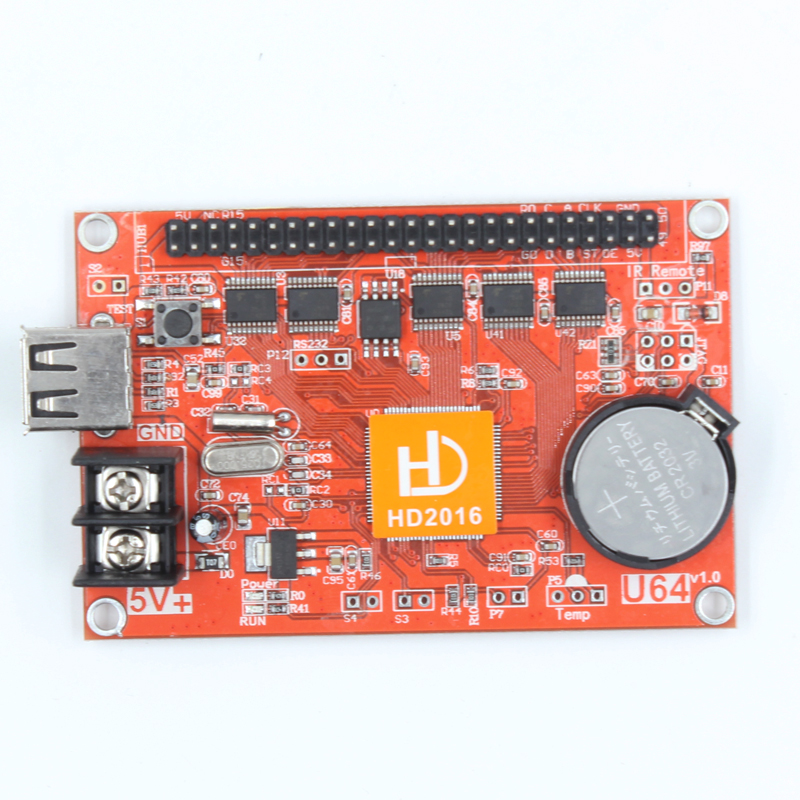

 U64

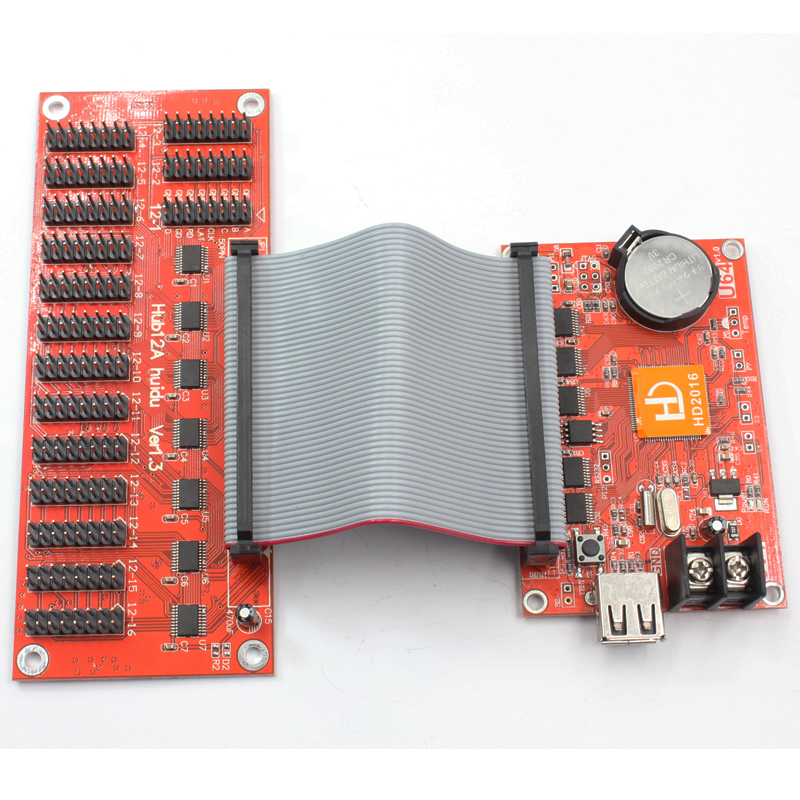

U64+HUB12















1. Mainly Features



Types of control card

Single Color/ Dual Color /Tricolor

Control range

Single color: 512W*256H 3072W*32H



Dual color : 256W*256H, 1536W*32H


Tri color: 320W*128H 1536W*16H

Scan modes

Static, 1/2, 1/3,,1/4, 1/5 ,1/6,1/8,1/16 common modes etc

Communication type

U-Disk

Power supply

+4.2-5.5V

Power consumption

≤0.5W

Work environment

-40--75

Installation dimension

77(W)*55 (H)(mm)

Application Range

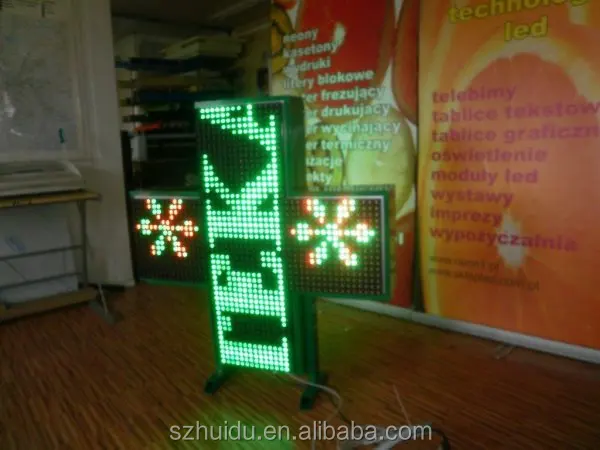

Used indoor outdoor, semi-outdoor, LedH Pharmacy Cross signs

Showing text, animation, time, clock etc

Languages

Support All languages

Communication distance

updated program by U-DISK OR BY flash memory

Application Software

Software HD2016





Details Parameter



Details Parameter

  Details Parameter

Flash Capacity

 8M Byte

Communication Port

U-Disk   updated programs

Signal Port

1 of 50pin ,it can connect any HUB,like HUB12, HUB08 etc

Program Quantity

1000pcs Programs. also can change program by button or remote if weld sensor (Remoter can select1-999 Programs)

Area Quantity

8 areas with separate zone, and separated special effects and border

Display Showing

Text, Hypertext (GIF, Picture, Animation Character,SWF,Video),Excel, Time, Count, Digital, Temperature, Humidity, Brightness ,Background etc

Program Modes

Playing by Sequence or by Remoter or by Button

Display effects

1.Support all languages(Software :HD2016)

2.Support 7 color effects and 64 colors Gray level (HD-W62/W63/W64)

3. Border functions of Program border, area border and Custom design border.

4.Add Countdown /Count up, Button Countdown / Count up

5.Add Text Rotation of 90°,180°, 270° for display

Text function of Hollow,Stroke etc

6.Add payment collection function

7.Updated program by U-disk

8. More than 200 types showing effects

9.Support Second develop SDK

10.More high brightness, more moving speed ,more refresh

Time / Clock /Count Function

1. Support Digital Clock/ Dial Clock / Lunar Time/

2. Countdown /Count up, Button Countdown / Count up

3. The font,size,color and position can be set freely

4. Support multiple time zones

Digit Function

1.Scoring device,Calculate by piece.

2.From Minimum to Maximum, from Maximum to Minimum

Expand function

Remote function,temperature,humidity,brightness etc. (If weld sensor) .Remoter can select1-999 Programs

Brightness Control

Brightness setting by Custom,Automatic(weld sensor) ,

by time period regulation

Automatic close /open display

Support close /open display by time automatically









2.The packing details

5PCS HD-U64+5PCS HUB+ 5PCS  CD of software





3. HD Controller Connected with LED Module



for example P10 singe color, the display port is HUB12 usually



Controller of HUB12*1  connected to led display of First Height of input Hub12



Controller of HUB12*2  connected to led display of Second Height of input Hub12







for Example  p10 Dual color , the display port is HUB08 usually



Controller of HUB08*1 connected to led display of First Height of input Hub08



Controller of HUB108*2 connected to led display of Second Height of input Hub08



Like this . so on .







 4 The Controller working software HD2016.





Working ways: use U-disk(or pen drive )  udapted program ,no need putting lines,

 no need PC





  a. Edit the program in software HD2016



  b. Then click software  “to U-disk",the program import to your flash memory( U-disk)



  c. Pull out the Flash memory ( U-disk) to the USB port of controller, the program updated

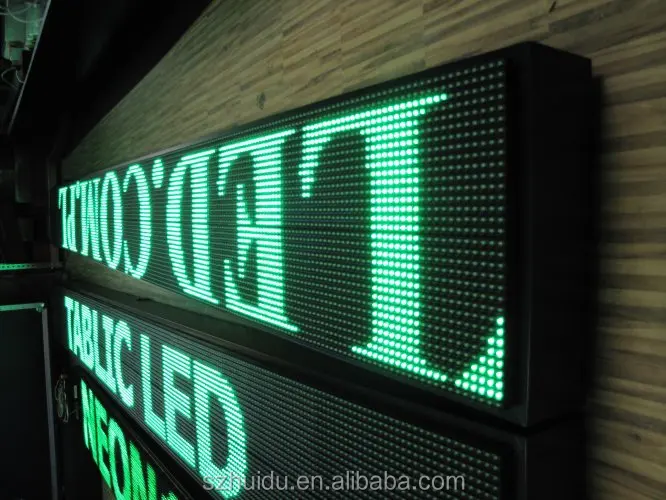

5. Showing effects

 1P10 led module single color.jpg










6. HD controllers  CE/ ROHS Certificate and Company ability Showing



CE ROHS -750X800.jpg1-750X800.jpg
