metal tube fiber laser cutting machine Germany ipg fiber 1000 w

Feedback Ratings
  • 1 Sets
    $32,000.00
  • 2 Sets
    $30,000.00
  • >=3 Sets
    $29,000.00
Model Number:
VML1530
Power(W):
1KW
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
25 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Free spare parts, Video technical support, Engineers available to service machinery overseas
Applicable Material:
Metal
Laser Type:
Fiber Laser
Cutting Area:
1500*3000mm
Cutting Speed:
40m/min
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:
Laser Cutting
Condition:
New
Cutting Thickness:
1-30mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
Cypcut
Place of Origin:
Shandong, China (Mainland)
Brand Name:
VMADE
Certification:
CE
Warranty:
3 years, 3 years
Dimension(L*W*H):
4.1X2.1mmX1.9mm
Voltage:
220V±10%/10A
Weight::
5000KG
Cooling way:
DOLUYO dustrial chiller
Transmission way:
dual rack gear
Laser head:
Raytools
Driving mode:
Japan servo motor and driver
Material:
metal/ Carbon steel/ stainless steel,ect

Packaging & Delivery

Selling Units:
Single item
Single package size:
550X228X230 cm
Single gross weight:
5000.0 kg
Package Type:
standard export wooden box
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 25 30 35 To be negotiated
Product Description

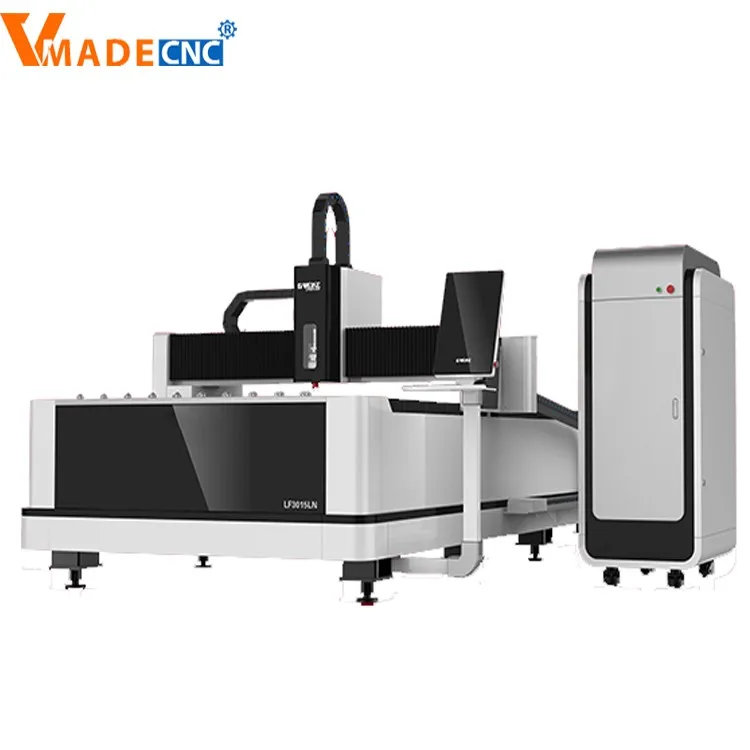

VMADE fiber laser cutting machine is equipped with Japanese Yaskawa motor, French Motoreducer reducer and Taiwan APEX rack. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.0G. The working life is more than 10 years.

VLF1530L fiber laser cutting machine as one classic model, widely used in life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life.

Main Features

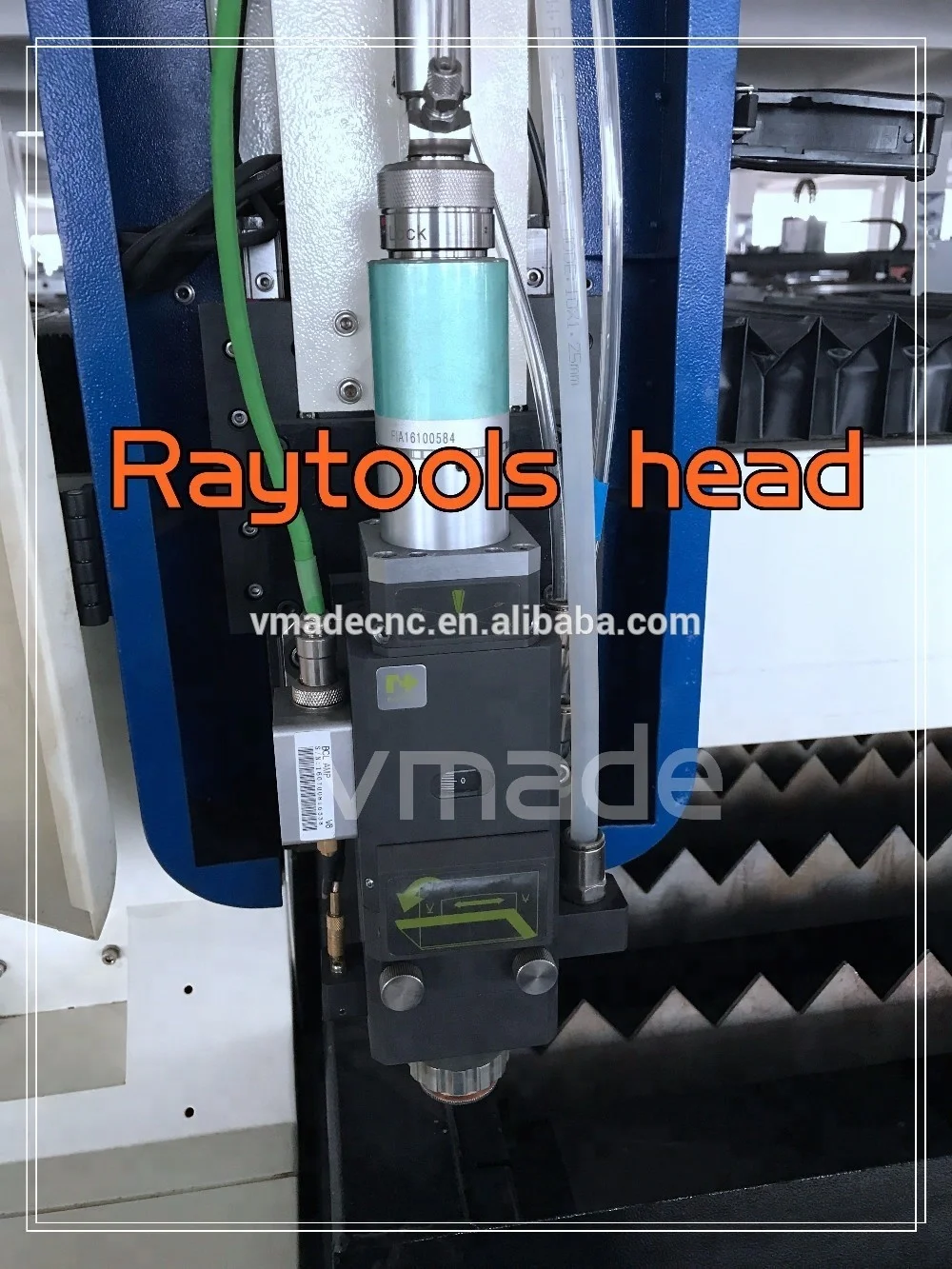

 1.Raytools Laser headLaser Cutting Heads :

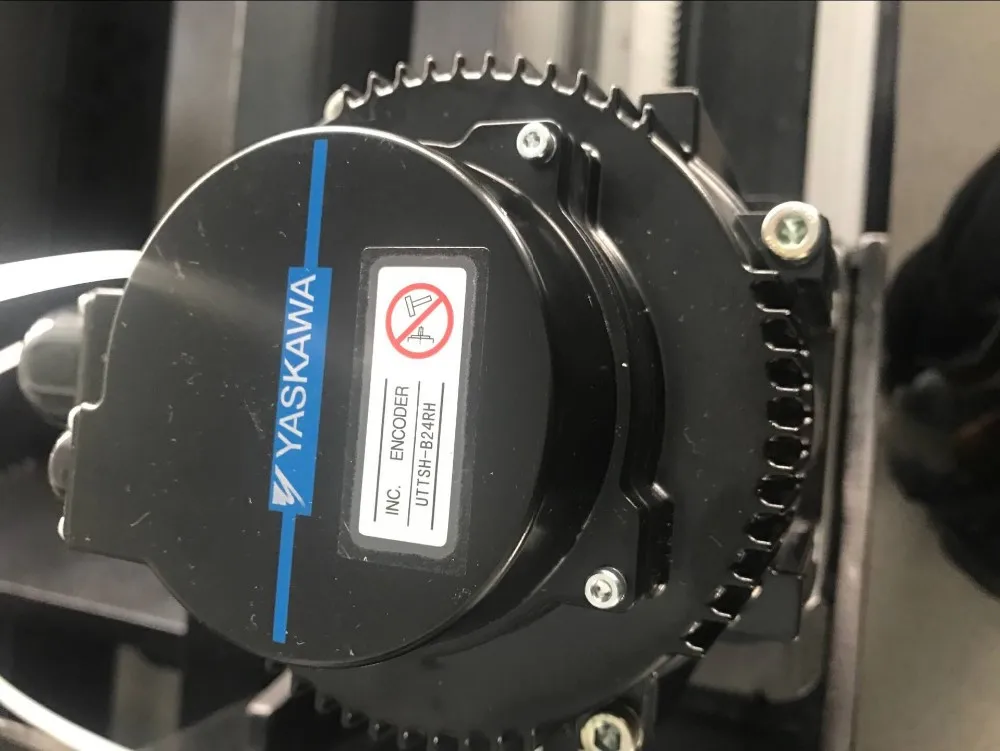

2.JapanYaskawa servo motor and driver (X--850W*1,Y---1.8KW*2, Z-400W*1);
3.Pneumatic auxiliary loading system;
4.Germany Atlanta Rack gear with double driver
5. TAIWAN HINWIN Guide Rail; (X:25MM, Y : 35MM)

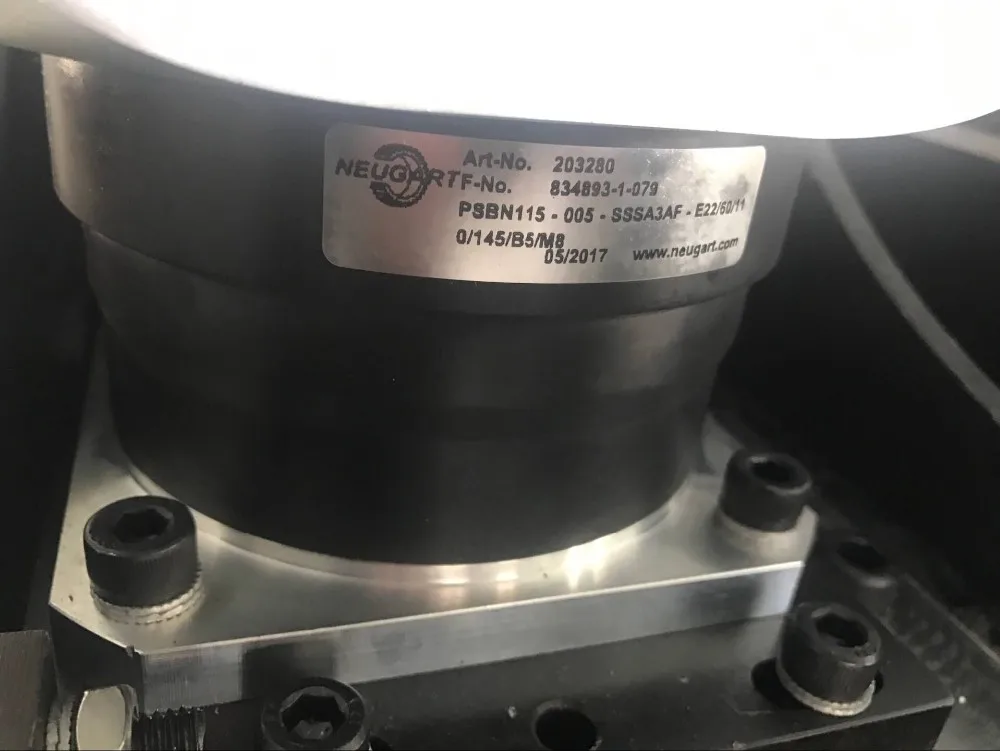

6.Germany NEUGART Reducer
7.Tongfei water Chiller

8.CYPCut Control system

Machine Parts
Detailed Images

 VLF1530LNR

 Dual Use and Cost-saving

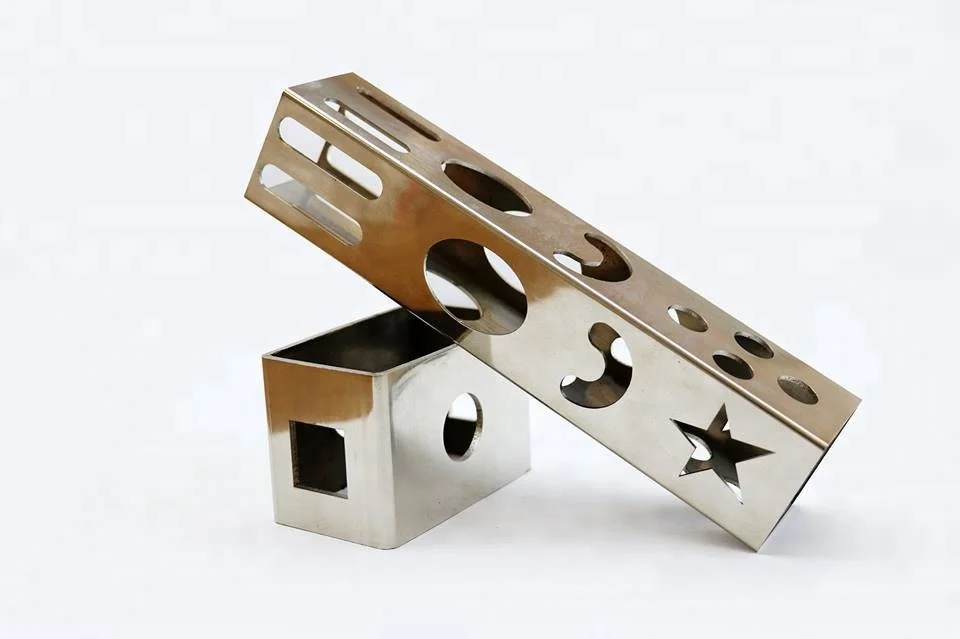

VLF1530LNR  fiber laser cutting machine can not only cut metal plates, but also metal pipes. It has many uses and can save the space of more than 50%, which effectively improve productivity.

VLF1530GA

 this model is equipped with German Atlanta rack, Japanese Yaskawa motor and German Neugart reducer. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to 10 years.

VLF1530NCR

this model  fiber laser cutting machine can not only cut metal plates, but also metal pipes. It has many uses and can save the space of more than 50%, which effectively improve productivity.


Exchanging Platform
It adopts an up and down exchange platform, and the converter is responsible for controlling the exchanging motor.

The machine is able to finish the platform exchanging within 15s.

 VLF1530LN

 Dust-proof

All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.

Automatic Thermostat
The control cabinet is equipped with air conditioner for automatic constant temperature. This can prevent excessive temperature damage to components in summer.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
5.3 M(L) * 2.28M (W) * 2.2M (D)
Weight
5T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
