mixer blender

  • 1 Sets
    $8,000.00
  • >=2 Sets
    $7,800.00
Model Number:
SRL-Z 200/500 mixer
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Max. Loading Capacity:
75kg
Condition:
New
Mixer Type:
Paddle
Product Type:
plastic
Application:
Powder
Additional Capabilities:
Drying
Place of Origin:
Jiangsu, China
Brand Name:
golden far east machinery
Voltage:
380v
Dimension(L*W*H):
2m*1.5M*2.3m
Certification:
CE, ISO9001, G-ROST
Warranty:
1 year
After-sales Service Provided:
Overseas service center available
Be used for:
PVC Pipe, profiles, granules and so on
Mixing material::
PVC powder, flour+Calcuim carbonate+CPE+Static+ACR and so on
Mixing Method:
high speed mixing
Time of mixture:
8-15minutes per pot
Capacity:
75kg one pot
mixing capacity:
200kg/hour
Heating mode:
self friction/ electricity heating
cooling:
water cooling
discharge mode:
cylinder discharging
Certificate:
CE, ISO9001
Power(W):
45kw

Packaging & Delivery

Selling Units:
Single item
Single package size:
2.5X2.1X2.3 cm
Single gross weight:
3000.0 kg
Package Type:
wood case
Lead Time :
Quantity(Set) 1 - 5 6 - 10 >10
Est. Time(days) 30 60 To be negotiated

  mixer blender









Product Description

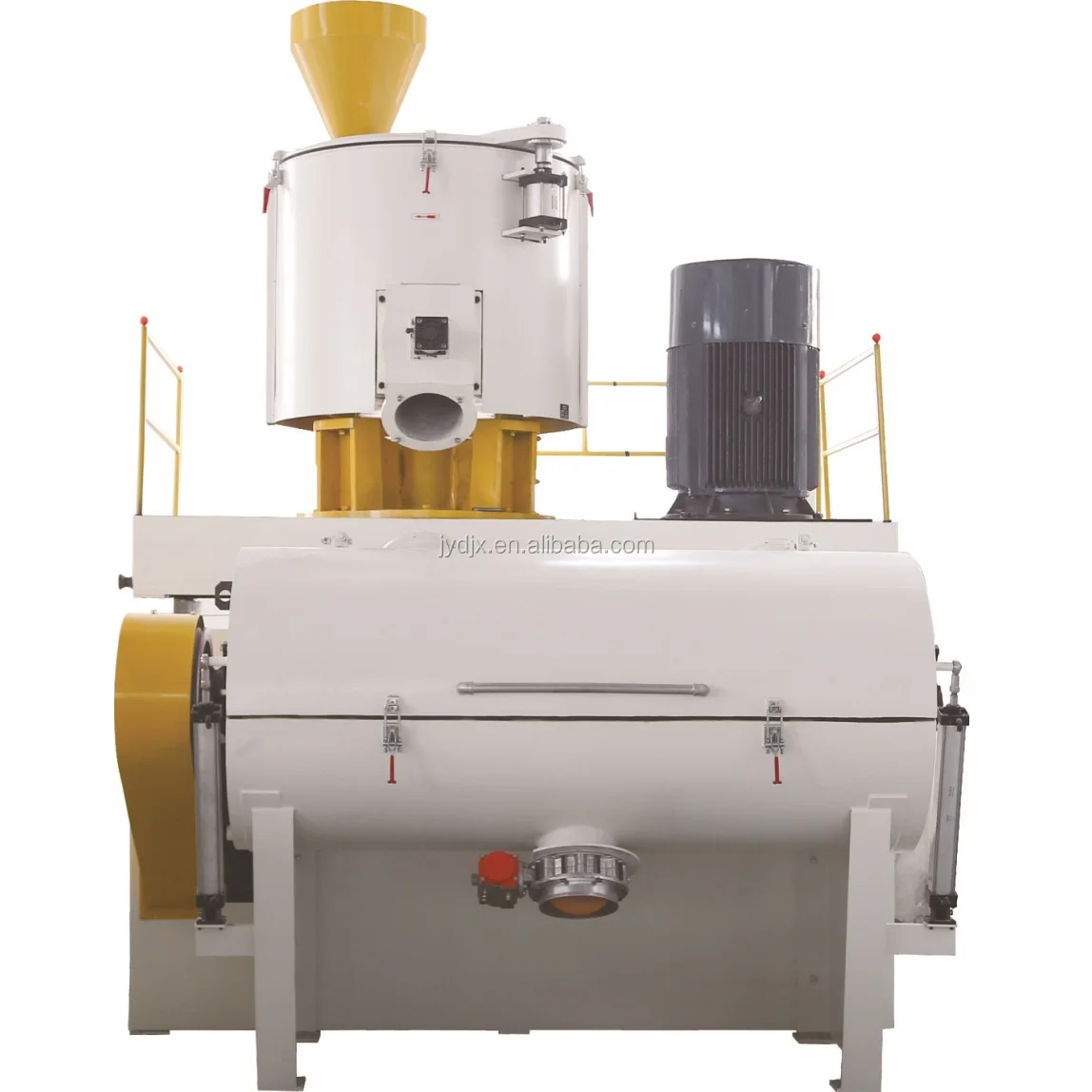

SRL-Z mixer unit is used in mixing, stirring, drying, coloring and other technique of plastics, rubber,chemicals for daily use. It is an ideal advance equipment of producing plastics plate, pipe, and special-shaped material and degradation plastics.
The unit is developed through introducing, digesting and absorbing foreign advanced technology. The vacuum mixing principle is adopted in mixing materials. The electric meters all adopt imported famous ones; It has advantages, such as high auto level, fast mixing, its blades are precisely cast with stainless steel and passed the dynamic and static balancing test. Especial the blades of its cooling machine adopt the most advanced screw stirring structure in the world; there is no dead angle in the whole vessel. It has advantages, such as fast cooling, discharging thoroughly; its mixing efficiency has reached foreign advanced level.



We can supply you double speed mixer and inverter control mixer!!!



technical data:





Total Volume

Hot Mixer:200L

Cooling mixer:500L

Effective volume

Hot Mixer:150L

Cooling mixer:375L

Blade rotate speed

Hot Mixer:500/1000rpm

Cooling mixer:100rpm

Motor power

Hot Mixer:30/42KW

Cooling mixer:11KW

Mixing time

Hot Mixer:8-10min/pot

Cooling mixer:6-8 min/pot

Feeding capacity once

80kg

Mixing capacity

320kg/h

Heating mode

Electric heating and friction

Discharging material mode

By pneumatic gas cyclinder

Pot cover turn on method

By pneumatic gas cyclinder

Main electrical apparatus

OMRON Temperature controller, SIEMENS contactor

Whisking Blade

Adopt high quality stainless steel casting

Main axes bearing

Adopt high quality bearing

Pot cover

Adopt high quality aluminum casting, Adopt two rubber sealing

bar, Pot cover opening by pneumatic gas cylinder

Diameter of discharge part

200mm




Packaging & Shipping

We use Wooden case package, wooden pallet, PE plastic film package etc. shipping is by train, by railway, by air. Lading port is Shanghai port and so on.






Our Services

We run machines in our factory before machines delivery. Clients check machines running in our factory, if no problem, then delivery, when machines arrive in Client’s factory, we will send our engineer to run machines in client’s factory.

We supply machines technical support, products formulation support; guarantee machines and spare parts supply.




Company Information

- Every year, production lines are 200 sets, export to Egypt, Uzbekistan, Turkey, Russia, Iran and so on.

- We attend to fair:

 Chinaplas, Plast Eurasia, Interplas, Iran Plas and other countries fairs.



Plast Eurasia fair in Turkey:







zhangjiagang golden far east machinery co.,ltd.

Contact: Ms.Chris

Mobile: 0086-15962369944

Skype: chris19860821


FAQ

  - Payment is based on FOB Shanghai or CFR / CIF; payment is by T/T or L/C or cash.

What is guarantee time?

- Guarantee time is 1 year from machines arrive in client’s factory.
