p10 Outdoor full color SMD p10 RGB 16x32 led module display Led

$9.47 / Piece | 80 Pieces (2 lot) (Min. Order)
1 batch = 40 Pieces
Supplier Type:
Original manufacturer
Media Available:
Datasheet
$9.47
- +
available
$9.47
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Application:
Advertising Led,stage,concert
Color:
1R1G1B smd2727
Panel Size:
320*160mm
Pixel Pitch:
10mm
Place of Origin:
Shanxi, China
Model Number:
P10
Brand Name:
GKGD
Usage:
OUTDOOR
Screen Dimension:
Custom Made
Tube Chip Color:
FULL COLOR
Product name:
outdoor led rental p4.81
LED chip:
chip-one
Brightness:
≥6000cd/m2
Pixels:
10mm
Pixel density:
10,000dots/m2
Driving mode:
1/2 scans, constant current
display function:
video picture graphic text message,stage

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
63X37X41 cm
Gross weight per batch:
20.8 kg
Package Type:
outdoor led screen manufacturers 1.40pcs/carton,size:580*370*410mm,weight:16.8kgs 2.flight case for option 3.wooden case for option
Lead Time :
Quantity(Piece) 1 - 40000 >40000
Est. Time(days) 3 To be negotiated
Specification
module parameters
outdoor led rental
Pixel pitch
10mm
Pixel Density
10,000 dots/m²
Pixel configuration
1R1G1B
LED type
3-in-1 black SMD2727
Module size
W320*H160mm
Module weight
496g
Module resolution
W32*H16dots
Module quantity
19.53 pcs/m²
Min. Viewing Distance
≥10m
Brightness
≥6000 cd/m²
Viewing Angle
H≥120°  V≥120°
Driving Mode
1/2 scan constant current driving
Interface
HUB75
Input voltage
4.8-5.5VDC
Max. Power Consumption
782 w/m²
Avg. Power Consumption
313 w/m²
Max. Current
8A
Frame rate
60 frames/s
Refresh Rate
≥960Hz
Whole screen
m10 rgb full color led display module moving LED pixel module p10
Defective Dots Rate
<0.0001 (LED display line standard: ≤ 0.0003)
Decay Rate
≤5%/year
Brightness Conformity
>95%
MTBF
≥10000 hours
Lifespan
≥50000 hours
Protective function
Over-heat/Over-load /Power-down /Power-leakage/Lightning
-protection etc.
Operating Temperature
-20℃~+50℃
Operating Humidity
10-85% no condensation
Storage Temperature
-30℃~+60℃
Storage Humidity
10-85% no condensation
Control system parameter
m10 rgb full color led display module moving LED pixel module p10
Video signal (with video processor)
VGA、DVI、RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION
Color temperature
10,000K
Malfunction dot rate
<1/100,000
Brightness level
Adjustable by software under 16 levels of software (manual & automatical)
Control system
Synchronous system controlled by computer
Computer system
WINDOWS(XP、Vista)、Win7、Win8、Win10
Communication distance
Cat5 UTP 100meters, max.130meters; multimode fiber 500m, monomode optical fiber max. 15km

Related products

Product Details

m10 rgb full color led display module moving LED pixel module p10

     A high quality module for high quality display output. The 10mm pixel pitch modules provides great quality output and makes it lightweight. The delicate design and lightweight makes it ideal to move and install. Can be used at different places like in stage ,church ,sporting events and allied...

A complete line of led display screen

Our  main manufacturing facilities are located at 65, Beidong New Street, Changzhi City, Shanxi, China.Our manufacturing capabilities include circuit board manufacture, electronic assembly, metal fabrication, welding, painting, final assembly, testing and shipping. Based on many years of experience ,our professionals ensure that the complete range offered by us is designed as per industry standards .

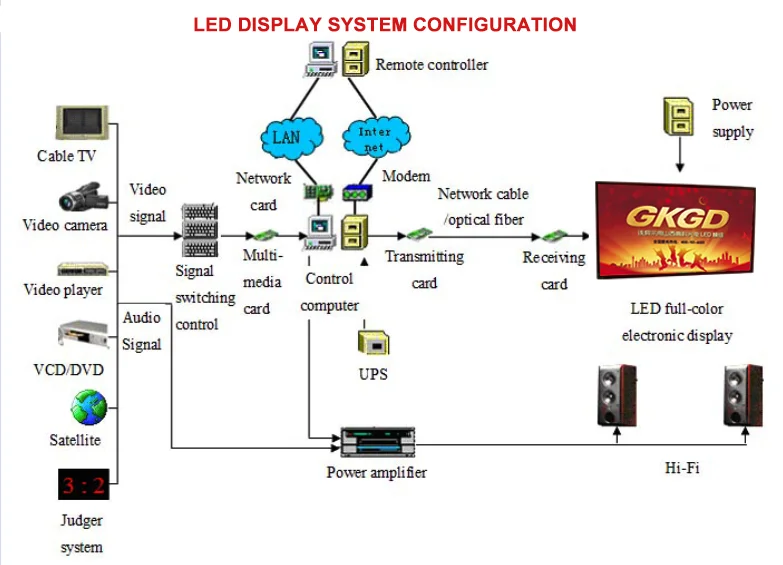

Multiple Signal Input - Support Various Input Devices


     The Full Color Module supports different input devices and multiple signal input. Can be connected to PC, DV, DVD players etc. Also accepts multiple signal inputs such as AVI, MPG, MPEF, TXT and much more.

Company Information

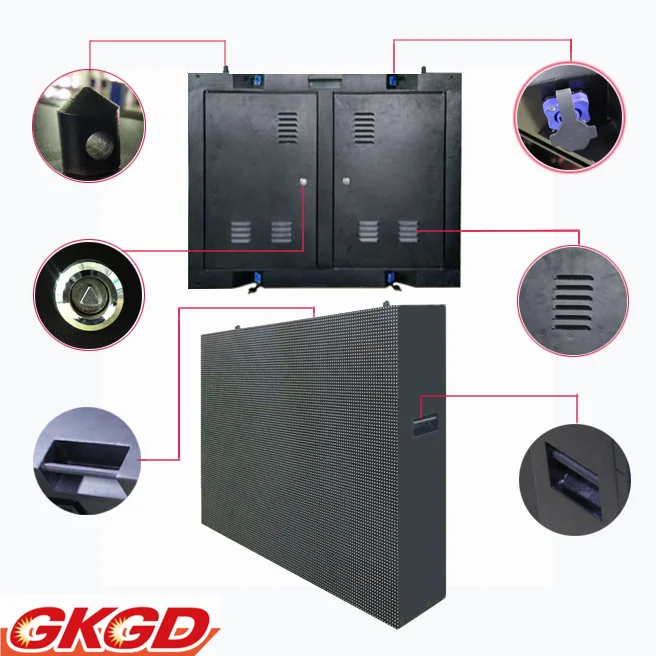

p10 outdoor LED module SMD /p10 led display cabinet /screen cabinet module

    One of the famous brands in LED screen and display industry, Shanxi High-tech Huaye Electronic Group Co., Ltd. (GKGD in brief) was established in 2012 with total investment of 700 million dollars. Equipped with fully automatic manufacturing facilities, GKGD has built 8 modern factories with fifty-three thousand square meter production area.
    GKGD is a professional manufacture of all series of indoor, semi- and outdoor LED screens and displays. In order to provide its clients with good CP value products, the company focuses on LED whole supply-chain integration, ranging from LED chip processing, LED packaging, LED screen module, cabinet, to whole LED screen system.
    The company employs over 350 well-trained engineers and technicians, dedicating in developing modern style, good performance and fair cost LED screens. Quality is the live of GKGD. With its subsidiaries operated under ISO9001 and certified with CNAS, the China country-class laboratory, GKGD adopts all measures and stringent standards in quality control from incoming materials, in-processes, to end-products.

Applications

Main Features:
1.Vivid image and video, rich in describing the details of color.
2.High refresh rate, High brightness ≥ 6000 cd/m2, automatically brightness adjust to the environment.
3.Range working temperature design can meet your outdoor using request.

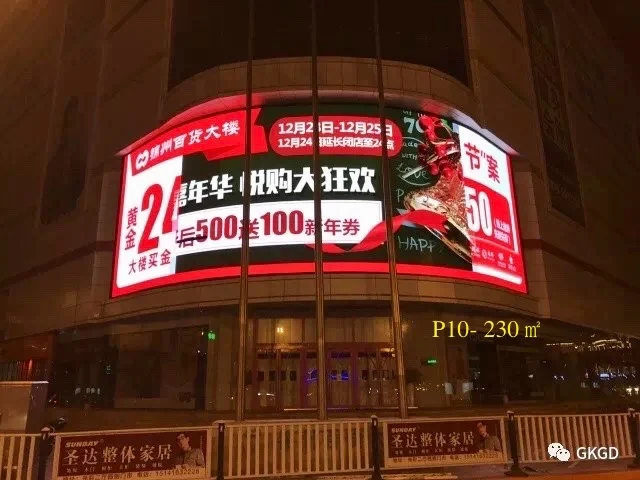

The range is widely used in various outdoor events such as :

1.Sporting events
2.Exhibitions
3.Political rallies

4.Religious discourses

5.shopping centre ,airport hall...

     Owing to our optimum quality products, vast distribution network, and timely delivery, we have achieved the trust and confidence of our esteemed clients from overseas ,like : Spain , Hungary, Germany, France, Italy, Poland, UK, Greece, Russia, Kazakhstan, Indonesia, Vietnam, Thailand, India, korea...

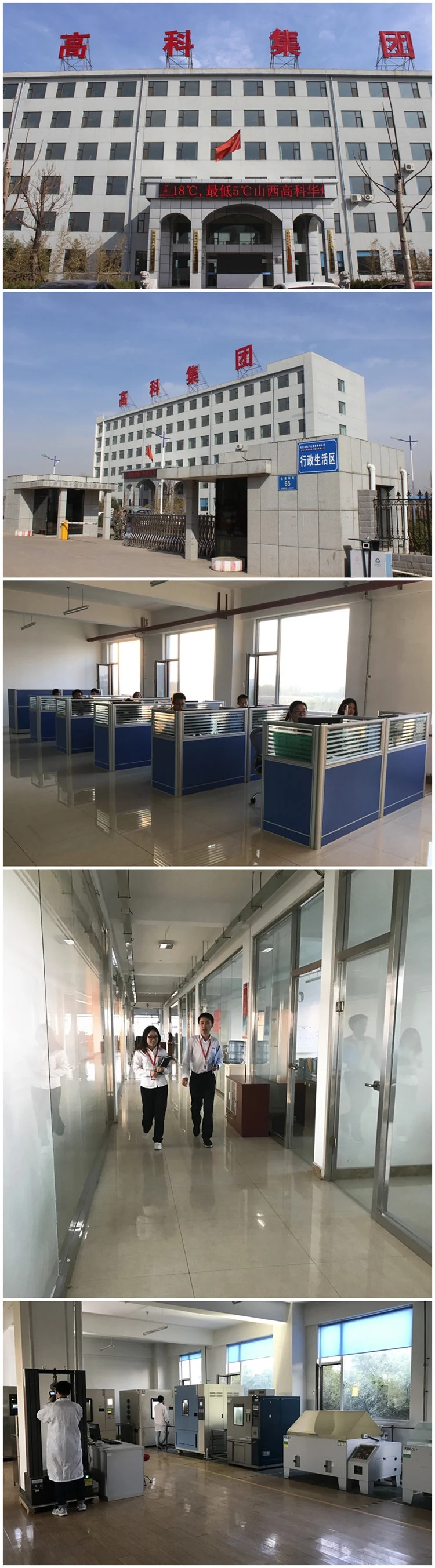

Factory
