panel furniture office furniture 3d sculpture wood carving cnc router machine for sale

  • 1-2 Sets
    $6,999.00
  • >=3 Sets
    $5,000.00
Model Number:
BCM1325S-3X
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
11 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Customized packaging (Min. Order: 1 Sets) Less
Samples: $7,100.00 /Set, 1 Set (Min. Order): Buy Samples
Contact Supplier
Samples - $7,100.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Range of Spindle Speed(r.p.m):
18000 - 24000 rpm
Positioning Accuracy (mm):
0.03 mm
No. of Spindles:
Multi
Working Table Size(mm):
1300×2500
Machine Type:
CNC Router
Travel (X Axis)(mm):
1300 mm
Travel (Y Axis)(mm):
2500 mm
Repeatability (X/Y/Z) (mm):
0.02 mm
Spindle Motor Power(kW):
3.5
CNC or Not:
CNC
Place of Origin:
Shandong, China
Brand Name:
BCAMCNC
Voltage:
380V 50HZ
Dimension(L*W*H):
3400*2200*1800mm
Certification:
CE
Power (kW):
3
Weight (KG):
1500
Warranty:
3 years
After-sales Service Provided:
Field installation, commissioning and training
Key Selling Points:
Easy to Operate
Local Service Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Viet Nam, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Mexico, Russia, Spain, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Showroom Location:
Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, none
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Advertising Company
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Bearing, Motor, Pump, PLC, Pressure vessel, Engine
Application:
MDF WOOD ACRYLIC ALUMINUM
Transmission:
Taiwan TBI Ball Screw
Spindle power:
3.0KW /5.5KW optional
Product name:
making 3 heads 3D 1325 cnc router wood cutting machine
Driving system:
Stepper Drive
Inverter:
Taiwan Delta
Table Surface:
Vacuum Combined T-slot Table
Function:
Cutting Engraving Non-metal Materials
Guide rail:
Taiwan Hiwin Square Guide Rail
Type:
Manual Tool Change

Packaging & Delivery

Selling Units:
Single item
Single package size:
22X22X10 cm
Single gross weight:
10.000 kg
Lead Time :
Quantity(Sets) 1 - 1 2 - 4 >4
Est. Time(days) 11 25 To be negotiated

 wooden door cabinet furniture windows making 3 heads 3D 1325 cnc router wood cutting machine

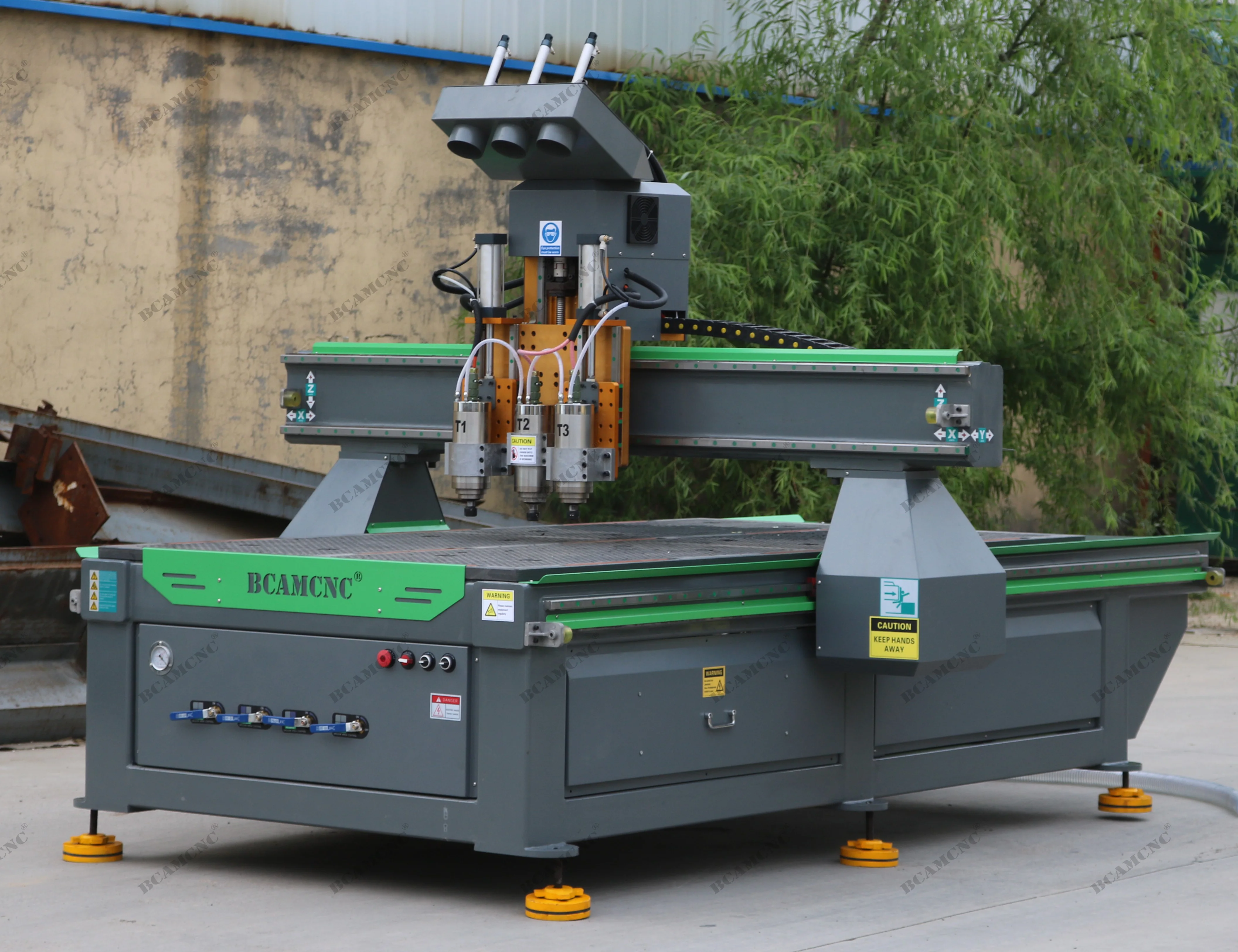

Introduction



BCM1325S sculpture wood carving cnc router machine is ideal for amateurs and professionals. Superior precision allows you to perform precise inlays, 3D engraving, engraving and printed circuit boards. Ruggedness allows you to handle the toughest wood processing projects, cabinets, non-ferrous metals, plastics, signage, etc.


The flexibility of an BCAM CNC sculpture wood carving cnc router machine allows commercial sign fabricators to produce dimensional signage one day, aluminum letters the next morning and print-to-cut graphics that afternoon.Additional productivity options include misters for routing aluminum and other non-ferrous metals, pneumatic drills for rapid hole drilling, automatic tool changers for a wider selection of cutting tools and an BCAM vision system, a high-performance camera mounted on the head of the machine for print-to-cut applications.

What's Business that Benefit

Built for manufacturers who process large volumes of cladding materials and rely on speed and efficiency, the BCAM system is the world’s leading all-in-one panel fabrication solution on the market. By combining an advanced, easy-to-use software solution with a custom machine design, BCAM has created a system that can process all types of cladding materials faster, more consistently and at a lower cost than ever
before.
1) ALUMINUM & METAL COMPOSITE CLADDING
BCAMCNC offers industrial sculpture wood carving cnc router machine specifically designed for machining aluminum composite, metal composite and solid aluminum sheets into fabrication panels for architectural metal projects.
2)SIGNMAKING
BCAMCNC delivers all types of signmaking applications from simple 2D profile-cut letters to complex 3D carvings and a variety of tooling for all popular signmaking materials including woods, plastics, vinyl, acrylic and aluminum.
3)GENERAL WOODWORKING
All types of woodworking applications can benefit from a sculpture wood carving cnc router machine. BCAMCNC systems increase productivity and quality while maintaining the best consistency available in the industry.
4)GRAPHICS & PRINT FINISHING
Today’s print finishing is not only performed on vinyl or card, but has expanded to encompass thicker and heavier substrates such as acrylic, woods and aluminum. These require specialized tooling and machine construction for accurate and fast production and delivers.

Material cut :

Solid Wood: Cottonwood, Pine, Redwood, Ash, Oak, Beech, Birch, Cherry, Mahogany, Hard maple, Poplar, Teak, Walnut, Hickory, Purple Heart, Leopardwood, Tigerwood, Cocobolo, Bloodwood, Alder, Aspen, Basswood, Beech, Yellow Birch, Cypress, Red Elm, Gum, Hackberry, Pecan, Pacific Coast maple, Red Oak, Sassafras, Sycamore, Black Walnut, White Oak, Willow, African Padauk, Bolivian Rosewood, Hondura Mahogany, Wenge, Spanish Cedar

Soft wood: Pine, Soft Maple, Fir, Spruce, Hemlock ,Cedar, Redmood

Composite Wood: OSB, MDF, LDF, Melamine, Particle Board, Plywood, Masonite
Plastic: ABS, Polycarbonate, Polyethylene, PVC, Polypropylene, Polystyrene, Cast and Extruded Acrylic, HDPE, UHMW, Marine PVC, Lexan, Phenolic, Sintra, Nylon, Lucite, Solid Surface Materials, Luan, PET, Acetate, VHMW, Mica.

Foam: EVA, Precision Board, Sign Foam, Polystyrene, Polyethylene, Styramfoam, Polyurethane, Foam Rubber, Silicone Rubber, Urethane.

Metal: Aluminum, Brass, Copper, Bronze, Mild Steel, Stainless, Honeycomb Aluminum



Specfication
ParametersStandard Specifications BCM1325S-3X
X,Y,Z Working Area1300*2500*200mm|4*8ft
Optional Working Area1300*1300*200mm|4*4ft
Optional Working Area1500*3000*200mm|5*10ft
Optional Working Area2000*3000*200mm|6*10ft
Optional Working Area2000*4000*200mm|6*13ft
Optional Working Area2000*6000*200mm|6*20ftth>
Spindle Power3.5kw air cooling spindle
X,Y,Z Traveling Positioning Accuracy±0.03/2000mm
Table SurfaceVacuum table+T-solt table
X,Y,Z Rail and TrasmissionX Y axis gear transmission, Z axis TaiwanTBI Ball Screw
Max. Rapid Travel Rate40m/min
Max. Working Speed30m/min
Cutting thicknessAccording materials
Spindle Speed6000-24000RPM
Drive Motors4 sets High Torque stepper motor and drivers
Working VoltageAC220v0r380v/50HZ/3 phase,220v/1phase/50hz
Command LanguageG Code
Operating SystemRichauto A11 DSP control system
InterfaceUSB
Software CompatibilityOption:BCAMPRO/VCarve/VCarve Pro/ArtCAM/UCANCAM,etc.
Running EnvironmentTemperature: -20℃~45℃ Relative Humidity: 5%~75%

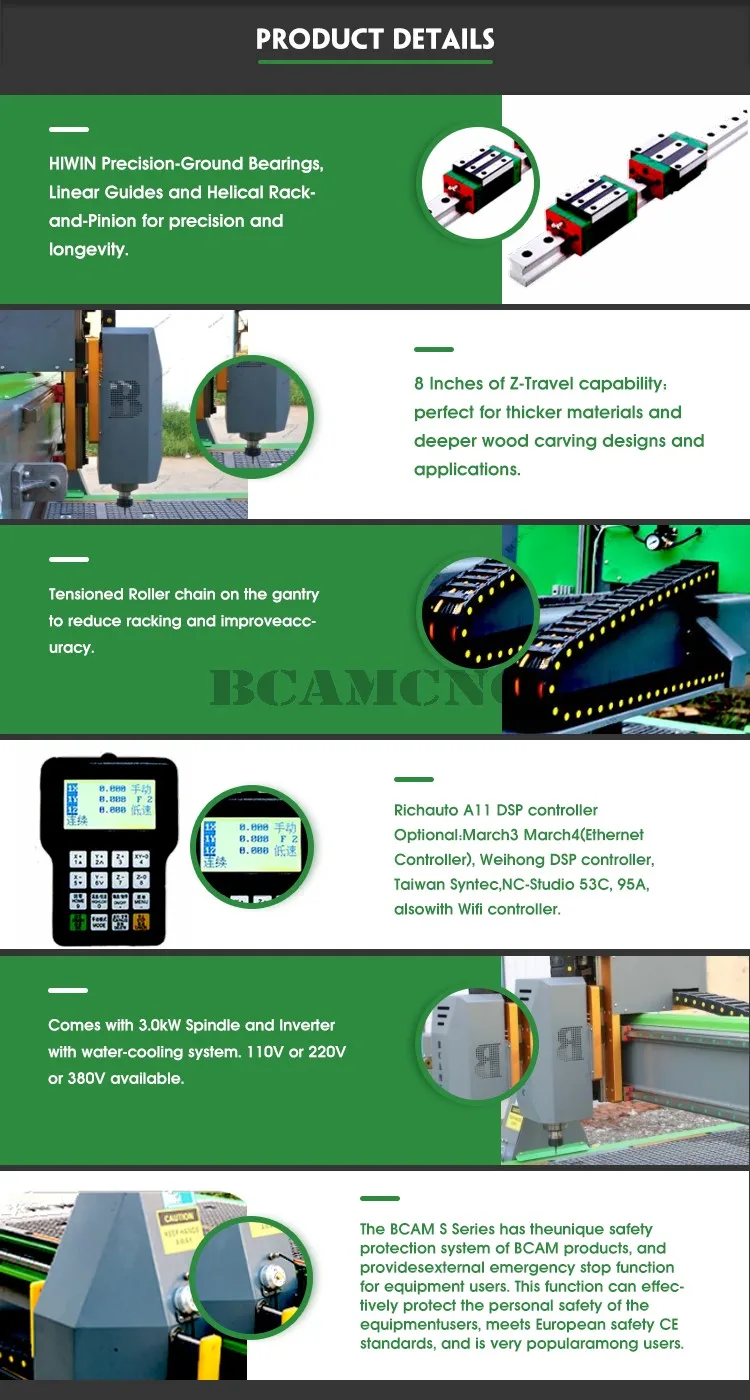

Key Feature

1/The BCAM sculpture wood carving cnc router machine S Series is designed for smaller sized businesses or shops but still offers the same great performance you expect from BCAM. Due to our highly effective engineering and manufacturing processes, the S Series offers maximum versatility and can easily be integrated into existing workflows.
2/Constructed from a single-piece-welded steel frame along with an aircraft-quality aluminum gantry, the BCAM also features cast gantry supports which greatly dampen vibrations. Each axis of this sculpture wood carving cnc router machine features helical racks to provide smooth motion and tight control for precise and quality cutting.
3/Designed to cut a multitude of materials such as composite material, foam, plastic, wood, and much more the BCAM sculpture wood carving cnc router machine is dependable and built to last. With many locations across the globe, service and support are always nearby and ready to help.
4/An all-new knife system which offers both oscillating and non-oscillating capabilities is standard on the BCAM sculpture wood carving cnc router machine along with an optional second knife system.Depending on an end-users application, spindle options range from 4 to 10 HP.

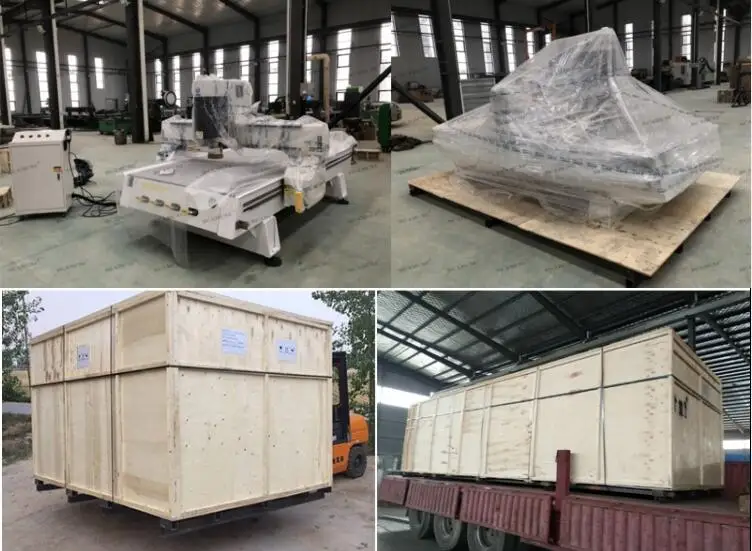

Packing &Service
1. Standard plywood case, its compressive strength and bearing quality is better.
2. The board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3.When importing, the plywood case is with fumigation-free, the procedure is simple.
Service
1. 36 months guarantee of the whole sculpture wood carving cnc router machine,We will provide the consumable parts at an agency price when you need replacement.
2. Our engineer could support you technology to your country if necessary.
3. Our engineer could train you on at our factory for free.
4. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by cellphone.

Certificate
Based on more than ten years’ experience in engraving machines, BCAM has gradually developed into a leader in the engraving
machine industry. Our unique design and distinctive color matching have led the aesthetic trend of the engraving machine industry.
We maintain a diversified product composition, and the patents of our invention are applied to key parts of each product to ensure
the practicality, convenience and professionalism of the engraving machine. Together with our product excellence, we have the
confidence to make our customers 100% satisfied, both in appearance and internal structure.



ABOUT BCAMCNC

BCAMCNC , a professional machinery manufacturing company, with 6000 square meters factory,a highly specialized workforce and more than 10 Patent Technologies has gained a global reputation as one of the most reliable and trusted CNC machinery solution providers.

State-of-the-Art Products
BCAMCNC comprehensive in the production, design, manufacturing, trade and service of CNC machine like sculpture wood carving cnc router machine, Laser cutting machine, Digital cutting table, Fiber laser cutting machine and Edge banding machine etc., Our wide variety products used in the field of Woodworking, Sign Making, Panel Furniture Production, Jewelry pieces, Packaging etc.,
High quality products with the high production efficiency. All our products are precision engineered to ensure the high standard expected from ourselves. The whole manufacturing process is meticulously and systematically controlled to guarantee the precision and quality.

Customer service excellence
BCAMCNC was established with the most discriminating customers in mind and has proven itself quality-wise by selling our products to over 90 countries worldwide successfully. We have a strong and resourceful sales and technical support teams who are well trained to provide our customer the best possible service.
For better service to our customer, BCAMCNC has already established sales & service branches in Shanghai, Dongguan, Wuhan and also foreign countries, such as Armenia, UK, Germany, Dubai.

Bring ideas to you
High quality products with the high production efficiency. All our products are precision engineered to ensure the high standard expected from ourselves. The whole manufacturing process is meticulously and systematically controlled to guarantee the precision and quality.
