pla film blowing machine

  • 1-2 Sets
    $15,000.00
  • 3-4 Sets
    $14,000.00
  • >=5 Sets
    $13,500.00
Film Thickness (mm):
0.01-0.10mm
Film Width (mm):
800-1500mm
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Number of Layers:
Single-layer
Output (kg/h):
100 - 200
Screw diameter (mm):
75
Condition:
New
Application:
Film
Plastic Processed:
LDPE, PLA ,PBAT
Place of Origin:
Zhejiang, China
Brand Name:
SANBI
Film Thickness (mm):
0.01 - 0.1
Die Size(mm):
350 - 500 mm
Model Number:
SJ-C75/90/105
Year:
2020
Voltage:
380V,50HZ three phase
Dimension(L*W*H):
7000mmX3200mmX6500mm
Certification:
CE,ISO9001:2015
Key Selling Points:
Competitive Price
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Energy & Mining, Hotels, Restaurant, Machinery Repair Shops, Manufacturing Plant, Building Material Shops, Retail, Food & Beverage Factory, Food Shop, Advertising Company, Garment Shops, Food & Beverage Shops, Construction works , Farms, Printing Shops, Home Use
Local Service Location:
Sri Lanka, Bangladesh
Showroom Location:
Sri Lanka, Bangladesh
Raw material:
PLA,PBAT and etc biodegrdable material
Name:
PLA Film Blowing Machine
Model:
SJ-C75/90/105
raw material:
LDPE ,LLDPE ,HDPE
Max film width:
1200mm/1500mm/2000mm
Film thickness:
0.01-0.10mm
Screw Diameter:
75mm/90mm/105mmm
gearbox size:
200/225/250model
Max extrusion output:
100/150/200kg/h
Guarantee:
1 year
Film Width (mm):
800 - 2000
Warranty:
1 Year

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X20 cm
Single gross weight:
1500.000 kg
Package Type:
agricultural film machine: wooden pallet packing with stretch film
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 20 To be negotiated
Video Description
Product Description

Product Application

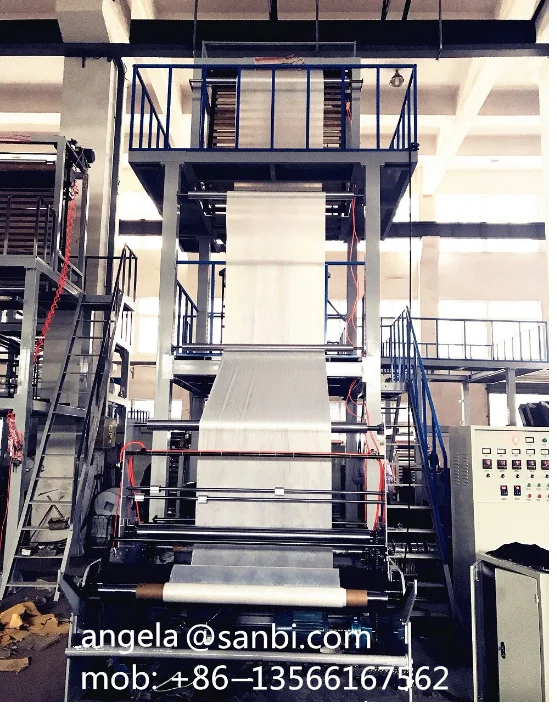

This PLA Film blow Machine ,screw and barrels are made of quality Bimetallic alloy which have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. the rewinding device can optionl fly cutting knife and automatic change roll ,control by PLC,
specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like biodegradable film , LDPE, and LLDPE, widely applied to producing the packing bags for foodstuff, clothing,

Model
SJ-C75
SJ-C90
SJ-C105
Screw Diameter
75MM
90MM
105MM
Screw Ratio
L/D30:1
L/D30:1
L/D30:1
Screw Speed
10-100r/min
10-100r/min
10-100r/min
Power of Main Motor
37KW
45KW
55KW
Power of traction main motor
2.2kw
2.2kw
3kw
Heating power(kw)
30kw
45kw
50kw
Main Output
90-100kg/h
120-150kg/h
180-200kg/h
Max.Folding Width of Film
800-1200mm
1000-1500mm
1500-2000mm
Single-sided Thickness of Film
0.01-0.1mm
0.01-0.1mm
0.01-0.10mm
Overall Dimensions
7100x3200x6500mm
8050x3550x8000mm
9000x4000x9000mm
Certifications
Company picture
Our Service
Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
