pvc asa glaze plastic roof tile production line

  • 1-2 Sets
    $85,000.00
  • 3-4 Sets
    $75,000.00
  • 5-9 Sets
    $65,000.00
  • >=10 Sets
    $48,500.00
Model Number:
HX-1050 maquina de azulejos de techo yeso
Output (kg/h):
400-700
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
Drawing design (Min. Order: 1 Sets)
Operating language (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Sheet, Profile, Plates
Plastic Processed:
PE, PVC, FRPP/PVC, ABS/PP
Output (kg/h):
400 - 700 kg/h
Screw Design:
Double-screw
Showroom Location:
None
Place of Origin:
Tianjin, China
Brand Name:
HAIXING
Voltage:
380V 50HZ 3Phase or based on customer's need
Dimension(L*W*H):
20000mm*2000mm*3000mm
Power (kW):
75
Weight:
8Tons
Certification:
CE/ISO
Warranty:
2 years
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Key Selling Points:
Famous brand PLC and motor
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Applicable Industries:
Building Material Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining
Marketing Type:
New Product 2020
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty of core components:
2 years
Core Components:
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
Name:
pvc asa glaze plastic roof tile production line
Raw material:
PVC Powder
Usage:
Decoration
Keywords:
PVC Roof Extruder Line
Inverter:
ABB Frequency Controller
Machine type:
PVC Plastic Profile Machine
Contactor:
France SCHNEIDER Contactors
Finished Products:
Synthetic resin tile
Temperature controller:
Omron Brand
Motor:
SIEMENS Brand
Screw Material:
Stainless Steel 304
Screw diameter (mm):
80 mm mm
Screw L/D Ratio:
80:156

Packaging & Delivery

Selling Units:
Single item
Single package size:
2000X200X300 cm
Single gross weight:
8000.000 kg
Package Type:
a.The main body of machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron. b.Rollers and shafts are covered with anti-rust oil. c.PLC control system and motor pump are packed with waterproof paper and plastic film. d.Spare parts in a carton box. e.Manual decoiler was nude packing. f.The output-table put into a carton box. g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire. h.Fit for ocean shipping.
Lead Time :
Quantity(Sets) 1 - 1 2 - 3 4 - 5 >5
Est. Time(days) 30 45 50 To be negotiated
Product Description

pvc asa glaze plastic roof tile production line

The pvc asa glaze plastic roof tile production line has conical twin-screw main engine, co-extruder, surface embossing machine, debuggable distributor, hanger flat die,two-roll roller press, glazed tile molding machine, tracking cutting machine, receiving frame composition, can continuously produce pvc single-layer and PVC/ASA composite plastic glazed tile. The whole line has the advantages of high production efficiency, reasonable and compact structure, convenient use and maintenance, long life and so on. The products are rich in color,beautiful in shape, strong in three-dimensional sense, cheap in quality, green and environmentally friendly, easy to install, and it also has the advantages of light tenacity, sound insulation, waterproof and corrosion resistance, aseismic and anti-fouling,fire insulation and so on. It can be widely used in garden factories, tourist scenic spots, pavilions, hotel villas,exhibition halls, resorts, families and other buildings, and is an ideal roof decoration material.
pvc asa glaze plastic roof tile production line composition
Name
Model
Quantity
1
Spring feeder
1Set
2

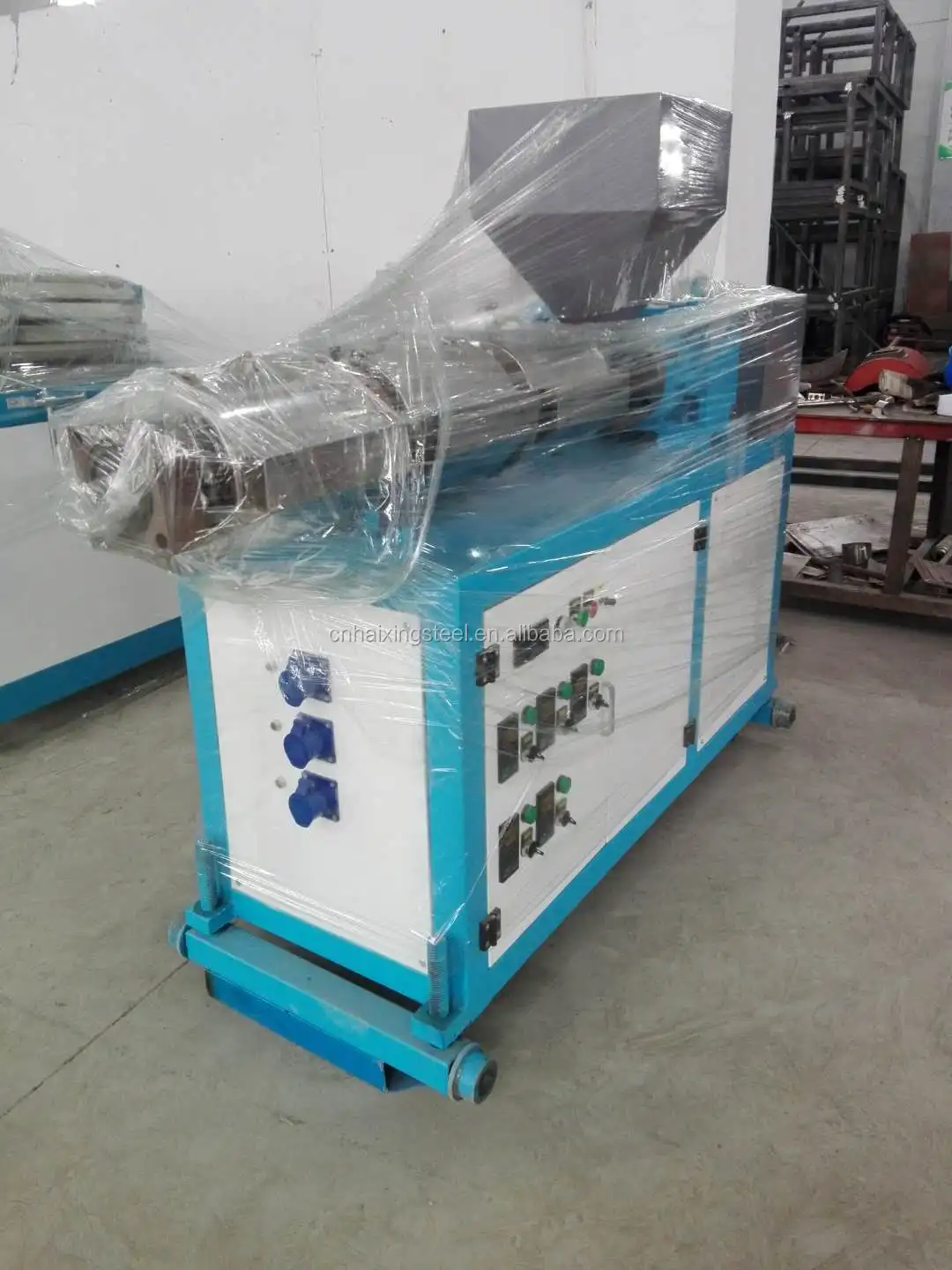

80 conical twin screw extruder
SJSZ-80
1Set
3
50/30 single screw extruder
SJ-50×30
1Set
4
Hanger mould
YJM1300
1Piece
5
distribution machine
A.AB.ABA
1Set
6
Printed two-roller set
YH1400
1Set
7
Water temperature controller
MWJ-15
1Set
8
Ridge machine (including oven)
Top Ridge
1Set
9
Glazed tile forming machine
SJW220×1050
1Set
10
Saw blade cutting
SJW1050
1Set
11
Storage rack
SJW1050
1Set
12

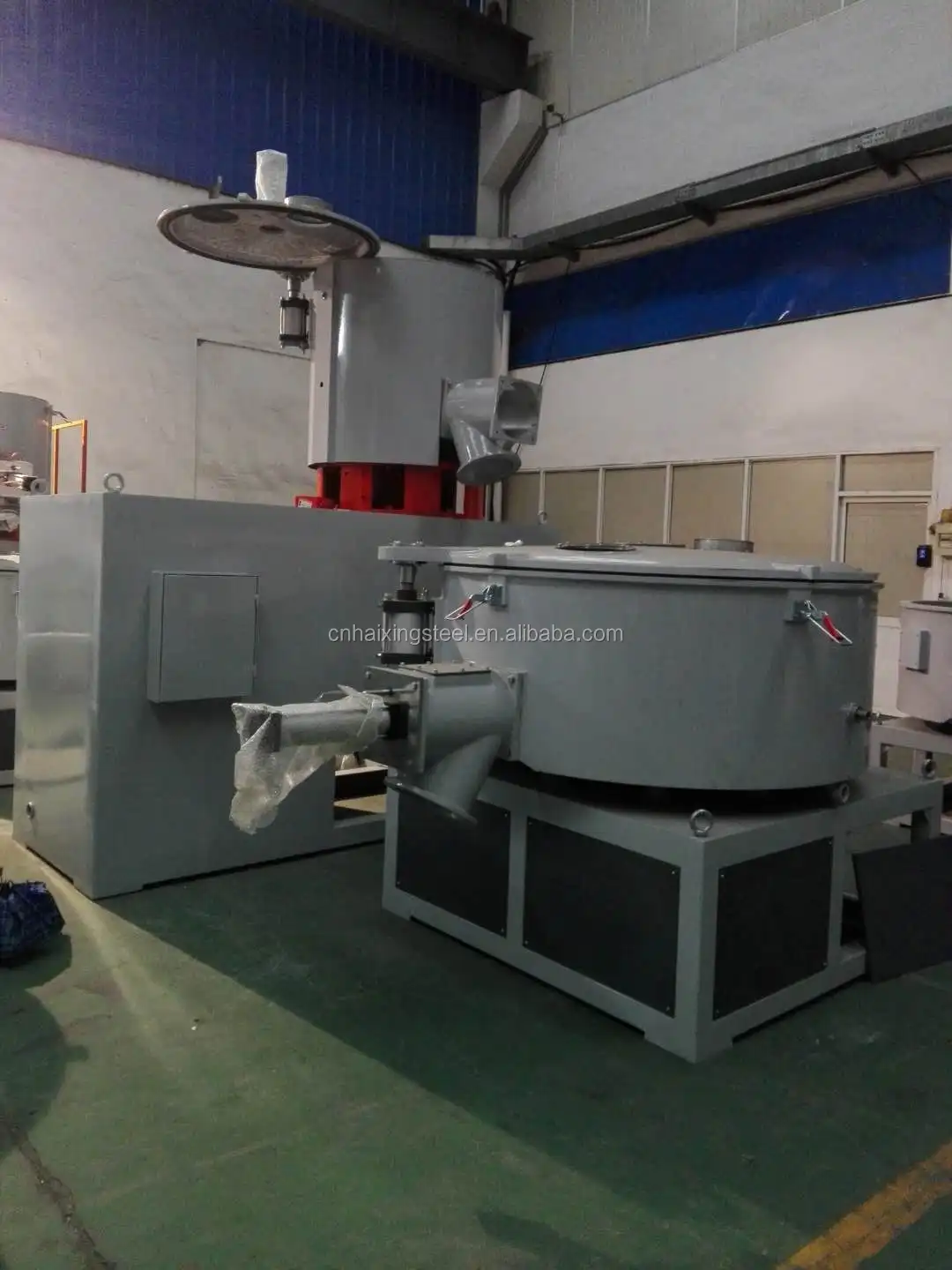

Mixer (including feeder)
SHR500/1000
1Set
Specification
Number
Name
Specifications
1
Spring feeder
Rated feeding amount: 500-1000 kg / hour
Power: 1.5kw















2














SJZ80/156
conical twin
screw extruder
Center height: 1100mm
Screw:
Screw diameter: φ80/156mm
Barrel material: 38CrMoAlA
Surface treatment: nitriding treatment,
Depth: 0.4 ~ 0,7mm, surface finish
Speed: 1-36.9RPM
Barrel:Barrel diameter 80/156
Nitriding inside the barrel,
Depth: 0.4 ~ 0.7mm
Heating zone: 16 districts
(screw 4 zone, merge core 1 zone, mold 11 zone)
Heater: cast aluminum heater outside stainless steel
Heating power: 36KW
Cooling fan: 0.37KW × 3 sets
Main motor:
Power: 55KW
Motor brand: Siemens Beide Motor
Feeding system: stainless steel hopper
Motor power: 1.5KW
Cooling water jacket
Vacuum exhaust:
Vacuum pump: 2.2KW, 1 set
Vacuum = 0 ~ 0.075 Mpa
Excessive body:
Material: #40 steel, chrome-plated, internal confluent core
Pressure sensor and thermocouple
Frequency converter: ABB
Control system: PLC + temperature control module + 10 inch touch screen
Speed/current display: touch screen display
Heating control mode: PLC centralized control
Self-protection system:
Motor current overload protection
Screw protection



3



50/30 single
screw extruder

Screw:Diameter: 50mm
Aspect ratio: 30:1
Material: 38CrMoAl-A
Barrel:Material: 38CrMoAl-A
Main motor:Power: 30KW AC motor







4







Extrusion die model
Flat extrusion die:Structure: hanger type
Material: 5CrNiMo steel
Effective model lip width: 1200mm
model lip adjustment method: the up layer model lip is fully push-type
elastic fine-tuning.
Other flow surface polishing accuracy 0.02-0.03 (um)
Plating: The die face is plated with hard chrome and has a thickness of 0.03-0.04mm.
Hardness 60-65Rockwellc, chrome plating on the outer surface thickness 0.01-0.02mm,
Composite structure: A/B/A
Heating power: less than 5KW
Wiring method: special junction box closed wiring
Distributor material: P20 steel
Heating element: stainless steel heating rod
screws: 12.9 high strength


5


Distribution machine
Composite structure: A/B/A
Heating power: less than 5KW
Wiring method: special junction box closed wiring
Distributor material: P20 steel
Heating element: stainless steel heating rod
Screws: 12.9 high strength


6

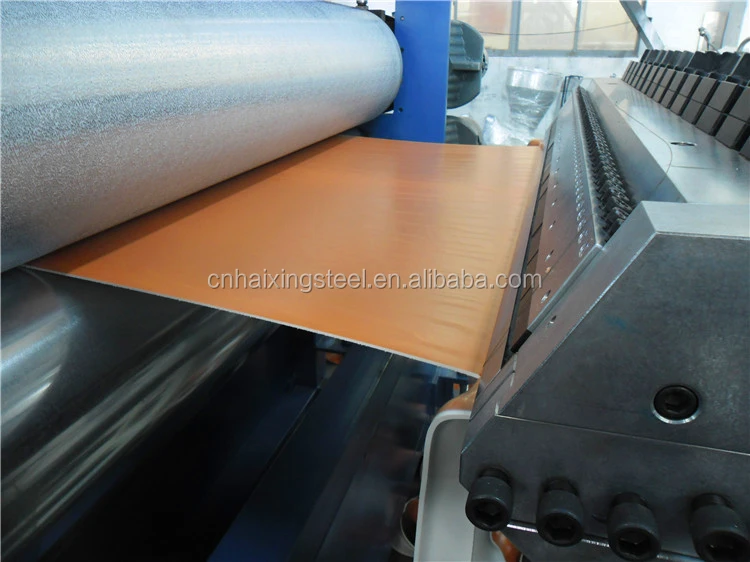

Embossing roller
Center height: 1050mm
Maximum line speed: 5m/min
Power: 1.5KW × 2
Stick size: φ300mm×1250mm
The upper roller is an embossing roller and the lower roller is a mirror roller
7
Water temperature controller (optional)
Maximum temperature: 90 ° C
Heating power: 15KW
Pump power 1.5KW

8

Oven (optional)
Heating power: 20KW
Heating method: electric heating
Material: infrared heating tube

9

Trimming machine
Number of blades: 2 pieces
Material: ordinary steel
Adjustable and mobile

10

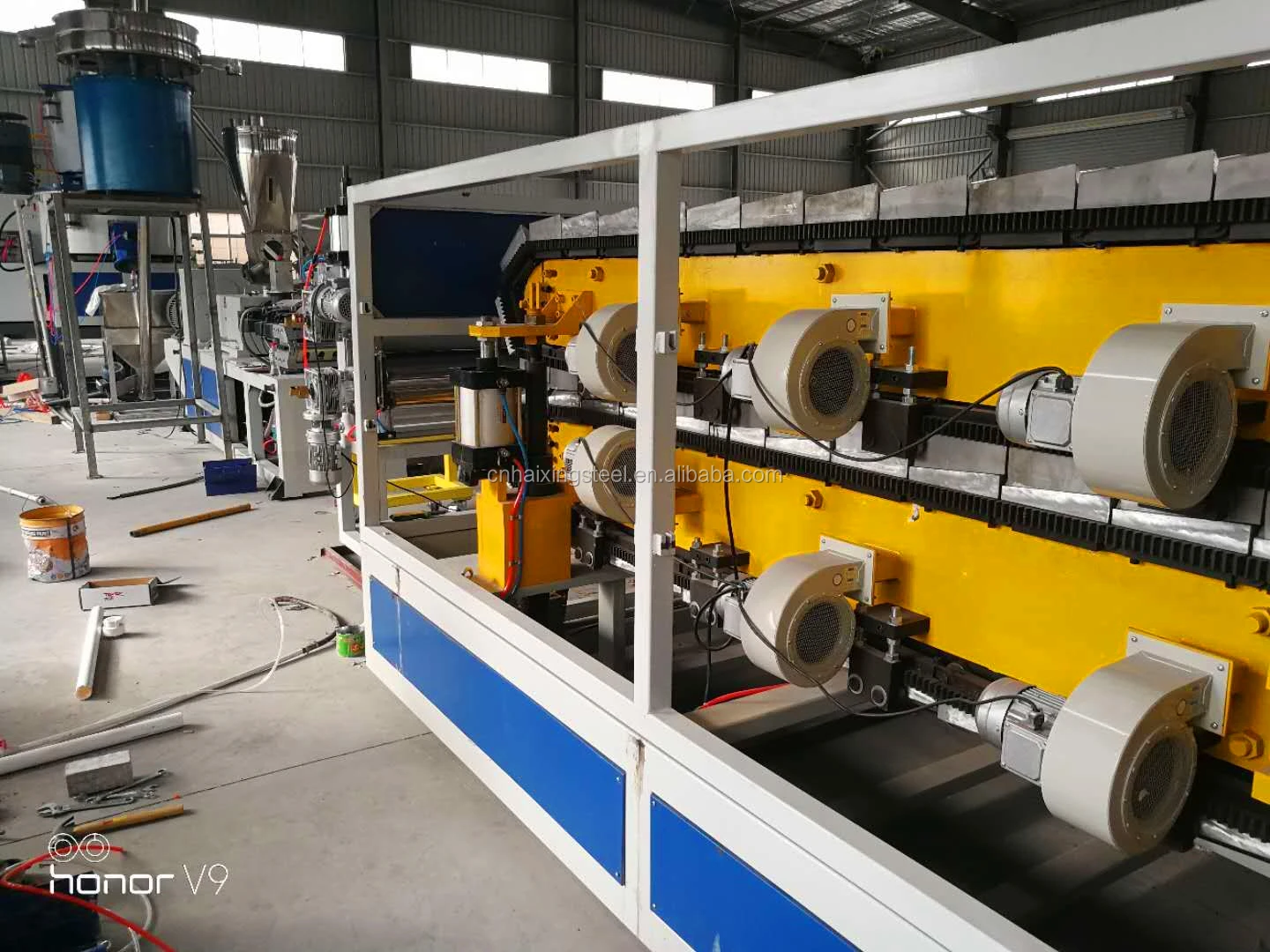

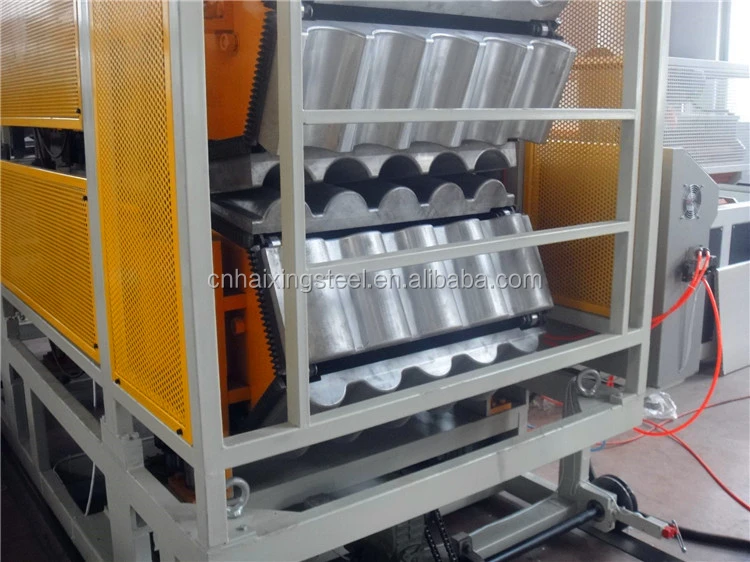

Forming Machine
Module: 22 pairs (44 blocks)
Material: aluminum alloy
Line speed: 0-3m/min
Maximum traction: 50KN


11


Cutting Machine
Cutting method: sawing
Power: 1.5KW
Pneumatic control
Equipped with a special adjustable positioner,
To ensure the accuracy of each cutting position.
12
Storage rack
Material: Stainless steel
Length: 6 meters



13


Mixer 500/100
(frequency conversion)
1. Total volume: 500/1000
2. Effective volume: 375/750
3, one-time feeding: 150-180KG
4. Stirring speed (rpm): 430/860/80
5, the output: 600-750Kg
6, mixing time: 8-12 minutes / pot
7, motor power (kw: 75/15)
Product show

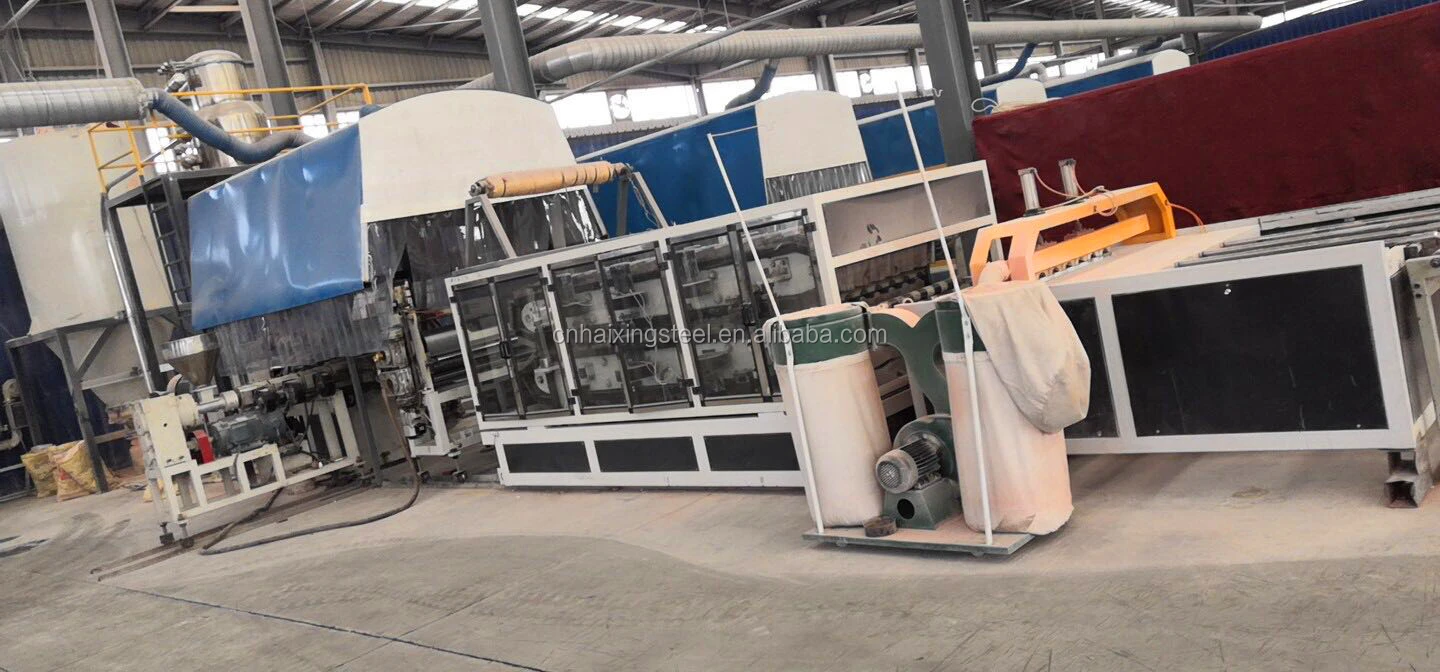

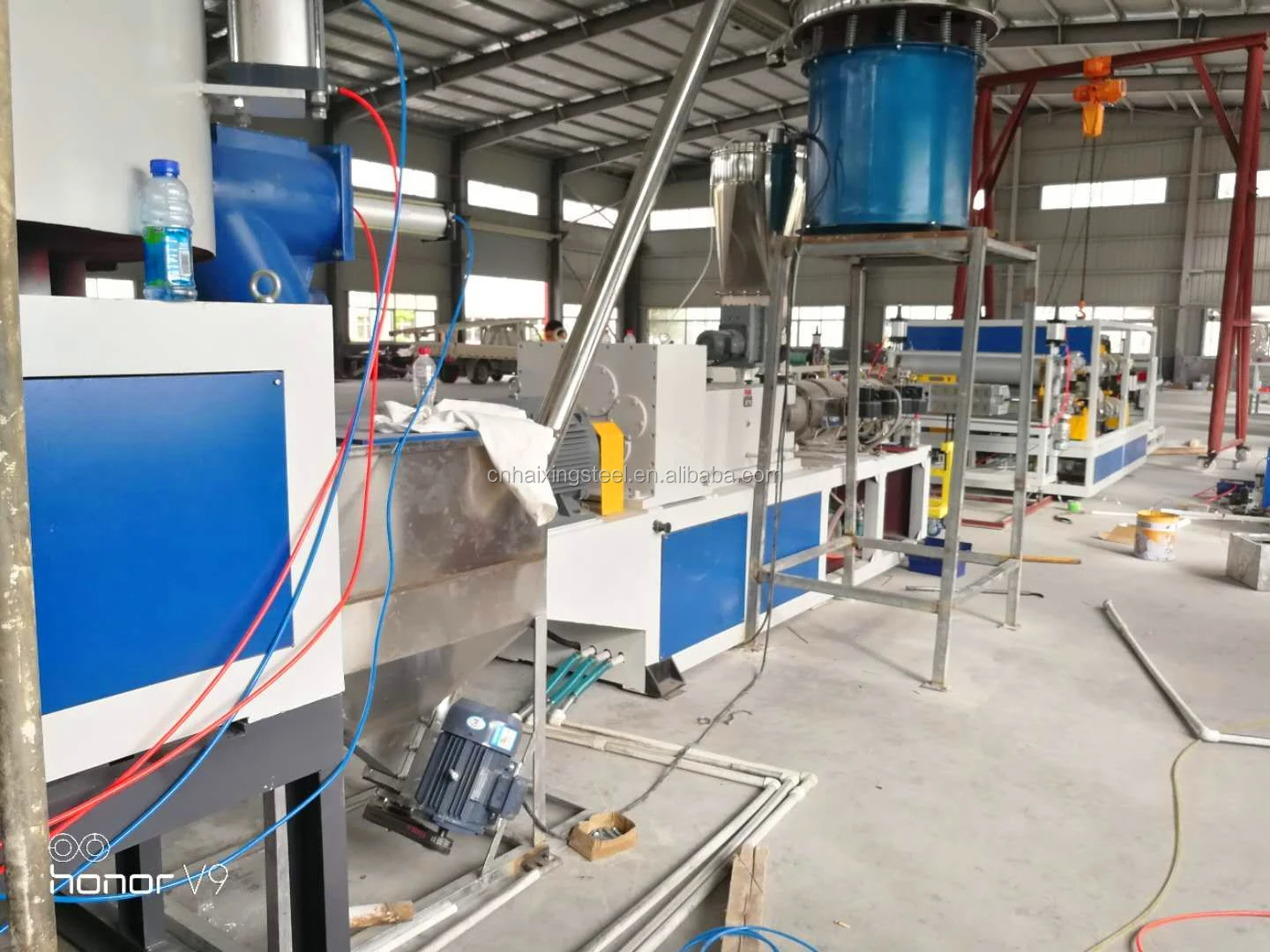

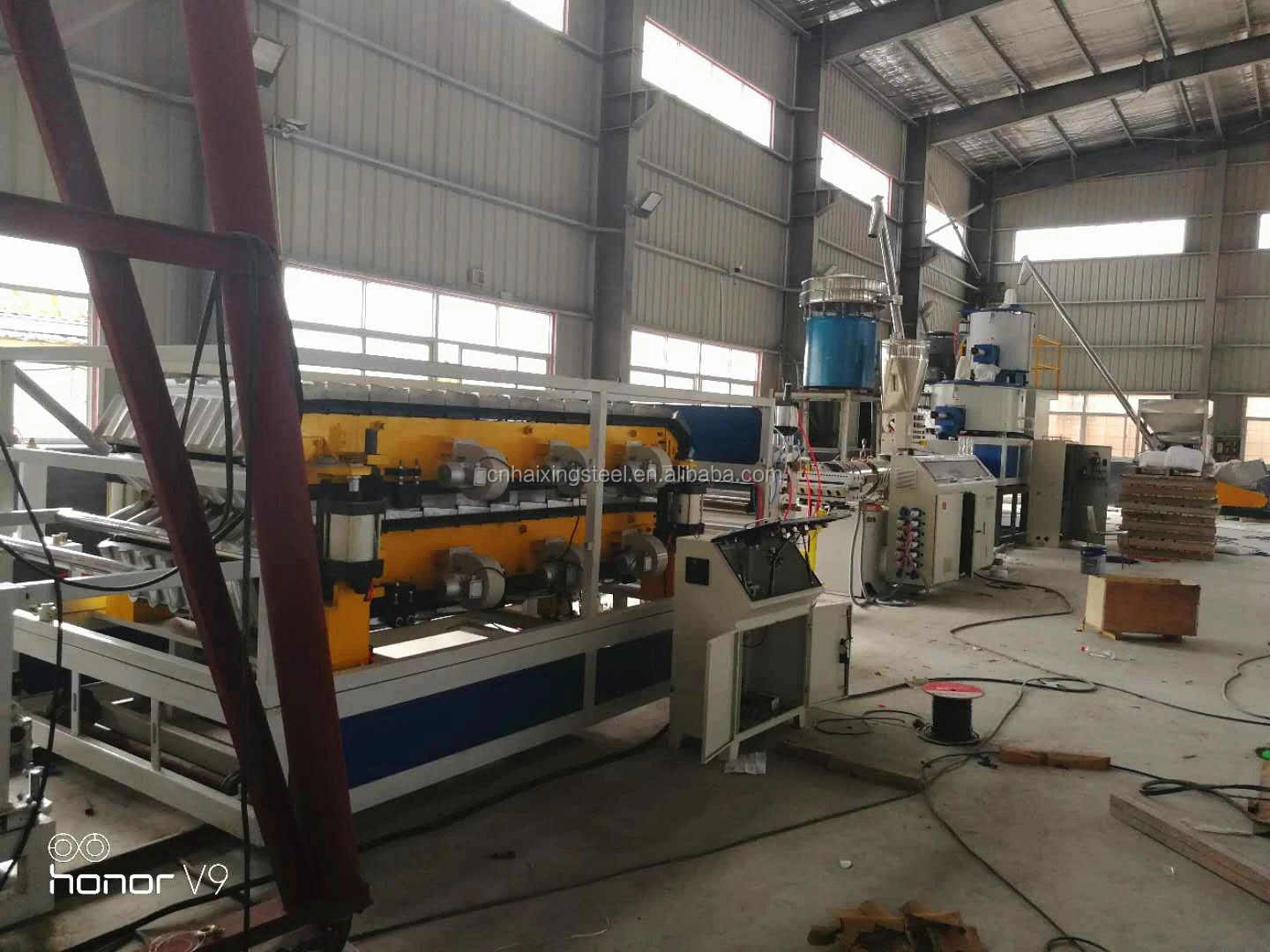

pvc asa glaze plastic roof tile production line photos showing

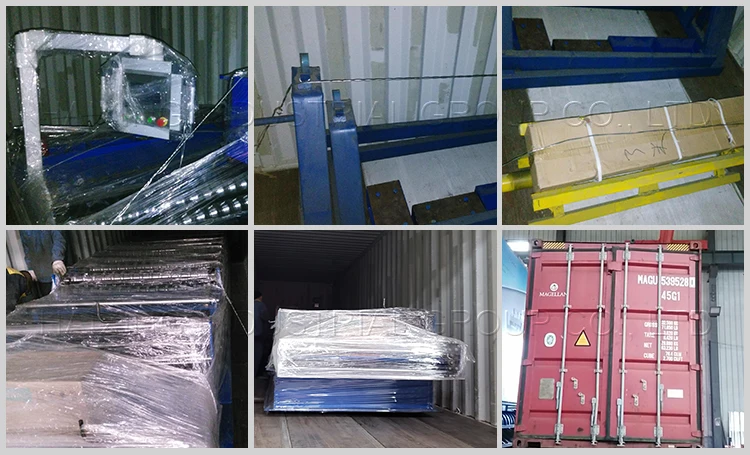

Product packaging
1.For the loose cargo we will packing by wooden box
2.For the full container loading we are packing the machine by film and some on pallet accordingly
3.We can shipping the goods by air or by sea
4.We will send pictures of cargo loading to our client to check and keep recording
5.We can send cargo to client's warehouse to loading
Product Application

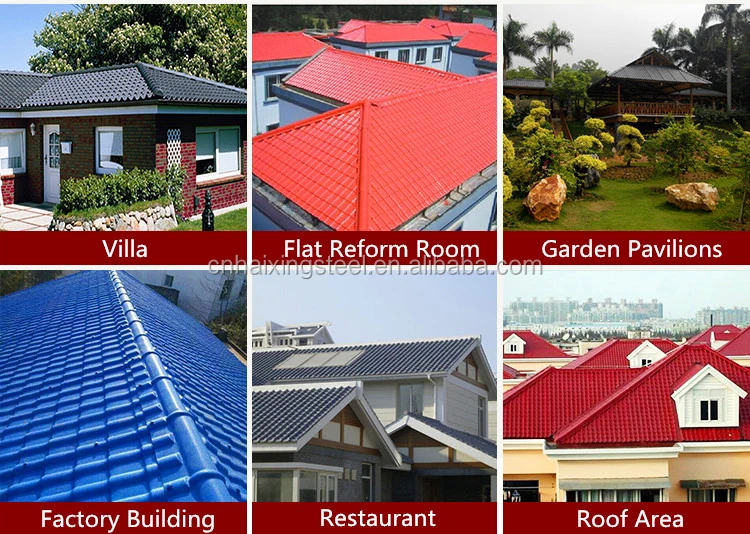

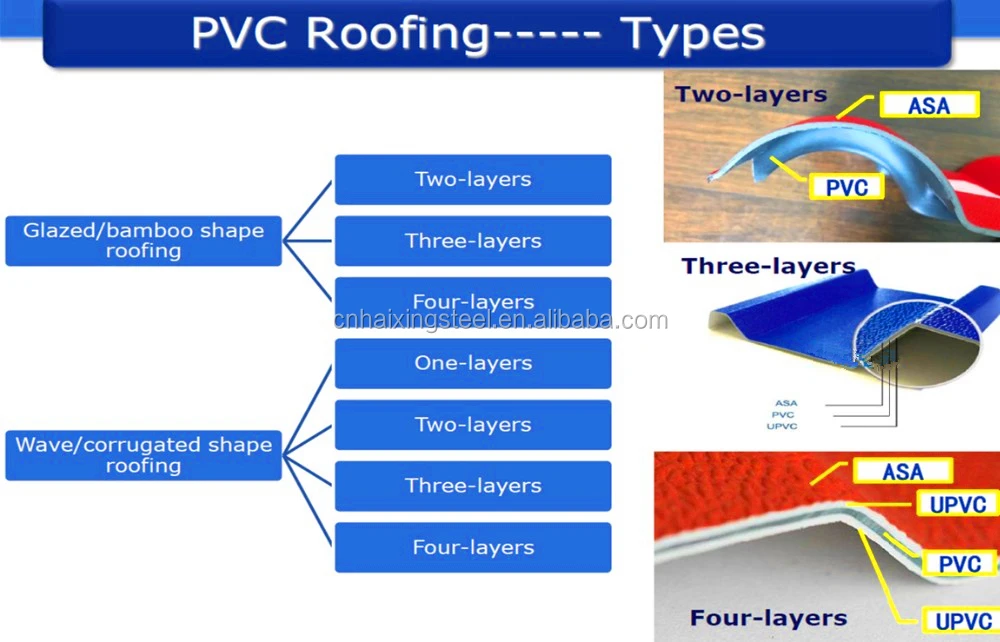

Applications of the ASA PVC Roof Tile Sheet (PVC Tejas)

Features of products: fine appearance, new and unusual style, valuable taste. Tough and tensile in texture, bright and
clean,durable in use, and such advantages as fire prevention, antifreezing, anti-corrosion, and etc.

Applications: garden style factory, scenic spots, pavilion and buildings, guesthouse and cottage, exhibition, holiday
village,household, etc.
Our Services

After Sales Service of pvc asa glaze plastic roof tile production line:

1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train
yourworkers/technician face to face.
