single phase analog meter

$8.80 / Piece | 1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
14 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Pieces)
Graphic customization (Min. Order: 100 Pieces)

More

Customized packaging (Min. Order: 100 Pieces) Less
Contact Supplier
Samples - $10.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Tepsung
Model Number:
DD986
Display Type:
Analog Only
Phase:
Single Phase
Measuring Energy Range:
0-999999
Accuracy Class:
Class2
Output Voltage:
220v/230v/240v
Operating Temperature:
-25 ~+70
Dimensions:
130mmX215mmX125mm
Color:
Black
Name:
Electric Meter
Display:
Register
Frequency:
50HZ/60HZ
Function:
Active Electric
Starting current (A):
0.5%Ib
Installation:
Wall Mounted Mechanical Meter
Features:
Long Life
Rated voltage:
220-240
Type:
AC Active Meter

Packaging & Delivery

Selling Units:
Single item
Single package size:
13.3X20.1X12 cm
Single gross weight:
1.5 kg
Package Type:
individual package and carton box.
Lead Time :
Quantity(Piece) 1 - 1000 >1000
Est. Time(days) 14 To be negotiated
Product Description

analog wattmeter

DD986 single phase two wire long life mechanical meter which is applicable to measure 50/ 60 Hz active energy consumption in AC electricity net. All technical targets are completely conformed to National Standard GB/T15283-2008 and International Standard IEC62053-11. It has features of tight structure design, specious appearance, small abrasion, excellent mechanical strength,high overload, low power loss, anti-impact, minimal friction, small errorchange and long service life.

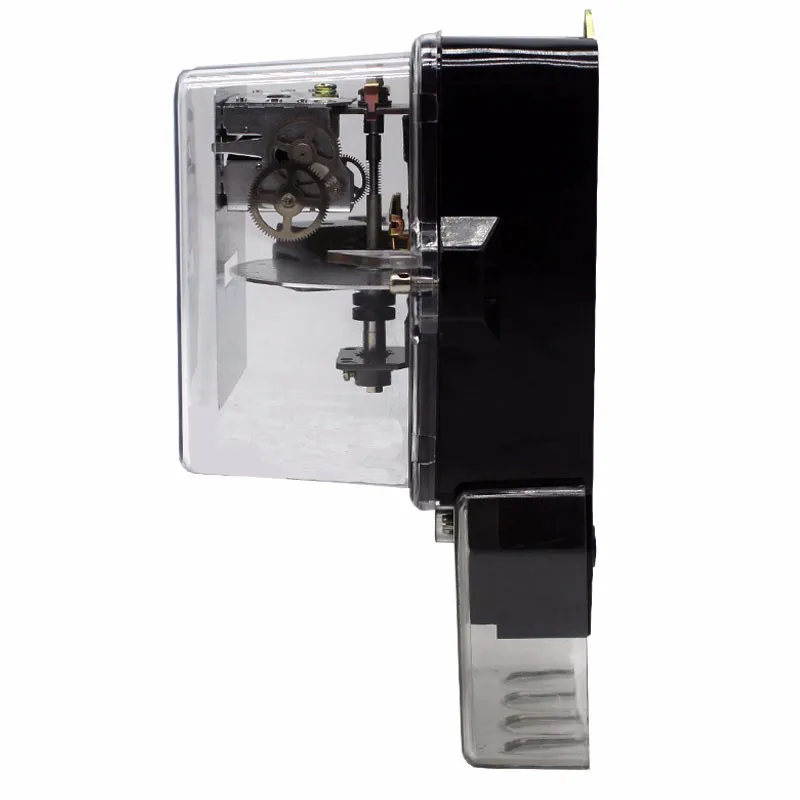

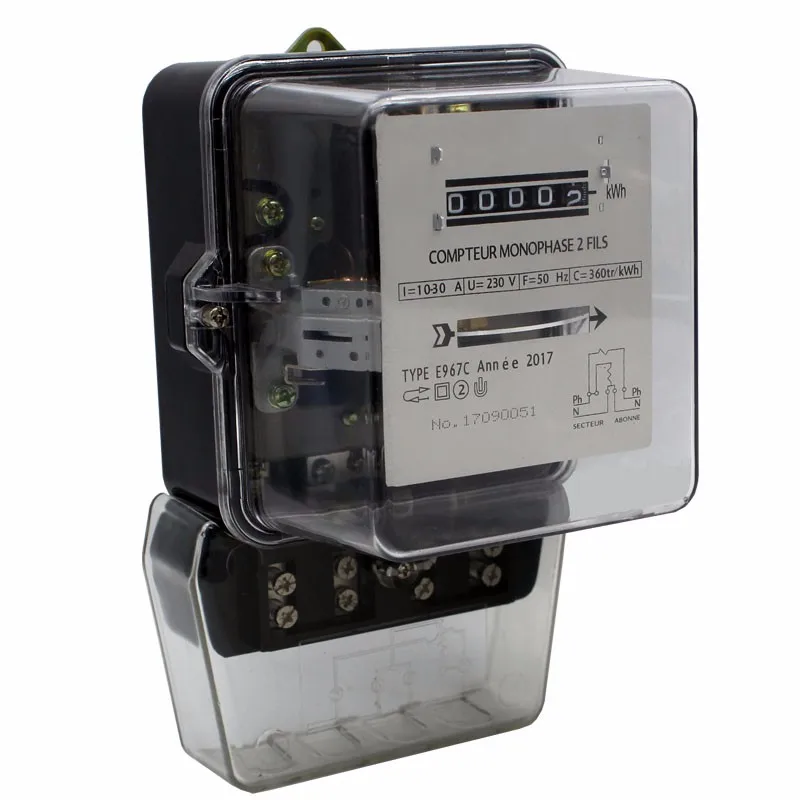

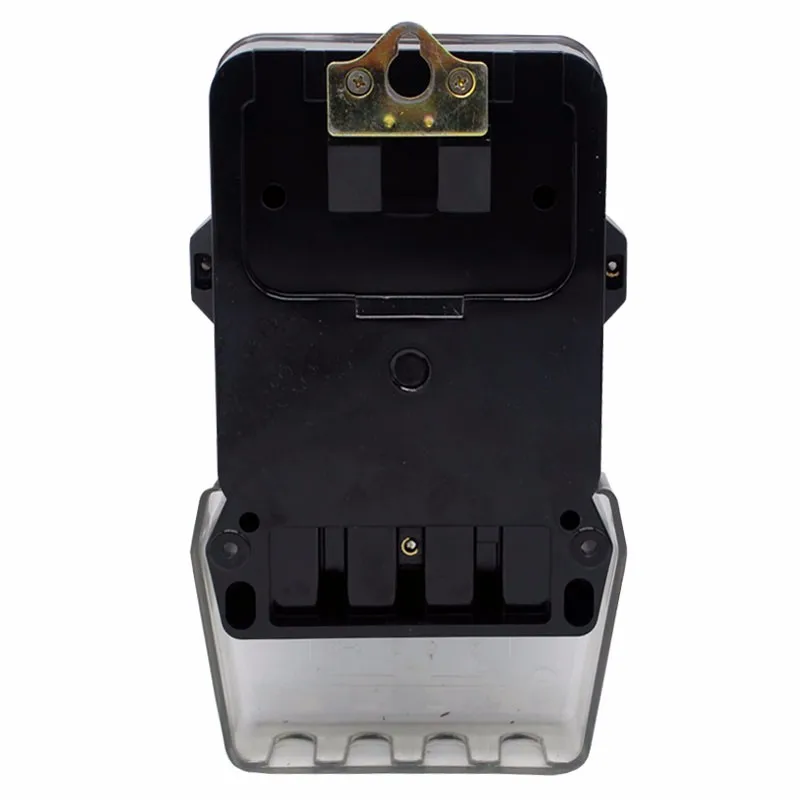

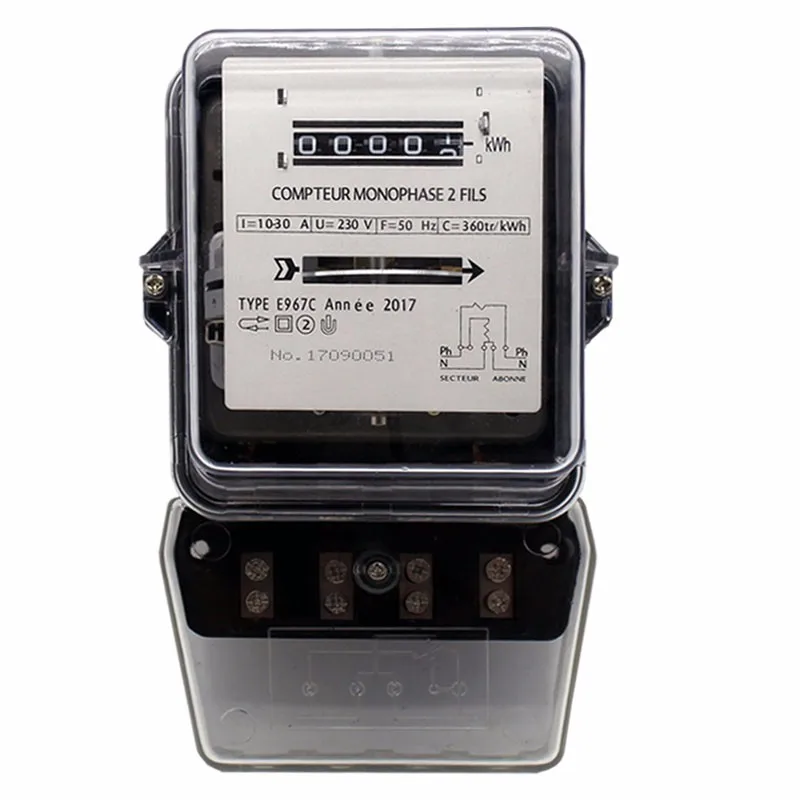

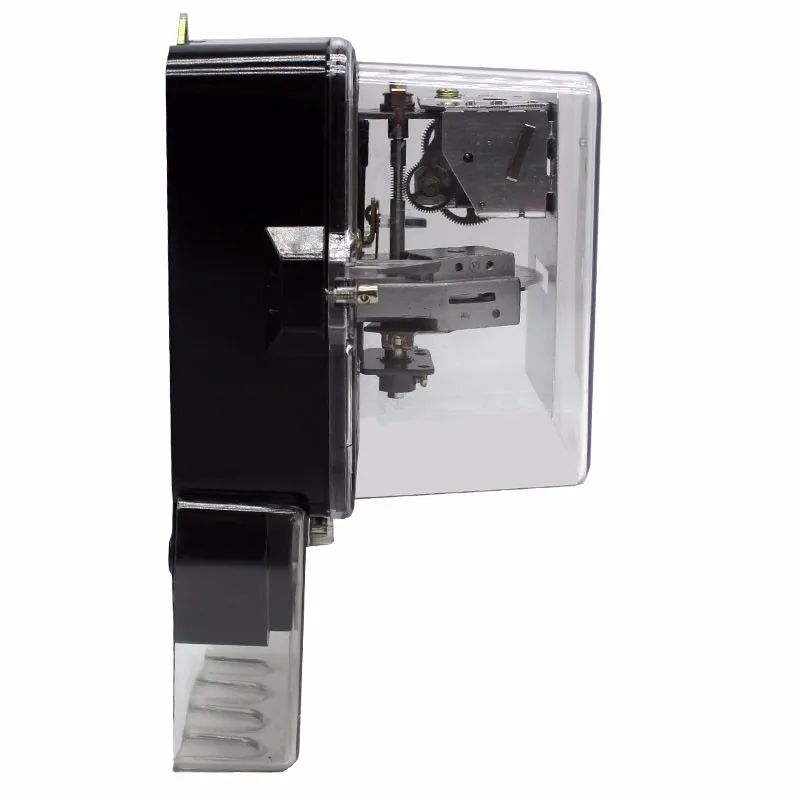

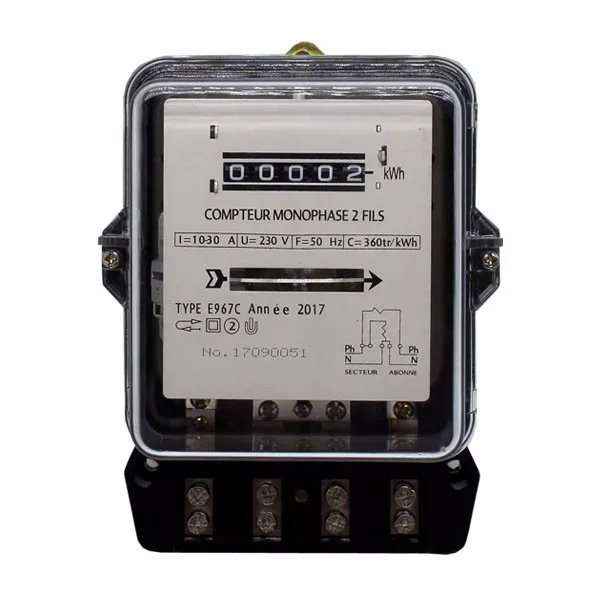

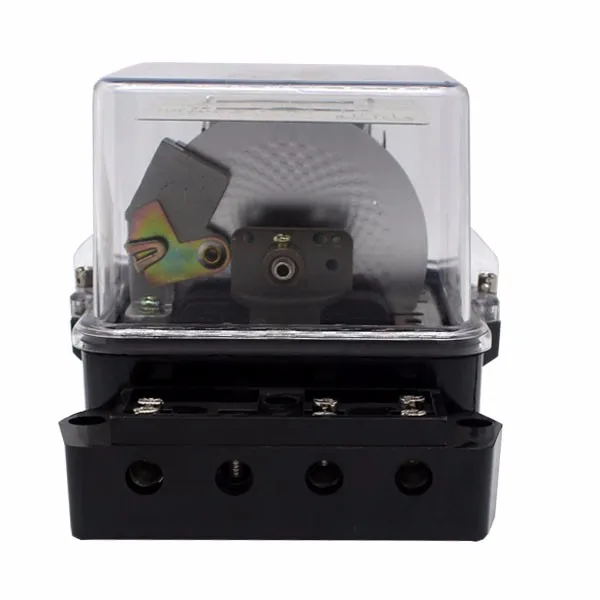

Detailed Images
Parameters
Model
Accuracy
Reference
voltage
   (V)
Current
specifications        (A)
Insulation
performance
DD986
Class 2
220,230,240
5(20),10(40),20(80),30(100)
AC voltage 4Kv for 1 minute,
1.2/50us waveform impulse voltage 6 kV.
Function & Features

1. meter cover : PC , meter base : bakelite. terminal cover :PC.

2. magnetic bearing .

3.5+1 or 6+1 register display.

9.Direct connect operation, two types wiring optional, symmetrical or asymmetrical connection.

10.Single component measures single phase two wire active energy consumption.

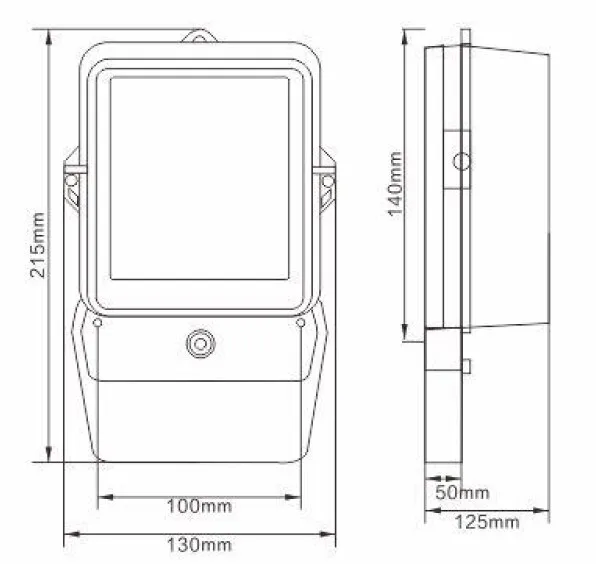

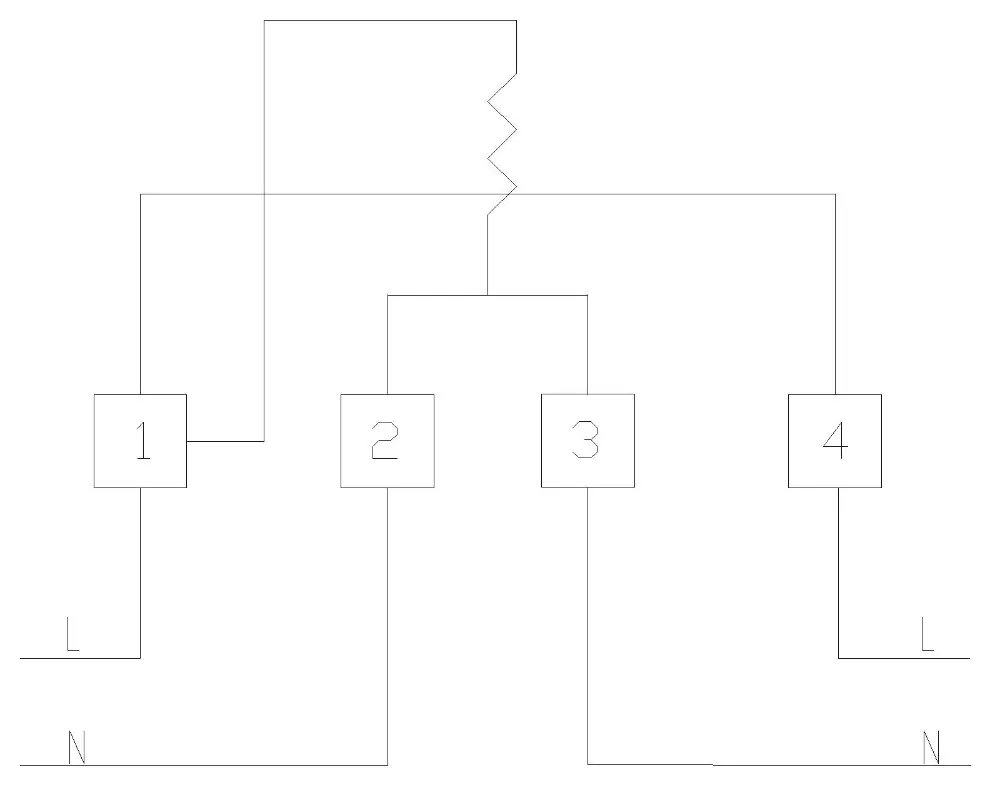

Dimension&Wiring
Certifications
Packing & Delivery
FAQ

1.Are you a trade company or a manufacturer?
Tepsung has been a professional manufacturer for 30 years to undertake design and processing of all types of energy meter to provide production service and technical support for individual users and power stations.

2.Where can I see the whole view of your products ?
You can visit our website http://www.tepsung.com.

3.What to do if I have any other specifications for the current?
If you have any different requirements,just contact us and we will meet you.

4.If I need a sample for pretest, do you sale sample for this inquiry?
Yes, we can sale sample for pretest. If you need this service, please e-mail us and we will give you a quotation.
