Quick Details
| Place of Origin: |
Guangdong China (Mainland)
|
Brand Name: |
GHC
|
Model Number: |
2.7v 3000f
|
| Type: |
Super Capacitor
|
Application: |
solar panel,car audio,led,motor starting,electronic toys
|
Package Type: |
Through Hole
|
| Capacitance: |
3000F
|
Rated Voltage: |
2.7V
|
Operating Temperature: |
-40℃~+70℃
|
| colour: |
blue
|
size: |
60*138 mm
|
type: |
stud bolt
|
| Leakage Current: |
7 mA/72hrs
|
ESR,DC(mΩ)(max): |
0.43
|
ESR,AC(mΩ)(max)at1kHz/20°C: |
0.38
|
| certificate: |
RoHS/CE/ISO9000
|
Advantage3: |
high power&low esr&super high-rate discharge
|
Advantage4: |
cold starting (can be used at -40 degrees celsius )
|
| Advantage5: |
green safe and long life(up to 5 hundred thousand cycles)
|
Specifications

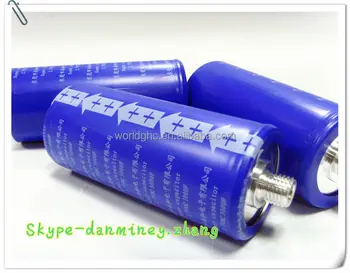

super capacitor 2.7V 3000F
*high power,low esr,long life
*excellent low-temperature starting
*super high-rate discharge
super capacitor 2.7v 3000f graphene capacitor 3000farad 6pcs/carton 3000F ultracapacitor on sale
Features
Can work at -40 degrees celsius
Low esr, high power,super current and cold starting
With excellent large current discharge property and cyclic stability
With long operation mode
Can be used to help control varying oar distance of wind generator
Quick charge and discharge
New and original
Can customise the capacitor module, with battery or not with
RoHS directive compliant
Recommended Applications
Consumer Electronics
Industrial and Automation
Renewable Energy Storage Systems
Portable Power Tools
Short Term UPS (Uninterruptible Power Supply)
Electronic toys
Solar road stud
Solar panels
Solar air conditioner
Solar portable lighting
Motor starting
Wind generator
Led power supply
super capacitor 2.7v 3000f ultracapacitor on sale 3000farad
Rated Voltage(V.DC) 2.7v
Capacity(F) 3000f
Size D*L(mm) 60*138mm
Capacitance Tolerance ±20%
type screw
ESR,DC(mΩ)(max) 0.43
ESR,AC(mΩ)(max) at 1kHz/20°C 0.38
Leakage Current(mA/72hrs) 7
Short Circuit Current(A) 6279
Max. Continuous Current(A)(*T=15°C) 105
Max. Peak Current(Isc)(A) 1768.6
Our products---If you need any further help
our company:
Packaging
| Items per Carton: | 6 Pieces/Carton |
| Package Measurements: | 10X15X10 cm |
| Gross Weight: | 4.0 kg |
| Package Type: | Carton or according to customer's requirement. |
