upvc window door frame making machine/ pvc profile extrusion line

  • 1 Sets
    $35,500.00
  • >=2 Sets
    $35,000.00
Model Number:
CMLM400
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
35 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
PIPE, sheet, profile
Plastic Processed:
PVC, WPC, FRPP/PVC
Output (kg/h):
100 - 300 kg/h
Screw Design:
double-screw
Showroom Location:
VIET NAM, peru, pakistan, Mexico, RUSSIA, Thailand, Morocco, algeria, south africa, kyrgyzstan
Place of Origin:
Jiangsu, China
Brand Name:
CAMEL
Voltage:
380v \50hz\3phase
Dimension(L*W*H):
24X3X3m
Power (kW):
55
Weight:
10T
Certification:
CE ISO9001
Warranty:
1 YEAR
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Key Selling Points:
Automatic
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
VIET NAM, brazil, peru, SAUDI ARABIA, indonesia, pakistan, INDIA, Mexico, RUSSIA, Colombia, BANGLADESH, uzbekistan
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works
Marketing Type:
New Product 2020
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty of core components:
1 YEAR
Core Components:
Bearing, MOTOR, pump, GEAR, PLC, PRESSURE VESSEL, Gearbox, SCREW
Raw material:
PVC Resins+CaCo3
Machine color:
Custmer's Requirement
Extruder model:
SJZ80/156
Temperature controller:
Omron Brand
Inverter:
ABB Brand
Max output(kg/h):
350
Drive motor power(kw):
55
Max wide(mm):
400
Power(W):
55kw
Screw diameter (mm):
65 mm mm
Product Certification certification
TUV Certified.
SGS Certified.
Valid from 2018-08-16 until 2049-12-31

Packaging & Delivery

Selling Units:
Single item
Single package size:
500X150X150 cm
Single gross weight:
5000.000 kg
Package Type:
standard export package
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Products Description


Process flow:

Raw material +wood power+ additive → mixing → conical twin-screw extruder → profile extrusion mould → cool molding die → vacuum calibration support → belt haul-off → cutter → rack → finished product inspecting & packing
No.
Unit machine
unit
1
Powder Charger (for extruder)
1set
2
Conical Twin Screw Extruder
1set
3
Vacuum calibrating machine
1set
4
Haul off machine together with cutter
1set
5
Stacker
1set
6

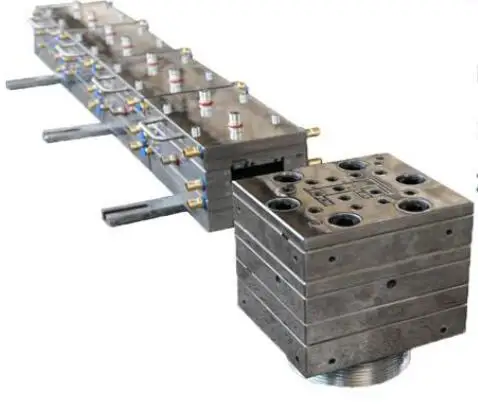

Mold
According to the drawing
7
Control cabinet
Included
8
Auxiliary machines(Mixing unit, crusher, miller, Chiller and air compressor etc)
Optional equipments


Features for pvc windows line:

* PLC control system is available
* All electrical components adopts famous brand : OMRON/RKC, ABB, DELIX, Schneider, SIEMENS etc
* Over current protective of motor
* With online protection film wrapping device

Technical data:
Model
Max wide(mm)
Extruder model
Max output(kg/h)
Drive motor power(kw)
CMLM-240
60
SJSZ51/105 or SJZ55/110
150
18.5/22
CMLM-400
120
SJSZ65/132
250
37
CMLM-600
200
SJZ80/156
400
55/75

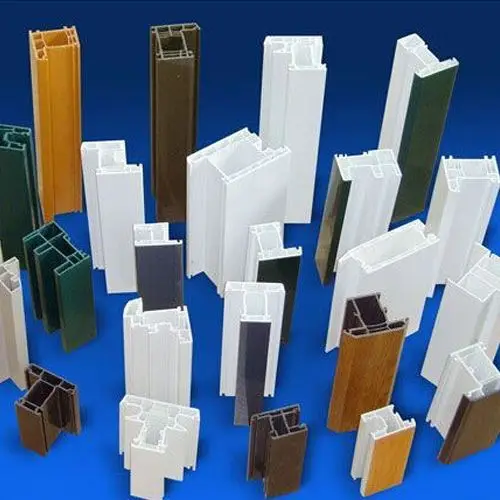

The pvc windows line is mainly used for producing various sizes of PVC profiles, pvc cable trunking, ceiling panel, window sill, PVC rain gutter, WPC decking, WPC profile and other shaped profiles.

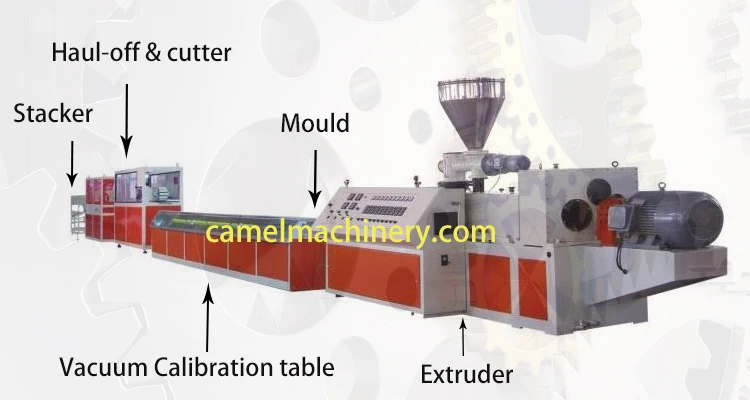

Normal pvc windows line is composed of extruder, mould, vacuum calibration table, haul-off and cutter, stacker. With different mould, PVC profile machine can produce PVC products with different shapes, Mould designed by different kinds of profile customer required.
