uv light led uv led light Electric save curing machines for sale

Feedback Ratings
  • 1 Sets
    US $1870.56
  • 2-9 Sets
    US $1670.78
  • >=10 Sets
    US $1470.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
RW
Model Number:
RW170715F
Rated Power:
3350 W
Voltage:
100-240 V
Product Name:
uv light led uv led light Electric save curing machines for sale
Wavelength:
395nm(365nm-405nm available)
Light intensity:
Above 8000 mw/cm2
UV LED size:
165mm*60mm
Life:
>20000h
emitting window size::
160mm*28mm
Warranty:
1 Year
Usage:
ink-jet printer, coating,silk-screen
Main Parts:
LED lamp and controller
Input voltage:
100-240 V, 50 HZ or 60 HZ available

Packaging & Delivery

Selling Units:
Single item
Single package size:
660X550X780 cm
Single gross weight:
48.0 KG
Package Type:
1 unit UV LED machine packing with PE Foam, Outside: Standard Export Carton, or Plywood carton
Lead Time :
15
uv light led uv led light Electric save curing machines for sale
uv light led uv led light Electric save curing machines for sale (11).jpg
Product Description



uv light led uv led light Electric save curing machines for sale data:

Product Name

uv light led uv led light Electric save curing machines for sale

Product No RW170715F
Wavelength 365nm-405nm
UV Emitting window sizes 160*28mm
Maximum Irradiance

8 W/cm²( 6mm from substrate to light source glass )

UV LED power1920w
Total power2660W
Input voltage 220V,50 HZ
Cooling MethodWater-cooled
Protected modeTemperature and traffic
UV LED size171*55*42mm
Controller machine size650*500*780mm
UV LED Voltage24V
Noted

Customized Voltage, Hertz, Plug,

Control method for difference countries,

please tell us your requirements.

Applications

Coating, Printing, Adhesive etc.

Customized

by your unique applications

1. Cooling Method (water-cooled / air-cooled ),

2. Emitting window length ( L*W mm),
3. Peak Irradiance ( W/cm²),

4. Wavelength

( 365nm,375nm,385nm,395nm,410nm,415nm available),

5. Control Method ( Switch control / 24V signal control )

Certificate

CE, RoSH

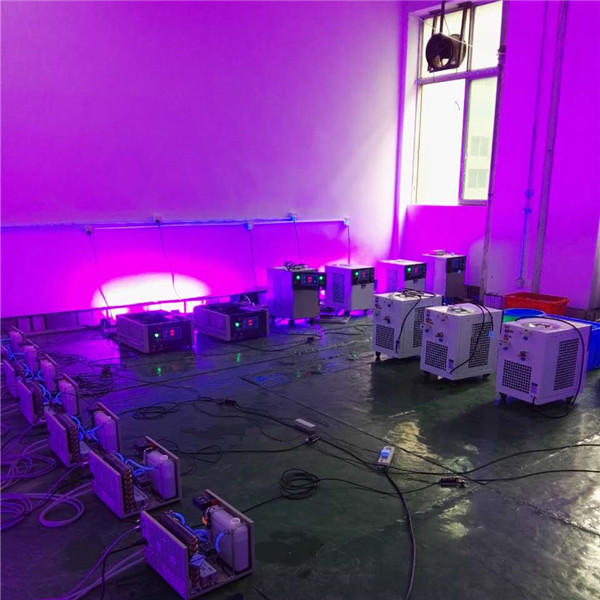

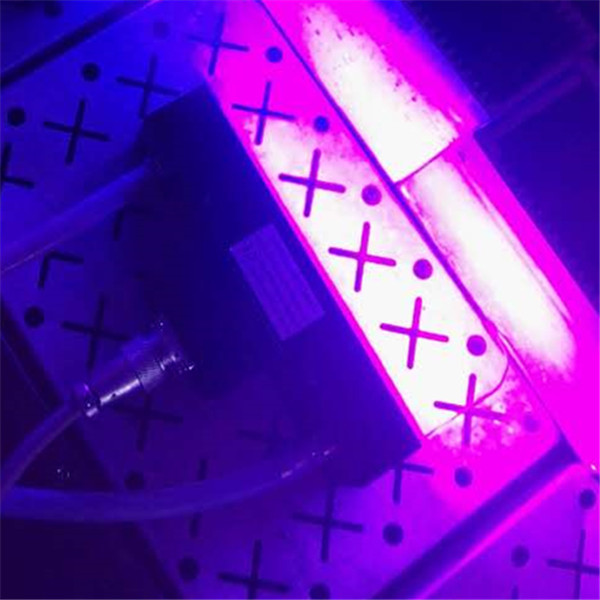

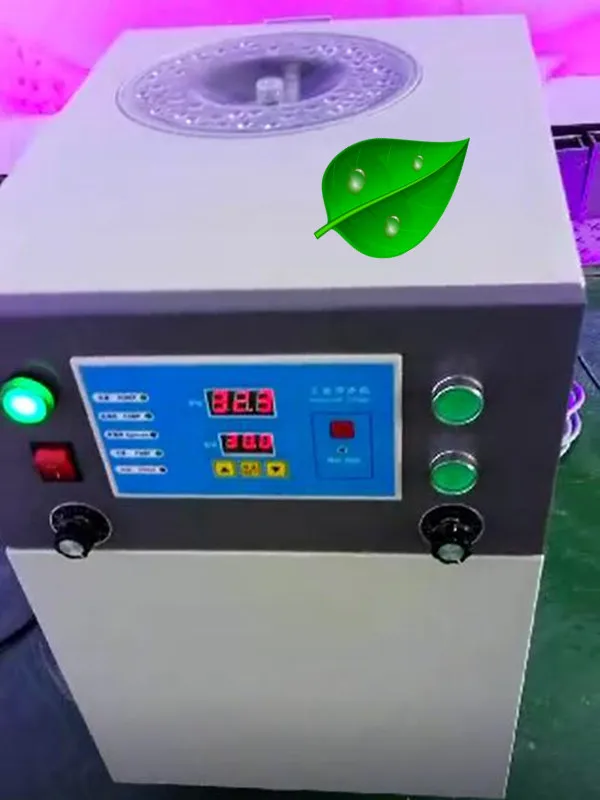

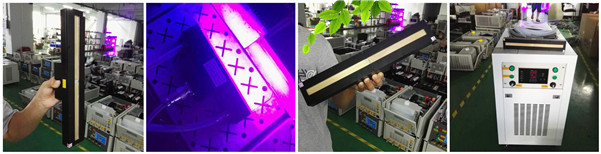

uv light led uv led light Electric save curing machines for sale product show
1 (18).jpg

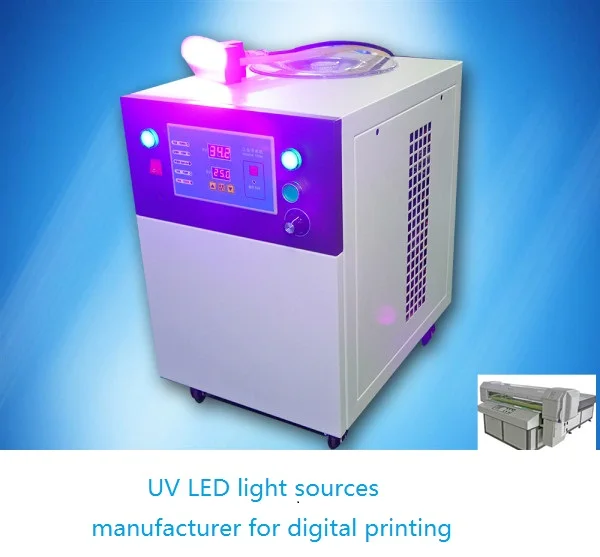

High Performance Ultraviolet Curing Paint UV Paint (4)UV LED light sources manufacturer for digital printing (1)
Offset-printing-UV-LED-Curing-system-600mm-customizable-1  (3)
Customized Your Own System by these 5 steps:
Step 1 --- Cooling Method
Water cooled products Air cooled products

Advantage:

Small form factor

High peak irradiance

Custom sizes available for longer curing lengths

Ideal for narrow & wide web curing

Advantage:

Simple integration

No external cooling required

Low operating cost

Scalability

Application:

Toughest customer environments

Application:

High performance curing, pinning, and small

area curing.

Cooling methods



Step 2 --- Emitting Window Size:

Step 3 --- Peak Irradiance ( W/cm²)

Peak irradiance is the maximum measured irradiance 6mm from the UV emitting window.

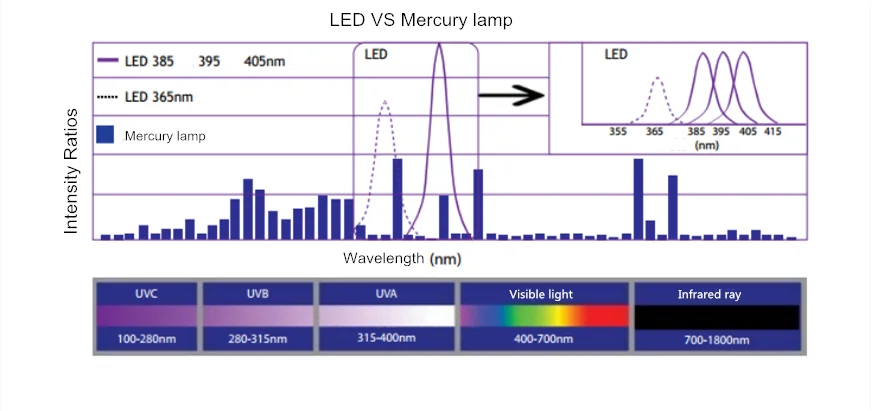

 Step 4 --- Wavelength

365nm,375nm,385nm,395nm,410nm,415nm are available.

wavelength
Step 5 --- Control Method
Switch control Digital control
Independent Control UV system

24V digital control,

control UV system by the main machine.

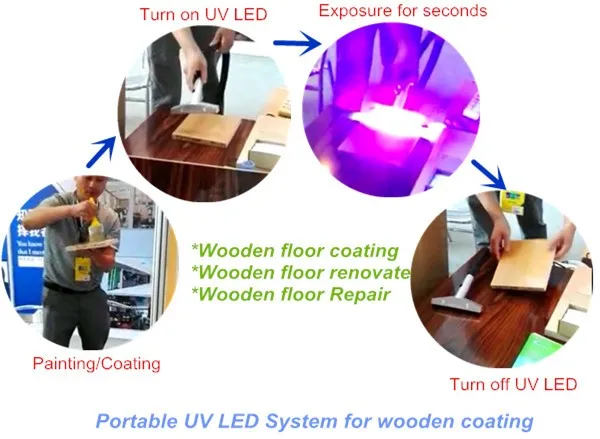

uv light led uv led light Electric save curing machines for sale in wood furniture/floor application:
---Edge coating on shaped surface in wood furniture/floor.
UV curing for wooden floor

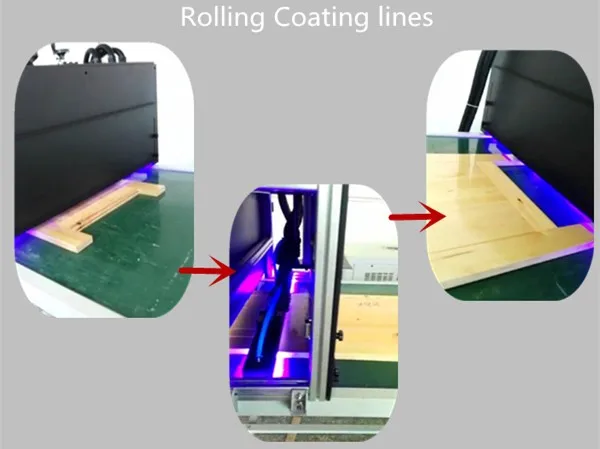

---Roller coating lines
roller coating lineAdvantage of UV curing technology:
---Uniform radiation of the lamps across the entire working width.
---Clearly reduced exposure to noise of the line operators since no exhaust system is necessary.
---Stepless adjustment of the specific lamp power from 20 - 100 %.
---Instant on/off without waiting times.
---No waste disposal of old UV lamps containing heavy metal (GA, Hg).
---No exposure to ozone of the line operators.
---Excellent penetration of the UV radiation allowing for good adhesion, also with pigmented lacquers.
---Less danger of uncured photo initiators.
---Reduced risk of fire on UV lines, possibly reduced insurance premium.
UV LED Company

we specialized in producting the 395nm UV LED dryer ,UV LED curing machine for printing ,we have our own factory,and the unique technology of our UV curing  machine,devices for  uv printing, coating ,UV lamp and the accessories of the UV curing machine have been known in uvled field all over the worldwe  specialized in producting the 395nm UV LED dryer ,UV LED curing machine for printing ,we have our own factory,and the unique technology of our UV curing  machine,devices for  uv printing, coating ,UV lamp and the accessories of the UV curing machine have been known in uvled field all over the world.


Certifications

uv light led uv led light Electric save curing machines for sale certifications:

8 patents and 4CE certificates,well-equipped facilities ,100/% products inspecting throughout all stages of production gained total customer satisfaction which won us global sales network, North America, North East, Asia , European.

600 (1).jpg600 (2).jpg



FAQ

 uv light led uv led light Electric save curing machines for sale FAQ:

1.Why choosing RENWEI UV LED curing system?

RenWei focus on high power UV curing technology for 5 years and got seven national patents. RenWei has 2 COB lines with K&S equipment, 1 assembling workshop and high quality accessories.



2.Why and how do I replace a UV LED Lamp?

UV LED’s working time is more than 20,000 hours, 10 times longer than the traditional lamp, Besides, UV LED curing is effective, energy saving and environment friendly.

Please working with both your machine system and us to provide the best UV curing solution for your project.



3. Will current coatings/inks work with UV LED?

No, The coatings/inks must be specifically to take advantage of the narrow

Wavelength, Ask for your supplier for the best wavelength, we can customized the UVLED’s Wavelength.



4.Will the coating have the same performance as before?

Yes, The coatings/inks suppliers have solved this problem to ensure the same performance.



5. Do the UV LED units need to cool down or warm up?

No. UV LED System can be turned on/off instantly.
