12v Silicone Heater 300mm x 300mm for 3D Printer Bed 300w with Adhesive and 100k Thermistor

Feedback Ratings
  • 1-29 Pieces
    US $23.00
  • 30-99 Pieces
    US $22.00
  • >=100 Pieces
    US $21.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Report Suspicious Activity
Overview
Quick Details
Type:
Band Heater, Band Heater
Power Source:
Electric, Electric
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Alixd
Model Number:
XD-H-1225
Dimension(L*W*H):
Custom
Certification:
CE
Size:
Any size is available
MOQ:
one piece
Voltage:
Custom
Wattage:
Custom
Thcikness:
1.5mm(standard)
Supply mode:
Manufacturers
Marketing mode:
Direct selling
Video Description

Silicone Heater







Product Description

Our heaters are made of fiberglass cloth impregnated with silicone rubber, which together provide great strength and flexibility. A wire heating element is then  vulcanized between two layers of silicone rubber, forming a durable yet very flexible heat blanket that is resistant to moisture, chemicals, acids and many industrial solvents.









Specification
Model No.Length & Width inches(mm)VoltageWattageMountings
Alixd-H-1× 6 (152.4  × 152.4mm)1250Adhesive
Alixd-H-28 × 8 (203.2  ×  203.2mm)12165Adhesive, Thermistor 100K
Alixd-H-312  × 12 (304.8 × 304.8mm )24350Adhesive, Thermistor 100K
Alixd-H-4Dia 6.3(160mm)12120Adhesive, Thermistor 100K
Alixd-H-539.37  × 39.37(1000 × 1000mm)1104000Digital Temperature Controller

Alixd-H-6

6.1  × 39.37(155 × 1000mm)220650Plug
Alixd-H-735.4 × 70.87(900 × 1800mm)3807000Digital Temperature Controller
Alixd-H-839.37 × 118.11(1000 × 3000mm)41513000Digital Temperature Controller Box

If you can't find your size in the aboe form, please contact with me.The max width is 1200mm, and no limit for length.





Technology
ProductModel NO.MaterialHardness
Silicone Heater

XD-H-1225

Orange High Temperature Silicone60±3
ShapeData
Size: mmRated VoltageCustomize
              Rated Wattage00.07-1/cm2
Static ResistanceCustomize
Max Temperature can bear250C
Max Used Temperature180-200C
Compressive Strength≥3KV
Insulation Resistance≥100MΩ
Tensile Strength≥8.0Mpa/M2
Elongation at Break≥4%
Length: CustomizeCable300mm(standard)Peel Strength≥2500N/M2
Width: CustomizeSpecification of the cableAWG22Compressive Stress>15kg/cm2





Related Products

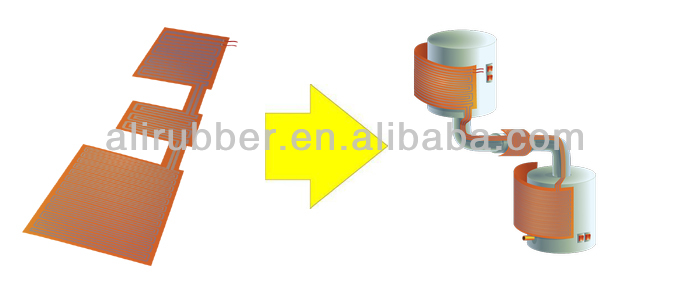

Due to the flexibility in circuit design of silicone rubber heaters, multiple heating circuits can be designed to accommodate dual voltage and multiple zones. On dual voltage heaters, three leads, including a common in a different color, are provided for wiring the heater in series for the higher voltage and parallel for the lower voltage. 120/240 Vac or 240/480 Vac can be achieved. Multiple circuit areas can be zoned to achieve different heating effects. Three-phase circuits can also be designed for high current applications.







Product Uses

1) Thermal transfer equipment;

2)  Composite bonding processes

3)  Airplane engine heaters and aerospace industry

4) Drums and other vessels and viscosity control and asphalt storage

5) Curing of plastic laminates

6) Computer peripherals such as laser printers, duplicating machines
