1500times/s high speed desk handsfree omni directional 2D barcode qr code scanner

Feedback Ratings
  • 2-19 Pieces
    US $90.00
  • 20-49 Pieces
    US $85.00
  • 50-99 Pieces
    US $80.00
  • >=100 Pieces
    US $70.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Barcode Scanner
Scan Element Type:
CMOS
Colour Depth:
32 Bit
Interface Type:
COM, PS/2, USB
Max Paper Size:
1000mm
Optical Resolution:
4mil
Scan Speed:
1500scans/s
Brand Name:
GTCODESTAR
Model Number:
GT-7120
Place of Origin:
Guangdong, China (Mainland)
Color:
white/black/grey/yellow/blue
Certification:
CE,ROHS,FCC,FDA,ISO9001&ISO14001
Warranty:
2years
Glass:
anti-explosion glass
IP Grade:
IP42,IP54,IP67 are available
Shock Resistance:
1.5m-2m
Scanning type:
Manual,Auto-sensing,
Application:
commercial,industry,
Reading ability:
read all kinds of standdard 1D&2D barcode
Advantage:
All kinds of barcode scanners optional

1500times/s high speed omni automatic flatbed 2D  barcode qr code scanner

Product Description

PRODUCT INFORMATION

2D/QR Barcode Scanner

Xincode Barcode Scanner can easily capture bar codes 1D, 2D on labels, paper, and mobile phone or computer displays,Sensitive and accurately.



CMOS High Efficiency Imaging Scanning Technology

Which can identify screen code, incomplete code and fuzzy code etc, Effectively compensate for the problem that scanner can not identify screen code.





USB interface, plug-and-play

USB cable can be connected to a computer or device which has USB port;Intuitive scanning and enables rapid deployment to immediately use without formal training,allowing new and experienced employees to immediately help improve operational efficiency.

Automatic working

Automatic working when the barcode close to, or it enter into Power Saving mode with no light.

No Scan Blind Area

Omnidirectional and 20 lines optical grating mode.Can change the direction of scan angle,1500times/second scan speed.

Physical Parameters

Material

ABS+PC

Size

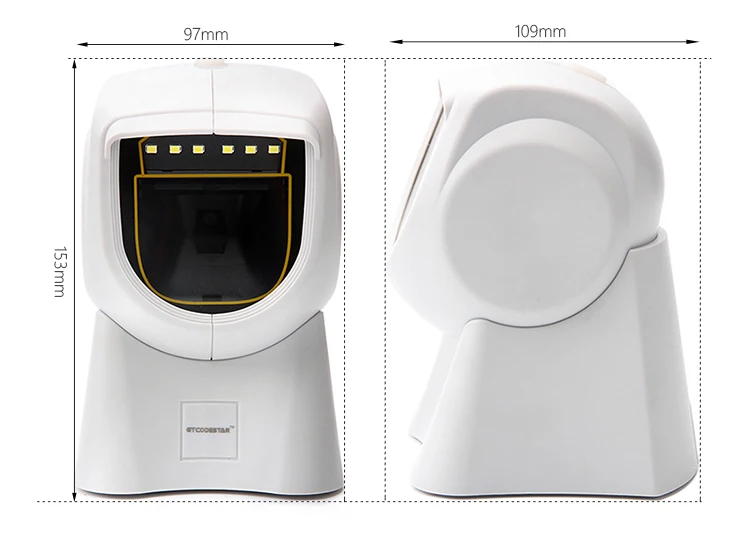

L*W*H: 153mm*109mm*97mm

Power Supply

DC 5V/420mA

Weight

310±5g (without cable)

Performance Parameters

Support Interface

USB

Sensor

Planar CMOS sensor

Light Source

white LED (lighting)

Processor

32-bit ARM MCU

Decoding Capability

1D version: Codabar,Code39,Code32,InterLeaved 2 of 5(24bit),Industrial 2 of 5( Industrial25),Matrix 2 of 5,Code93,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,GS1 DATABAR(RSS14),GS1 DATABAR Limited, Gs1databar Expanded

2D version: QR, MicroQR, PDF417, Data Matrix, AZTEC.

Resolution

 1D 4MIL, 2D QR8 3MIL, PCS45%

Depth of Field

4MIL  CODE39:       0--4   CM

13MIL  UPC-A :       0--16  CM

15MIL  QR    :       0--14  CM

1D code from Alipay 0--24 CM

2D code from Alipay 0--47 CM

Available for Stationery small barcode & wide barcode

Scanning Speed

300scans/sec

Scanning Method

Auto-sensing

Scanning Area

5 * 5 cm² -- 20 * 20 cm²

Prompting Mode

Buzzer, indicator light (LED)

Printing Contrast

No lower than 35%

Scanning Angle

Roll 0-360°, pitch ±65°, yaw ±60°

Environment Parameters

IP Grade

 IP 54

Operating Temperature

0 to 50 ºC / 32 to 122 ºF

Storage Temperature

0 to 50 ºC / 32 to 122 ºF

Operating Humidity

5 - 95% (non-condensing )

ESD Protection

15kv air discharge

Shock Resistance

1m free fall on concrete surface



Packaging & Shipping

Packaging & Shipping


After-sales service

All our products provide 12 months warranty.Details are as bellow:

  • During the warranty period,should your XINCODE product prove to be defective or you have any questions using the product,free to email us for instructions.
  • Regarding to the defective unit:
  1. We will ship replacement spare parts to you with your next order;
  2. If you're urgent to get the parts,we'll deliver you the parts individually,but we're not responsible for the shipping freight.
