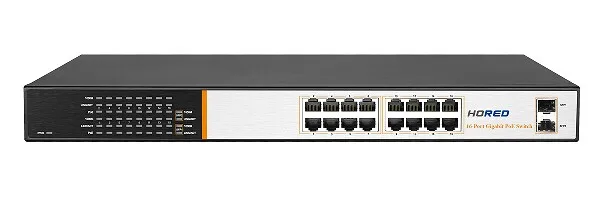

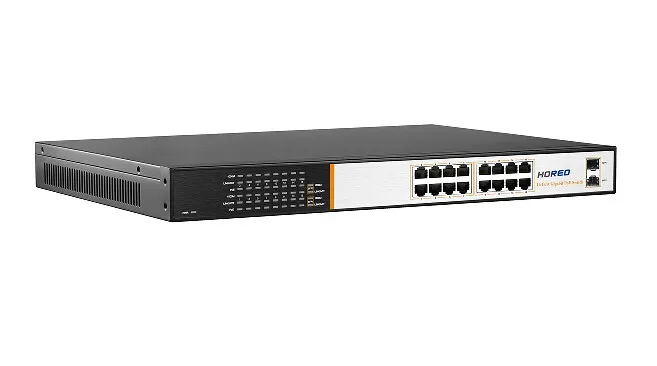

16 10/100/1000Mbps PoE switch with 2 SFP

Feedback Ratings
  • 1-19 Pieces
    US $165.00
  • 20-99 Pieces
    US $160.40
  • 100-199 Pieces
    US $157.30
  • >=200 Pieces
    US $152.70
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Overview
Quick Details
Products Status:
Stock
Ports:
16
Transmission Rate:
10/100Mbps
Function:
LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode:
Full-Duplex & Half-Duplex
Certification:
CE,RoHS, FCC
Switch Capacity:
7.2Gbps
Brand Name:
HORED
Model Number:
PS1016G
Place of Origin:
Guangdong, China (Mainland)
Product Name:
16 10/100/1000Mbps PoE switch with 2 SFP
Condition:
Box
Warranty:
One Year
Manufacturer:
Shenzhen Fengrunda Technology Co.,Ltd
Brand:
HORED
Device Type:
16 Port Unmanaged
Dimensions:
440(L)x290(W)x44(H)mm
PoE Standard:
IEEE802.3 af/at
LED Display:
Working Status
PoE Ports:
16 Port
Product Description

Product Name

PS1016G is a 16 Port unmanaged PoE Switch with 16 1000Mbps PoEport,2 SFP, reduces equipment and installation costs by delivering data and power over existing Ethernet cables to Power over Ethernet (PoE) enabled devices such as Access Points and IP Cameras. Boost office efficiency and reduce network congestion with a total switching capacity of 7.2Gbps. LED indicators display device status for easy power management and troubleshooting. An internal power supply reduces clutter and delivers 15.4 Watts to each PoE port. A convenient on/off button is located on the back of the switch. Non-PoE devices can connect to the switch—auto-sensing PoE technology cuts power to non-PoE connected devices. Use PoE Splitter with this switch to install non-PoE devices in remote locations

Features

16 Port 10/100/1000Mbps PoE port and 2 SFP unmanaged PoE Switch
16 port support power to PoE Powered Device
Complies with the IEEE 802.3f standard
Each Switching port support auto-negotiation-10/20, 100/200Mbps (Fast Ethernet) , 1000/2000Mbps (Gigabit Ethernet) supported
Prevents packet loss with back pressure (Half-duplex) and IEEE 802.3x PAUSE frame flow control (Full-duplex)
High performance Store and Forward architecture, broadcast storm control, runt / CRC filtering eliminates erroneous packets to optimize the network bandwidth
Non-blocking switching architecture that forwards and filterspackets at full wire-speed for maximum throughput
32 Gbps Switching Capacity

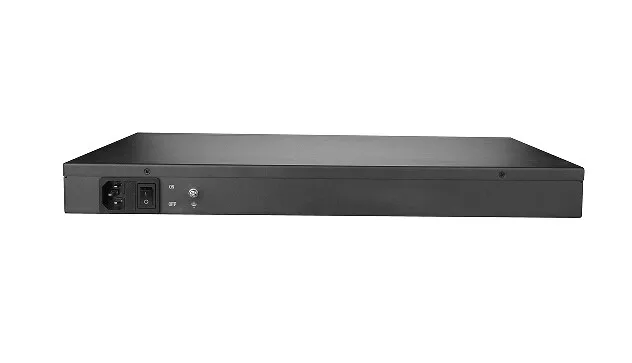

On/Off power switch
Internal power 250W

Technical Specification
Fast Ethernet Ports
16 10/100/1000Base-TX RJ-45 Auto-MDI / MDI-X ports
Port
16 10/100/1000Mbps PoE port, 2 SFP
Switch Processing Scheme
Store-and-Forward
Switch capacity
32 Gbps
Data RAM Buffer
2.75Mb
Flow Control
Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex
Dimensions
440 x 290 x 45 mm
Weight
5kg
Power Requirement
100-240V AC, 50-60 Hz
Temperature
Operating: 0~50 ℃; Storage: -40~70 ℃
Humidity Operating
5% to 90%, Storage: 5% to 90% (Non-condensing)
Warranty
1 year
PoE Standard
IEEE 802.3af/at standard Power over Ethernet
PoE Power Output
Per Port 48V DC, Max 30 watts
Power Pin Assignment
1/2(+), 3/6(-)
Certifications
FCC , CE, ROHS
Standards Compliance
IEEE 802.3 Ethernet ; IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet ; IEEE 802.3z Gigabit Ethernet
IEEE 802.3x Full-duplex Flow control ; IEEE 802.3af Power over Ethernet
Package
PoE switch, Power cord, User manual
