19 inch +multi section cabling rack used for telecommnucation equipments and network 19'' cabinet

Retailer's Choice
Feedback Ratings
  • 1-19 Pieces
    US $365.00
  • >=20 Pieces
    US $355.00
Sign in to view Reseller discounts
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Overview
Quick Details
Cabinet Standard:
ISO9011:2000
Material:
SPCC quality cold rolled steel
Size:
600x600mm 42U
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
WebiTelecomms
Model Number:
WB-9F664277B
Color:
Black,Grey,White
Static loading:
1000kg
Capacity:
42U
Certification:
ISO 9001:2008/CE/ROHS
Surface finish:
Picking Phosphating Powder Coated



Product Description

19 inch multi section server cabinet

    • Multi section 19" international structure

    • Three section(or customized) front arc perforated doors with handle locks

    • Firm&Plain door border, Hex mesh door make whole cabinet 75% ventilation rate

    • Enhanced door hinges with 130 degrees operation angle

    • Rear single perforated door with handle lock for operation

    • Nine/fourteen folds frame and welded by special 3-Tees

    • Swiveling wheels and adjustable feet can be jointly together

    • Removable side panels with plastic fasteners for easy operation,lock is for options

    • Enhanced bearing structure with 1000 KG capacity

    • Top with 2/4 fans for airflow&cooling, fan size: 120*120*38 mm

    • Several lockable wiring holes on top/bottom, size of the large hole at the bottom adjustable

    • Easy-to-disassemble front/rear/left/right doors enable convenient operation from any side of the rack

    • Varies specification upon customers' special requirements

    • Operation installation of base enables the rack to stay in a fixed position with meeting requirements of data center

    • under-base wiring ventilation

    • Linkage rack, full series of operational accessories

    • sensitive thermostat panel optional

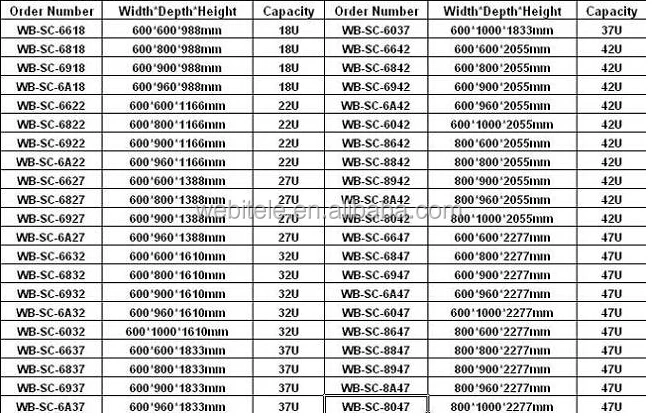

Width: 600,800 mm

Depth: 600,800,1000,1200 mm

Height: 12U, 15U, 18U,22U, 27U, 32U, 37U, 42U, 47U

Flexible packing methods allows for convenient stocking and end user delivery.

Standard and Material:

Comply with ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.

Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating

Material:SPCC cold rolled steel

Thickness:Mounting profile:2.0mm,others:1.20mm to 1.50mm

IP degree: IP-20

NO.

Item

600 wide

800wide

Materials

Treatment

Note

1

Frame

2

2

1.5mm SPCC steel

Powder coating

9 or 14 folds

2

Front Door

3

3

1.2mm SPCC steel

Powder coating

arc vented

3

Side Door

2

2

1.2mm SPCC steel

Powder coating

Removable

4

Back Door

1

1

1.2mm SPCC steel

Powder coating

Flat vented

5

Lock

4

4

\

\

Handle Lock

6

Top cover

1

1

1.2mm SPCC steel

Powder coating



7

Fan unit

1

1

0.8mm SPCC steel

Powder coating



8

Ac  fan

2 or 4

2 or 4

\

\

D>800,4 pcs

9

Fan power cord

1

1

\

\

L=1.5 to 2.0M

10

Bottom panel

1

1

SPCC T=1.2

Powder coating



11

Mounting angle

6

6

SPCC T=1.5

Powder coating

H≤27U, 4pcs

12

Mounting profile

4

4

SPCC T=2.0

Zinc plated



13

Earthing bolts

1

1

\

\

L=20 cm

14

Castors

4

4

\

\

3", W/O brake

15

M12 feet

4

4

Steel

Brass plated



Finished Products





Packaging & Shipping

standard export carton packing

Wooden Pallet+Case

Workshop & Machines

Certifications

Our Services

WebiTelecomms not only takes pride in the quality of our products, but also in the security we give our customers by standing behind them with a complete warranty. We put our products through rigorous performance tests throughout their production cycle before they reach our customers. Knowing to expect the unexpected, we ensure our customer’s satisfaction with a standard and extended warranty.

Standard Warranty

One year limited warranty on WebiTelecomms Products(Except man-made,natural disaster,special environmental corrosion).

Extended Warranty

3-Year limited warranty on WebiTelecomms Products, upon registration for extended warranty.

Standard and Extended Warranty Terms/Conditions

WebiTelecomms guarantees that all Products are free of production defects and will honor warranty claims except where:
1 Product has been altered in such way as to affect the Product.
2 Product has been subject to negligence by Buyer.

3 Product has not been used in accordance with normal practices and/or the recommendations.
4 Product has been destroyed by natural disaster,special environmental corrosion

NOTIFICATION OF DEFECTS. Buyer shall notify WebiTelecomms in writing within 30 days of discovering a defect. Failure to do so, will disqualify the Product from its warranty.

WARRANTY LIMITATIONS. Upon receiving notice of defective Product, WebiTelecomms will negotiate with buyer how to handle the defects,compensation,replacement or refund the purchanse price in new business.

Both WebiTelecomms & the Buyer agree that this warranty and all legal action between each other shall be construed under and governed by the rules of the China Busines Council in the buyer's country.

FAQ

Who is WebiTelecomms?

Since 2003,SINO LINK(WebiTelecomms's HQ) was built, WebiTelecomms has grown considerably to become a leading supplier of integrated cabling products in China. We owe our success to vast and diversified range of indoor/outdoor 19’'cabinets,PDU and other cabling products,professional
production technology,expert knowledge of the markets and a reputation for superior customer satisfaction.

With the unique location advantage of Ningbo port,WebiTelecomms has exported to over 30 countries.Though under the increasing competitive pressure in the global market,we keep looking for new opportunities and challenges.

Why Choose WebiTelecomms Co.,Ltd?

1.Innovative and complete solution provider
2.Professional and timely technical support
3.Comprehensive certificate authentication
4.Strict testing and packing section
5.Stocks available
6.OEM/ODM production service
7.Perfect after-sales service
8.1 year warranty period after sales(except man-made,natural disaster,special environmental corrosion)

1)    What is your Payment term?

---TT, LC, Western Union could be accepted.

2)    What is your Trade term?

---EXW, FOB, CNF, CIF is also ok.

3)    What is the Loading Port?

--- Ningbo,Shanghai.

4)    What is your MOQ?

---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item

in the price list.

5)    What is your Product Warranty?

---As Europe market, we have CE RoHS and other international safety standard for our products.

---As other market,international safety standard certificate also could be provided.
