2 way DN25mm 1" Stainless steel CR202 electric motorized valve spring return

Feedback Ratings
  • 1-9 Pieces
    US $31.00
  • 10-99 Pieces
    US $30.50
  • >=100 Pieces
    US $30.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
High Pressure
Power:
electric ball valve stainless steel
Material:
Stainless Steel
Temperature of Media:
High Temperature
Media:
Water
Port Size:
DN25 1"
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
motorized valve
Brand Name:
Tonhe
Application:
General
Type:
B type
Certificate:
CE, NSF61,Rohs, IP67
Body material:
stainless steel
Color:
gray, black, blue
Torque:
2N.M
Voltage:
AC/DC7-35v
Working current:
≤500MA
Open/close time:
≤5S
Seal Material:
EPDM & PTFE
Product name:
2 way 1" Stainless steel CR202 motorized valve spring return

Packaging & Delivery

Selling Units:
Single item
Single package size:
11X8X9 cm
Single gross weight:
0.62 KG
Package Type:
10pcs/carton, 30pcs/carton
Lead Time :
2
Product Description

2 way DN25mm 1"  Stainless steel CR202 electric  motorized valve spring return
2-way stainless steel motorized actuator water ball valve for water leak detection , AC/DC7-35 , IP67, CE , metal gears, PPO actuator housing , 100000 working life , operating time 5s .



Technical Parameters:

Product size NPT/BSP 1"

Maximum working pressure 1.3 MPa

Circulation medium Fluid, air

Rated voltage AC/DC7-35

Wiring control methods CR2 02

Working current ≤500MA

Open/close time ≤5S

Life time 100000 times

Valve Body material  Stainless steel 304 (Optional)

Actuator material Engineering Plastics

Sealing material EPDM & PTFE

Actuator rotation 90°

Max. torque force 2 Nm

Cable Length 0.5m

Environment temperature -15℃~50℃

Liquid temperature 2℃~90℃

Manual override  Yes

Indicator Yes

Protection class IP67



Valve can with manual override and indicator :



 DN25mm CR201 2 way motorized electric ball valve stainless steel





Detailed information

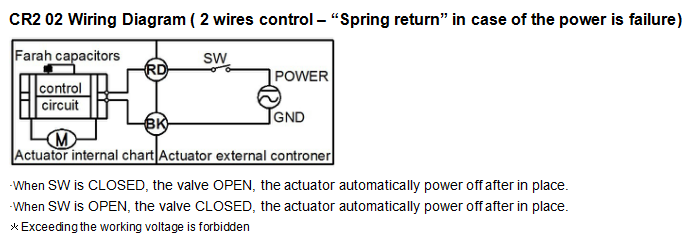

  CR202 WIRING


Application

Water meter , water leak detection system and water treatment etc equipment

HAV and fire works. Automatic drain system

Irrigation ect small control equipment




Pls confirm the above different versions of actuators



When you inquiry the valve, pls confirm the detail  technical data :

1, valve size , materail

2, working voltage

3, wire control

4, valve manual override & indicator ( yes or no)

5, actuator cable length


DN25mm CR201 2 way motorized electric ball valve stainless steel

Pre-sale service

1.We have full stock and can deliver within short time.

2.OEM and ODM order are accepted, Any kind of logo printing or design are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment

3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone.


DN25mm CR201 2 way motorized electric ball valve stainless steel

TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .


DN25mm CR201 2 way motorized electric ball valve stainless steel


DN25mm CR201 2 way motorized electric ball valve stainless steel
DN25mm CR201 2 way motorized electric ball valve stainless steel


DN25mm CR201 2 way motorized electric ball valve stainless steel

Packaging & Shipping

 DN25mm CR201 2 way motorized electric ball valve stainless steel

DN25mm CR201 2 way motorized electric ball valve stainless steel



FAQ

Q. what is your payment term?

 A: T/T 30% down payment, balance to be paid before shipment. or L/C.



Q: what is your main market?

A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe



Q: How about your products and company approved?

 A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.



Q: Can I get samples from your factory?

A: Yes, Samples can be provided.



Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.

DN25mm CR201 2 way motorized electric ball valve stainless steel
DN25mm CR201 2 way motorized electric ball valve stainless steel



Packaging Details
