200 liter Silicone Oil Drum Heater with Adjustable Thermostat(Dial/Digital)

Feedback Ratings
  • 1-9 Pieces
    US $112.00
  • 10-29 Pieces
    US $110.00
  • 30-99 Pieces
    US $108.00
  • >=100 Pieces
    US $105.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Band Heater
Power Source:
Electric
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Alixd
Model Number:
XD-H-061
color:
custom
size:
custom
thickness:
1.5mm thickness(standard)
type:
eletric heating
shape:
custom

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X30X30 cm
Single gross weight:
1.8 KG
Package Type:
carton box
Lead Time :
2
Video Description

Drum Heater







Product Description

Our heaters are made of fiberglass cloth impregnated with silicone rubber, which together provide great strength and flexibility. A wire heating element is then  vulcanized between two layers of silicone rubber, forming a durable yet very flexible heat blanket that is resistant to moisture, chemicals, acids and many industrial solvents.

        qu-bd-pad-01











Specification
Model No.Length & Width inches(mm)VoltageWattageMountings
Alixd-H-1× 6 (152.4  × 152.4mm)1250Adhesive
Alixd-H-28 × 8 (203.2  ×  203.2mm)12165Adhesive, Thermistor 100K
Alixd-H-312  × 12 (304.8 × 304.8mm )24350Adhesive, Thermistor 100K
Alixd-H-4Dia 6.3(160mm)12120Adhesive, Thermistor 100K
Alixd-H-539.37  × 39.37(1000 × 1000mm)1104000Digital Temperature Controller

Alixd-H-6

6.1  × 39.37(155 × 1000mm)220650Plug
Alixd-H-735.4 × 70.87(900 × 1800mm)3807000Digital Temperature Controller
Alixd-H-839.37 × 118.11(1000 × 3000mm)41513000Digital Temperature Controller Box

If you can't find your size in the aboe form, please contact with me.The max width is 1200mm, and no limit for length.



Technology
ProductModel NO.MaterialHardness
Silicone Heater

XD-H-.061

Orange High Temperature Silicone60±3
ShapeData
Size: mmRated VoltageCustomize
              _20130626140234Rated Wattage00.07-1/cm2
Static ResistanceCustomize
Max Temperature can bear250C
Max Used Temperature180-200C
Compressive Strength≥3KV
Insulation Resistance≥100MΩ
Tensile Strength≥8.0Mpa/M2
Elongation at Break≥4%
Length: CustomizeCable300mm(standard)Peel Strength≥2500N/M2
Width: CustomizeSpecification of the cableAWG22Compressive Stress>15kg/cm2

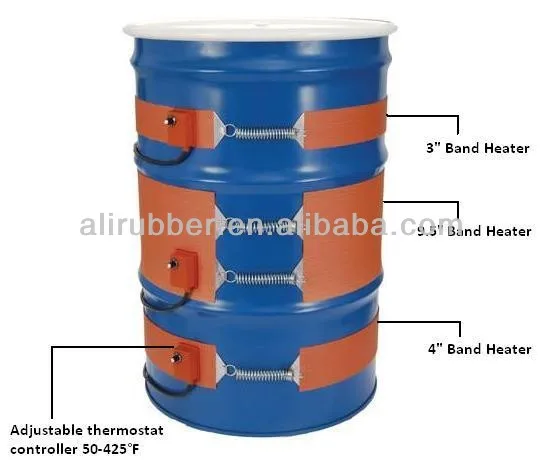

Drum Heaters
Low Watt Density Electrical Resistance Heater
Models Available for 55, 30, 15, and 5 Gallon Drums
With or Without Adjustable Thermostat
Quick and Simple Installation
For Freeze Protection or Temperature Maintenance Applications






Product Uses
