Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OEM
Model Number:
C6-BLE Beacon Tag
Chipset:
DA14580
Wearable optional:
neck-string and key chain
Battery lifetime:
CR2032 battery, 6 months lifespan
Transmission Range:
80m
Support:
iOS 7.0 and Android 4.3 above
Certification:
CE/FCC/BQB EPL/RoHS/MFi
Service:
Support OEM/ODM

2015 New Arrival Bluetooth 4.0 low Energy iBeacon Tag

High lights:

1. Badge Beacon C6 Powered by CR2032 battery, replaceable;

2. iBeacon professinal manufacturer based on Shenzhen, China;
3. Superior quality and very competitive pricewith fast shipping;
4. DA14580 chipset, 6 months battery lifetime;





Product Description





- The BLE Beacon Crad C6 is designed based on the Low Energy Bluetooth 4.0 technology.

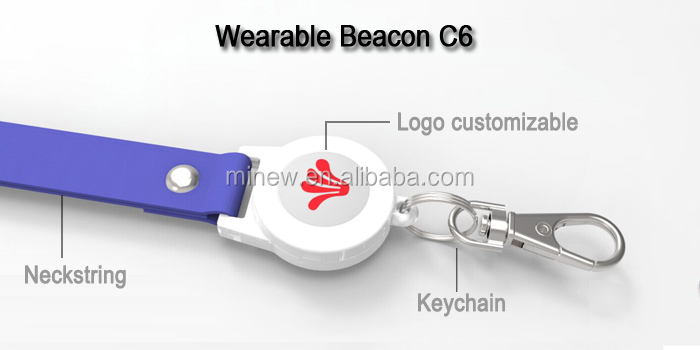

- Wearable optional: neck-string and key chain





Compatibility

- Supported iOS 7.0+ and Android 4.3+ system;



Wearable optional

neck-string and key chain



Configurable Parameters

- UUID, Major, Minor, Device Name, Password etc.

- Special Configuration APP;



Long Range

- The max. Range 80 meters in the open space;



Accept OEM/ODM service

- Easy to print your logo on the case



Security

- 8 characters password(Lock/Unlock parameters);

- AES HW encryption.





Item

Value

Remarks

Chipset

DA14580

From Dialog

Battery Model

CR2032 battery

1pc

Operation Voltage

1.8-3.6V

DC

Transmission Circuit

10.5mA(Max.)

Tested at 0dBm transmission power

Transmission Range

80 meters

Maximum

Antenna

50ohm

On board / PCB Antenna

Size

42 x 31 x11 mm

Null

Case Available

White

Other colors could be customized


Feature & Andvantage



>Tools and configuration

UUID, Major, Minor and other values support for factory customization; also can change the values via our configuration app.









> Certification

APPLE iBeacon MFi certification, BQB/FCC/CE certification Approved by the Ministry of industry and Information Technology of P.R China to ensure the use of legal and safe places of public places.

> Professional

An ISO9001:2008 certified manufacturer focusing on design and manufacture many different high quality and low cost ibeacons.




Customized Service

- Print your logo on the top of MiniBeacon;
- Programmer your firmware into iBeacon Module;
- Pre-configure the value of parameter before the shippment;
- PCB can be customized if needed;
- Package can be customized if required;
- Prototyping the casing and mold tool design and injection service.





Similar Products







i5 Double-battery     i8 Diamond iBeacon   i1 waterproof      i3 Robust iBeacon      i6/i9 sticker iBeacon





FAQ



Do you have configure app and instruction?

Re: Yes,we will provide you after you buy our sample.

Can I change the password?

Re: Yes,you can change what you want to set.

Do you have SDK or the source code?

Re: Yes,we will provide you after sample was arrived.

How to upgrade the firmware via over-the-air?

Re: Pls refer to the file "OAD instructions.pdf".Minew sales will provide you the document.

Does MiniBeacon comply with Apple's iBeacon standard?

Re: Yes,MiniBeacon has been licensed by Apple ibeacon program with contact No.iBC-14-00582.
