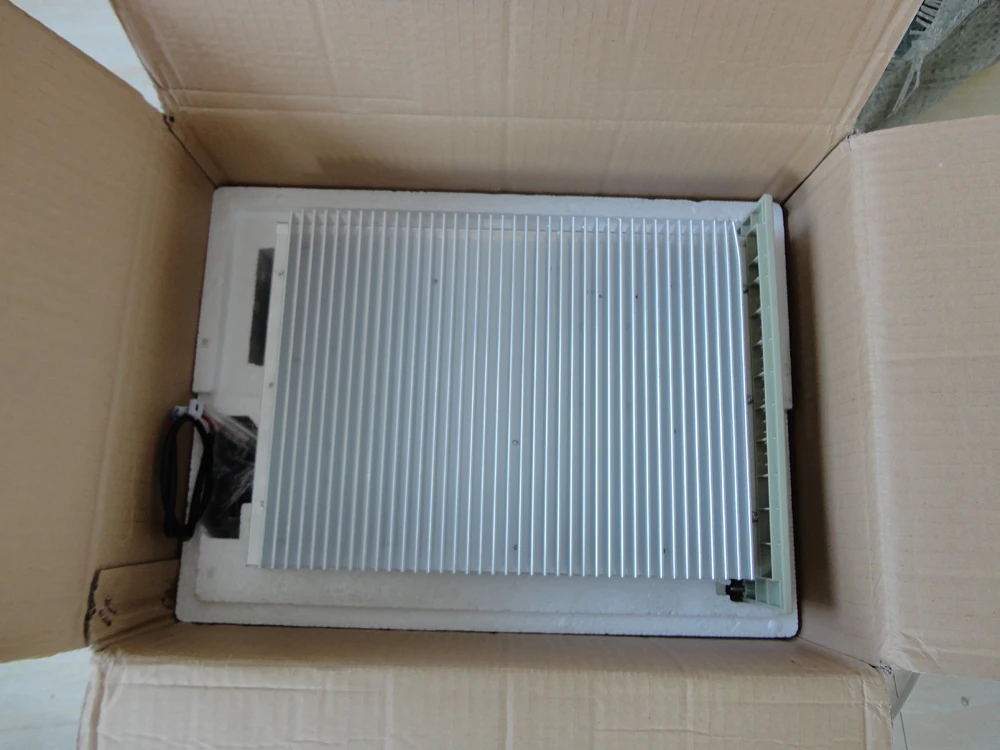

220VAC Input Battery Charging Rectifier 110D10ZZ-220VAC for 110V DC Power System
“SD” series intelligent high-frequency switch power supply modules are specially developed to meet the demands of modern DC system. The charger rectifiers are designed with world leading patent technology “resonant voltage type soft switching power supply technology”. They feature high efficiency and stability, intelligent control, small size and light weight. Standard RS-485 interface, easy to connect with automation system. “Four remotes” functions, intelligent management. The products are widely used in power plant, substations and etc.
Main features of the module:
High efficiency, over 95%
Small size and light weight
Use “3 phases PPFC” circuit, the power factor 0.93
Separated automatic current equaling, unequal current ratio of parallel connection<±3%, can ensure twenty modules work well in parallel operation.
With RS-485 communication interface,digit display
have the functions of communication, data display and failure alarming
Built in DC output isolation diode
Several modules can work in parallel to give bigger required output current
Size (H × W × D) mm
380V AC±15%, 3 phase
220V AC±25%, single phase
AC input frequency
45Hz ~ 65Hz
95-150V, RATED 110V
Soft start time
3 ~ 8s
≤ ± 0.5%
≤ ± 0.5%
Current sharing imbalance
≤ ± 3%
Natural cooling with radiator
RS485 or RS232
Multi-protection including input over or under-voltage, output over or under-voltage, over-temperature, reverse connection, phase failure, and short circuit protection. The rectifier will shut down without output, and self recoverable
The output current will not increased if it exceed the threshold. 105% rated current
70 ~ 106kPa
1. Output over-voltage protection:
To prevent the disastrous accident caused by output over-voltage, there is over-voltage protection circuit in the module. Once the output voltage is higher than the threshold, the module locks up automatically and fault indication light is on, the faulty module quits work automatically and doesn’t affect the normal operation of the entire system. The threshold is 320V±5V.
2. Output current limiting protect:
The output current cannot increase infinitely. The maximum output current of is limited to 105% of the rated output current.
3. Output short-circuit protection:
When short circuit, the output voltage drops to 0 immediately. Limit the short circuit current under 15% of rated output current. The module will not be damaged under short circuit state for a time, and resumes to work automatically after debugging.
4. Module parallel protection:
There is parallel protection circuit in each module to ensure that when the fault module quits the system, the normal work of other modules and the system won’t be effect.
5. Over-temperature protection:
Over-temperature protection is mainly for protecting large power components. In particular case, when the temperature of the radiator is over the threshold 85℃, the charger module shuts down automatically to protect itself and resume to work after the temperature comes lower.
6. Output over-current protection:
The output current cannot increase infinitely. If overloaded, the output voltage decreases automatically to protect the power components. The over current protection can be resumed automatically.
7. Measuring function:
Measure the output voltage/current and working position.And the user can know the working condition of the module and system through the digit display.
8. Failure warning function:
When failure it alarms and the indicating lamp lights and the same time the failure information shows on the display screen. The user can easily identify the failure and remove timely.
9. Set function:
Output voltage set: Set the output voltage according to monitor’s command
Stepless current limit: current limit threshold is editable within 10% - 100% rated current
State control: Control the module ON/OFF, boost/float charging voltage change.
