24 port 10/100/1000Mbps managed PoE switch with 2 SFP

Feedback Ratings
  • 10-19 Pieces
    US $227.50
  • 20-99 Pieces
    US $220.60
  • 100-199 Pieces
    US $217.00
  • >=200 Pieces
    US $210.60
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Overview
Quick Details
Products Status:
Stock
Ports:
24
Transmission Rate:
10/100Mbps
Function:
LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode:
Full-Duplex & Half-Duplex
Certification:
CE, FCC, RoHS
Switch Capacity:
48Gbps
Brand Name:
HORED
Model Number:
PS1024GS
Place of Origin:
Guangdong, China (Mainland)
Material:
Metal case
Capacity:
48G
Certificate:
CE, FCC, RoHS
Origin:
shenzhen China
Transmission rate:
10/100/1000Mbps
PoE Standard:
IEEE802.3af/at Standard
PoE Ports:
24 port poe
SFP port:
2 SFP
Brand:
HORED
Product name:

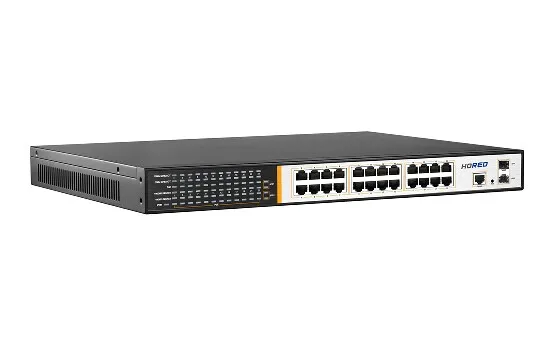

24 port 10/100/1000Mbps managed PoE switch with 2 SFP
Product Description

The 24 -Port managed PoE Switch with 24 1000Mbps RJ45 PoE ports,2 SFP, model PS1024GS, reduces equipment and installation costs by delivering data and power over existing Ethernet cables (CAT5 cable)to Power over Ethernet (PoE) enabled devices such as Access Points and IP Cameras.


Boost office efficiency and reduce network congestion with a total switching capacity of 48Gbps. LED indicators display device status for easy power management and troubleshooting. An internal power supply reduces clutter and delivers 15.4 Watts to each PoE port. A convenient on/off button is located on the back of the switch. Non-PoE devices can connect to the switch—auto-sensing PoE technology cuts power to non-PoE connected devices. Use PoE Splitter with the PS3024 to install non-PoE devices in remote locations

Features

24 10/100/1000Mbps PoE port, 2 SFP  managed PoE Switch
24 -Port supply power to PoE Powered Device
Complies with IEEE 802.3af standard
Each switch port support auto-negotiation-10/20, 100/200Mbps (Fast Ethernet) , 1000/2000Mbps (Gigabit Ethernet)
Prevents packet loss with back pressure (Half-duplex) and IEEE 802.3x PAUSE frame flow control (Full-duplex)
High performance Store and Forward architecture, runt / CRC filtering eliminates erroneous packets to optimize the network bandwidth
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
48 Gbps Switching Capacity

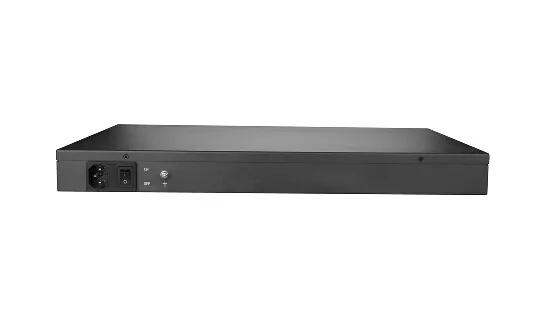

On/Off power switch

Technical specifications
Product name
24-port managed gigabit POE switch
Order No.
PS1024GS

Network protocols and standards
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T , IEEE 802.3z 1000BASE-X
IEEE 802.3x Flow Control , IEEE 802.3af Power over Ethernet


Power Specifications
Power consumption: maximum 390W
PoE Power: 440W
Voltage: 100 - 240 VAC, 50 -60 Hz

Network interface
24 10/100/1000M ports with PoE features
 2 10/100/1000M SFP


Environmental norms
Operating Temperature: 0 ° - 50 ° C (32 ° - 104 ° F)
Storage Temperature: -20 ° - 70 ° C (-4 ° - 158 ° F)
Operating Humidity: Maximum relative humidity 90% without condensation
Storage humidity: 95% maximum relative humidity, non-condensing
LEDs
Power, PoE, Link / Activity
Certification
CE, FCC, RoHS



Performance Specifications
Forwarding modes: Store and forward
Bandwidth: 8.8 Gbps (non-blocking)
network latency: 100 Mbps to 100 Mbps transmission, storage and forwarding mode under a 64-byte frame delay is less than 20 microseconds
Mean failure interval (MTBF): 300,000 hours (about 34 years)
Warranty
1 year
Physical Specifications
Dimensions: 440 x 290x 44 mm , Weight: 5 kg
Package Contents
 24 port POE switch ,  Power cord , 1U Rackmount Brackets , User guide
Related Products

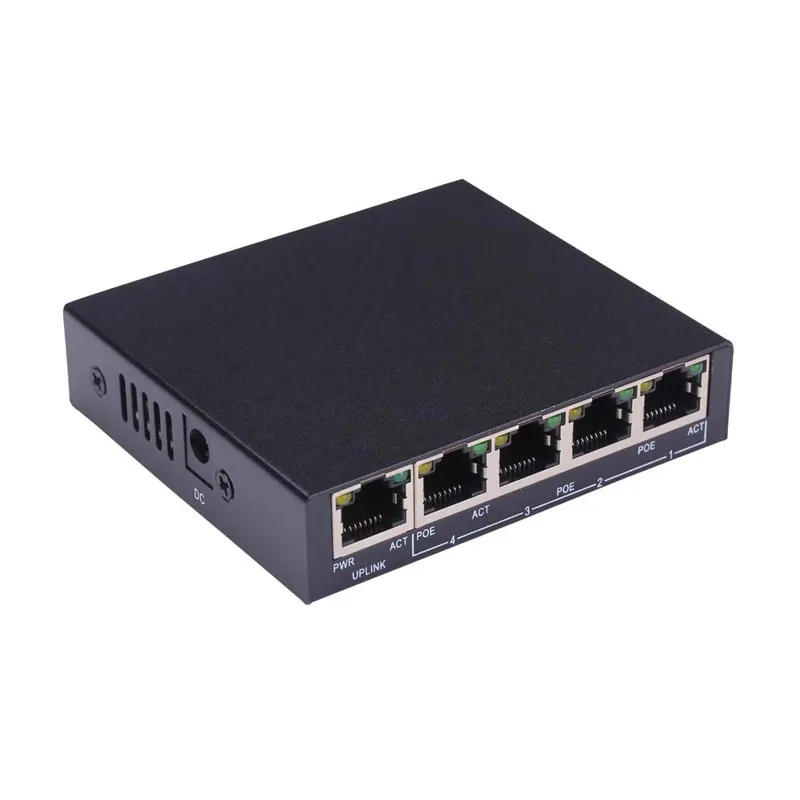

                  PS504
4 100Mbps + 1 100Mbps uplink

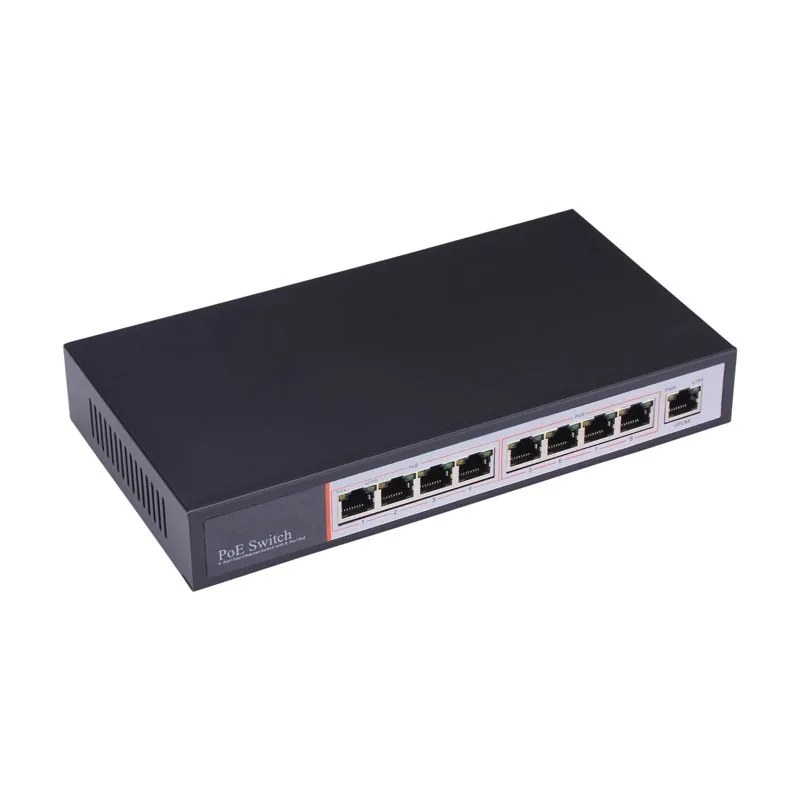

            PS1081G
