3131A-S wifi module wifi hotspot Manufacturer LiteOS

Feedback Ratings
  • 1000-4999 Pieces
    US $2.30
  • 5000-9999 Pieces
    US $2.10
  • >=10000 Pieces
    US $2.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
FN-LINK
Model Number:
3131A-S
power voltage:
3.3Vdc
WIFI Standard:
IEEE802.11b/g/n
Operating Frequency:
2.4G: 2.4000GHz~2.4835GHz
Host Interface:
SDIO
DATA Rates:
150Mbps
Antenna:
External Antenna
Security:
WEP,TKIP,AES,WPA,WPA2
OS Support:
Android /Linux
Dimension:
L12*W12mm
Main Chipset:
1131S
Note

Respected customers ,thank you for your interest in our product! Before placing the order please contact our sales staff to confirm inventory.
Detailed specifications docs,please download form the official website.
skype:15982299436

Product Introduction

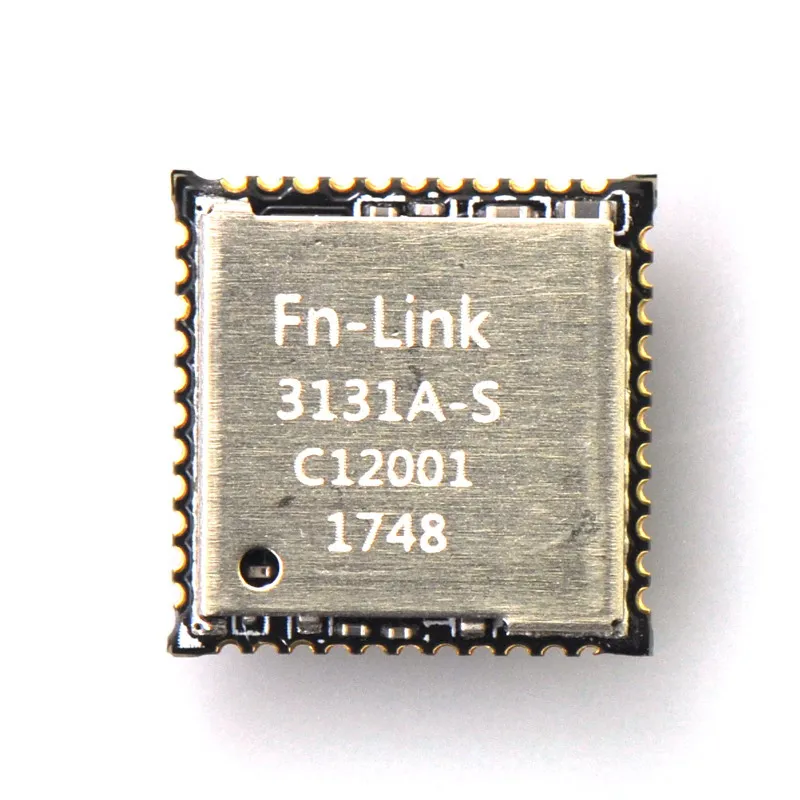

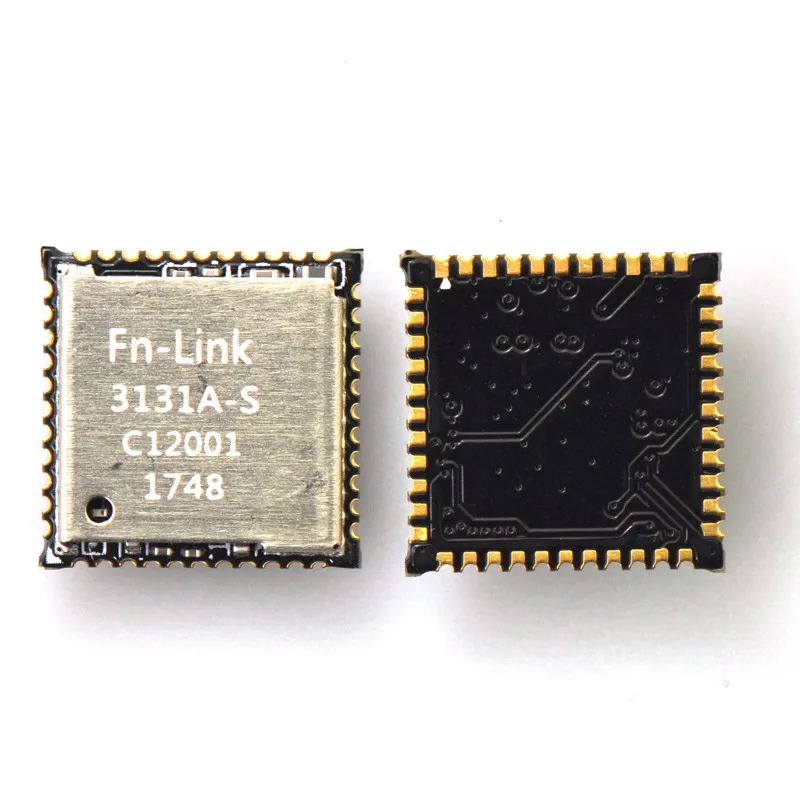

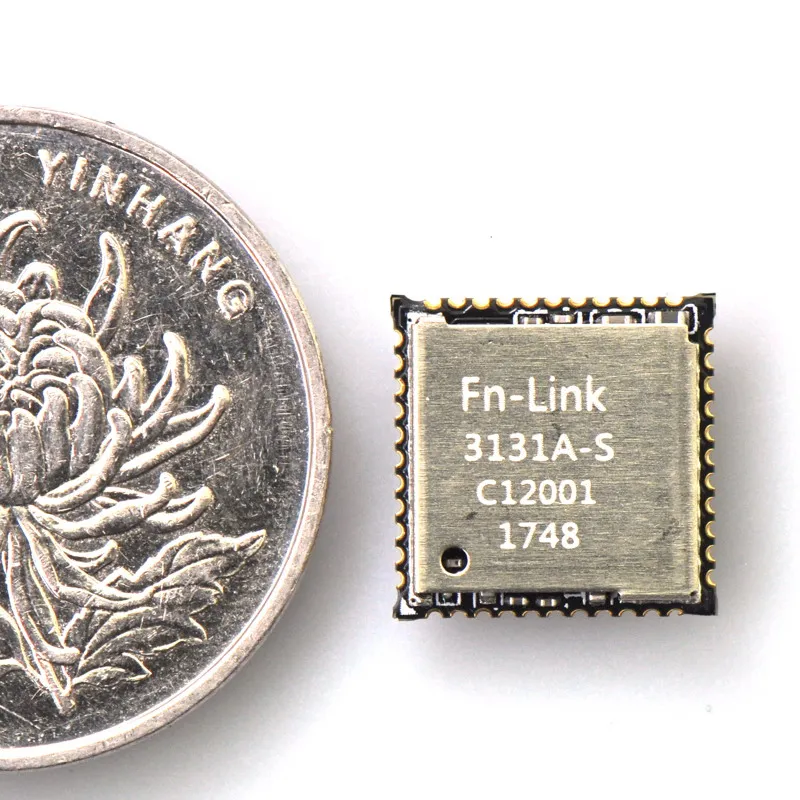

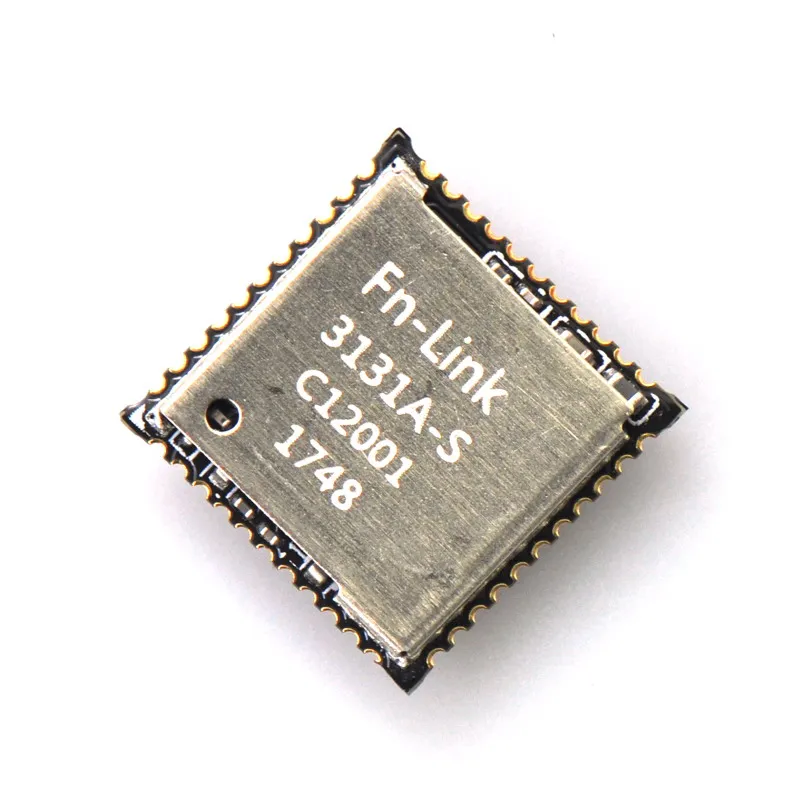

3131A-S is a small size and low profile of WiFi module, board size is 12mm*12mm with module thickness of 1.7mm. It can be easily manufactured on SMT process and highly suitable for tablet PC, ultra book, mobile device and consumer products. It providesSDIO interface for WiFi. The WiFi throughput can go up to 150Mbps in theory by using 1x1 802.11b/g/n MIMO technology.2195A-S uses highly integrated WiFi single chip based on advanced COMS process.

2195A-S integrates whole WiFi function blocks into a chip, such as SDIO/MPU, MAC,BB, AFE, RFE, PA, EEPROM and LDO/SWR, except fewer passive components remained on PCB.

This compact module is a total solution for Wi-Fi technology. The module is specifically developed for Smart phones and Portable devices.

Features

 Operate at ISM frequency bands (2.4GHz)
 SDIO for WiFi
 IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n.
 Enterprise level security which can apply WPA/WPA2 certification for WiFi.
 WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates

Application range:

Tablet / notebook
Advertising machine /TV board
OTT/IPTV/DVB/STB
DV/ IPC/Mini driving recorder / doorbell
Smart TV / intelligent projector Pico
VR/AR terminal
Wireless storage
Printer /POS machine / electronic said
Vehicle mounted front / rear terminal
UAV / robot
Intelligent Gateway
Toys
Lighting lamps / intelligent street lamps
Smart home appliances / appliances
Instrument and meter (water, electricity, gas)
Smart city and other consumer electronic products

Detailed parameters
Model No
3131A-S
Main Chipset
1131S
WIFI/BT Interface
SDIO
WIFI Standars
EEE802.11b/g/n
DATA Rates
150Mbps
Certification
RoHS,REACH
RF Antenna
external Antenn
OS Supported
Android /Linux
Operating Frequency
2.4
Operating Voltagc
3.3V
Dimensions
L x W : 12x 12  mm
RF Chains
1T1R
Operating temperature
-30°C to 70°C
Storage temperature
-40°C to 125°C
