Overview
Quick Details
Brand Name:
FMUSER
Model Number:
FBE204-H.265
Place of Origin:
Guangdong, China (Mainland)
Color:
Black
Size:
146mm(W)x140mm(D)x27mm(H)
Power supply Voltage:
110VAC±10%, 50/60Hz; 220VAC±10%, 50/60Hz
DC Power input:
12V or 5V by Micro-USB
Consumption:
less than 40W
Operating temperature:
0--45°C (operation), -20--80°C (storage)

4 in 1 H.264/H.265 HD encoder IPTV Encoder High Definition HD IPTV Streaming Encoder  HDMInput--FBE204-H.265 lanyue





R: V20161125-17-12
Data sheet









Overview

In a fast changing and highly competitive TV market, operators and TV service providers must deliver access to content on all screens, anytime, anywhere, while also reducing complexity and driving efficiency across all platforms. The 4IN1 FMUSER FBE204 encoder is designed to address the increasing demand for video delivery to internet and mobile devices.



FMUSER FBE204 is high integration and cost-effective design make this device widely used in variety of digital distribution systems, such as construction of professional broadcast level IPTV&OTT system, hospitality IPTV application, Remote HD multi-window video conference, Remote HD education and Remote HD medical treatment ,Streaming Live Broadcast etc.



The 4IN1 FMUSER FBE204 H.264 /H.265 IPTV Streaming Encoder supports 4 audio and 4 HDMI video collection by input simultaneously for option. You can choose to use the HDMI or 3.5mm stereo for audio line in.



Each channel of HDMI input supports 3 IP streams output with two different resolutions(one higher resolution, one lower resolution) for adaptive bitrate , each group of IP stream supports two kinds of IP protocols output (RTSP / HTTP/ Mulitcast / Unicast / Rtmp ).



4IN1 FMUSER FBE204 IPTV Encoder can deliver H.264/ H.265/ encoding video streams with more channels of independent IP output to various servers for IPTV & OTT application, such as Adobe Flash Server(FMS), Wowza Media Server, Windows Media Server , RED5,and some other servers based on UDP / RTSP / RTMP / HTTP / HLS / ONVIF protocols. Of course it support VLC decode.



FBE204 is compatible with most of streaming platforms, Live Broadcast On Any Streaming Service like WOWZA,FMS,Red5,Youtube Live, Facebook live, Ustream, Livestream, Twitch, Meridix, Streamspot, Dacast, Tikilive, Netrmedia...

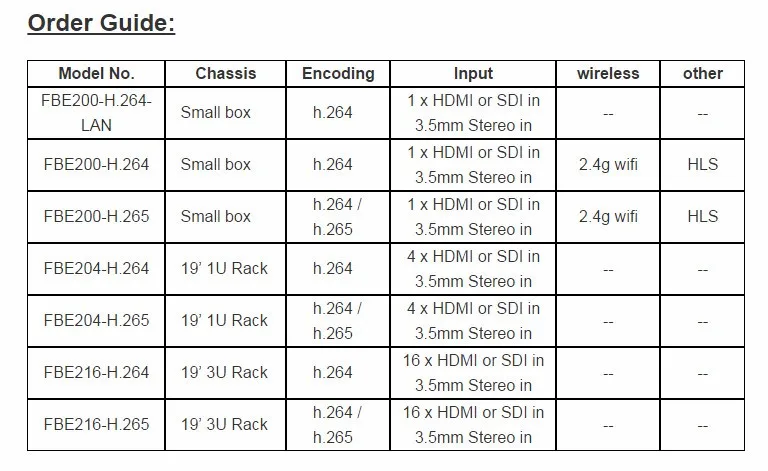

We also have SDI versions, 1way or 16 in 1 encoders in professional 19' 3U Rack chassis, please feel free to contact us if you need them.



If you want to promote your own brand, we can also do OEM for you.



**We reserve the right to upgrade the appearance or functions of the product without extra notice.



Features

--Video Compression support H.264 / H.265 ,Main Profile / High Profile / Baseline Profile
--Audio Compression support MP3 & AAC-LC/HE audio compression
--Bitrate CBR / VBR16Kbit/s--12Mbit/s
--Streaming resolution up to 720, 720P, 1080P
--GOP frame rate settings supported
--insertable of logo and Scroll Caption(OSD)
--Adjustable of audio gain
--Capable of image parameter settings
--Each Program Support up to 3 TS over IP stream out
--Switchable of audio output mode: Left, right and Stereo
--Configurable of Multi-rate, Multi-resolution, Multi-protocol
--Providing HLS / RTSP / HTTP / UDP / RTMP protocol
--Support  ffmpeg , HLS
--Support ONVIF Network Video Protocol
--Web-based management
--Full-duplex mode 1000M / 100M
--Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, Mobile/ web, Set top box applications
--Support multiple equipments display at the same time on one computer

--Support Microsoft standard flow driven architecture (WDM architecture), support Microsoft WMENCODER, compatible with Windows VFW software architecture and WDM mode.



Applications
--Digital TV Broadcasting System
--RJ45 Digital TV Programs Transmission
--Hotel TV System
--Head-end system of Digital TV branch network
--CATV Broadcasting system
--Edge side of Digital TV backbone network

--IPTV and OTT headend system




IP output over RTP / RTSP / RTMP / HTTP / HLS  -- Transfer through internet or LAN



FMUSER FBE200 support a secure live and on-demand streaming both within and outside their corporate networks. Empowers enterprises to personalize engagement, reduce travel costs, extend their reach, and boost sales through video streaming.



Broadcast Streaming Solutions, Powering Leading-Edge Broadcasting.

Deliver traditional broadcast channels over the top while also creating leading-edge broadcasting channels to power mobile journalism and citizen participation.



Education Streaming Solutions.Streaming for the classroom and beyond.Extend your reach. Engage. Make the most of your budget.





IP output over UDP (Unicast / Multicast)  --  Transfer trough LAN



 Schematic diagram





Technical Specifications

*VIDEO Encoding
--Video Compression: H.264 / AVC or H.265 / HEVC High Profile Level 1.5
--Video Inputs: 4 x HDMI 1.3a version (support HDCP protocol, or 4 x SDI for option)
--Resolution:
-----HDMI / SDI main stream:
1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480,
720x404, 704x576, 640x480, 640x360, auto
-----HDMI / SDI sub-stream:
1280x720, 800x450, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480,
640x300, 352x288, 320x240, 320x180, auto
--Bit-rate: 16kbps~12Mbps, CBR/VBR

--Video pre-processing: Noise reduction, Sharpen, Filtering



*AUDIO Encoding
--Audio Inputs: 4 x 3.5mm Stereo Audio input
--Audio compression: AAC, MP3
--Sampling rate: Adaptive, selectable of re-sample.
--Sampling accuracy: 24-bit
--Bit Rate: 48k,64k,96k,128k,160k,192k,256k

--Re-sample:32k, 44.1k



*IP Encapsulation output
--Transport protocol: TS over IP output, RTSP / HTTP / UDP or RTMP protocol
--For each HDMI (SDI) to IP output (HTTP / RTSP / UDP / RTMP / HLS protocol) 3 group out with higher resolution(up to 1080P) for large screen application.
--Output :4 X RJ45, 100/1000M Full


*GENERAL OPTION
--Power supply Voltage: 110VAC±10%, 50/60Hz; 220VAC±10%, 50/60Hz
--DC Power input: 12V or 5V by Micro-USB
--Consumption: less than 40W
--Operating temperature: 0--45°C (operation), -20--80°C (storage)
--Dimensions: 500mm(W)*400mm(D)*45mm(H)
--Package Dimensions: 550mm(W)*400mm(D)*145mm(H) ,(0.03CBM)

--Package Weight: 3.5KG





Appearance and Illustration



Front Panel:



1. RJ45 100M / 1000M IP Output
2. 3.5mm Stereo Audio Line in
3. HDMI Video in
4. Status LED / Power LED
5. Reset to Factory

Rear Panel Illustration:





Network Management System

Network management system is applied to control and manage parameters and setting, etc. It centralizes encoders through network easy.






Packing List
1pcs           FMUSER FBE204  IPTV streaming encoder 4 X HDMI in
4pcs           HDMI Cable
4pcs           3.5mm to RCA female (L-R)
1pcs           110V / 220V Power Cable
1pcs           User Manual
